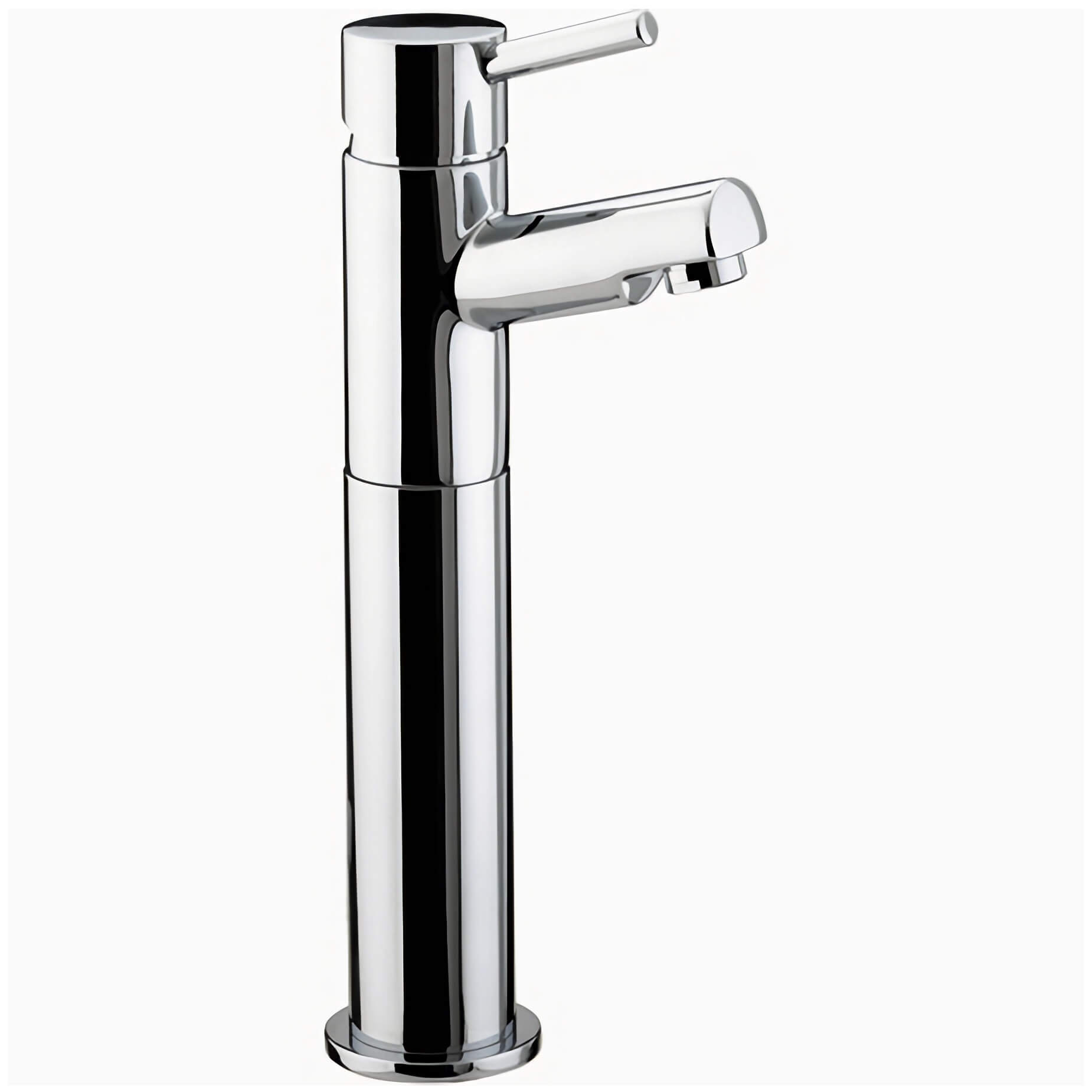

Bristan Prism Contemporary Chrome Tall Basin Mixer Tap, Deck Mounted

Bristan Prism Details

MFC: PM TBAS C

Bristan introduces the stylish, Prism Tall Basin Mixer Tap for outstanding comfort. This tap stands a cut above the rest, not only in terms of quality but also in its design. It is a premium, solid brass structure, which will ensure long-lasting performance. Brilliantly finished in chrome, it comprises of ceramic disc cartridge for efficacious performance every time. Suitable for all plumbing systems, this aqua delight comes with a 10 year guarantee from the manufacturer.

The Manufacturing Code of this Product is PM SB C
It Comes in an Attractive Chrome Finish
Deck-Mounted Installation
Size [mm]: 65 x 144 x 303mm [Width x Depth x Height]
Size [cm]: 6.5 x 14.4 x 30.3cm [Width x Depth x Height]
Base to Spout: 234mm [23.4cm]
Centre of Inlet to Centre of Outlet: 98mm [9.8cm]
Manufactured Using High-Quality Brass Material
Handle Type: Stick
Flow Type: Single Flow
Connection Inlet: M10 x 15mm Flexible Connection Pipes
Connection Outlet: M24 Flow Straightener
Number of Tapholes: 1
Valve Cartridge Type: 40mm Single Lever Cartridge
Suitable for All Plumbing Systems
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar
Suitable for Low and High Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Long-Lasting Ceramic Cartridge for Added Durability and Ease of Use
Metal Fixing Nut for Added Durability
Refer to the Technical Diagram for Size Details
Download the PDF from the Technical Tab for Installation Instructions

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Prism
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Single Lever Cartridge
⤷ Base To Spout
: 234
⤷ Spout Reach
: 98
⤷ Overall Height
: 303
⤷ Width
: 65
⤷ Inlet Connections
: M10 x 15mm Flexible Connection Pipes
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Stick
⤷ Barcode
: 5014868965475
⤷ Product Type
: Tall Basin Tap

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instruction Pdf File

Bristan Prism Contemporary Chrome Finish Tall Basin Mixer Tap - Stick Handle - Deck Mounted

£195.44

RRP: ~~£349.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

7 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.
