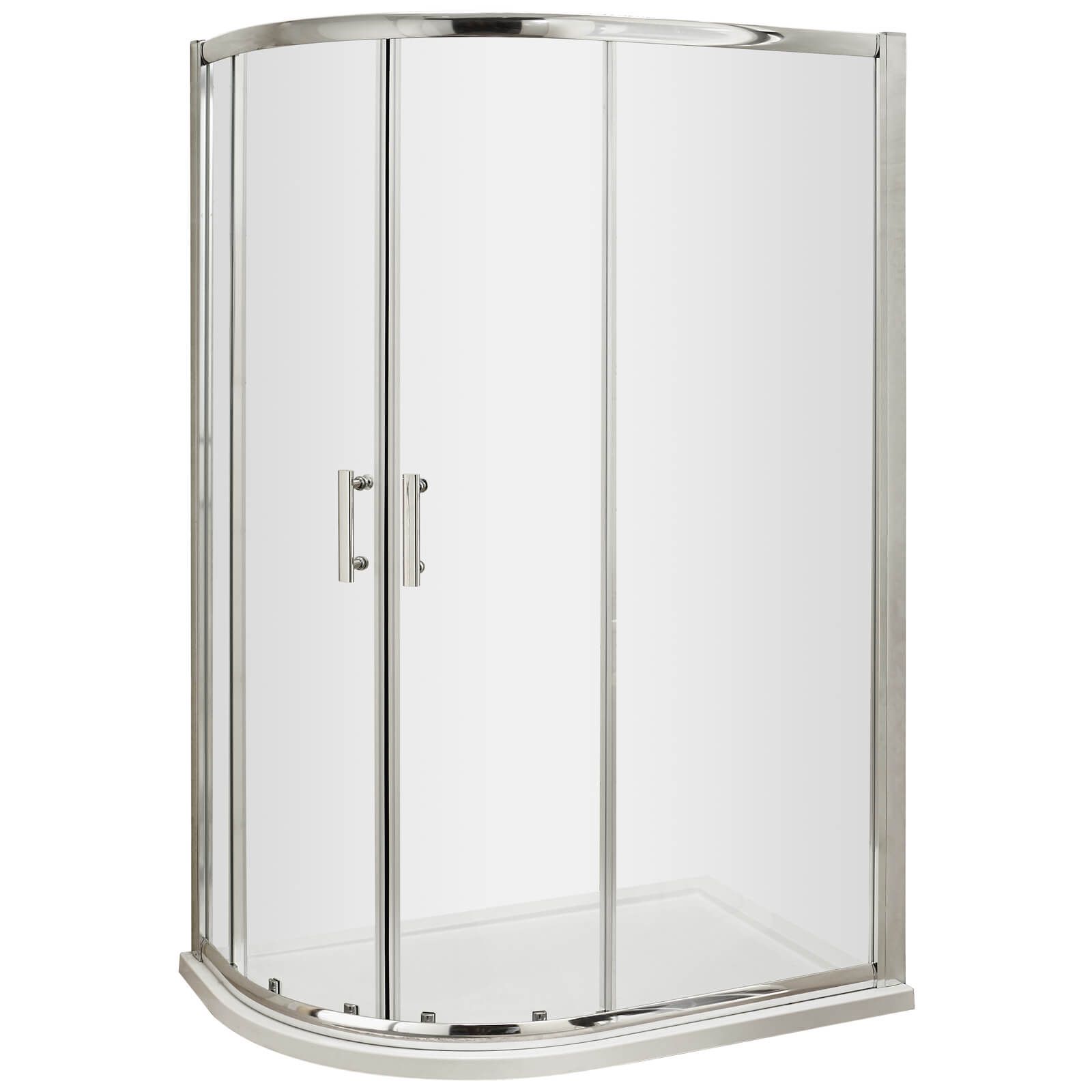

Nuie Pacific Offset Quadrant Shower Enclosure Polished Chrome


RRP: £583.00


In-Stock In Stock

4.2 out of 5 4.2 out of 5

Based on 5 Ratings.

Shipping: £20.00

Product Variants
Select Size Step 1
Select Handle Type Step 2
SKU Code: QS-V38839

MFC Code: AQU769

Nuie Pacific AQU769 Details

Elevate your bathroom decor to a new level by installing the Offset Quadrant Enclosure from the Pacific range of Nuie. This quadrant enclosure is stylish and modern, offering you ample showering area. Contemporary designed, this shower enclosure comes with 6mm thick toughened safety glass. It features quick-release wheels for easy access.

This shower enclosure is extremely easy to clean. This chic shower enclosure will redefine the style of your traditional bathroom. This Quadrant offers a modern touch to the classic-style bathrooms and adds an elegant touch to contemporary-style bathrooms. The door is water-tight and prevents leakages. Suitable to use with quadrant shower tray.

Key Features
  • Made using 6mm (0.6cm) toughened safety glass
  • Reversible - Can be fitted on the left or right hand
  • Sliding doors for easy access
  • Quick-release wheels for easy clean
  • Lifetime guarantee from Nuie against manufacturing defects
  • Former Known as Nuie Pacific Offset Quadrant Shower Enclosure - AQU769.
  • Available in different lengths: 900mm, 1000mm and 1200mm [Optional].
  • Different widths available: 760mm, 800mm and 900mm [Optional].
  • Available handle variant - Square T-Bar and Round D [Optional].
  • Frame in polished chrome finish.
  • Radius: 538mm (53.8cm).
  • Height: 1850mm (185cm).
  • The tray and brassware shown in the image are not included.
  • Patented Easy-fit profile assembly system.
  • Tray, Waste, Easy Plumb Kit, +20mm (2cm) Extension Kit and Hook [Optional].
  • Download the Installation Instruction PDF and Customer Data Sheet PDF from the Additional Info Section.
  • Refer to the technical drawing for more details.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Handle Finish
  • : Chrome
  • ⤷ Range
  • : Pacific
  • ⤷ Coating
  • : Without Coating
  • ⤷ Weight in kg
  • : 41.1
  • ⤷ Shape
  • : Quadrant
  • ⤷ Handed Type
  • : Reversible
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Installation Type
  • : Corner
  • ⤷ Radius
  • : 538
  • ⤷ Handle Style
  • : T-Bar
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Width
  • : 880
  • ⤷ Depth
  • : 740
  • ⤷ Configuration
  • : Panels And Doors
  • ⤷ Height
  • : 1850
  • ⤷ Barcode
  • : 5057199046710
  • ⤷ Door Type
  • : Sliding
  • ⤷ Frame Design
  • : Framed
  • ⤷ Frame / Profile Finish
  • : Polished Chrome
  • ⤷ Frame Material
  • : Aluminium
  • ⤷ Glass Type
  • : Clear
  • ⤷ Glass Thickness
  • : 6
  • ⤷ Number Of Doors
  • : 2
  • ⤷ Profile Adjustment
  • : 860-880 And 720-740
  • ⤷ Entry Width
  • : 420
  • ⤷ Closing / Opening Mechanism
  • : Quick Release Rollers
  • ⤷ Tray Included
  • : Sold Separately
  • ⤷ Handle Included
  • : Yes
  • ⤷ Tray Compatible
  • : Yes
  • ⤷ Door Opening
  • : Reversible

Additional Info & Downloads

Download PDF Download the Customer Data Sheet Pdf File Download PDF Download the Installation Instruction Pdf File

Technical Images

Customise Your Product

Shower Tray
Shower Tray

Sleek, strong, easy to fit Pearlstone shower trays from Lauren. The image is for illustration purpose only.

Stone Resin Tray Waste
Stone Resin Tray Waste

90mm Waste For Stone Resin Shower Tray. Please Note: The image shown is for illustration purposes only.

Easy Plumb And Legset
Easy Plumb And Legset

Supplied with plinth, legs, clips and screws, this leg set kit allows raised installation of quadrant and Offset quadrant shower tray. Please Note: Image is for illustration purpose only.


Related accessories or extra items are available as options. Please note: The image shown is for illustration purpose only.

Enclosure Hook
Enclosure Hook

Robe Hook from Lauren is ideal for framed shower enclosures. This elegant chrome finish hook will make a practical and stylish addition to your shower enclosures.

Total: £196.97 3-4 Working Days Approx QS Supplies

2 Features Included In This Product Explained

Toughened Safety Glass

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Reversible Door

Reversible Door

A reversible door can be fit to open either to the right or left, depending on the dimensions of your space.

You've Selected which adds to a total of

Reviews & Ratings

Rate this Item.:

Hide All Reviews
From : Leicester Overall Rating: Date: February 14, 2024 Satisfied with the purchase
I bought this, and I am happy with it. The reversible fitting feature added a layer of convenience and allowed me to select the side that best suited my bathroom layout. The installation hiccup was minor and easily overcome, making the overall experience very positive.
Helpful? Thumbs Up Thumbs Down
Value for Money
From : Wrexham Overall Rating: Date: August 9, 2015 Shower cubicle
Spacious and easy to fit. Magnetic strips on doors had to be replaced. Replacements not very good and are unsatisfactory.
Helpful? Thumbs Up Thumbs Down
Value for Money
From : LOWESTOFT Overall Rating: Date: April 1, 2021 Good quality
Service delivery is very good. The product is stylish, and is of good quality and the door opens smoothly.
Helpful? Thumbs Up Thumbs Down
Value for Money

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Paul Asked :

Hi, can you tell me the fixed panels' size on the QS-V38839 A’s seeing if it will fit an existing tray?

Answered By QS Team Answered by the QS Technical Team

Unfortunately, we do have the panels' measurements only the full size, adjustments and entry measurements.

Was this answer helpful?
STUART Asked :

Is the Lauren Pacific 990x760 shown the left-handed design, and if so, what is the code to order a right-handed cubicle?

Answered By QS Team Answered by the QS Technical Team

This offset quadrant is reversible; only the optional trays are left or right-handed. The illustrative image shown above is with an optional right-handed tray for installation on the right-hand corner walls. Right, and left-handed trays are available as an option at the top of the page.

Was this answer helpful?
Ralph Asked :

I am looking at your Lauren enclosure 760 x 900. The description mentions "quick release wheels". Does this mean I can remove the doors for cleaning purposes?

Answered By Elizabeth Answered by the verified purchaser Yes the doors unclip fairly easily

Was this answer helpful?
Accepted Answer 1 Thumbs Down 0
