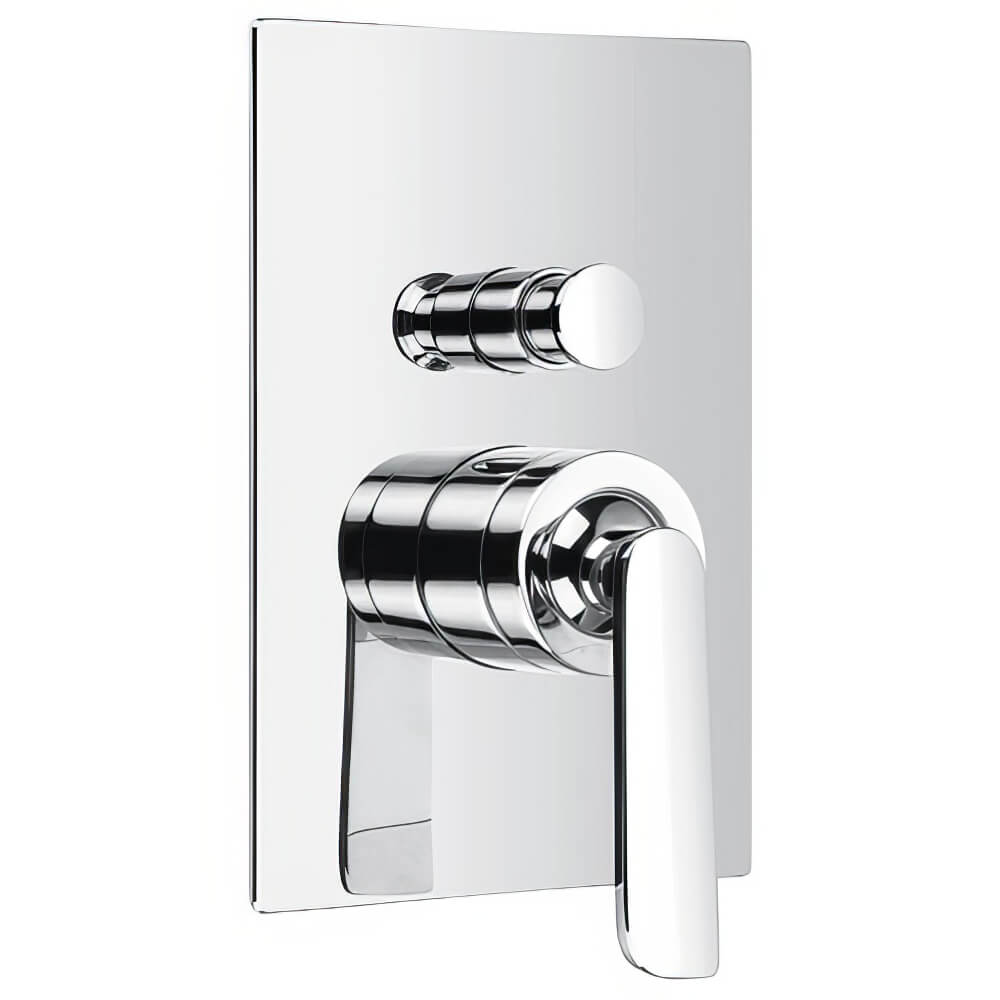

Flova Cascade Concealed Manual Chrome Shower Valve, 2 Way Diverter, CASHVO/DIV

Flova Cascade Details

MFC: CASHVO/DIV

This aesthetically appealing Cascade Manual Shower Valve, from Flova, will certainly provide you with a perfect flow of water during showering. The practical valve features a 2-way diverter and incorporates a Sedal cartridge, which regulates smooth water flow from the outlets for maximum convenience. It is made from high-quality, lead-free brass and remains durable even after prolonged use. The compact and reliably designed smart fixture is concealed and is easily installable. Moreover, it carries a 15-year guarantee from the manufacturer.

The Manufacturing Code of this Product is CASHVO/DIV
Comes in a Diamond Chrome Finish
Back Plate Size [mm]: 120 x 180mm [Width x Height]
Back Plate Size [cm]: 12 x 18cm [Width x Height]
2 Outlets
Push/Pull Divert Mechanism
Easyfix Manual SmartBox
SmartBox Included
Minimum-Maximum Wall Mount: 63-85mm
Suitable for a Medium Water Pressure System
Recommended Minimum Water Pressure: 0.5 Bar
Wall-Mounted Installation
Temperature Control: Manual
Fully Compatible with Uk Plumbing Systems
Works with Conventional Gravity-Fed Systems
Refer to the Technical Diagram for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Inlet Connections
: G 1/2
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Lever

⤷ Temperature Control
: Manual
⤷ Backplate Width
: 120
⤷ Backplate Height
: 180
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 2
⤷ Diverter Included
: Yes
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed

Additional Info & Downloads

This item can also be found in:

Concealed Shower Valves

Flova Cascade Concealed Manual Chrome Shower Valve with 2 Way Diverter - Rectangular Trim

£210.00

RRP: ~~£263.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Suitable For Gravity Fed System

Usually found in old properties, Gravity-Fed Systems are known for their low water pressure.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

SmartBOX

The SmartBOX has been designed for use with one, two and three-outlet applications. It comes with everything you need for the first fix installation. It requires an installation depth of just 57mm, making it compatible with almost any wall depth. The multi-fix system allows for fixing at more than one point, both from the front and back. It comes with a Self-levelling spirit level for accurate installation. The design allows complete and easy access to all the components protected by the ridged box.
