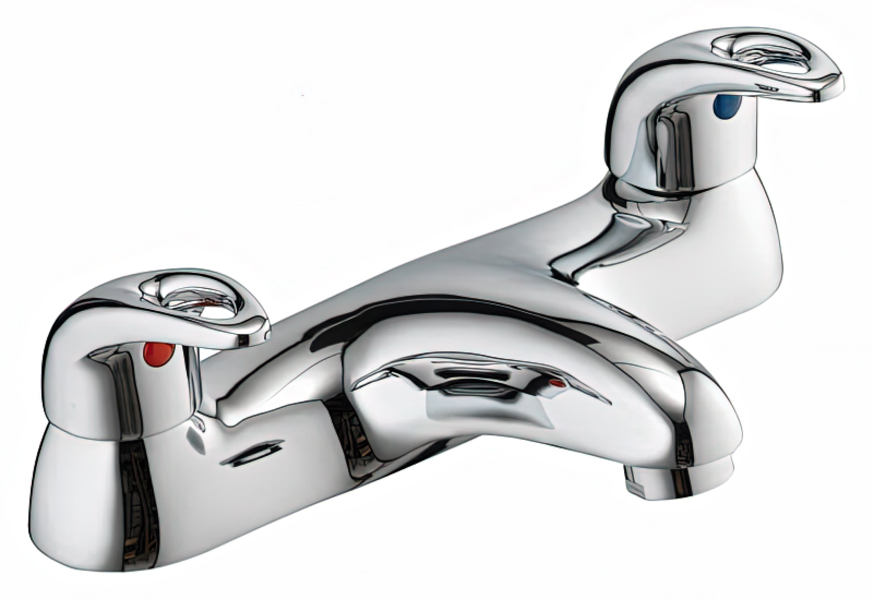

Imex Dv8 Chrome Deck Mount Bath Mixer Tap

Imex Dv8 DVBF Details

Elevate your everyday repertoire with this striking tub, manufactured by the brands latest innovative techniques. Available With or Without Shower Kit, it is hand polished for achieving an unmatched shine. Finished with a refined bridge-like smooth design with dual looped levers, it can show off your bathtubs by drawing attention to the shine of the chrome polish.

The new surprising Imex Dv8 Deck Mount Bath Mixer Tap will deliver a wow-effect to your modern bathroom. With advanced technology this bath shower mixer works smoothly with both low and high water pressure systems. The WRAS approved bath tap looks gorgeous with all types of bathtubs and works fabulously well in low pressure systems.

Available in 2 variations - without shower kit, with shower kit.
Hand-polished for a perfect shine.
The size of this product is Width 232mm x Height 76mm x Depth 160mm.
Spout reach: 112mm.
Inlet centre: 180mm.
Base to spout: 22mm.
Weight for tap without shower kit: 2.67 Kg.

Weight for tap with shower kit: 3.33 Kg.
Suitable for low-pressure water system.
The minimum water pressure required for smooth working is 0.2 bar.
Tap with shower kit includes hose and handset.
The image shown is for illustration purposes only.

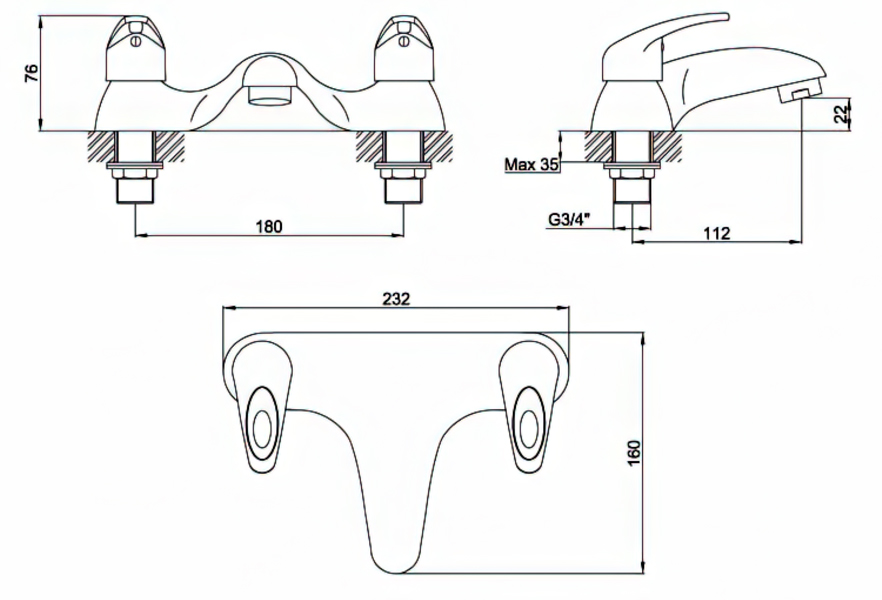

For complete size details, please refer to the technical drawing.

Info / Size (mm)

Tap
Pipe Centre: 180 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Dv8
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Handle Material
: Brass
⤷ Base To Spout
: 22

⤷ Spout Reach
: 112
⤷ Inlet Centres
: 180
⤷ Overall Height
: 76
⤷ Width
: 232
⤷ Depth
: 160
⤷ Max. Deck Thickness
: 35
⤷ Inlet Connections
: G 3/4
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199224187
⤷ Product Type
: Bath Mixer Taps

Additional Info & Downloads

Download the Product Data Sheet For Tap Without Shower Kit Pdf File Download the Product Data Sheet For Tap With Shower Kit Pdf File Download the Aftercare Guide Pdf File

Total: £84.80 5 Working Days Approx QS Supplies

4 Features Included In This Product Explained

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. The regulations require that a product, material or fitting not cause any misuse, excessive consumption, wastage or contamination of the water supply and must be 'of the right quality and standard'. Such components can be whole products (valves) or materials used to manufacture products (rubber).

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
