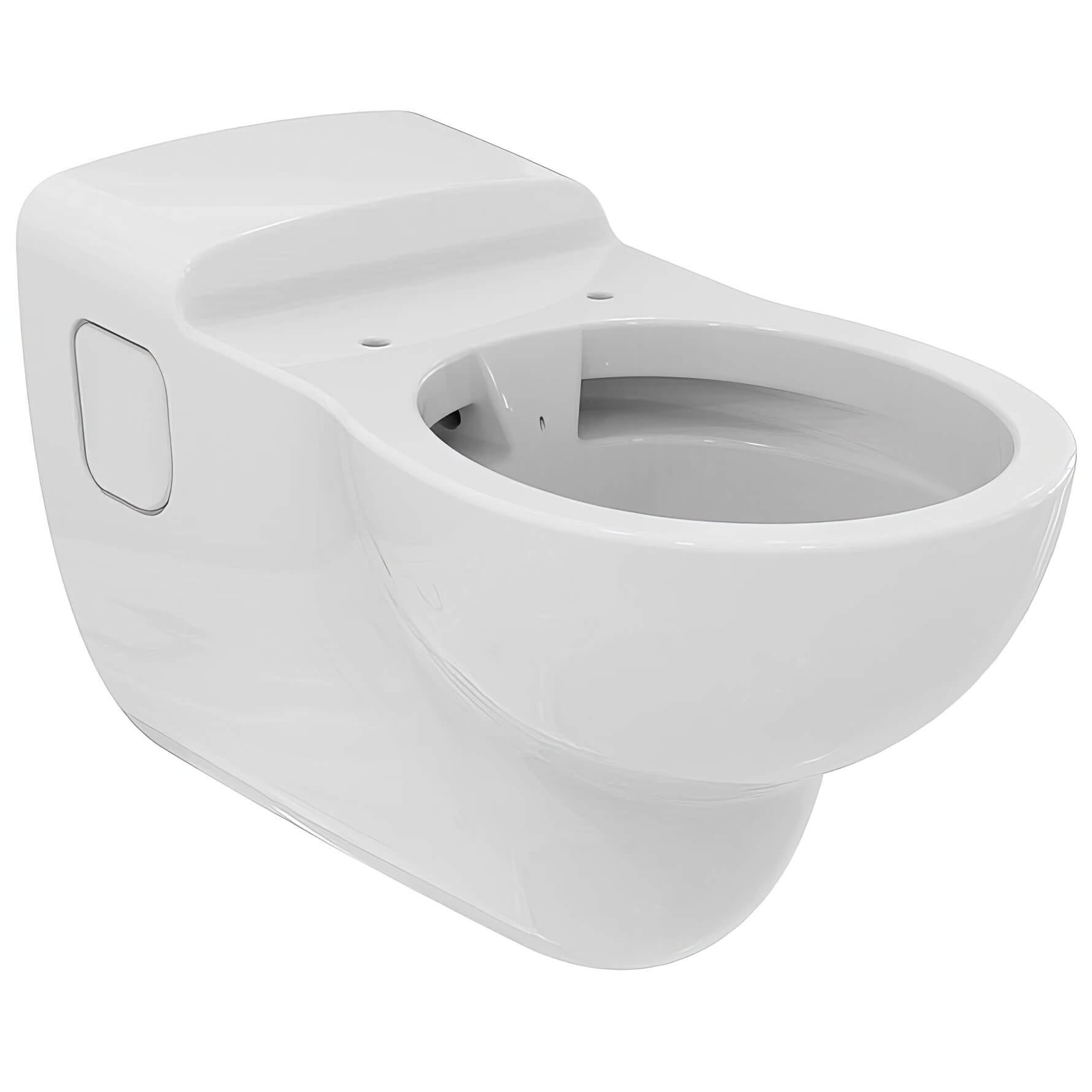

Armitage Shanks Contour-21 Hospital Pattern 710mm Projection Wall Hung Rimless WC Pan

Not Yet Rated No Rating

£951.64

RRP: £1189.55
SKU: QS-V15089
Key Features
  • It Comes in a White Finish
  • Hospital pattern WC
  • Manufactured Using Vitreous China Material
  • Lifetime Guarantee from the Manufacturer Against any Manufacturing Defects
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

10-14 Working Days Approx.

Contour-21 Details

MFC: S3077HY

Armitage Shanks Contour-21 Hospital Pattern 710mm Projection Wall Hung Rimless WC Pan.

  • Manufacturing Code of this Item is S3077HY
  • Rimless to HTM64 (2006) and HBN
  • Anti-Microbial Glaze with Hydrophilic Properties
  • Weight: 31kg
  • Projection: 710mm [71cm]
  • Size in [mm]: 375 x 475mm [Width x Height]
  • Size in [cm]: 37.5 x 47.5cm [Width x Height]
  • HTM Code: WC HD
  • Comes with a Horizontal Outlet for ducts
  • Suitable for users in wheelchairs and assisted ambulant disabled users
  • Standards: WC Bowl to BS EN 997 & BS EN 33
  • Tested as described in Clause 6 of European Standard EN 997
  • WC Pan Fixed to Support Brackets with Bolts (Supplied)
  • Refer to the Technical Diagram for Complete Technical Dimensions
  • Download Installation Instructions PDF From Additional Info Section
  • The Toilet Seat Shown in the Image is Not Included - Sold Separately
  • Compatible Options:
  • Concealed Cistern
  • Flush Button
  • Toilet Seat
  • Wall Support Brackets
  • Back Support Rail
  • Cushion for Back Support

Info / Size (mm)

  • Toilet
  • Width: 360 mm
  • Projection: 700 mm
  • Height: 480 mm

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Contour 21
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 31
  • ⤷ Warranty/Guarantee
  • : Lifetime
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Projection (Depth)
  • : 710
  • ⤷ Rimless Bowl
  • : Yes
  • ⤷ Cistern Included
  • : Sold Separately
  • ⤷ Width
  • : 375
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Bowl Only
  • ⤷ Height
  • : 475
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Fixings included
  • : Yes
  • ⤷ Fixing Holes Centre
  • : 180
  • ⤷ Barcode
  • : 5017830557531
  • ⤷ Distance from floor to centre of fixing hole
  • : 375
  • ⤷ Bowl Shape
  • : Round
  • ⤷ Product Type
  • : Wall Hung WC Pan
  • ⤷ Pan fixing centres
  • : 180
  • ⤷ Base to centre of outlet
  • : 275

Additional Info & Downloads

Download PDFDownload the Installation Instructions Pdf File

Add-Ons

Optional Cistern
Optional Cistern

The cistern is now available for your WC. Please note image shown is for illustration purpose only.

Toilet Seat / Ring
Toilet Seat / Ring

Optional toilet seat from Armitage Shanks with different finishes from options given below! Please note: The image is for illustration purposes only.

Pan Support Brackets
Pan Support Brackets

Pan Support Brackets Please note: The image shown is for illustration purpose only.

Back Support Rail
Back Support Rail

Back Support Rail Available As an Optional

Back-Support-Cushion-For-Toilet
Back-Support-Cushion-For-Toilet

Back Support Cushion for WC. Please Note: The image shown is for illustration purpose only.

Extension Connector
Extension Connector

The Armitage Shanks extension connector of 700mm and 750mm for back to the wall and wall-hung WC pans. The image is for illustration purposes only.

£951.64
RRP: £1189.55
Stock Availablity: 10-14 Working Days Approx
QS Supplies

3 Features Included In This Product Explained

Rimless

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
