Grohe Rapid SL 3 In 1 Set For WC With Flushing Cistern
Technical drawing QS-V28644 / 38773000
Additional image of Grohe 38773000
Additional image of Grohe Rapid SL 3 In 1 Set For WC With Flushing Cistern
QS-V28644 small Image 1
QS-V28644 small Image 2
QS-V28644 small Image 3
Grohe Rapid SL 3 In 1 Set For WC With Flushing Cistern small Image 4

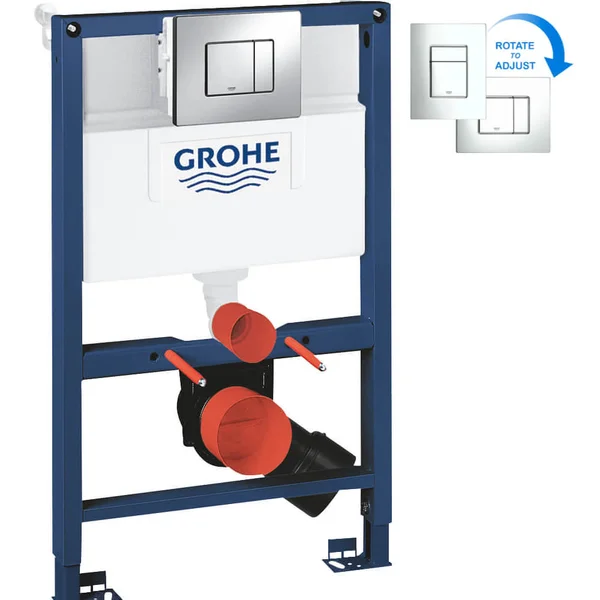

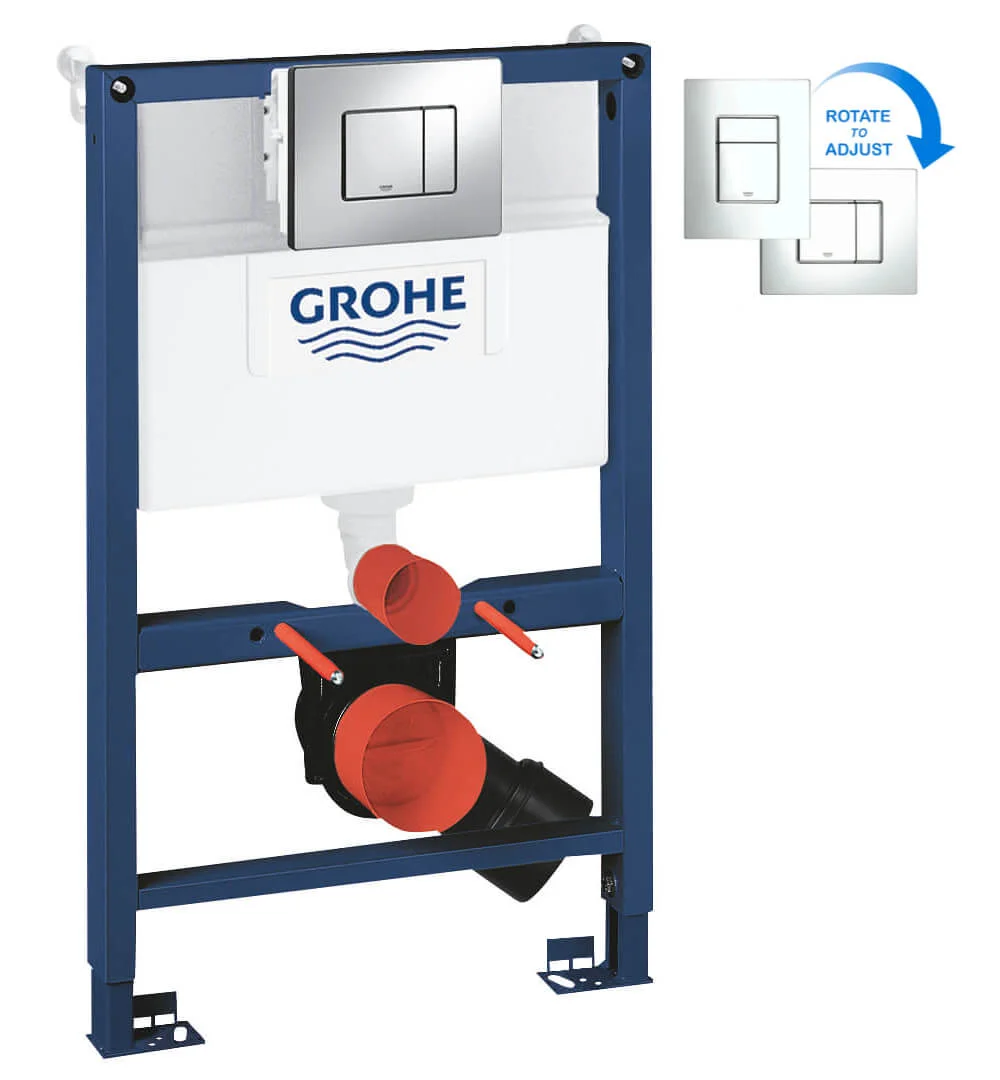

Grohe Rapid SL 3 In 1 Set For WC With Flushing Cistern

QS-V28644

MFC CODE: 38773000

£145.00

RRP: £450.61 You Save £305.61 on RRP

3.8 out of 5

4 out of 4 customers rated 75%

Review this Product

STOCK AVAILABILITY

2-3 Working Days Approx

Shipping: £5.95

Description
Technical

This 3-In-1 Set For WC With Flushing Cistern - the latest offering from Grohes Rapid SL range - exudes sheer quality. The main attraction of this Rapid SL is a super-efficient cistern, which has been insulated against condensation, and it is also compatible with high and low pressure system. Low on noise, it can be supplied water from left, right or back. The pack also includes a chrome plated wall plate that features dual flush actuation. Further, there is a completely pre-assembled powder coated steel frame that is suitable for dry-cladding.

+  Read what's included..
Please Note all the measurements are in 'mm'
Country of Origin Germany
Warranty/Guarantee 5 Years
Material Steel
Cistern Included Yes
Width 500
Depth 151
Height 820
Fixings included Yes
Flush Plate Included Yes
Water Supply Connections Left, Right or Back

INFO / SIZE (mm)

  • Frame
  • Width: 500 mm
  • Depth: 151 mm
  • Height: 820 mm

QTY

38773000 DETAILS

  • Grohe Rapid SL 3 In 1 Set
  • Skate Cosmopolitan wall plate
  • Wall plates :
  • Dual flush actuation
  • Dimension : 156 x 197mm
  • Chrome plated
  • Manufactured from ABS
  • Horizontal installation
  • Bracket for on the wall installations or studded walls
  • Powder coated steel frame, self-supporting
  • Bracket with fixed connections
  • Suitable for dry-cladding, completely pre-assembled
  • Quick adjustment, lockable
  • Fixing material included
  • TUV approved bracket
  • 2 WC fixing bolts
  • Fixing device for ceramic
  • Distance of fixing bolts 180/230 mm
  • Outlet bend diameter is Ø 90 mm
  • Suitable for single or series installation
  • Depth adjustable reducer diameter is Ø 90/100 mm
  • Inlet and outlet connecting set
  • Pneumatic discharge valve offering 2 modes of operation
  • GROHE StarLight is a radiant chrome finish, which resists soiling and tarnishing, enduring pristine looks
  • GROHE EcoJoy is a unique, integrated water saving technology by Grohe, which allows you to save water and energy consumption, without compromising the performance and charm of this 3 in 1 set for WC
  • Refer technical image for technical dimensions
  • Warranty of 5 years from manufacturer against any faulty workmanship
  • Manufacturing code of this product is 38773000
  • Supplied with flushing cistern 6 - 9 liter
  • Installation height is 0.82 m
  • Dual flush 6-3 liter or non-interruptible single flush 6 liter
  • Front or top actuation
  • Water supply from left,right or back
  • Low noise Group I acc. to German Noise Specification
  • Insulated against condensation
  • ½ inch water supply connection including integrated
  • Angle valve and push fit flexible hose union protecting block

ADDITIONAL INFO

Download the Flush Plate Installation Instruction Pdf File



Total: £145.00 2-3 Working Days Approx QS Supplies

You've Selected which adds to a total of

You May Also Require


View
×


REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

GUILDFORD Date: November 22, 2017

Great product at a great price
Have just had 3 installed and they look really stylish. Our plumber was pleased we chose Grohe given high level of quality & reliability. Issue with initial flush was easily adjusted. And at the best price available. Discount on shipping was also applied due to bulk order
5 Star

Helpful? Hands Up Hands Down
3 of 3 People have found this Review useful

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

ABERDEEN Date: August 16, 2018

Excellent
Excellent product. Fits perfectly, narrow but can be expanded to any size. Delivery within 2 days to North of Scotland. Now my online bathroom retailer of choice.
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

PETERBOROUGH Date: October 11, 2018

Great quality competitive price
Great product, easy to fit. Exceptional quality! QS supplies co.uk - offer a high standard communication you are always up to date! Quick delivery!
5 Star

Helpful? Hands Up Hands Down
1 of 1 People have found this Review useful

Images Uploaded by the users:

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

COLCHESTER Date: April 5, 2018

Great price and great service
Excellent quality product together with instructions on Youtube. Good price and service, delivery very fast. All in all, glad I went to QS Supplies
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

London Date: July 26, 2017

Great price and service
The best price on line and delivered in a few days. Who could ask for more. Recommended. Tim
4 Star

Helpful? Hands Up Hands Down
1 of 1 People have found this Review useful

OVERALL RATING 4 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 3 Stars

Broadstairs Date: January 11, 2017

Product as described
Excellent and prompt service. Delivered as stated on order.
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

MORPETH Date: November 5, 2018

Good quality and robust
Good quality and does all that was expected of it
3 Star

Helpful? Hands Up Hands Down

OVERALL RATING 3 Stars

  • Quality: 4 Stars
  • Value For Money: 3 Stars
  • Style: 3 Stars

YATELEY Date: February 21, 2018

Very good quality
Delivery was quick, product is good quality
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Ealing Date: June 15, 2015

Thanks
Good. Quick delivery. Thank you
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Billingham Date: September 15, 2015

Grohe Products
An Excellent quality product
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars


WRITE A REVIEW




Questions & Answers

  Submit Your Questions 5 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Robert Asked :
I would like to install this in a cabinet that is aprox 250 mm deep Is that possible? how would I do it?

Answered By QS Team :
You will need to use the extensions 38563000

Was this answer helpful? Yes - No



John Asked :
Hi I thought I had submitted this query via the "Ask a technical question" on your website yesterday morning but so far I've not received a reply, it may be that there was a typo in my email address. Could you please advise whether the Grohe Rapid SL 3 in 1 set wall hung toilet frame (c/w cistern and flush plate) ref. 38773000, QS ref. QS-V28644 frame is compatible with the Vitra S50 wall hung toilet pan (c/w soft close seat) ref. VITS50 WHSC, QS ref. QS-V81894 And also that this combination is suitable for connection to a standard 110mm ex diameter horizontal soil pipe set to against the wall to the right of the pan position, using either the included pipe pieces or easily connected using standard connection. Also, is there a short projection version of this pan c/w a soft close seat and if so the price and delivery charge. Regards John Freer

Answered By QS Team :
The VITS50 WHSC has pan holes of 180mm which will fit onto our frames. The frame is supplied with a 90mm P bend with a 110mm adapter. There is a straight horizontal adapter for going through the wall 42766000 which will connect to the standard waste pipe.

Was this answer helpful? Yes - No



Jackie Asked :
Is this product suitable for a wall hung WC?

Answered By QS Team :
The Rapid SL frames will only work with wall hung pans.

Was this answer helpful? Yes - No



Heather Asked :
Is it possible to use a different flush plate with this set up? If so, what dimensions should I be looking for? Thanks

Answered By QS Team :
You can use any of our standard size (156 x 197 )horizontal flush plates.

Was this answer helpful? Yes - No



Paul Asked :
Hello Is it possible to mount the soil pipe horizontally straight out the back rather than have the 90 bend into a vertical run?

Answered By QS Team :
Yes you can mount it horizontally. You will need to use the distance pipe for this "42766000"

Was this answer helpful? Yes - No
