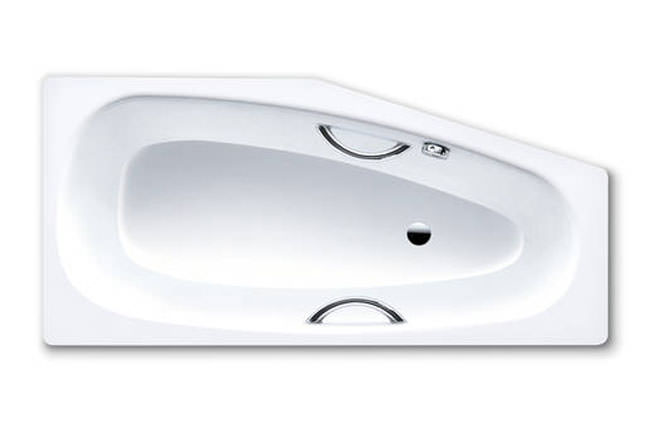

Kaldewei Mini 1570 x 700mm Star 837 Left Steel Bath With Grip Holes


MFC CODE: 225300010001


RRP: £741.60 You Save £337.43 on RRP


5 Working Days Approx

Shipping: £23.95


Designed to provide a large space at the shoulder area where you need most, the Mini Star 837 Left Steel Bath from Kaldewei sets a new trend that combines comfort with style. The tapered bath uses water economically and comes with an integrated side overflow. It is constructed by using superior steel and features a scratch-proof and abrasion resistant colourfast surface for longterm use. Guaranteed for 30 years it can be availed from our online store at an excellent price.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
External Length 1570
External Width 475, 700
Tub Depth External - 430
Feets Included No
Height Including Feet or Panel 550-570
Colour White
Grips Included No
Internal Bottom Length 1250
Internal Bottom Width 360
Internal Top Length 1410
Internal Top Width 600
Height of Rim 32
Distance Tub edge to centre of drain hole 500
Distance Top edge to centre of overflow hole 70
Diameter of overflow hole 52
Diameter of Drain hole 52
Distance foot end of tub edge to center of foot 570
Distance between the feet 440
Distance tub edge(foot end) to where handle starts 611.8
Distance tub edge(foot end) to where handle ends 885.8
Rim Width 48, 70, 100
Distance Between Centre Holes 246
Weight in kg 45
Slip Resistant No
Capacity in litres 110
Handed Type Left hand
Country of Origin Germany
Warranty/Guarantee 30 Years
Material Steel
No. of Bathers 1
Waste Included Sold Separately
Tap Holes Un-drilled

INFO / SIZE (mm)

  • Bath
  • Length: 1570 mm
  • Width: 700 mm

225300010001 DETAILS

  • Manufacturing code of this product : 225300010001
  • Size : 1570 x 700mm [Length x Width]
  • Comes with grip holes
  • Single ended bath
  • Made of 3.5 Enamel Gauge of Steel
  • Supplied with no tap hole
  • Water capacity : 110 liters
  • Height with Feet : 550-570mm
  • Economic water consumption thanks to its tapering interior contours
  • One-seater bathtub with side overflow
  • Weight: 45kg
  • Bath waste and hand grip shown in image are not included
  • Leg Set Required, Please order adjustable feet set 5032 [Optional]
  • Pre-Drilled 2 Tap Holes available[Optional]
  • Bath waste [Optional]
  • Easy Clean Finish [Optional]
  • Antislip and Burnt in Antislip also available [Optional]
  • For Technical Detail Click on Technical Tab and download PDF
  • 30 years of guarantee from Kaldewei against any manufacturing faults
  • Surface Impact, Scratch and Abrasion Resistant, Colourfast, Lightfast and Acid Resistant according to DIN ISO 2722, Class 1, TÜV GS Certificated Tested Safety
  • Rim Slopes 3 Degrees to the Inside of the Bath, Earthing Strap for Equipotential Bonding, 100 % Recyclable.

Tap holes

Tap holes

Optional tap holes - Select the desire tap hole that you prefer.

Kaldewei Hand Grips Chrome

Kaldewei Hand Grips Chrome

Strong and long lasting chrome finish twin grips from kaldewei to provide support to the bather from slippery surface. Please Note: Image for illustration purpose only.

Leg Set

Leg Set

This Special Bath legset comes with adjustable height features. It not only providess optimum stability but it is noise insulated to DIN4109/A1 when used in conjunction with noise insulated kit - BWS.

Easy clean finish

Easy clean finish

Kaldewei easy-clean finish makes water forms droplets and in the process takes nearly all the particles of dirt and limescale along with it even dried-up water stains and limescale deposits can simply be removed with a soft damp cloth.

Semi Anti-slip

Semi Anti-slip

Semi Anti-slip ensures safety underfoot in the bath and shower tray. Highly durable and extremely hygienic coating provides even more safety in the bathtub.



Anti-slip keeps you on firm ground when you get into the bath. A structured surface made from a permanently burnt-on quartz-sand combination for added safety in the bath. Please Note : Image for illustration purpose only.



High flow dedicated waste to flush out the waste water in a swift. Please note the image shown is for illustration purpose only.

Total: £404.17 5 Working Days Approx QS Supplies

You've Selected which adds to a total of



Rate this Item.:

Questions & Answers

  Submit Your Questions 3 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Carole Asked :
Does this bath come with bath panels, side and end? No mention is made of a panel.

Answered By QS Team :
This bath does not come with a bath panel.

Was this answer helpful? Yes - No

Diana Asked :
Can I have a simple plug and chain? What taps would you recommend for over narrow end in plain lever mixer? Re my previous query, plumber says "no problem".

Answered By QS Team :
The waste is a British standard waste and therefore, can be used with the traditional plug and chain and also the new pop-up waste. Any Bath Mixer tap would work in the bath.

Was this answer helpful? Yes - No

1   0

Diana Asked :
Can the waste outlet be 250mm away from the bath outlet?

Answered By QS Team :
This question can be answered by the Plumber as he would have more knowledge of your bathroom. We cannot see a problem with the waste outlet being 2.5M away as long as the pipe work has a negative gradient for the waterfall.
