Roper Rhodes Covet Flat Front Wall Mounted Vanity Unit & Handle, 1 Drawer, RF5W1.MLG

Roper Rhodes Covet Details

MFC: TRF5W1.MLG

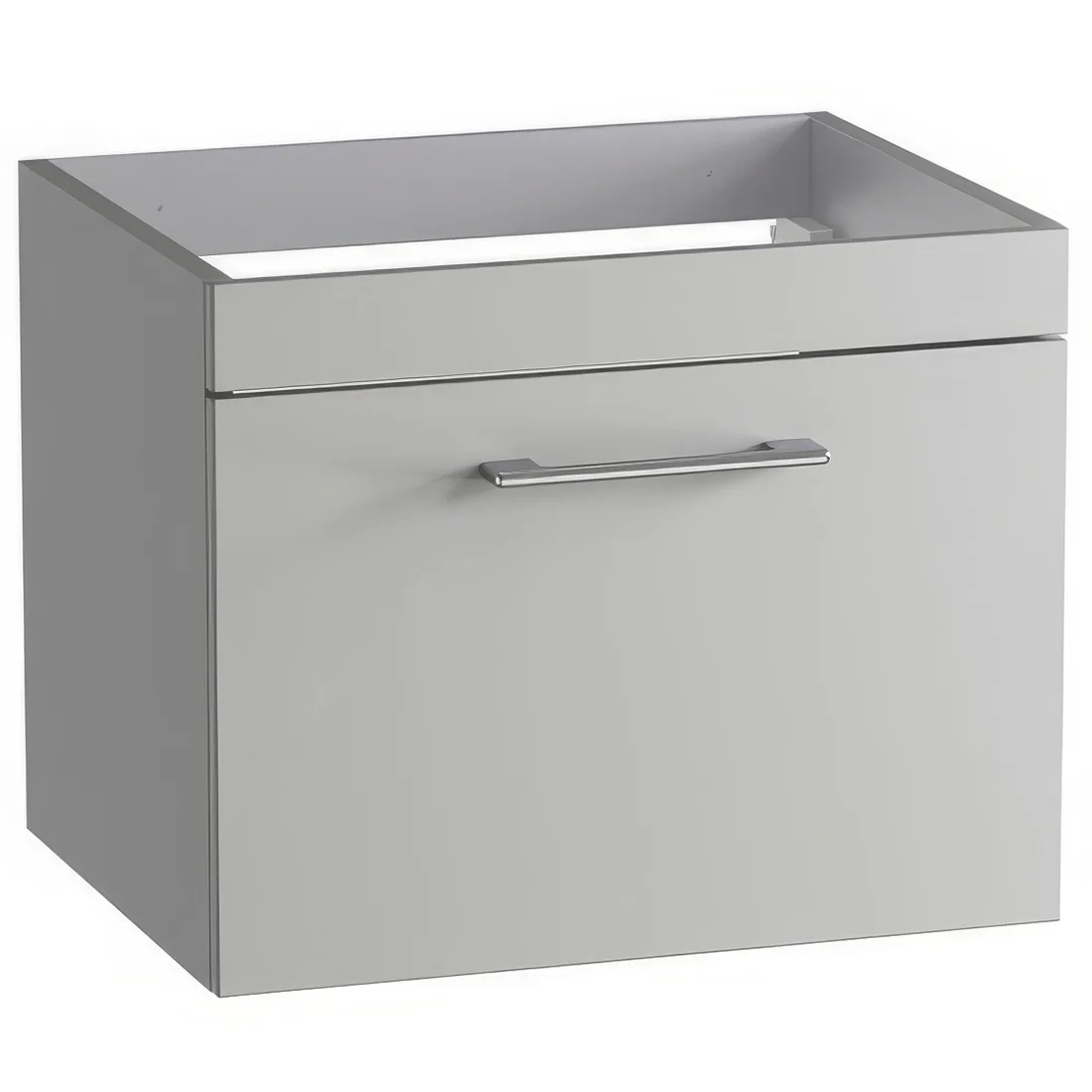

Roper Rhodes Covet Flat Front Wall Mounted Vanity Unit with Handle - 1 Drawer.

Key Features

✔Fascia Components: 20mm Painted MDF
✔Supplied Ready Assembled for Easy Installation
✔Carcass: 16mm Painted & Melamine-Faced MFC
✔Chrome 160mm Centre Handle Included with Fixings
✔5-Year Guarantee from Roper Rhodes Against Manufacturing Defects

Choice of Finish: Matt Light Grey, Matt Storm Grey and Gloss White
Choice of Width: 500mm and 600mm
Flat-Fronted, Wall-Mounted Vanity Unit
Overall Height: 420mm (42cm)
Compatible with Ceramic Basins - [Optional]
Different Finish Handle Available as an Option
Other Finishes of Overflow Trim Available [See Options Below]
Download the Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Complete Size Details
Detail of Vanity Unit:
Size [mm]: 500 x 390 x 400mm [Width x Depth x Height]
Size [mm]: 600 x 385 x 400mm [Width x Depth x Height]
Weight: 10.60 Kg
Equipped with Adjustable Soft-Close Drawer Runners to Prevent Slamming
Features Integrated Plumbing voids Inside the Unit to neatly hide Waste Pipework
Handles Require Fitting, the Unit Comes with Pilot Holes Drilled on Back Face
Internal Finish of the Unit: Dark Grey Internal Finish on All Unit Finishes
Detail for 500mm Basin:
Size [mm]: 510 x 400 x 166mm [Width x Depth x Height]
Size [cm]: 51 x 40 x 16.6cm [Width x Depth x Height]
Internal Depth: 132mm (13.2cm)
Maximum Water Depth: 93mm Up to the Overflow
Tap Ledge: 115mm (11.5cm)
Taphole to Waste Distance: 130mm (13cm) from the Centre of the Taphole to the Basin Waste
Weight: 7.03 Kg
Comes with One Pre-Drilled Tap Hole
Features an Integrated Overflow
Detail for 600mm Basin:
Size [mm]: 610 x 400 x 166mm [Width x Depth x Height]
Size [cm]: 61 x 40 x 16.6cm [Width x Depth x Height]
Maximum Water Depth: 93mm Up to the Overflow
Internal Depth: 132mm (13.2cm)
Tap Ledge: 115mm (11.5cm)
Taphole to Waste Distance: 130mm (13cm) from the Centre of the Taphole to the Basin Waste
Weight: 9.08 Kg
Comes with One Pre-Drilled Tap Hole
Features an Integrated Overflow

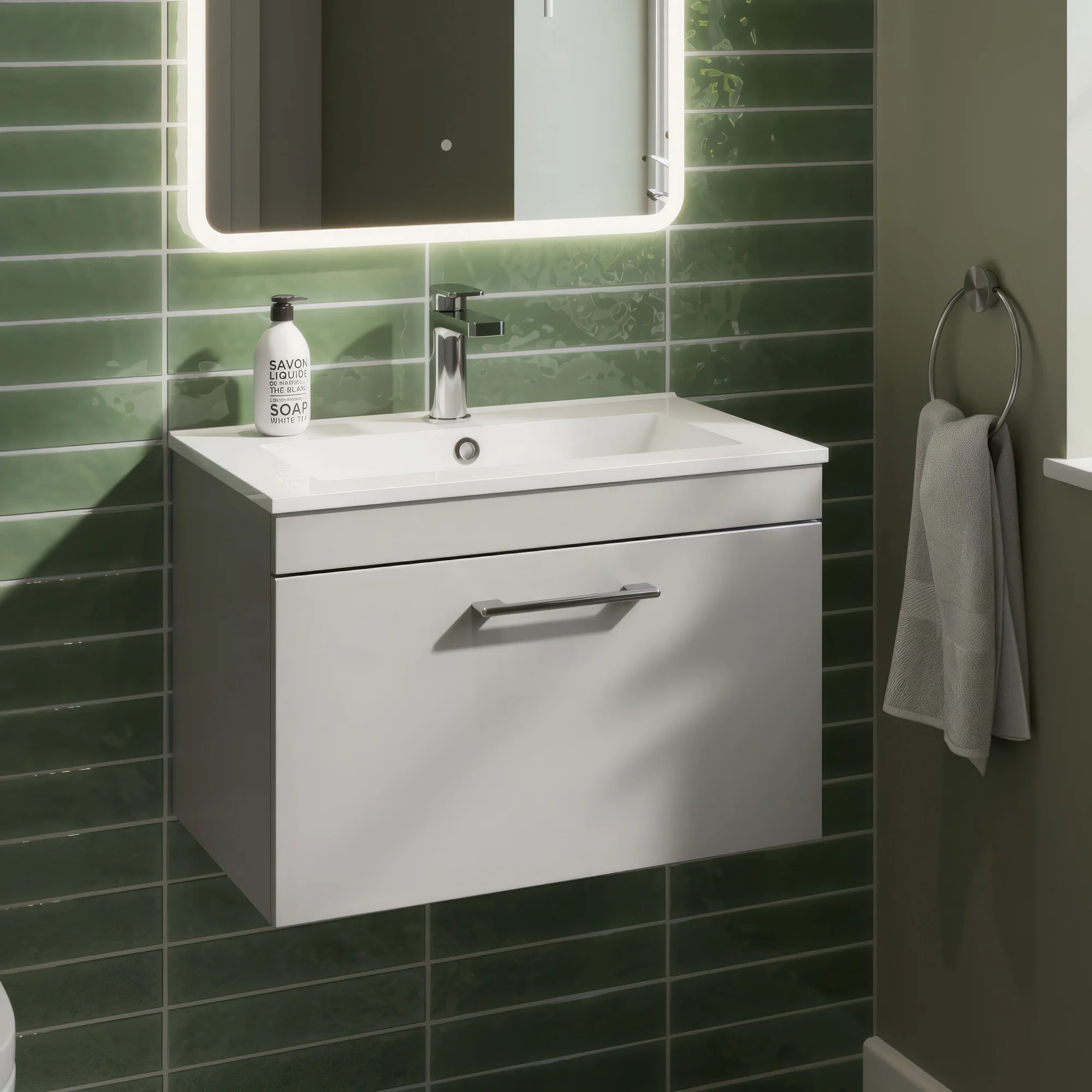

The Basin, Taps and Overflow Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Sink Height
: 166
⤷ Sink Projection
: 400
⤷ Sink Width
: 510
⤷ Handle Finish
: Chrome
⤷ Range
: Covet
⤷ Colour
: Matt Light Grey
⤷ Warranty/Guarantee
: 5-Year
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 500
⤷ Depth
: 390
⤷ Height
: 400
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes

⤷ Barcode
: 5016519679403
⤷ Handle Included
: Yes
⤷ Product Type
: Vanity Unit
⤷ Furniture Material
: Painted | Melamine Faced MFC
⤷ Pre-assembled
: Yes
⤷ Sink Included
: Sold Separately
⤷ Sink Colour
: White
⤷ Number Of Drawers
: 1
⤷ No. Of Internal Shelves
: 1
⤷ Soft-Close Drawer
: Yes
⤷ Sink Material
: Ceramic
⤷ Number Of Sinks
: 1
⤷ Sink Type
: Inset

Additional Info & Downloads

Download the Customer Data Sheet For 500mm Vanity Unit Pdf File Download the Customer Data Sheet For 600mm Vanity Unit Pdf File Download the Customer Data Sheet For Basin Pdf File

This item can also be found in:

Technical Images

Roper Rhodes Covet Flat Front Wall Mounted Vanity Unit with Handle - 1 Drawer

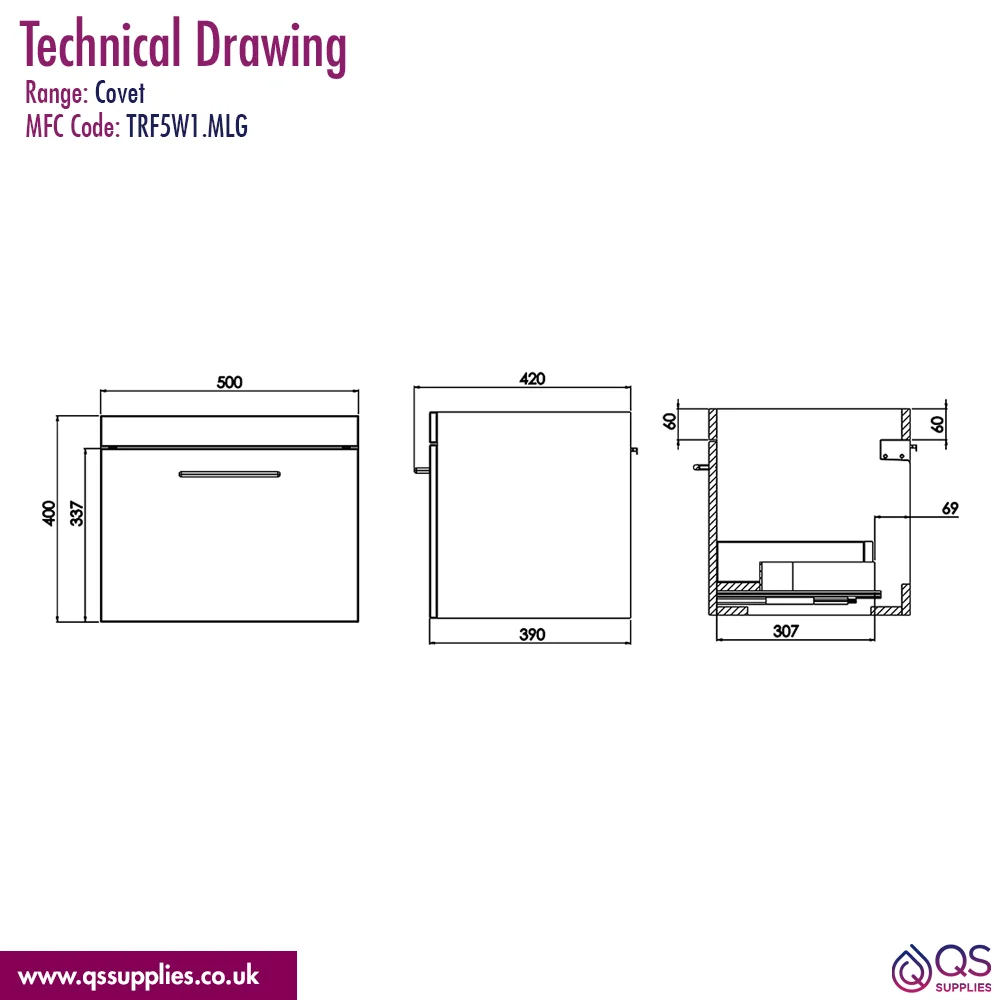

500mm Vanity Unit

500mm Basin

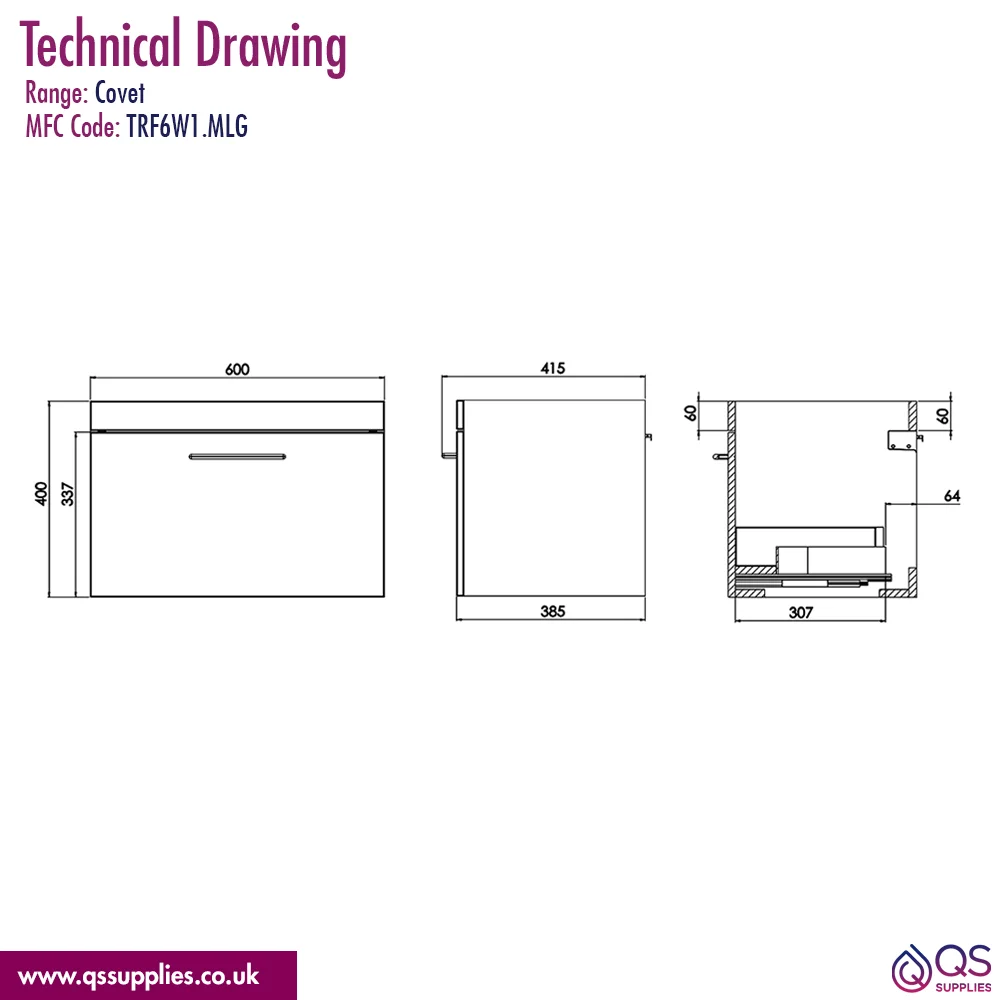

600mm Vanity Unit

600mm Basin

Add-Ons

Furniture Handles

To provide an exclusive look and feel to your furniture, Roper Rhodes presents furniture handle as an optional. Please select the appropriate handle of your choice. Please Note: Image shown is for illustration purpose only.

No Option Selected
OP-257742 - Matt Black Pull Handle - 160mm Centres + £11.62
OP-257743 - Brushed Brass Pull Handle - 160mm Centres + £11.62

Optional Basin Overflow Cap

Universal Metal Basin Overflow Cap

No Option Selected
OP-258081 - Gunmetal + £12.53

£133.15

RRP: ~~£236.50~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Soft-Close Opening

This product features advanced hinges or rollers that allow it to open and close slowly and gently.

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.
