Methven Tasman Bridge Bath Shower Mixer Tap, Aurajet Aio Handset, TMBSMCP

Methven Tasman Details

MFC: TMBSMCP

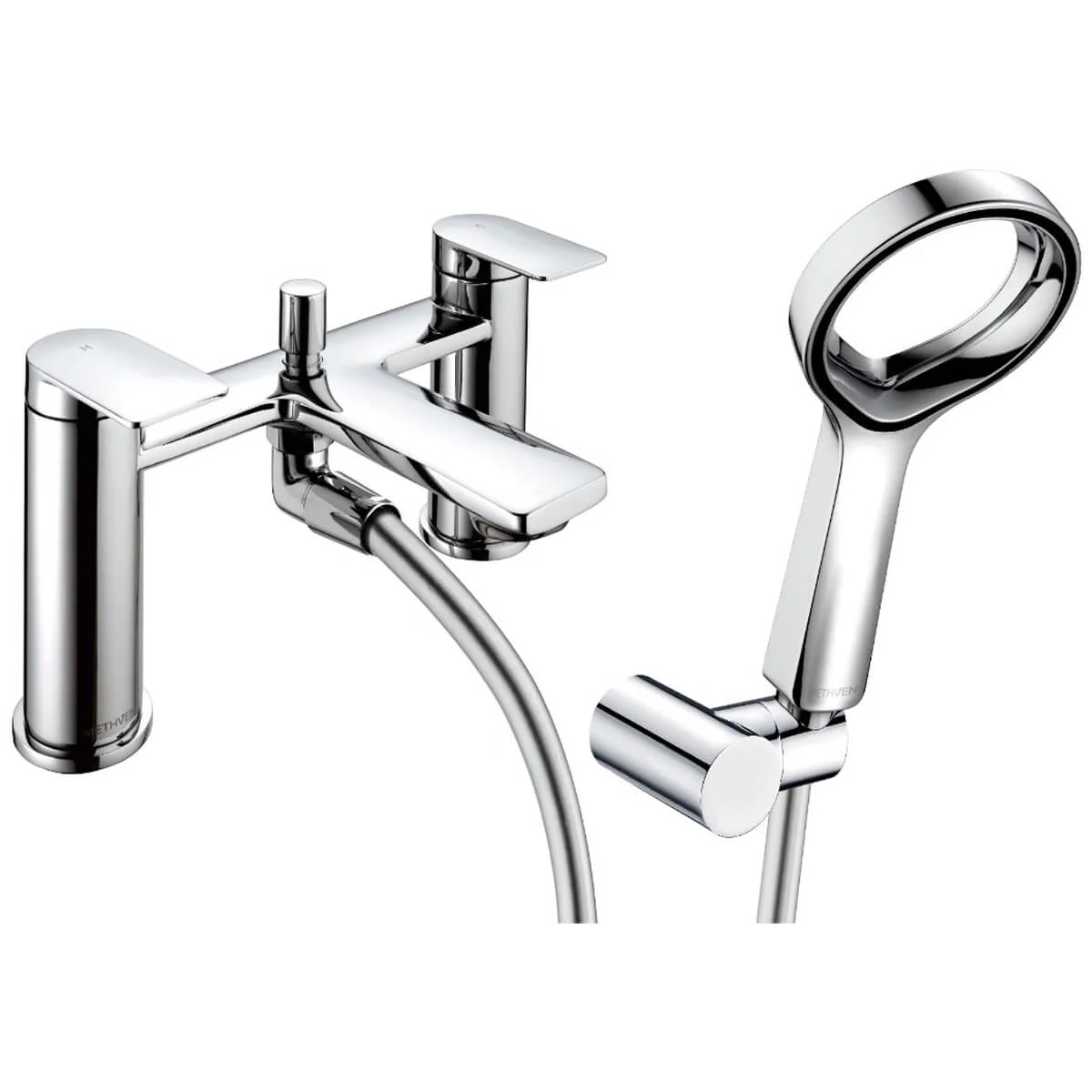

Methven Tasman Bridge Bath Shower Mixer Tap with Aurajet Aio Handset - Flat Handles.

Key Features

✔WRAS and KIWA Approved

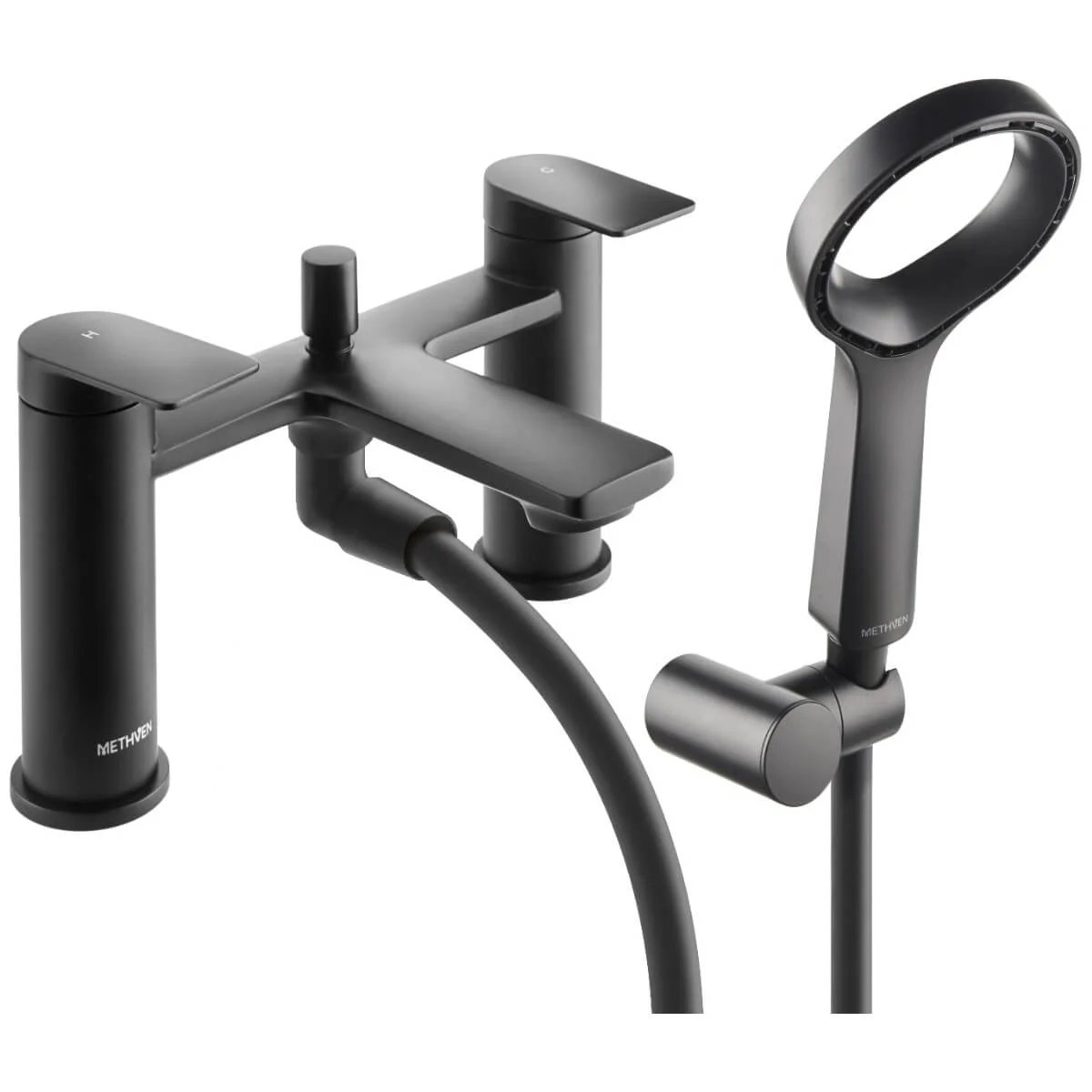

✔Choice of Finishes: Chrome and Matte Black
✔Product Includes: Bath Shower Mixer Tap, Aurajet Aio Handset with Holder and Shower Hose
✔Aurajet Aio Handset, Fitted with 5.7 l/min Flow Regulator
✔Warranty: 20-Year on Chrome and 5-Year on Matte Black from the Manufacturer

Suitable for Deck Mounted Installation

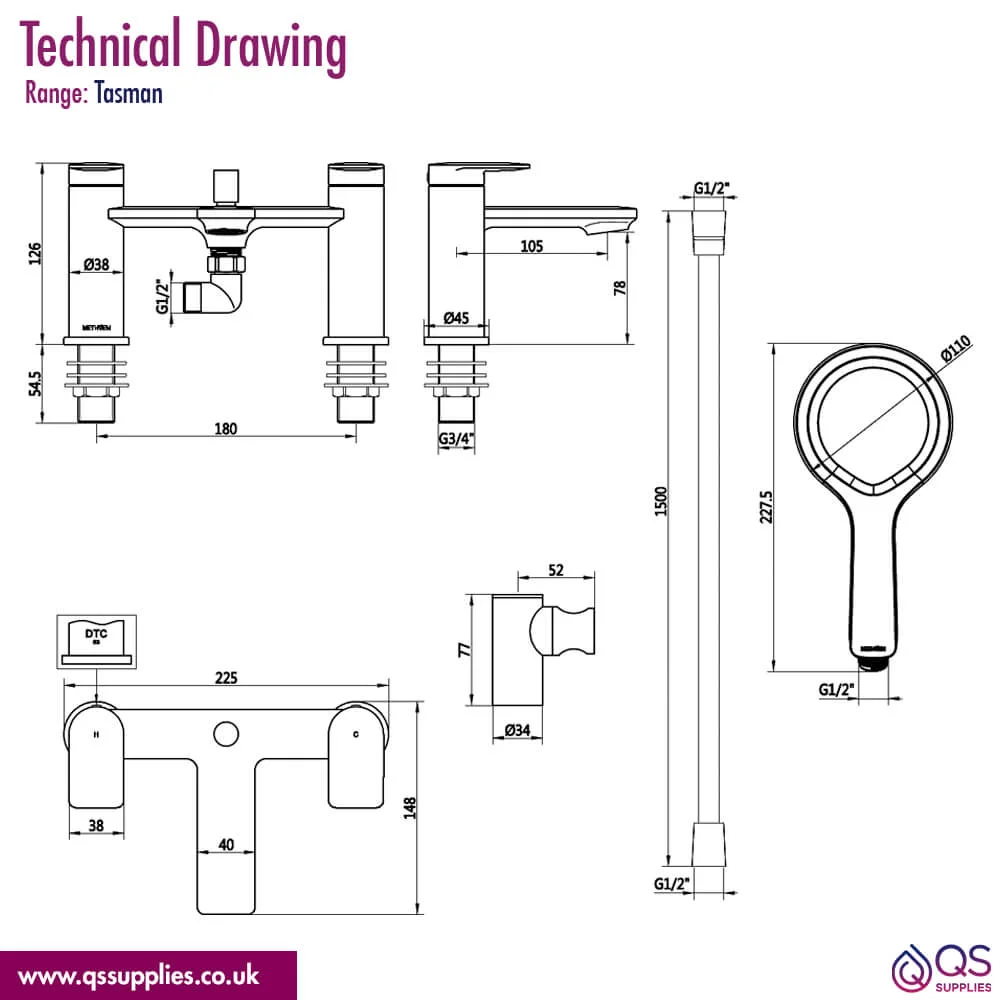

Refer to the Technical Drawing for More Details
Download the Product Data Sheet and Fitting Instructions PDF from the Additional Info Section
Details Of Bath Shower Mixer Tap:
Overall Size [mm]: 225 x 148 x 180.5mm [Width x Depth x Height]
Overall Size [cm]: 22.5 x 14.8 x 18.05cm [Width x Depth x Height]
Lockable, Self-Cancelling Diverter
Sleek and Ergonomic Contemporary Design
Ceramic Disc Handles Ensure a Smooth Operation
Supplied with Brass Backnuts
1/4 Turn Ceramic Disc Cartridge Type
Separate Flow and Temperature Controls
Centre of Inlet to Centre of Outlet: 105mm [10.5cm]
Inlet Centres: 180mm [18cm]
Manufactured using Brass Material
Suitable for Low-Pressure Systems
Requires a Minimum of 0.1 Bar of Water Pressure
Working Pressure Range: 0.1 - 5.0 Bar
Cartridge Size: 3/4-Inch
Inlet Connections: 3/4-Inch BSP
Details Of Shower Handset:
Size [mm]: 132 x 74 x 238mm [Width x Depth x Height]
Size [mm]: 13.2 x 7.4 x 23.8cm [Width x Depth x Height]
Aurajet Aio Water Saving Shower Handset
Regulated to 5.7 litres Per Minute
Handset Holder and Wall Bracket Included
Manufactured using ABS Material
Inlet Connections: 1/2-Inch BSP Male
Ultra-Wide Coverage: A Full-Bodied Spray for All-Over Warmth and Maximum Body Contact
Limescale Resistant - Hydrophobic Properties Resist the Build-Up of Limescale
Water Efficient: Water Flow Rate is Optimised to be Water Efficient without Compromising the Luxurious Spray Performance
Details of Shower Hose:
Smooth Shower Hose 1.5m Included
Length: 1500mm [150cm]
Twist-Free Hose
Easy to Use and to Clean
Constructed from PVC Material
Inlet Connections: 1/2-Inch BSP

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Range
: Tasman
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: Chrome: 20-Years | Matte Black: 5-Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 78
⤷ Spout Reach
: 105
⤷ Inlet Centres
: 180
⤷ Overall Height
: 180.5
⤷ Width
: 225
⤷ Inlet Connections
: 3/4" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Water Saving
: Yes

⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Hand-Shower Included
: Yes
⤷ Shower Handset Material
: ABS
⤷ Hand-Shower Function
: Single
⤷ Spray Pattern
: Aurajet Aio
⤷ Handle Style
: Flat
⤷ WRAS Approved
: Yes
⤷ Depth
: 148
⤷ Number of Handles
: Dual
⤷ Number of Outlet
: 1
⤷ Diverter Included
: Yes
⤷ Flow Regulator Included
: Yes
⤷ Compliance/Approvals/Standard
: WRAS and KIWA
⤷ Barcode
: 5057199883223
⤷ Product Type
: Bath Mixer Taps
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Ceramic Disc
⤷ Diverter Type
: Lockable, Self Cancelling Diverter

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Fitting Instructions Pdf File

This item can also be found in:

Methven Tasman Bridge Bath Shower Mixer Tap with Aurajet Aio Handset - Flat Handles

£383.22

RRP: ~~£383.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

8 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

Aurajet

The latest technology delivers powerful water spray compared to ordinary showers, promising a far superior showering experience than the conventional ones.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

PVC Material

PVC or Polyvinyl chloride is a kind of plastic made of carbon, hydrogen, and chlorine atoms. It is a thermoplastic material, which means that it can be melted and reshaped again and again without any chemical degradation or change. It offers extreme durability, impact, chemical and water resistance, and is popular in manufacture of fittings, pipes and containers.
