Ideal Standard Ceratherm Navigo Thermostatic Built-In Round Concealed Shower Set

Ideal Standard Ceratherm Navigo Thermostatic Built-In Round Concealed Shower Set.

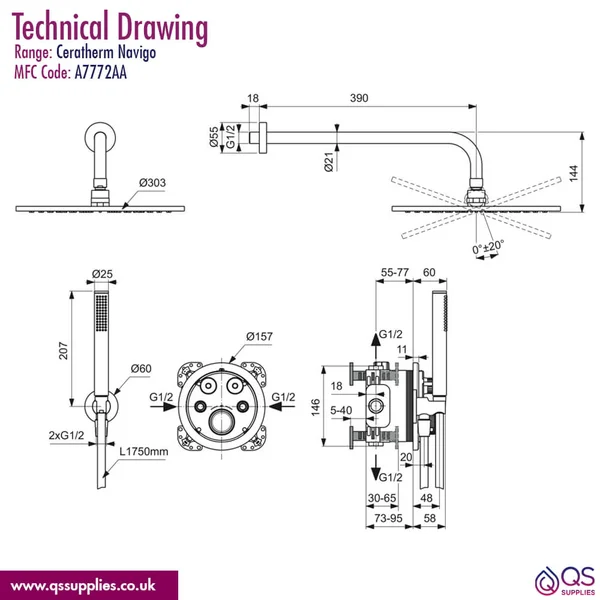

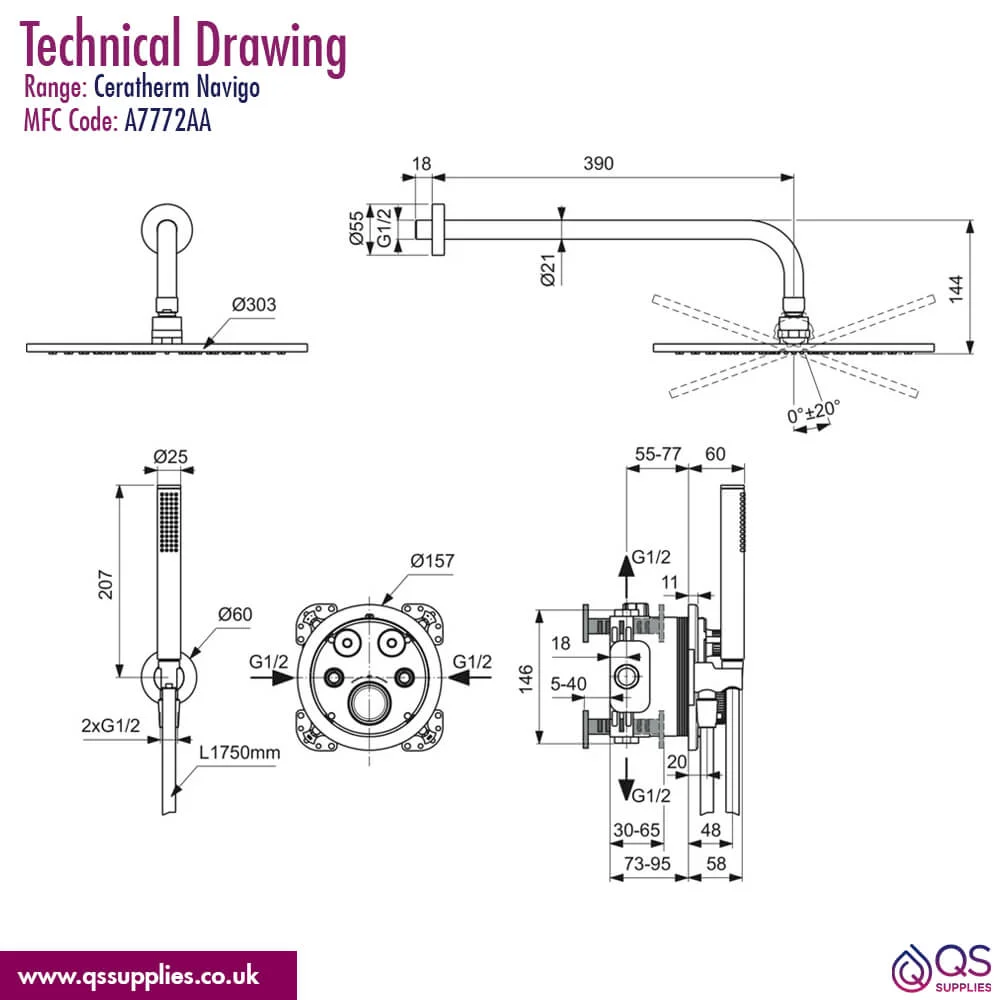

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download the Product Data Sheet PDF from the Additional Info Section

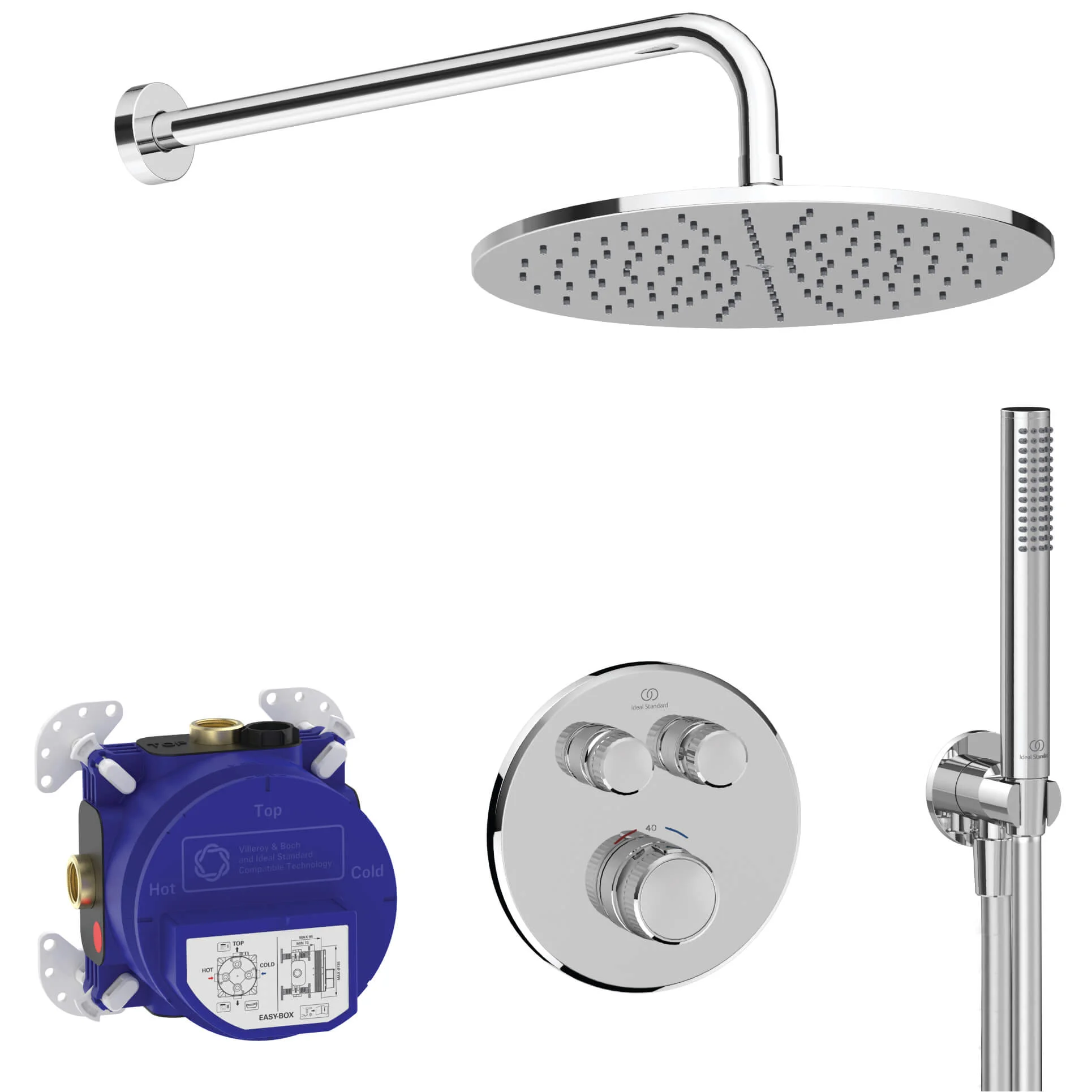

• Pack Includes:
• Ceratherm Navigo 2 Outlet Thermostatic Concealed Round Valve - A8579AA
• Easybox Built-In Body - A1000NU
• Idealrain Round Rain Shower Head - Swivel - Single Spray - Ø300mm - A5803AA
• Idealrain Chrome Shower Arm - Wall Mounted - 390mm Projection - B9445AA
• Idealrain Round Stick Shower Handset - Single Spray Mode - BC774AA
• Idealrain 1750mm Shower Hose - BE175AA
• Idealrain Chrome Wall Elbow with Shower Handset Bracket - BC807AA

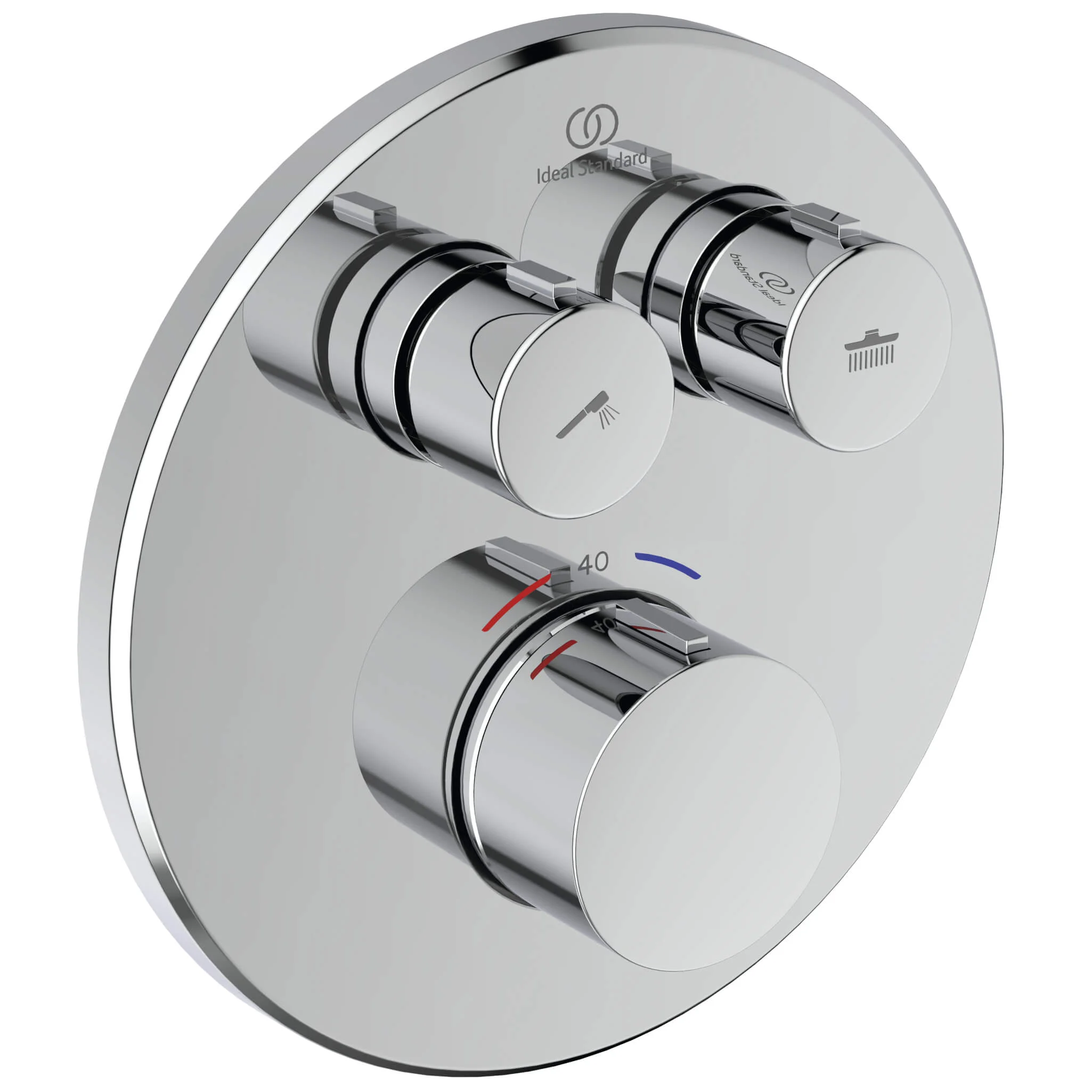

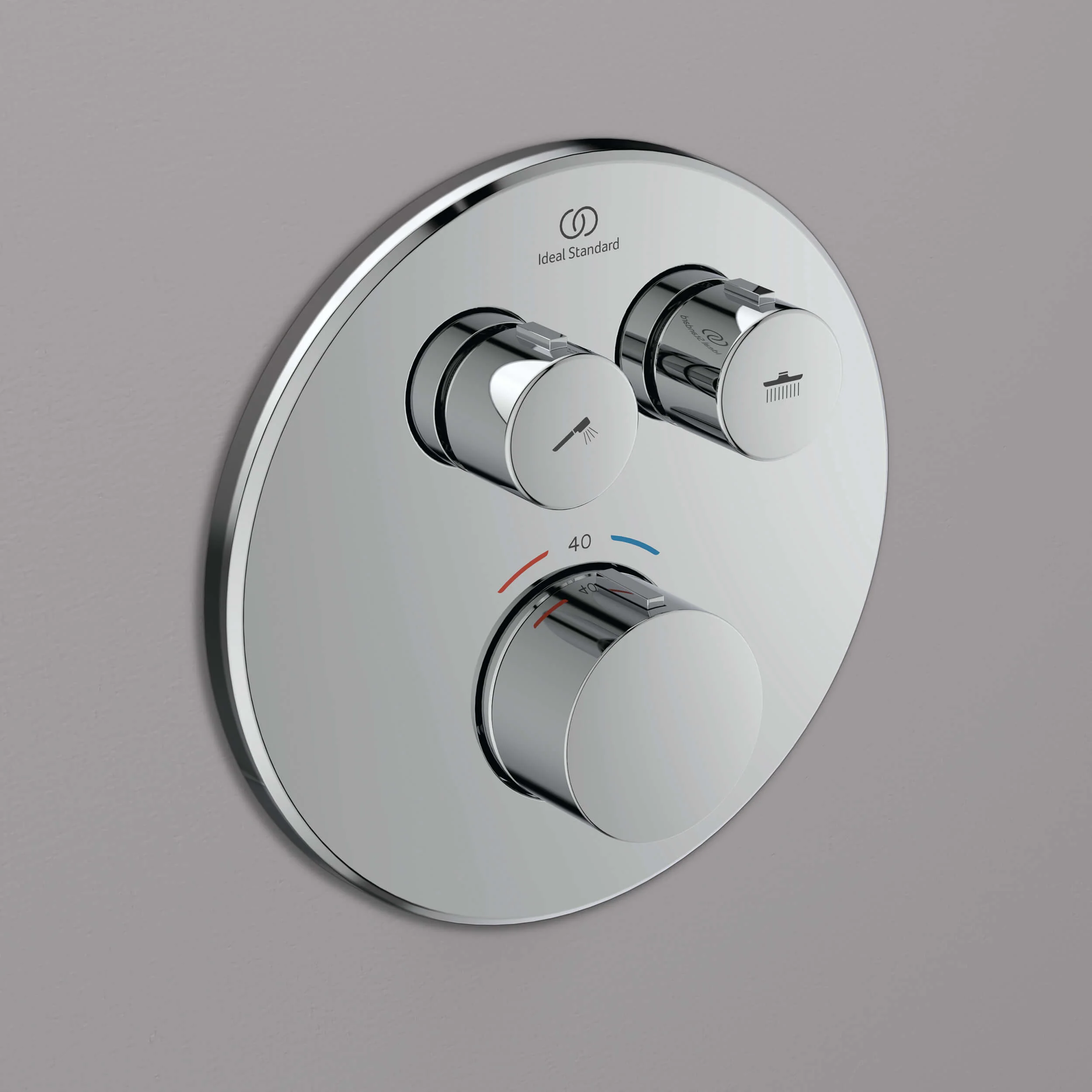

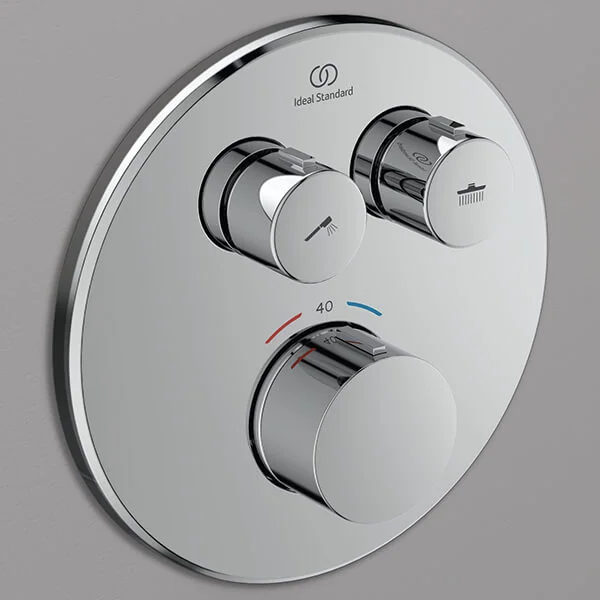

• Features of Ceratherm Navigo 2 Outlet Thermostatic Concealed Round Valve - A8579AA
• Thermostatic Function
• Manufactured Using Brass Material
• Suitable for Medium and High Water Pressure Systems
• Works on Minimum 0.5 bar to Maximum 1.0 bar Water Pressure
• Weight: 1.5kg
• Diameter of Back Plate: Ø157 [Ø15.7cm]
• Additional standards: EN 1111
• Easy to Set Your Needed Temperature Even with Changes in the Water Supply, Because the Cartridge will Compensate Instantly
• Thermostatic Mechanism Controls the Warm and Cold Water Flows, Allowing You to Save Water and Money
• Limits Outlet Water Temperature to 40°C to Protect Vulnerable Users, with Manual Override
• A Superior Surface that Withstands Scratches and Abrasion by Using Physical Vapour Deposition [PVD] Technology to Apply Fine Layers of Metal, Atom by Atom

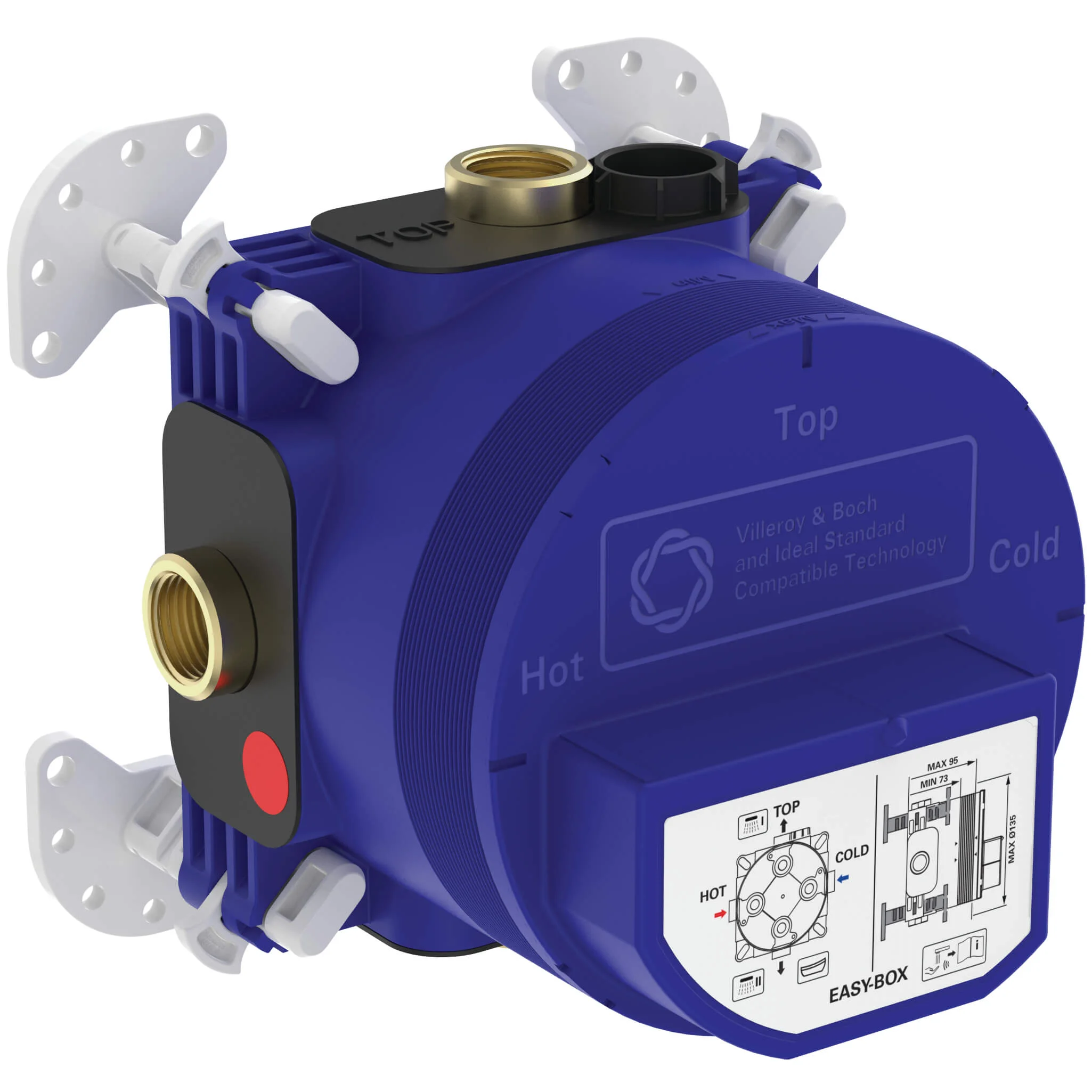

• Features of Easybox Built-In Body - A1000NU
• Manufactured Using Metal Material
• Features WRAS Approved
• Accreditations BMPD, Standards, ABPZ, RO_TA, WRAS
• Weight: 0.99kg
• Suitable for Medium and High Water Pressure Systems
• Works on Minimum 0.5 bar to Maximum 1.0 bar Water Pressure

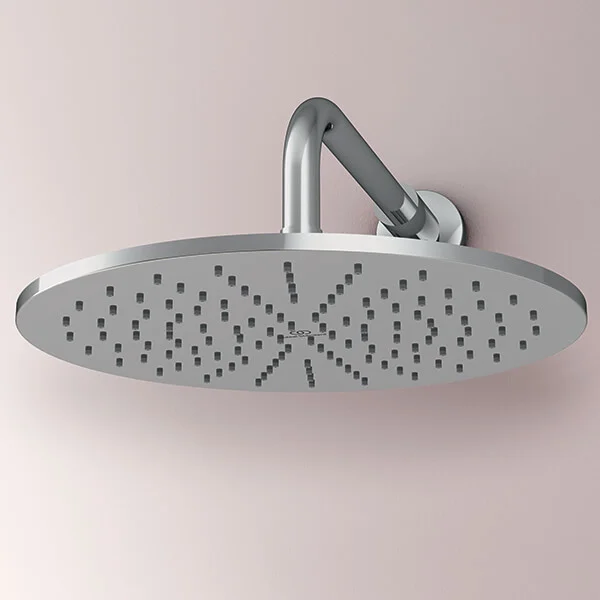

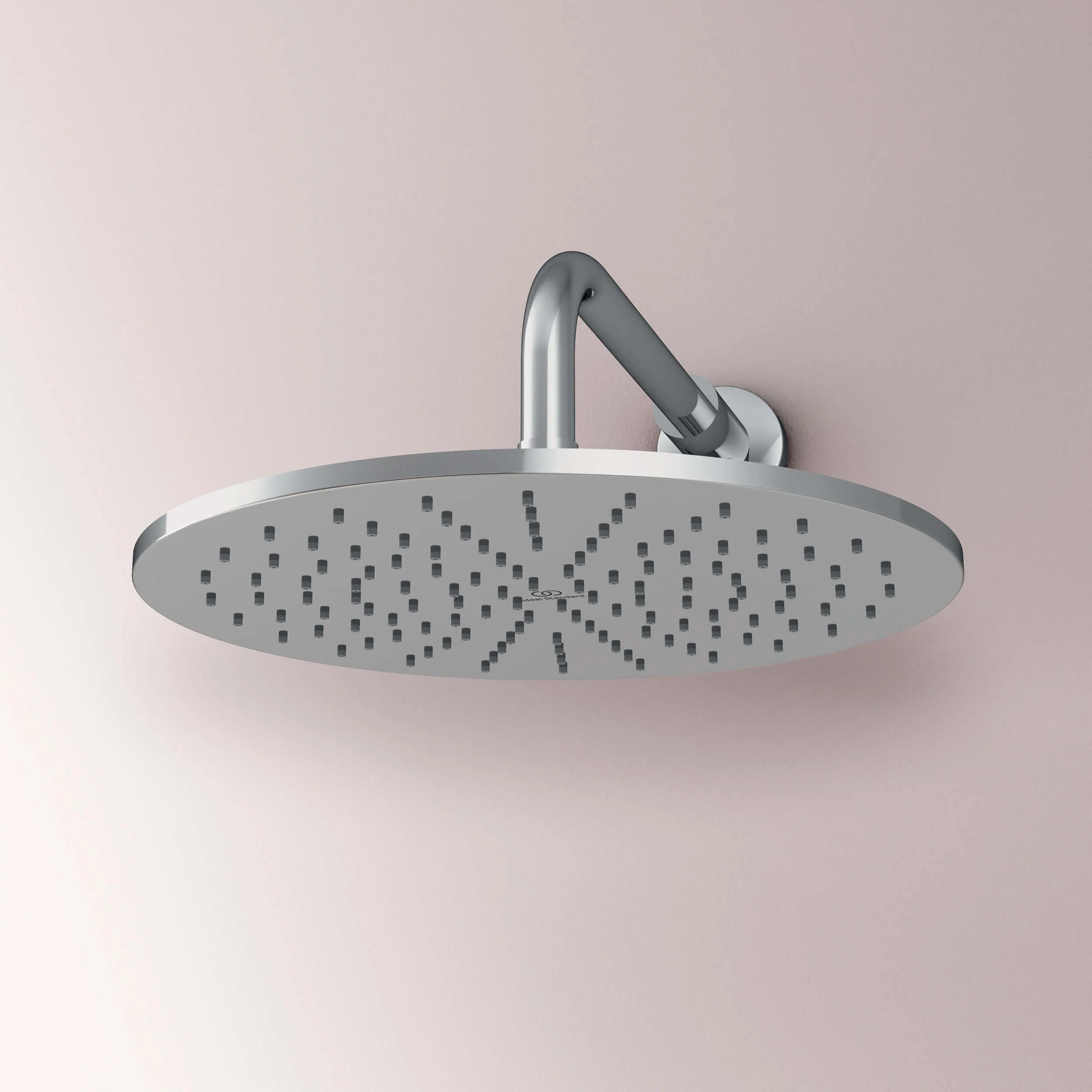

• Features of Idealrain Round Rain Shower Head - Swivel - Single Spray - Ø300mm - A5803AA
• Easy-to-Clean Nozzles that Prevent Limescale Buildup
• Single Function Shower Head with a Rain Spray Pattern
• Fitted with Removable 12 Litres Per Minute Eco Flow Regulator
• Constructed with Metal Materials to Ensure Longevity and Durability
• G 1/2 Inc. Inlet Connection
• Size in [mm]: Ø300 x 58mm [Diameter x Height]
• Thickness: 8mm [0.8]
• Suitable for Low or High Pressure
• Flow Rate: 12 Litres Per Minute at 3 Bar
• Internationally Certified for Hand Abrasion [IEC 68-2-70] by Tribotron AG
• Ideal for Both Home and Hotel Use
• A Sleek and Contemporary Design with the Added Reassurance of a Perfect Showering Experience
• The Regulated Flow Rate is 12 litres per Minute, and the Unregulated Flow Rate is 7.5 litres per Minute at 0.1 Bar
• Features of Idealrain Chrome Shower Arm - Wall Mounted - 390mm Projection - B9445AA
• Wall-Mounted Installation
• Size [mm]: 55 x 418 x 114mm [Width x Depth x Height]
• Size [cm]: 5.5 x 41.8 x 11.4cm [Width x Depth x Height]
• For use with Rainshower Overhead
• G 1/2 Inch Male Connections

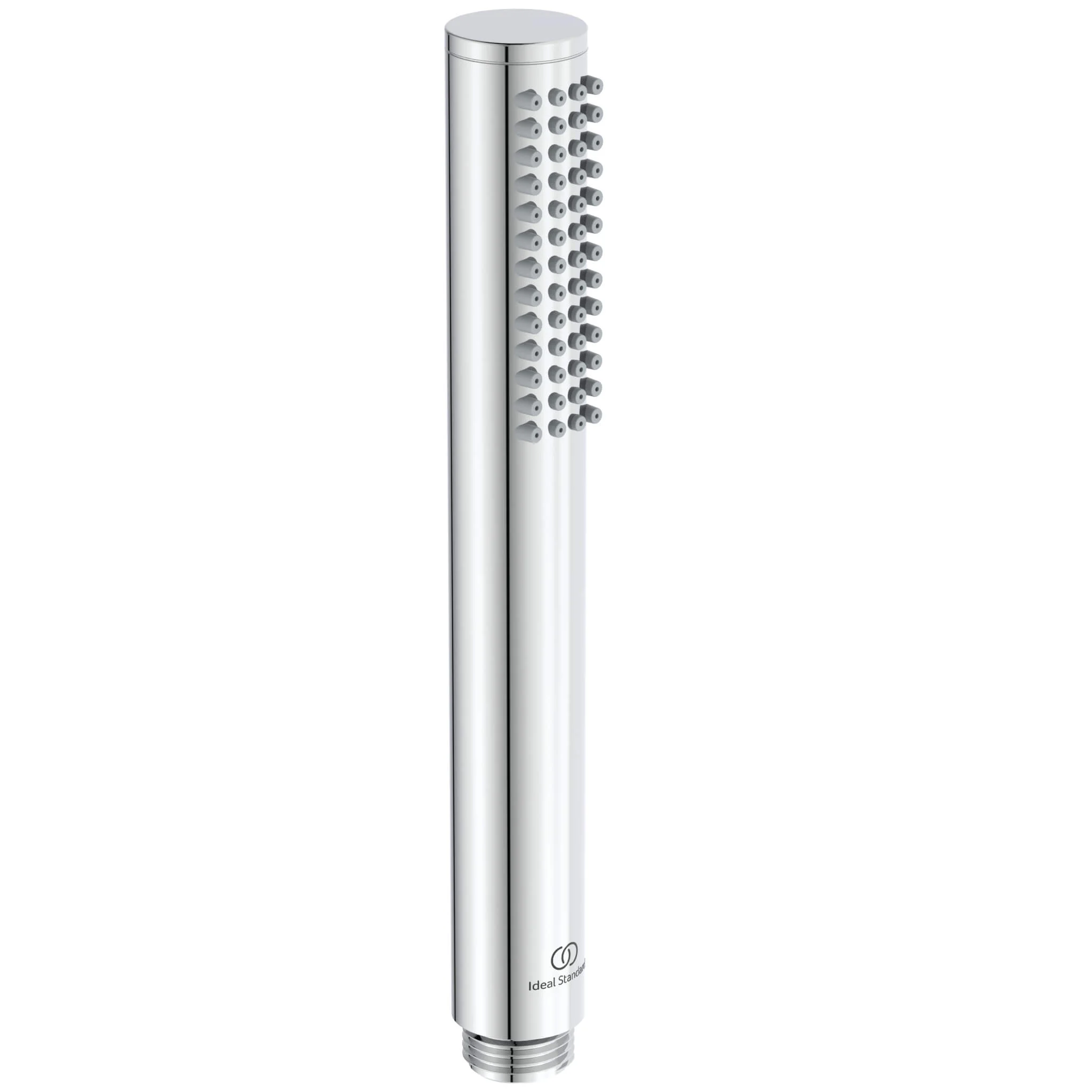

• Features of Idealrain Round Stick Shower Handset - Single Spray Mode - BC774AA
• Design by Palomba Serafini Associati
• Manufactured using PVD-Coated Brass Material
• Soft Rub-Clean Nozzles Reduce Limescale and Facilitate Cleaning
• Manufactured using Metal Material
• Height: 198mm [19.8cm]
• Diameter: Ø25mm [Ø2.5cm]
• Weight: 0.18Kg
• Inlet Connection: G1/2 Inch
• Vibrant, Long-Lasting Shades using Advanced PVD [Physical Vapour Deposition] Technology
• Superior Scratch and Abrasion Resistance with Fine Layers of Metal Applied Atom by Atom
• Enhanced Surface Durability by Precisely Controlling Composition, Hardness and Coating Compounds
• Tested to International Standards Hand Abrasion Test Conducted by Tribotron AG [IEC 68-2-70]
• Certificate Number: ACS = 21 ACC LY 157, BGCC = 14-NURVSPSRB-4112
• Flow Rate: 8 Litres Per Minute at 3 Bar Pressure

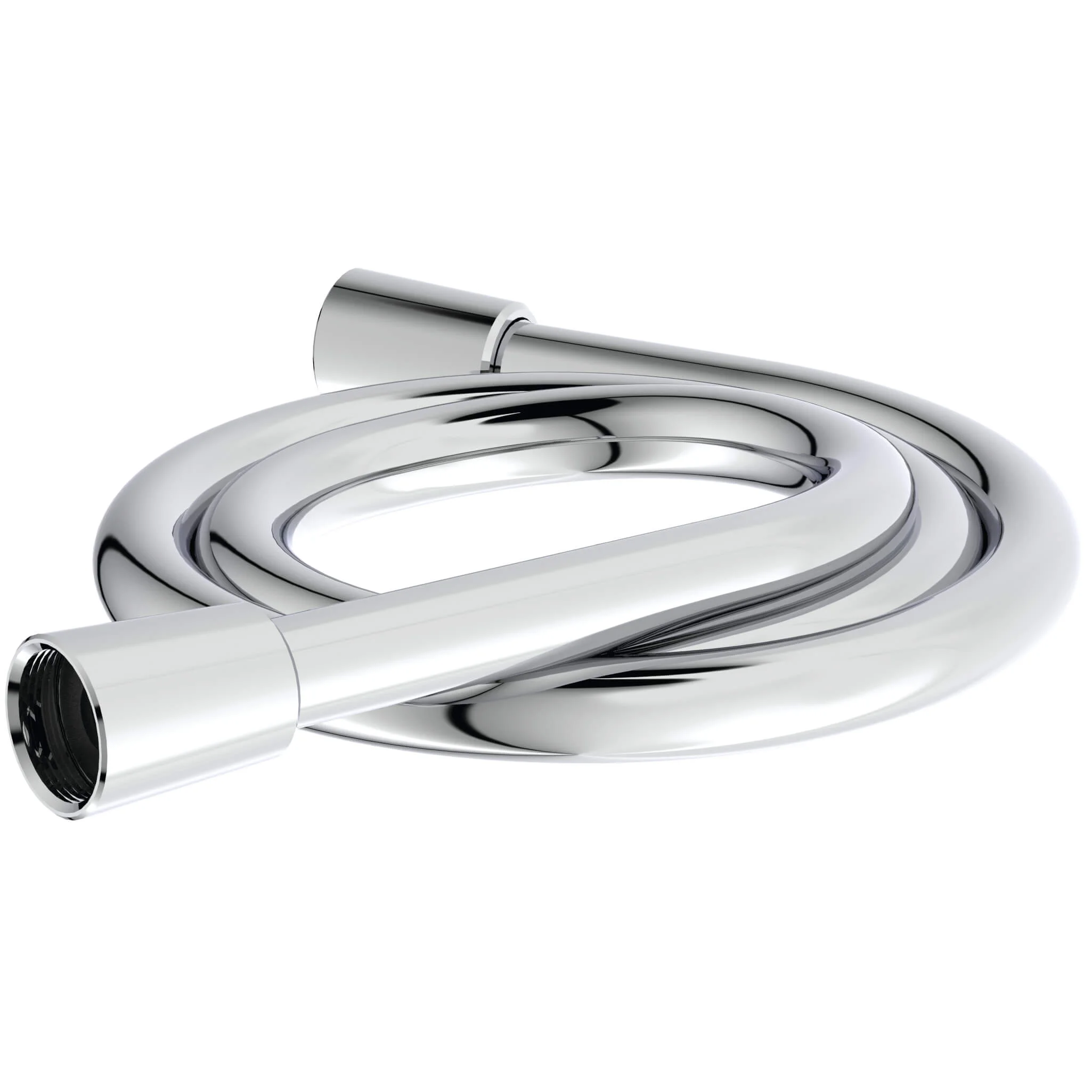

• Features of Idealrain 1750mm Shower Hose - BE175AA
• Weight: 0.35kg
• Length: 1750mm [175cm]
• Manufactured Using Metal Material
• Anti-Twist Function and Smooth Surface Simple to Clean - Just Wipe it Down

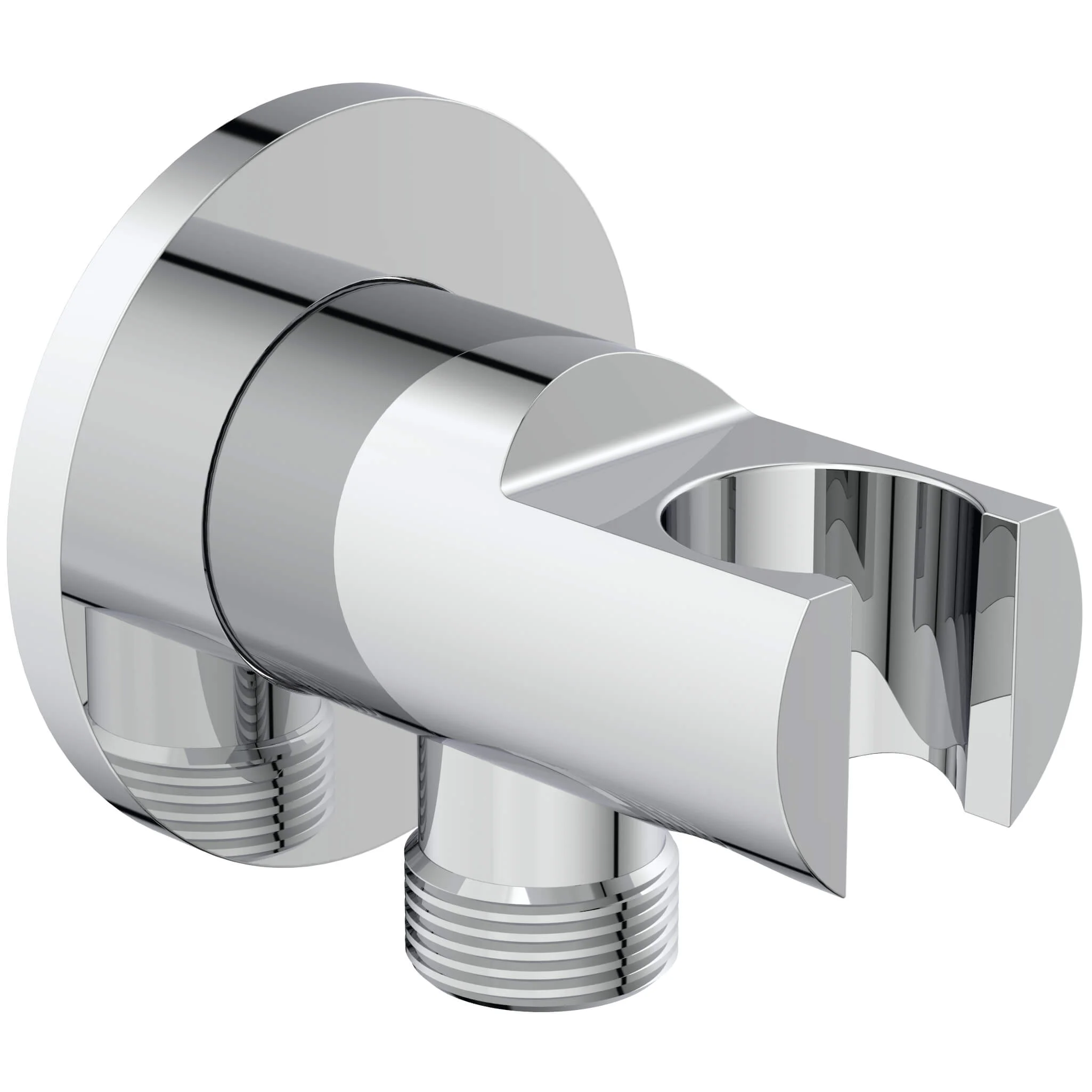

• Features of Idealrain Chrome Wall Elbow with Shower Handset Bracket - BC807AA
• Manufactured Using Brass Material
• Comes with a G 1/2inch Connection for Standard Compatibility
• Features PVD Technology
• Suitable for Wall-Mounted Installation
• Size [mm]: Ø57 x 58mm [Diameter x Depth]
• Size [cm]: 5.7 x 58cm [Diameter x Depth]
• Weight: 0.30 Kg
• Vibrant, Long-Lasting Shades using Advanced PVD [Physical Vapour Deposition] Technology
• Superior Scratch and Abrasion Resistance with fine Layers of Metal applied Atom by Atom
• Enhanced Surface Durability by Precisely Controlling Composition, Hardness and Coating Compounds
• Tested to International Standards, Hand Abrasion Test Conducted by Tribotron AG [IEC 68-2-70]
