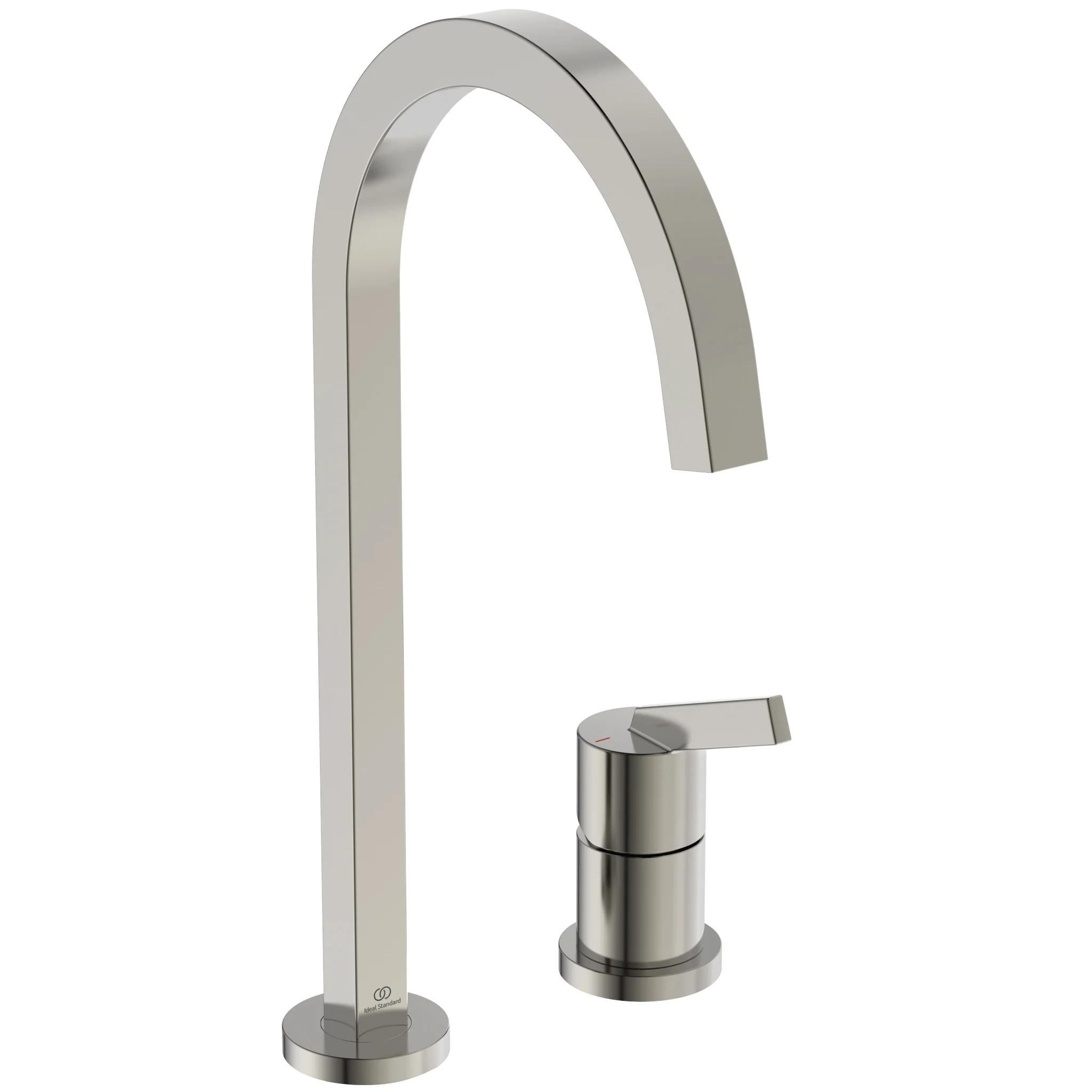

Ideal Standard Gusto Square C-Shaped Kitchen Mixer Tap

Ideal Standard Gusto Details

MFC: BD423AA

Ideal Standard Gusto Square C-Shaped Kitchen Mixer Tap - Lever Handle

Key Features

✔Constructed Using Brass Material
✔The Aerator is Concealed for a Sleek, Streamlined Look
✔5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

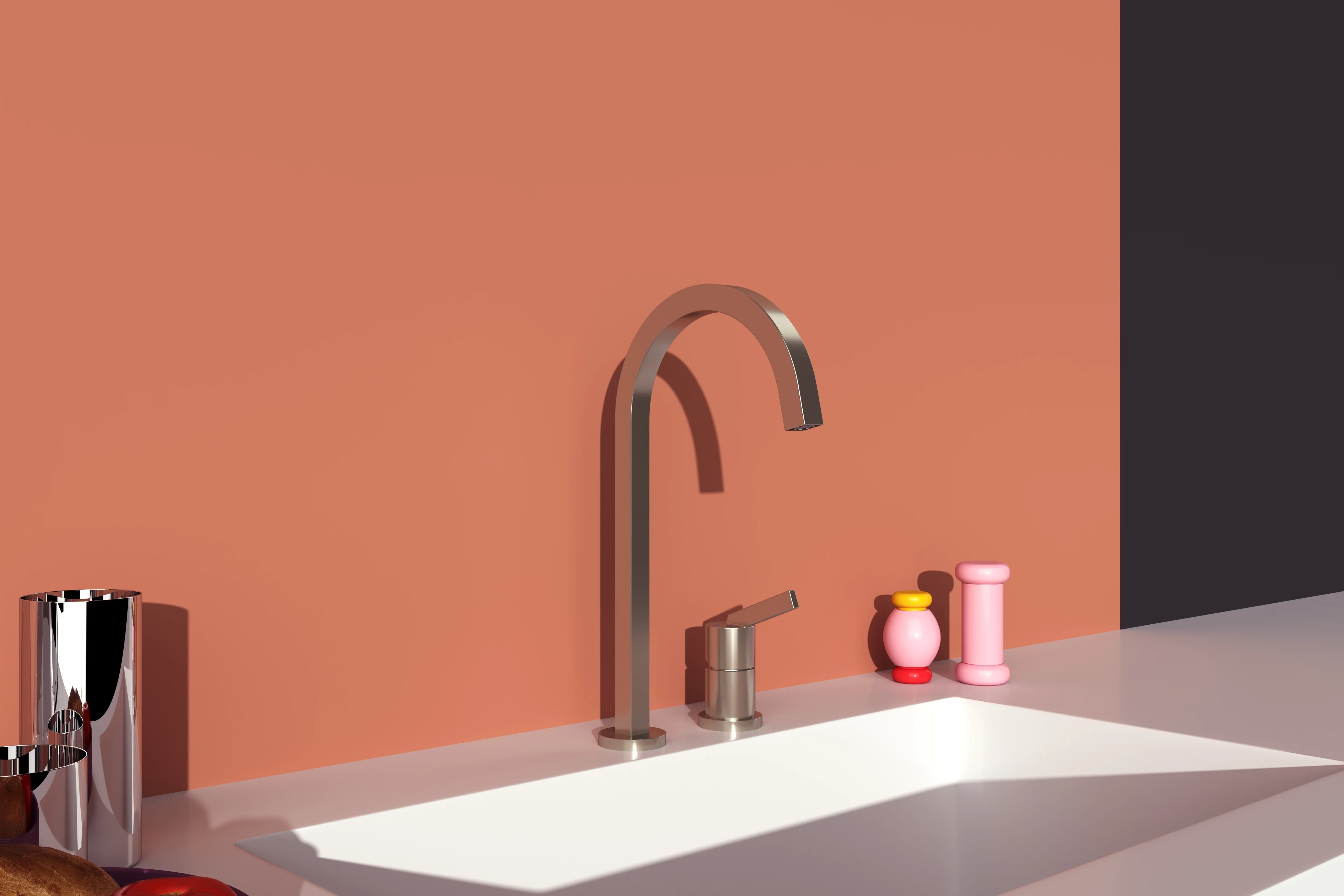

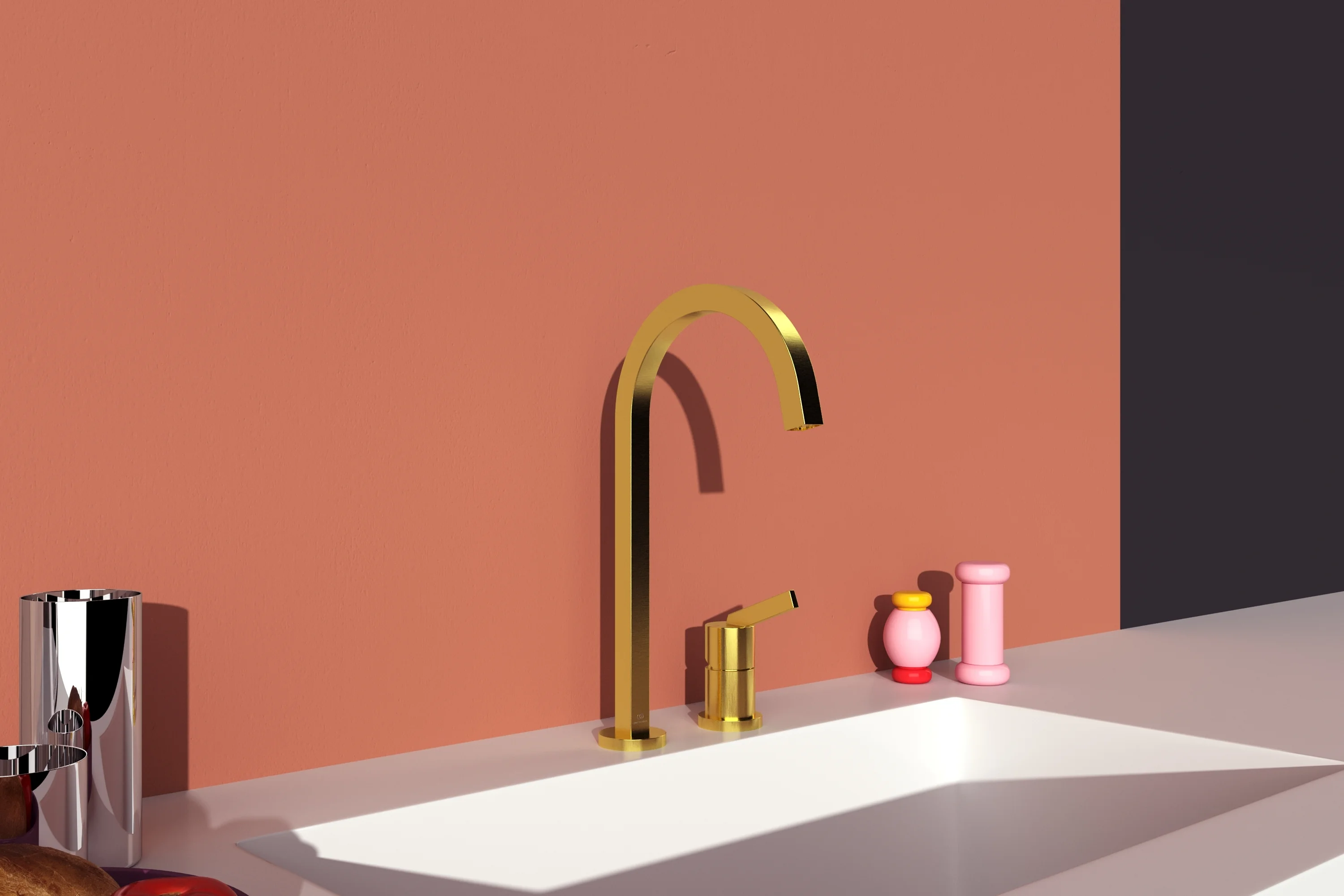

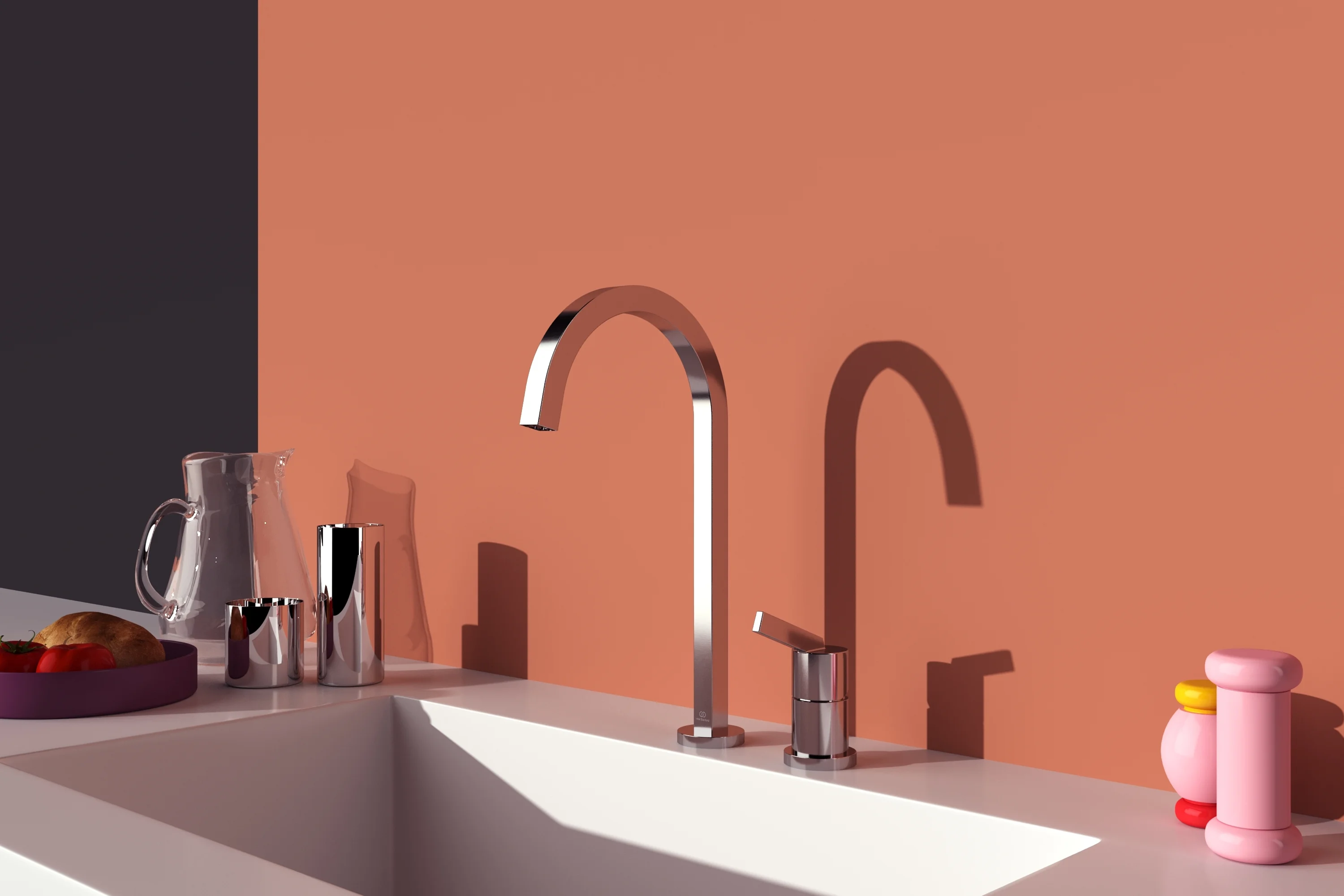

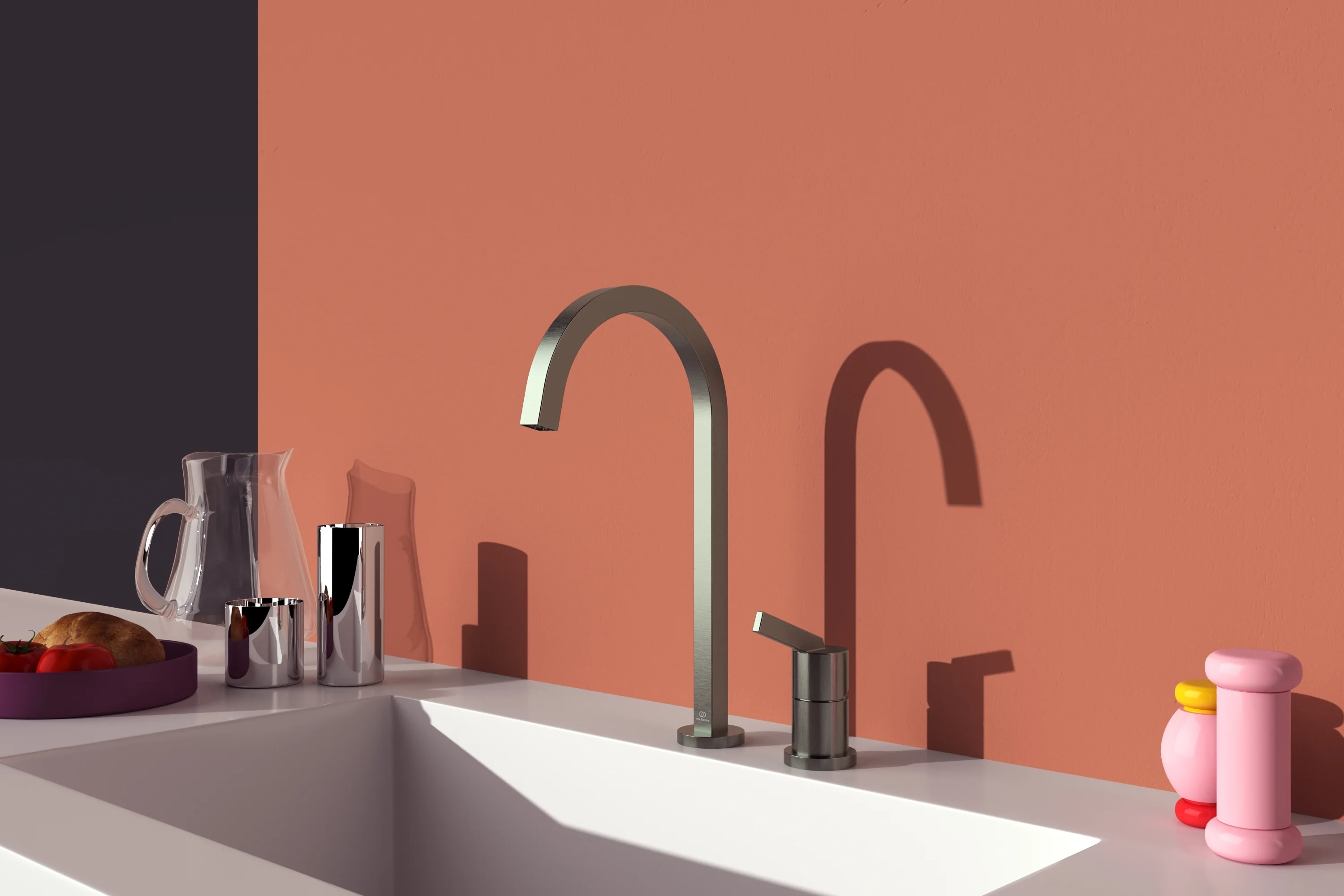

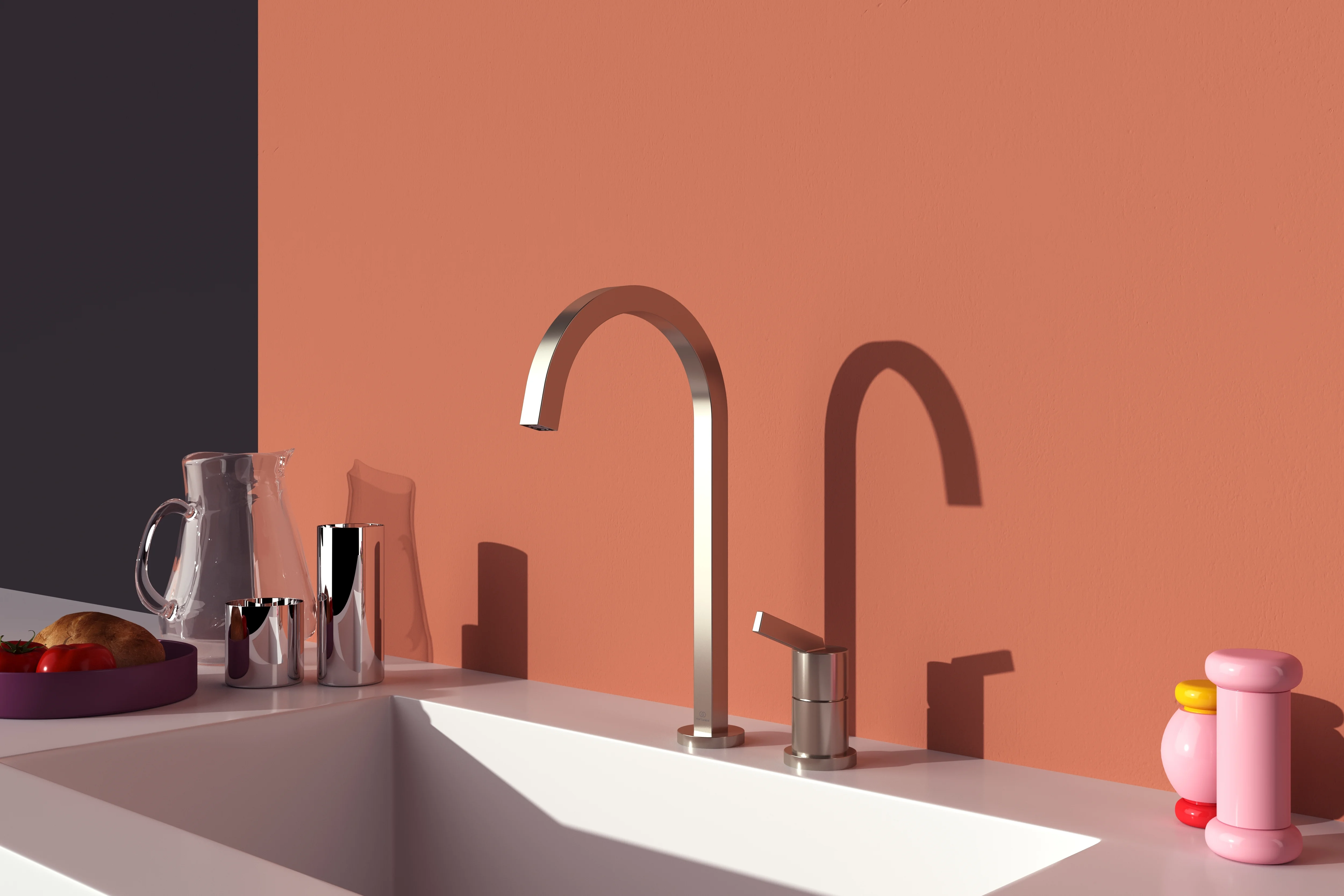

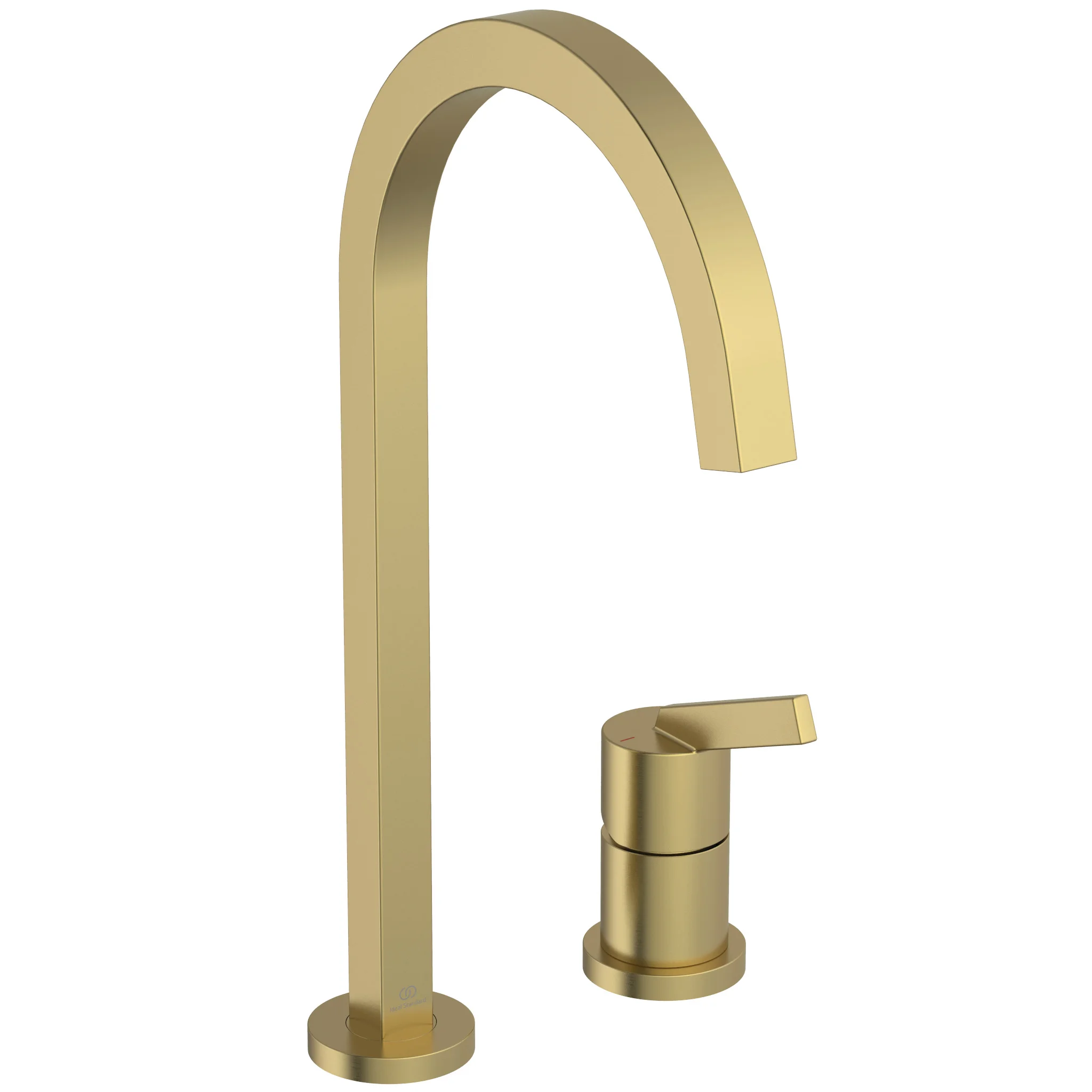

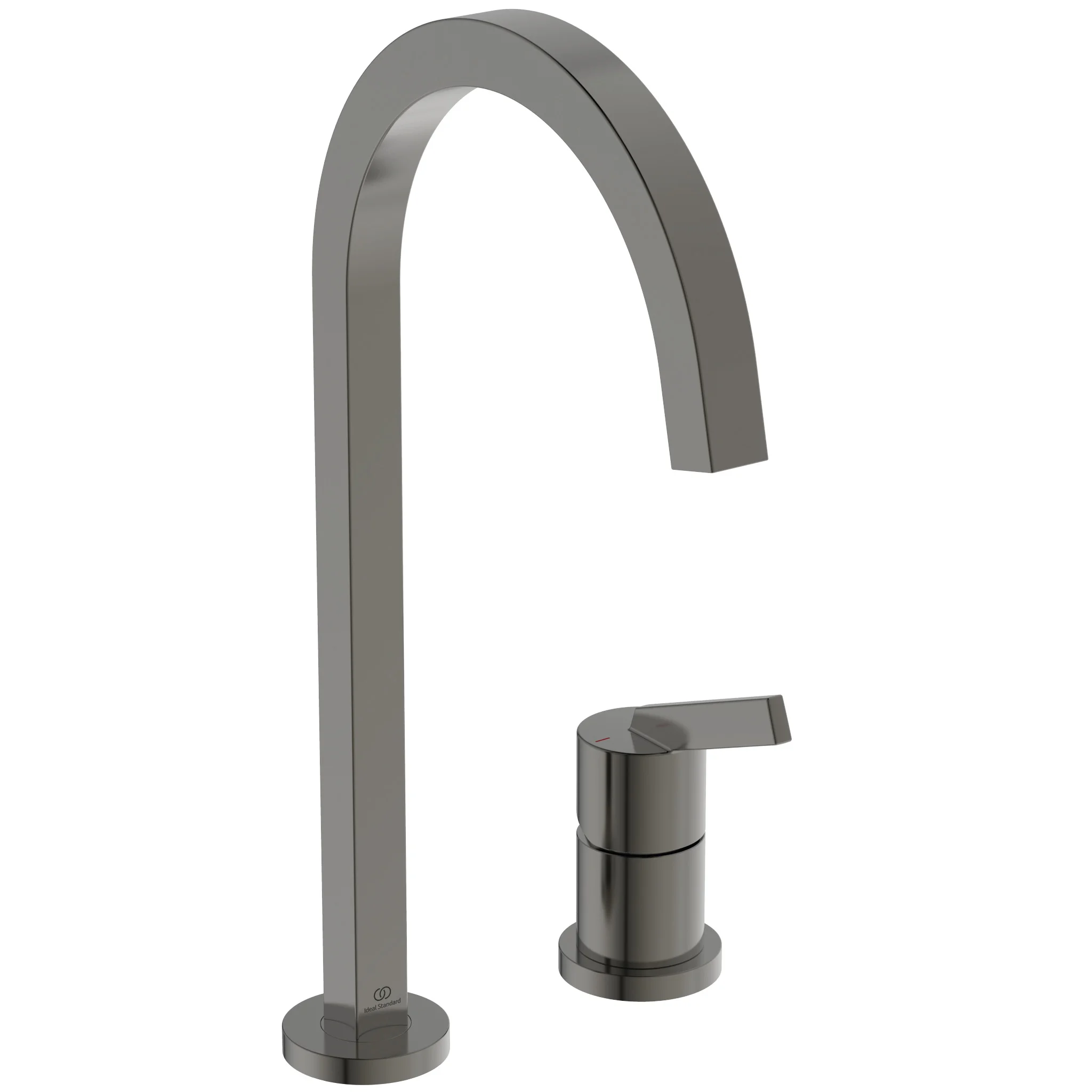

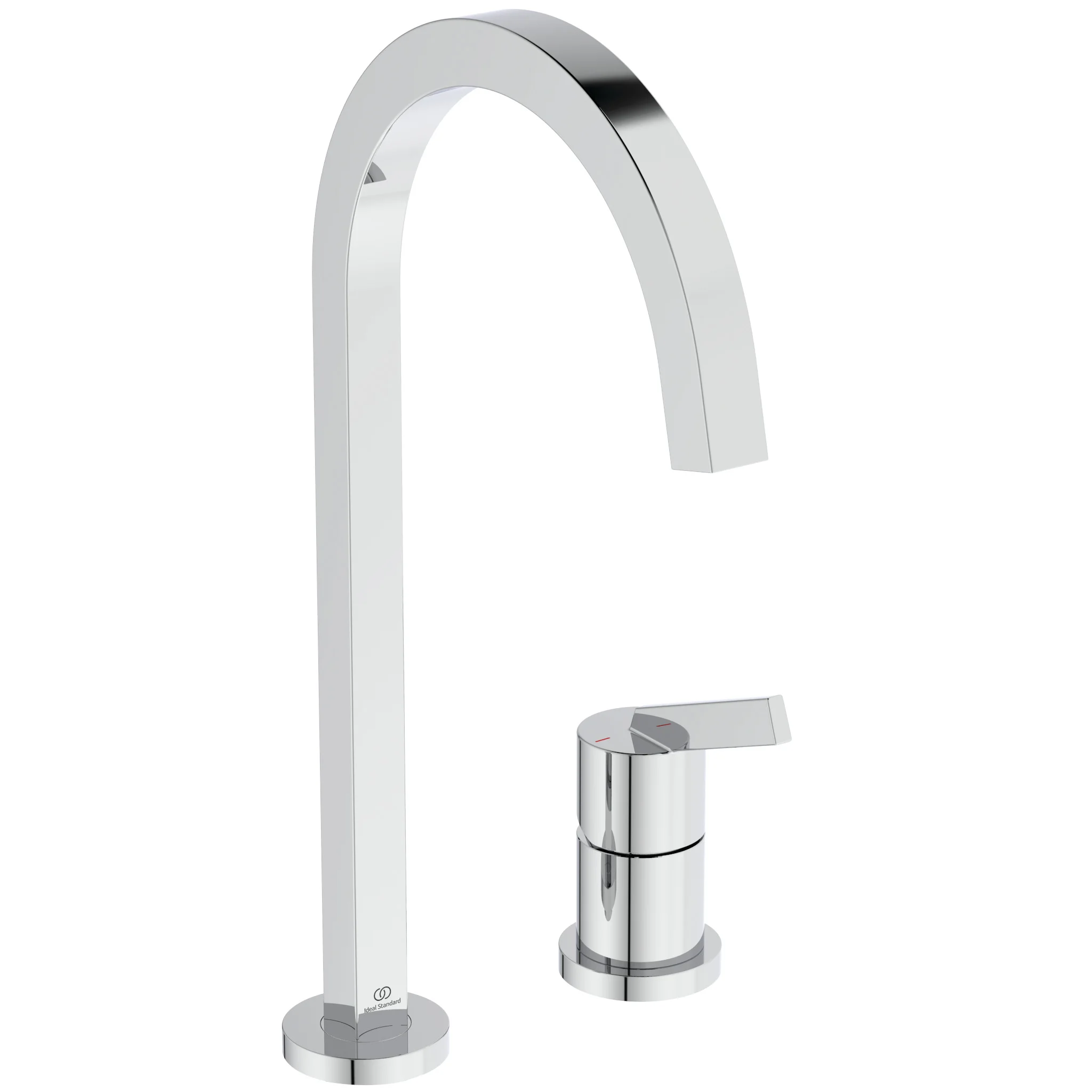

Choice of Finishes: Chrome, Magnetic Grey, Brushed Gold, Silver Storm
Crystal-Clear Water Flow – Delivers a smooth, non-aerated stream that minimises splashing for a cleaner and more comfortable experience
Features a C-Shaped Sqaure Spout with a 22mm
Includes a Durable Metal Lever for Easy Control
A 47mm Diameter Rosette is Included for a Clean Finish on the Countertop.
Size [mm]: 238 x 395mm [Depth x Height]
Size [cm]: 23.8 x 39.5cm [Width x Depth x Height]
Centre of the Inlet to Centre of the Outlet: 204mm [24cm]
Base to Spout: 277mm [27.7cm]
Required a Minimum of 0.5 Bar to a Maximum of 10 Bar Water Pressure
Flow Rate: 8.9 Litres Per Minute at 3 Bar Pressure
Ideal for Both Domestic and Commercial Use
Download the Data Sheet PDF File from the Additional Info Section

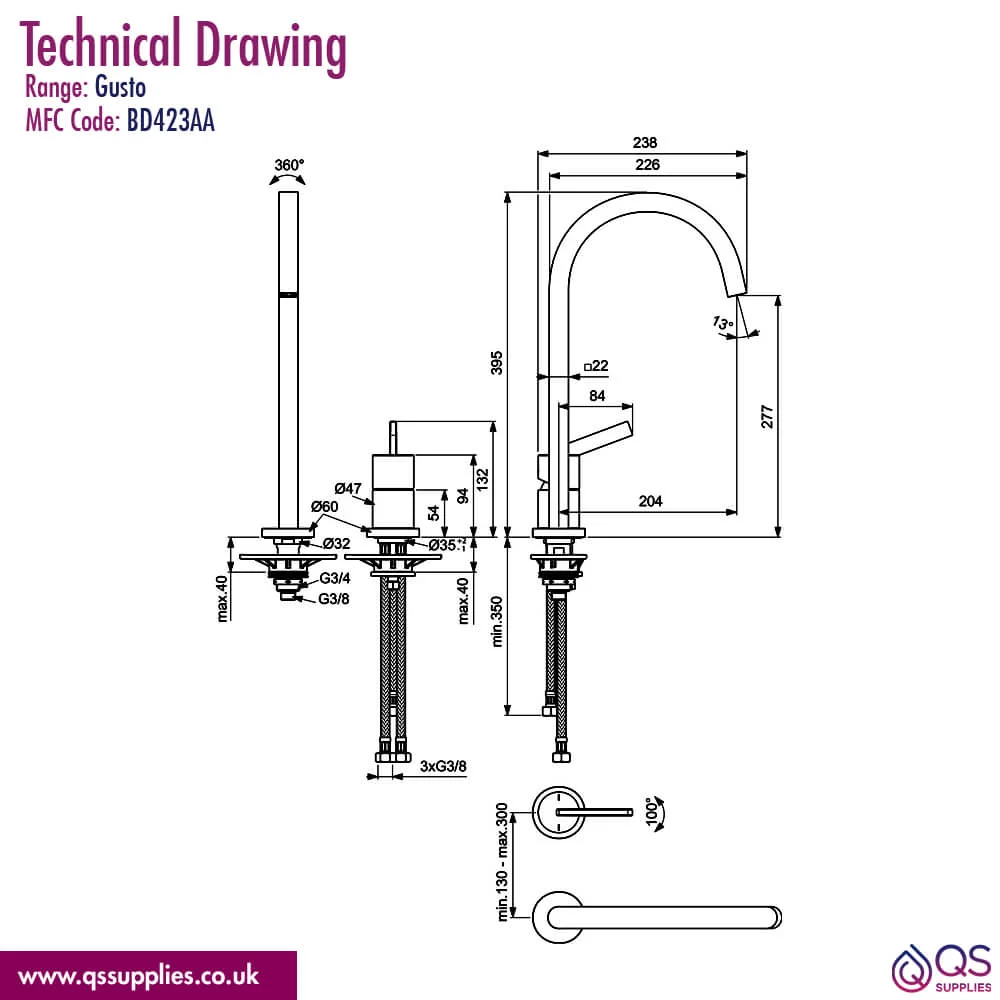

Refer to the Technical Drawing for More Technical Details
Features:
EasyFix® Installation: Fast and hassle-free fitting system that can reduce installation time by up to 30%
Crystal-Clear Water Flow: Flow straightener delivers a smooth, splash-free stream for a more comfortable user experience
Hidden Anti-Theft Aerator: Concealed aerator ensures reliable performance while maintaining a clean look and added security
FirmaFlow® Cartridge & PVD Finish: Advanced ceramic cartridge provides lasting precision and durability, while the scratch-resistant PVD finish preserves its premium appearance

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Gusto
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Square
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2

⤷ Valve/Cartridge Type
: FirmaFlow Ceramic Cartridge
⤷ Base To Spout
: 277
⤷ Overall Height
: 395
⤷ Depth
: 238
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 3 Bar - 8.9Ltr
⤷ Handle Style
: Lever
⤷ Barcode
: 3800861108948

Additional Info & Downloads

Download the Data Sheet Pdf File

This item can also be found in:

Ideal Standard Gusto Square C-Shaped Kitchen Mixer Tap - Lever Handle

£236.80

RRP: ~~£394.67~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.
