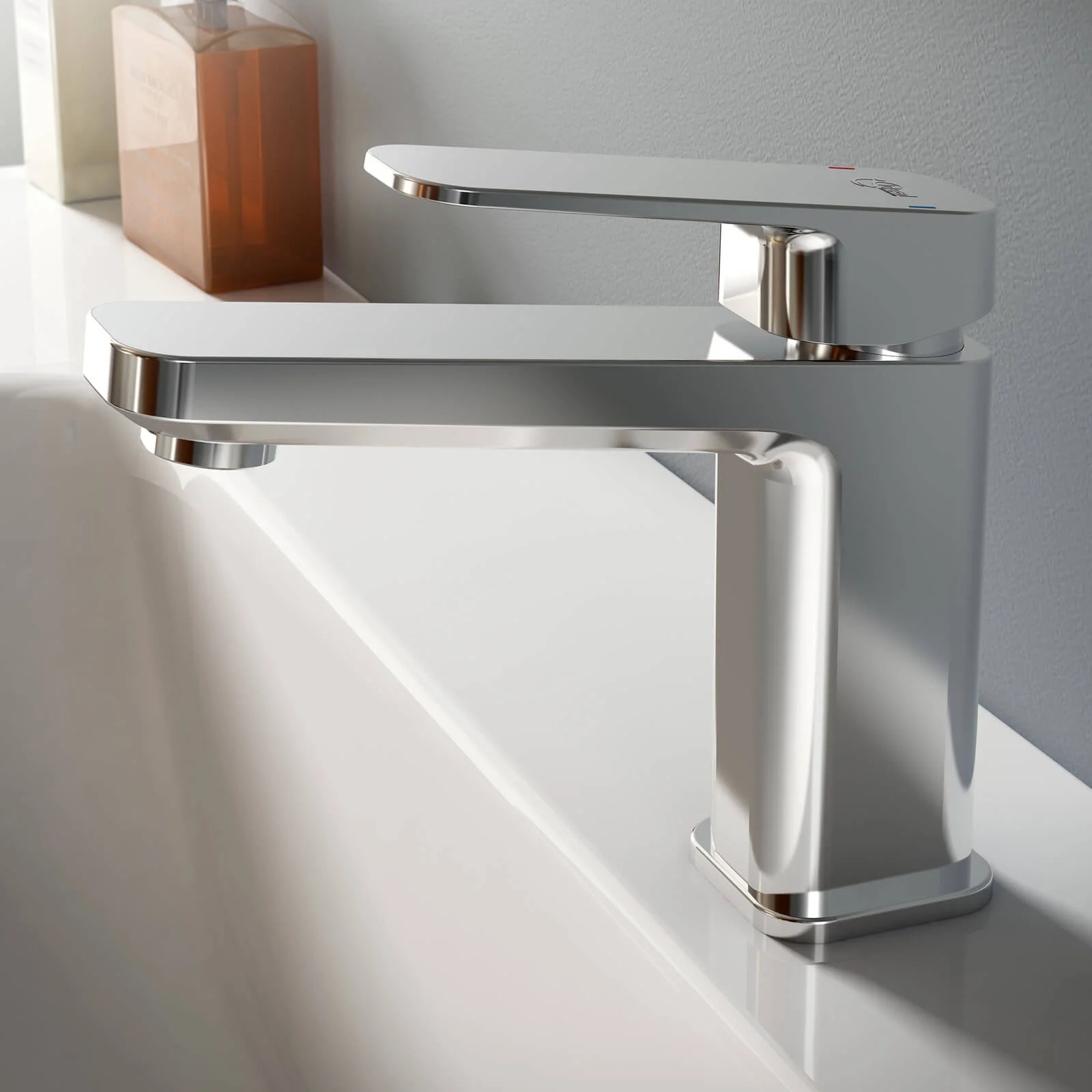

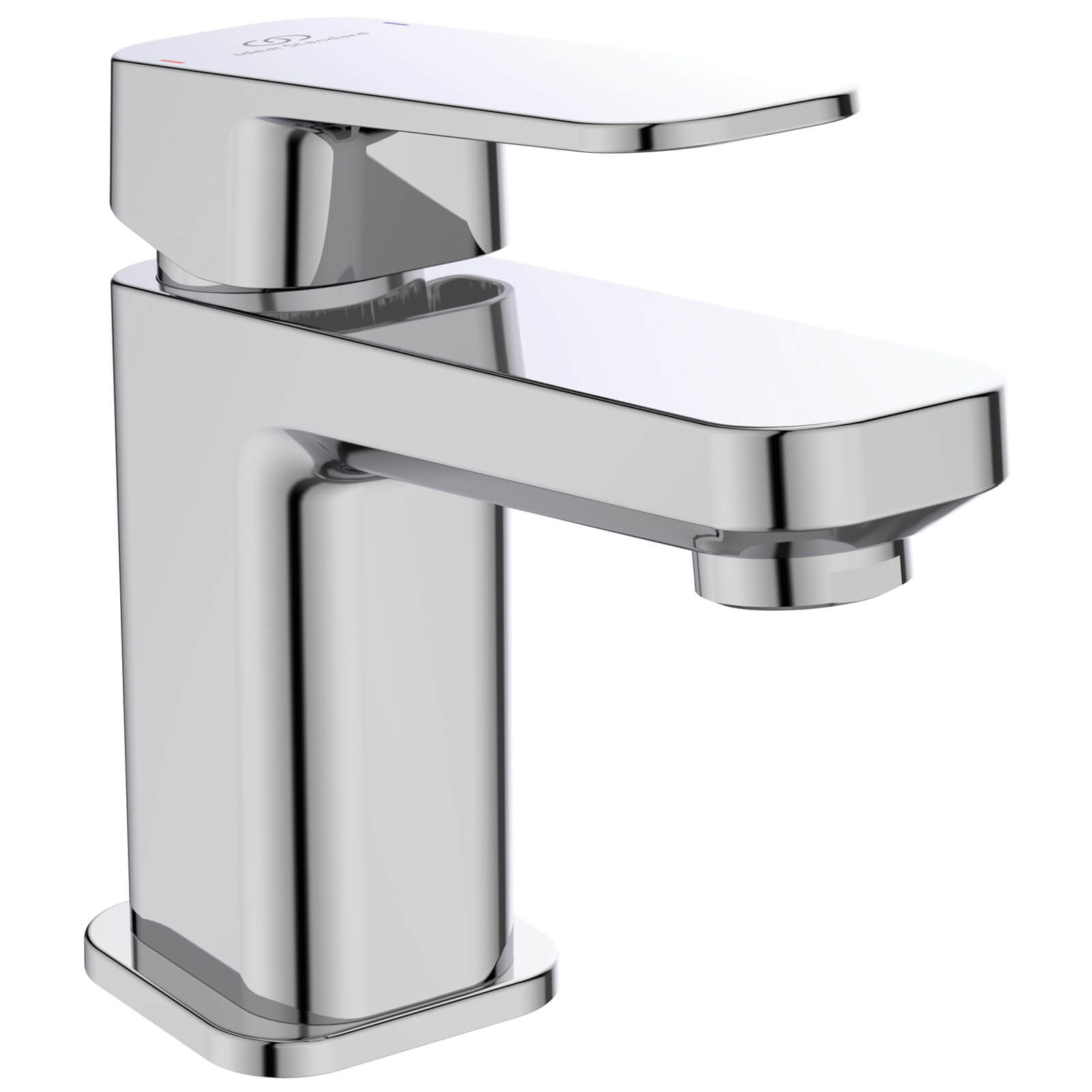

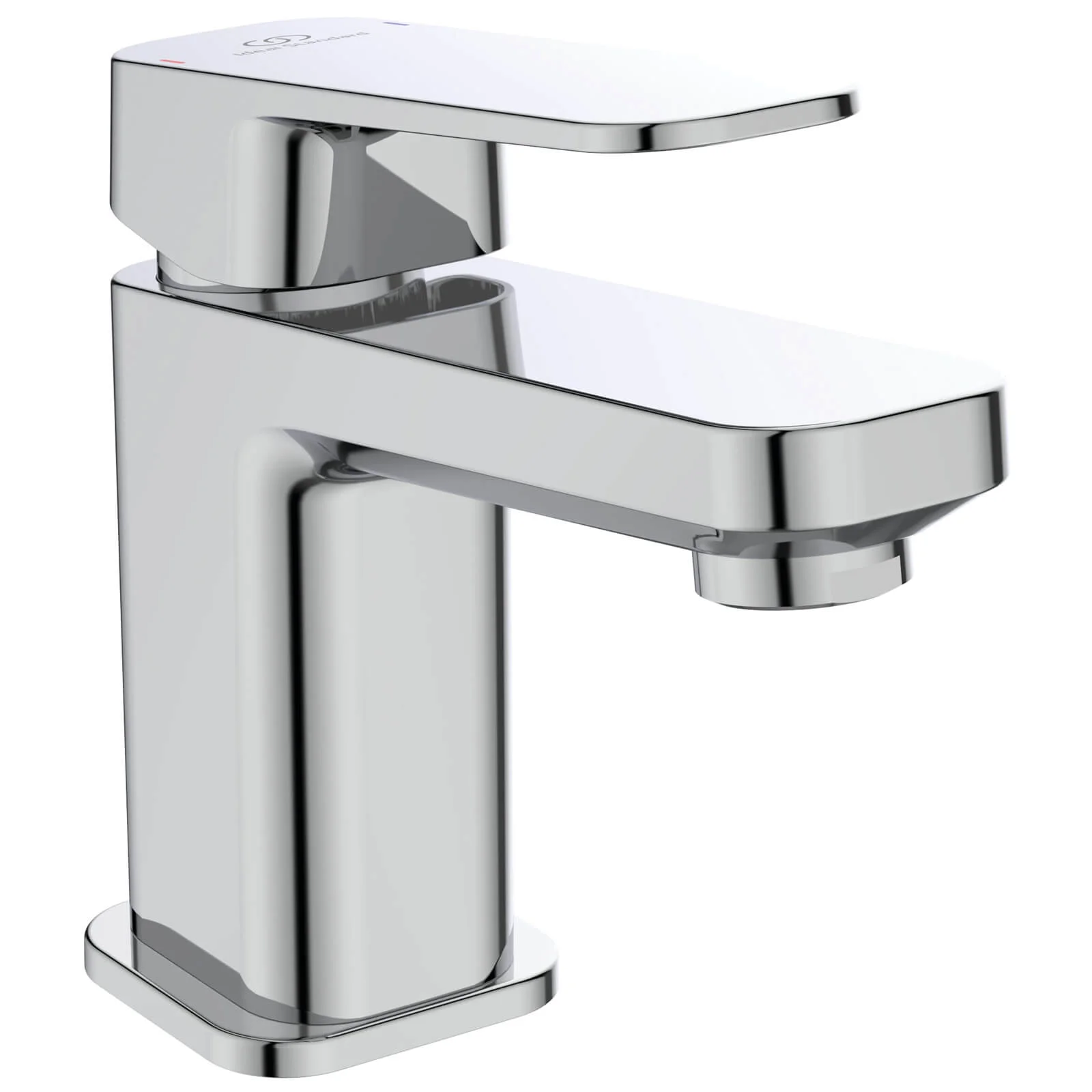

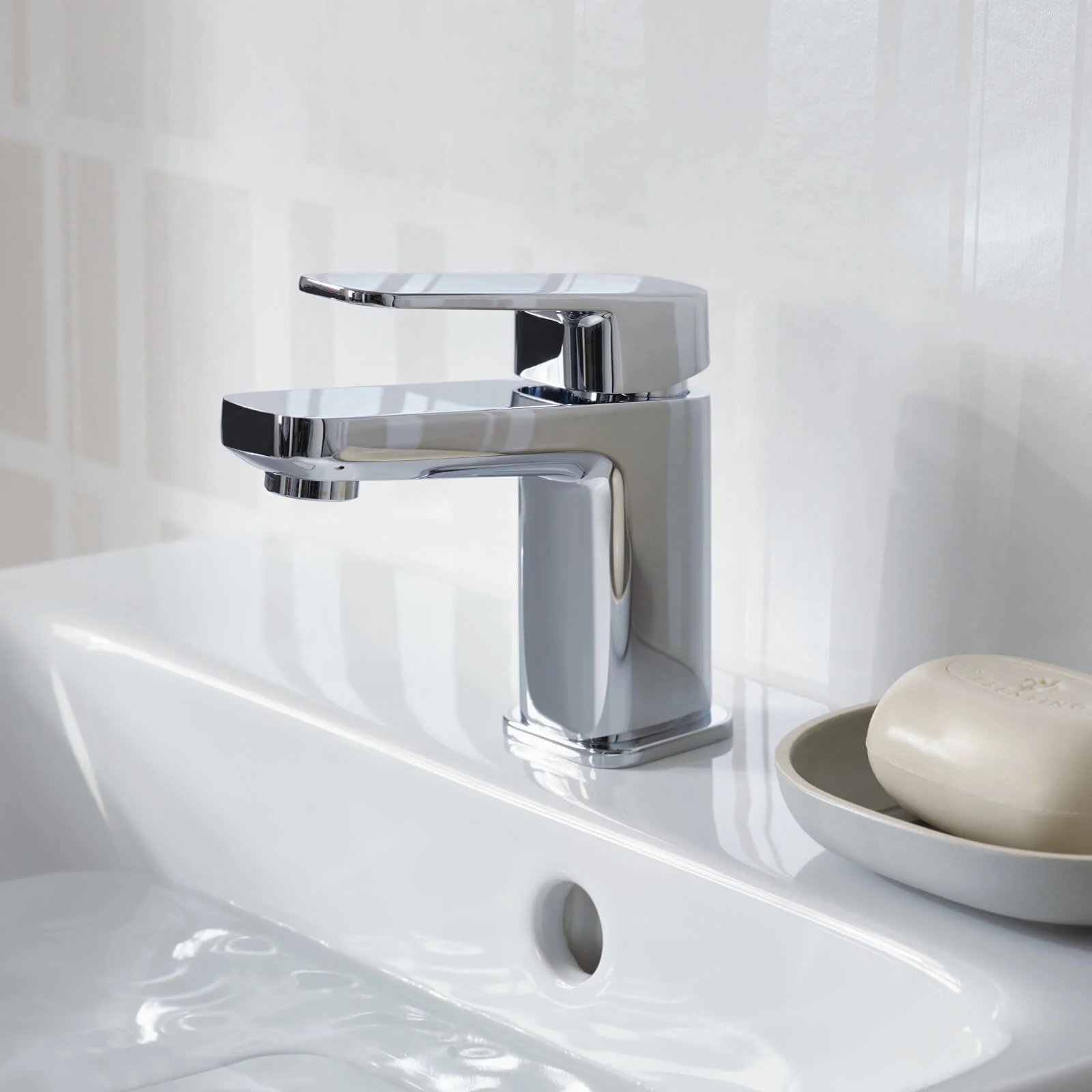

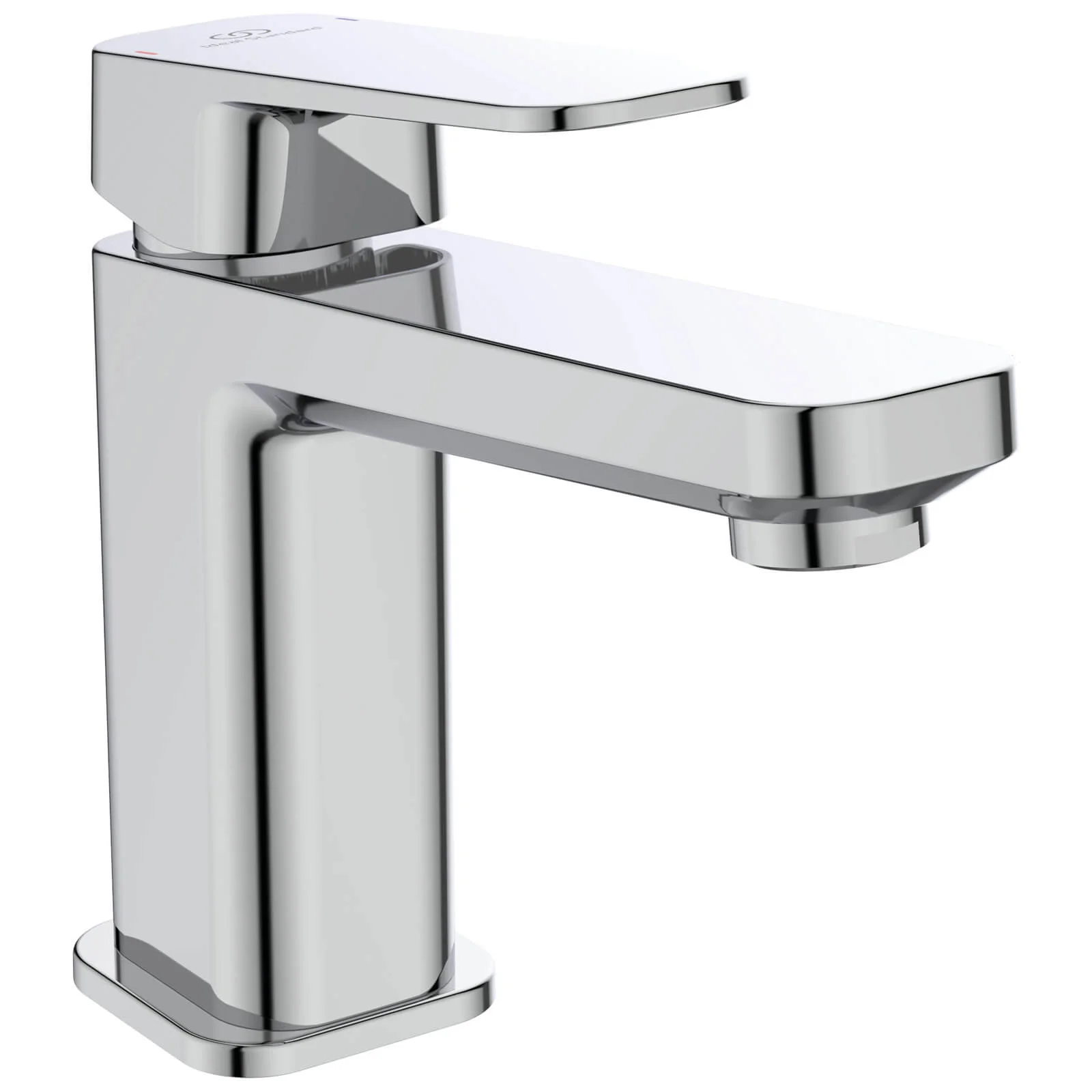

Ideal Standard Tonic II Single Lever Chrome Basin Mixer Tap with Flat Handle - Deck Mounted

Ideal Standard Tonic II Single Lever Chrome Basin Mixer Tap with Flat Handle - Deck Mounted.

• Choice of Height: 137mm, 154mm and 290mm
• Soft Geometric Design
• Temperature Limiter
• Swivel Outlet ±10°
• EasyFix: Installation Couldn’t be Easier with our EasyFix System Which Cuts Installation Time by up to 30%
• SmartShine: Resistant to Scratches and Easier to Clean, Offering you Years of Enjoyment
• FirmaFlow: The Ultimate Development of the Original Ceramic Disc Cartridge, Comfort and Control are Achieved Twice as Long as the Industry Standard
• Flow Rate: 5 Litres Per Minute
• Certificate Number: Standards = EN 248, Standards = DIN 4109-1, Standards = EN 817, ACS = 21 ACC LY 068_223, NF = E00 CH2 A2 U3 - I*
• Suitable for Medium Water Pressure System
• Required Minimum 0.5 Bar or Above Water Pressure System
• Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section
• Refer to the Technical Diagram for Complete Technical Details
• Detail for 137mm:
• Size in [mm]: 51 x 144 x 137mm [Width x Depth x Height]
• Size in [cm]: 5.1 x 14.4 x 13.7cm [Width x Depth x Height]
• Base to Spout: 85mm (8.5cm)
• Centre of the Inlet to the Centre of the Outlet: 100mm (10cm)
• Weight: 1.30 Kg
• Detail for 154mm:
• Size in [mm]: 51 x 170 x 154mm [Width x Depth x Height]
• Size in [cm]: 5.1 x 17 x 15.4cm [Width x Depth x Height]
• Base to Spout: 106m (10.6cm)
• Centre of the Inlet to the Centre of the Outlet: 126mm (12.6cm)
• Weight: 1.44 Kg

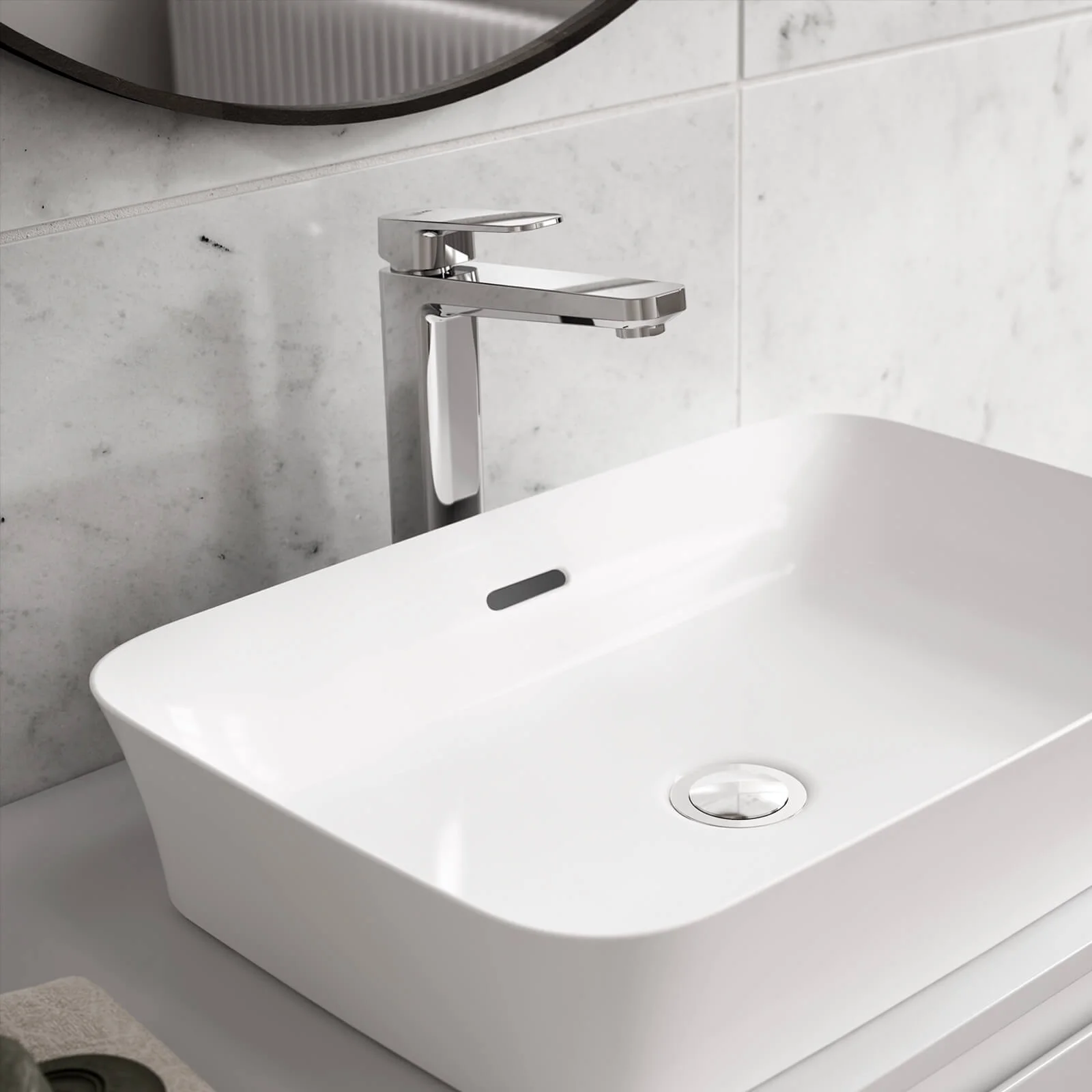

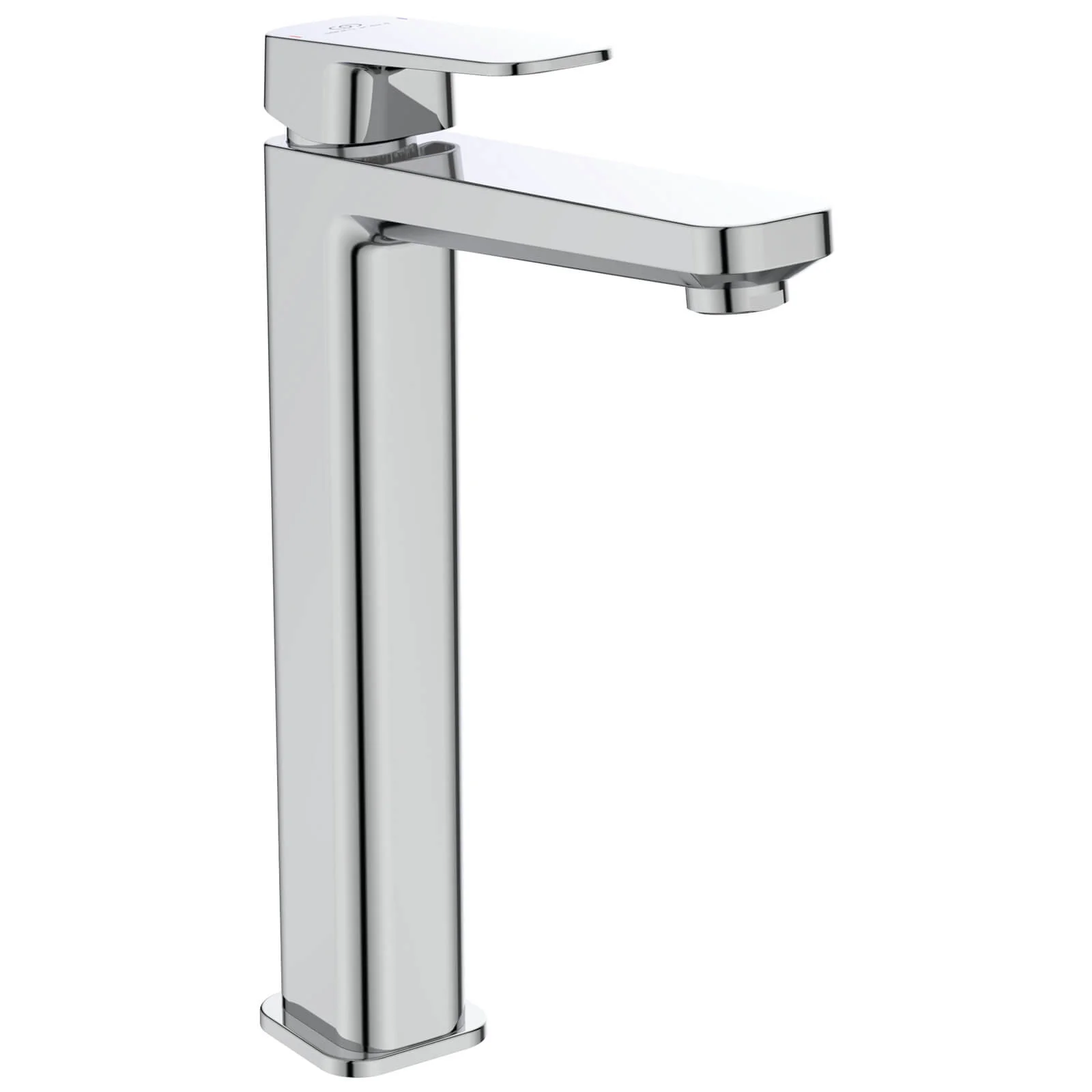

• Detail for 290mm:
• Size in [mm]: 51 x 204 x 290mm [Width x Depth x Height]
• Size in [cm]: 5.1 x 20.4 x 29cm [Width x Depth x Height]
• Base to Spout: 246mm (24.6cm)
• Centre of the Inlet to the Centre of the Outlet: 160mm (16cm)
• Weight: 2 Kg
