Ideal Standard Concept Freedom Back To Wall WC Pan

Ideal Standard Concept Freedom Details

MFC: S1247XG

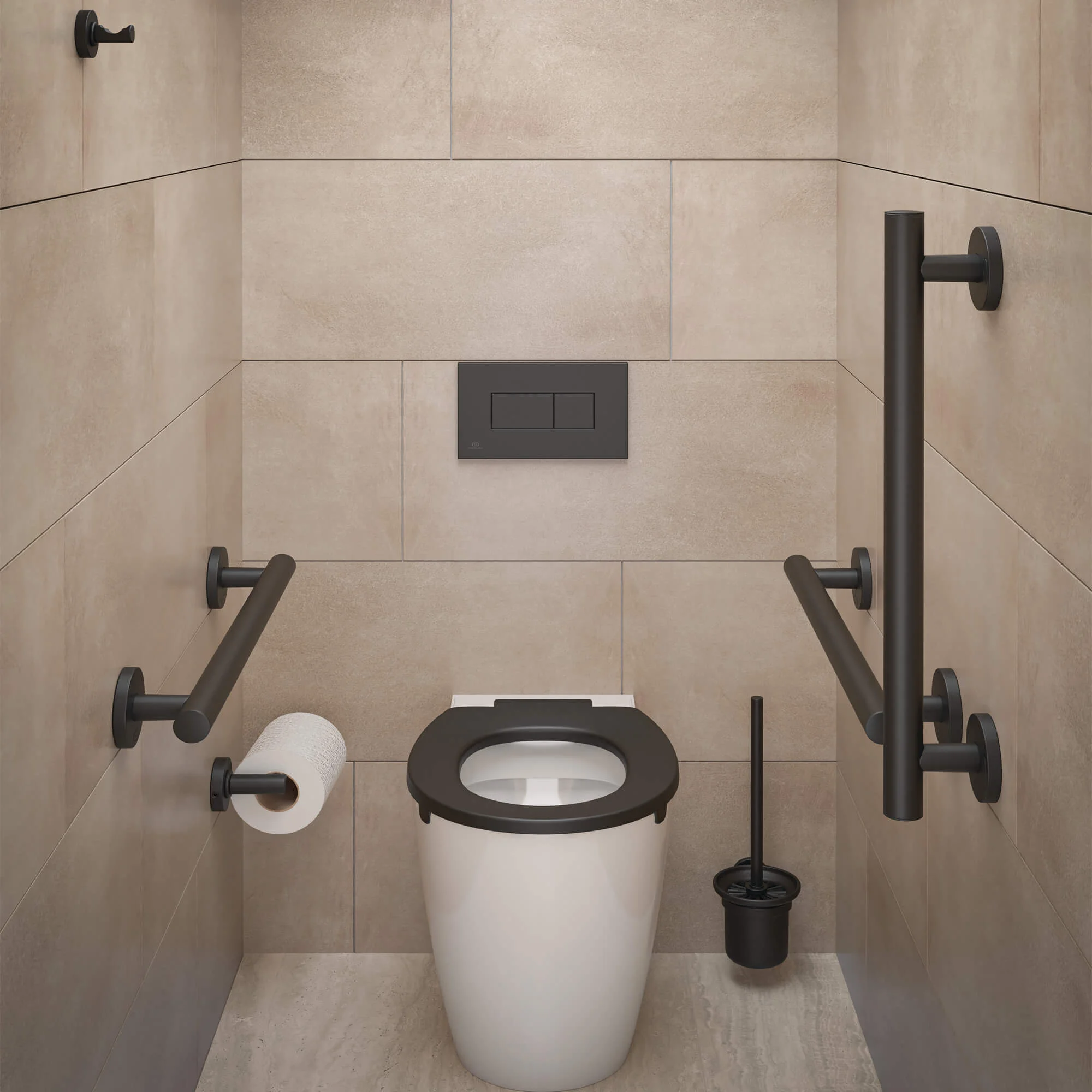

Ideal Standard Concept Freedom Back To Wall WC Pan - Ambulant DocM Pack

Pack Includes:
Back To Wall WC Pan with Full Flush 4.5 - 6 Litres
Dual Flush Concealed Cistern
1x 605mm Grab Rails and 1x 455mm Hinged Grab Rail and 1 Toilet Roll Holder
Includes Rob Hook and Toilet Brush Set
Raised Height WC Pan and Ringed Seat
Pneumatic Control ABS Flush Plate
Features of WC Pan & Cistern:
Washdown Model
Outlet: Horizontal
Size of Pan [mm]: 365 x 460mm [Width x Height]
Size of Pan [cm]: 36.5 x 46cm [Width x Height]
Projection: 555mm [55.5cm]
Size of Cistern [mm]: 415 x 150 x 350mm [Width x Depth x Height]
Size of Cistern [cm]: 41.5 x 15 x 35cm [Width x Depth x Height]
Flushing Volume: 6ltr Single Flush
Flushing Mechanism Pneumatic Dual Flush
Features Of Ringed Seat:
Material: Plastic
Stainless Steel Hinge
Adjustable Locating Buffers
Size in [mm]: 375 x 435mm [Width x Depth]
Size in [cm]: 37.5 x 43.5cm [Width x Depth]
Features Of Grab Rails and Hinged Rail:
It Comes in a Blue Finish
Manufactured Using Aluminium Material
Size of Grab Rail in [mm]: 605 x 80mm [Length x Depth]
Size of Grab Rail in [cm]: 60.5 x 8cm [Length x Depth]
Size of Hinged Rail in [mm]: 455 x 80mm [Length x Height]
Size of Hinged Rail in [cm]: 45.5 x 8cm [Length x Height]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Concept Freedom
⤷ Warranty/Guarantee
: Lifetime
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 365
⤷ Pan Height
: 460
⤷ Projection (Depth)
: 555
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 415
⤷ Cistern Height
: 290
⤷ Full Flush Volume in litres
: 6
⤷ Half Flush Volume in litres
: 4.5

⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Front
⤷ Outlet
: Horizontal
⤷ Seat Included
: Yes
⤷ Seat Finish
: Silk Black
⤷ Fixings included
: Yes
⤷ Barcode
: 5017830570226
⤷ Bowl Shape
: D-Shape
⤷ Cistern Depth (projection)
: 150
⤷ Base width
: 140
⤷ Base Depth (projection)
: 410
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 190

Additional Info & Downloads

Download the Data Sheet Pdf File

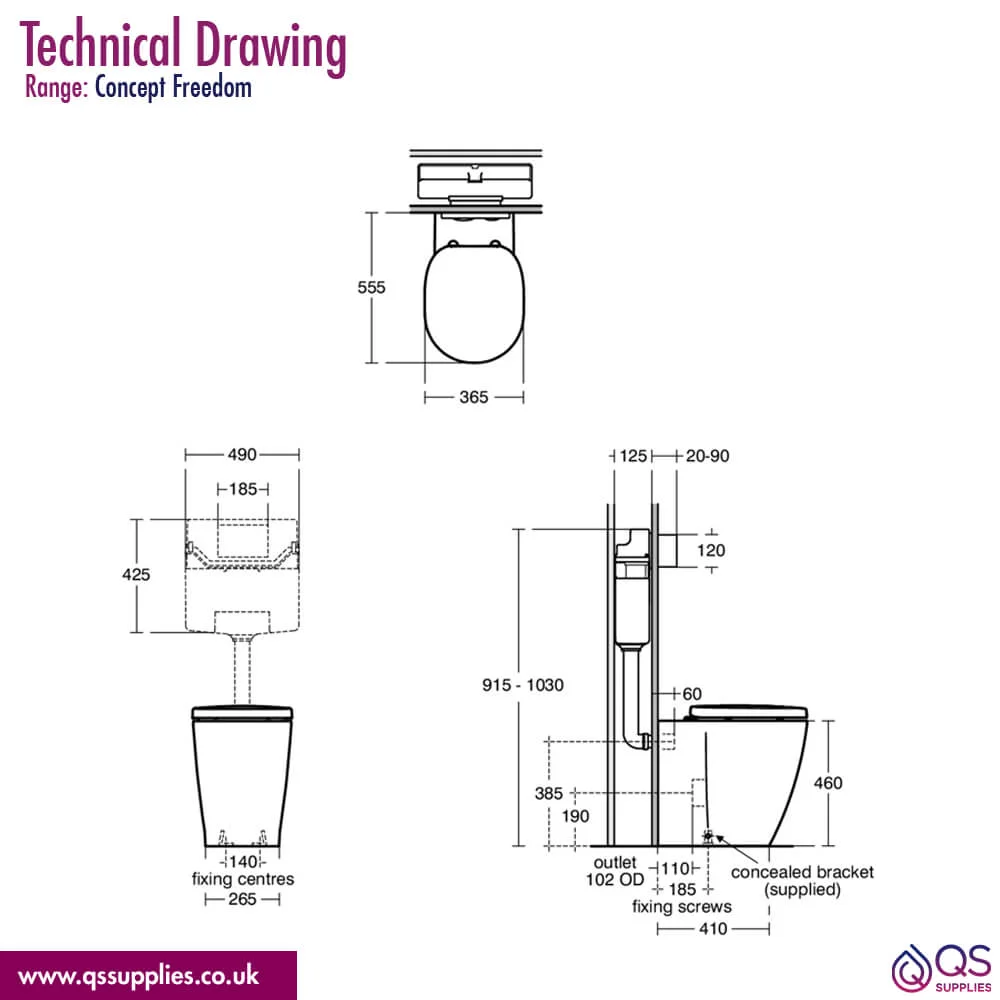

Technical Images

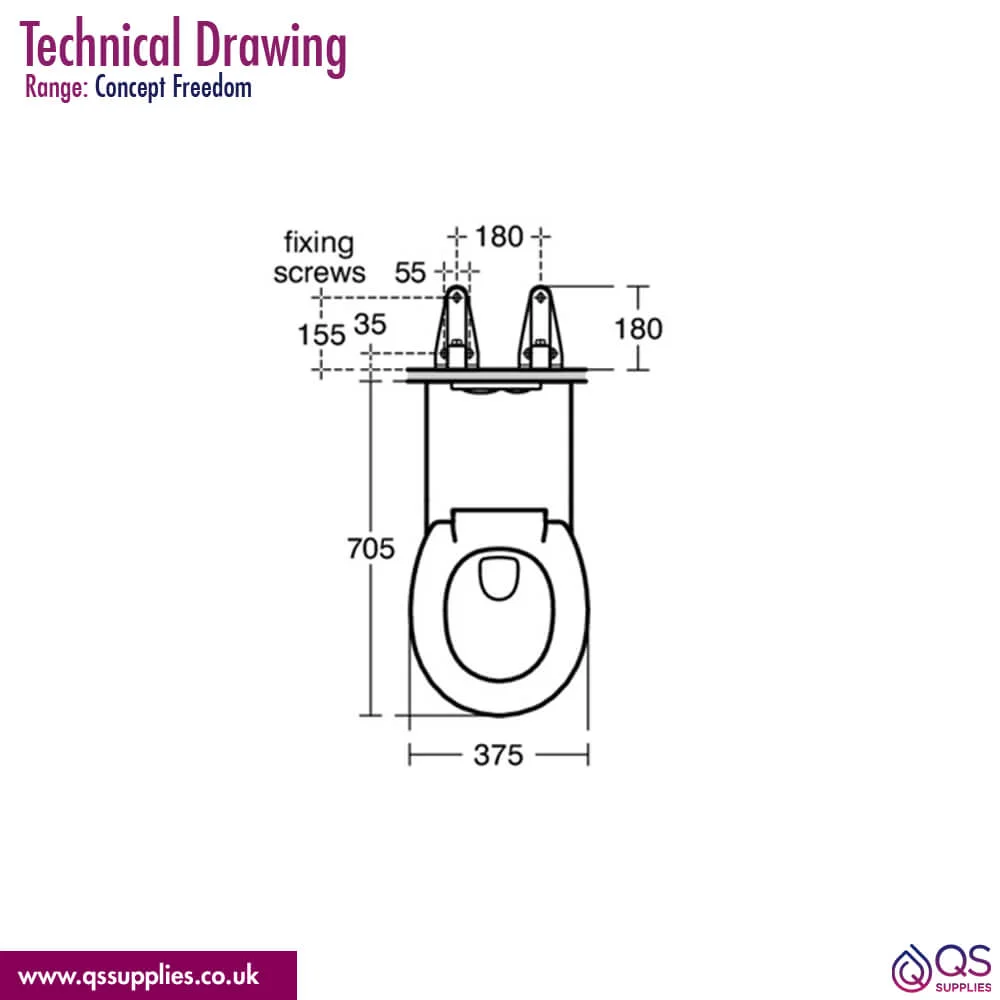

WC Pan

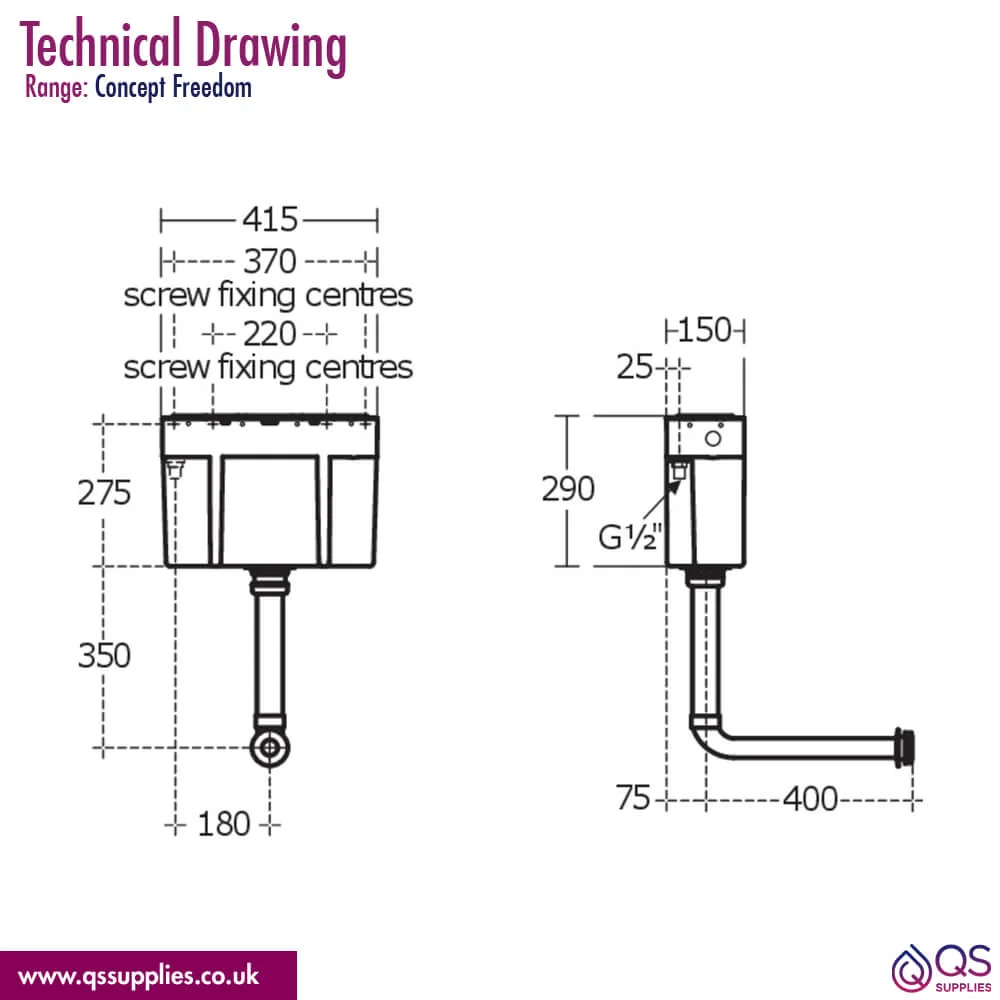

Cistern

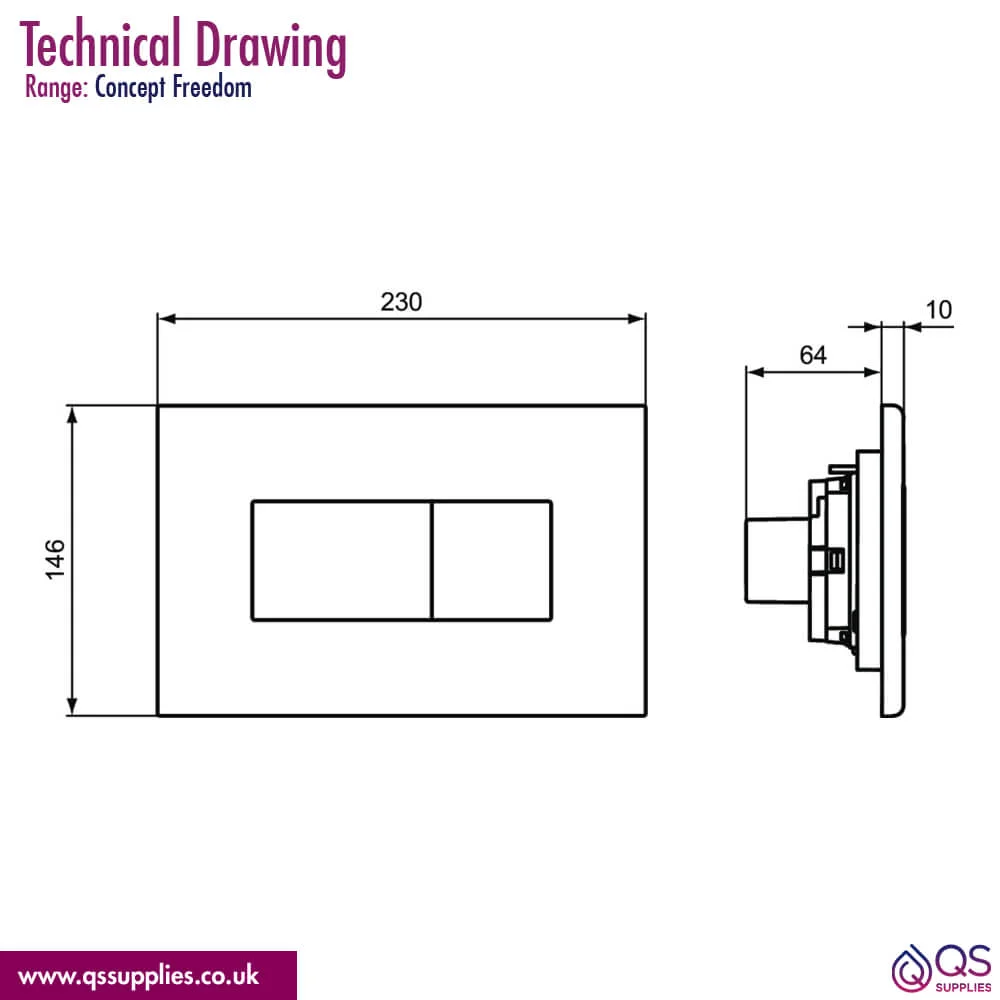

Flush Plate

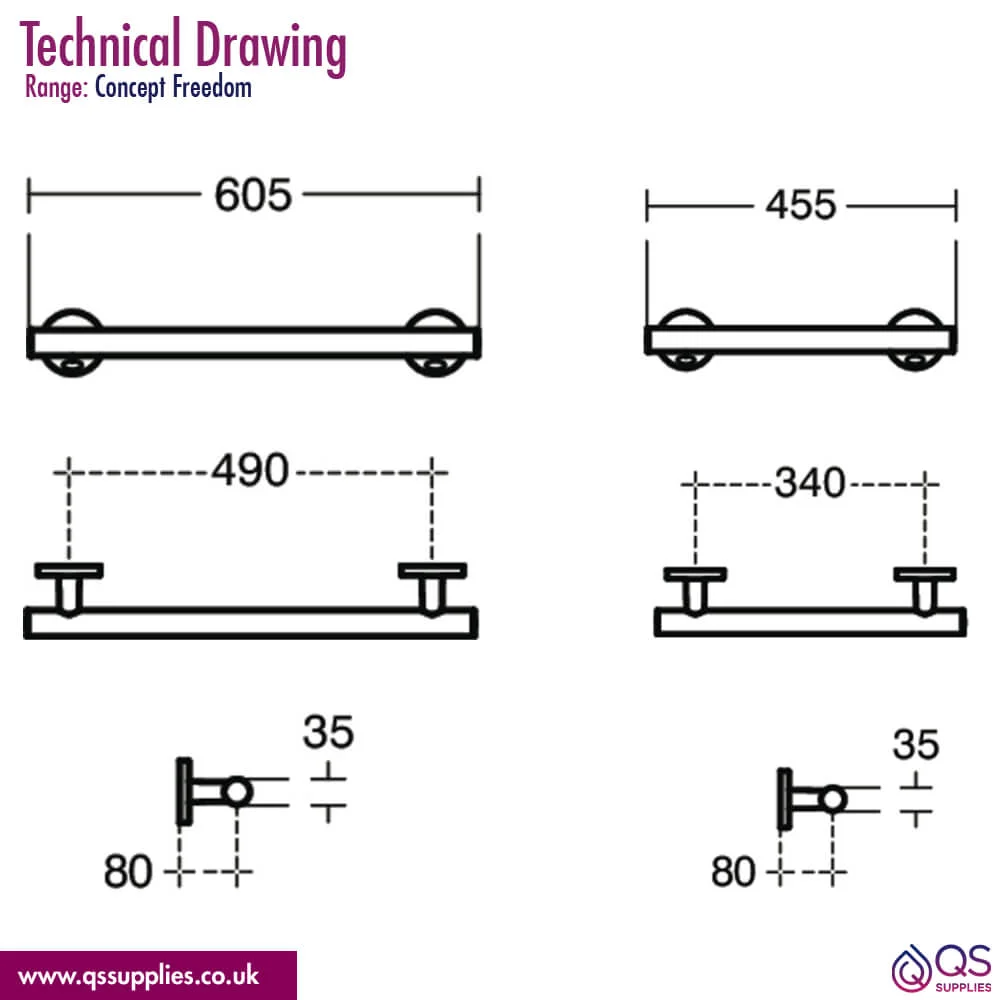

Grab Rails

Toilet Seat

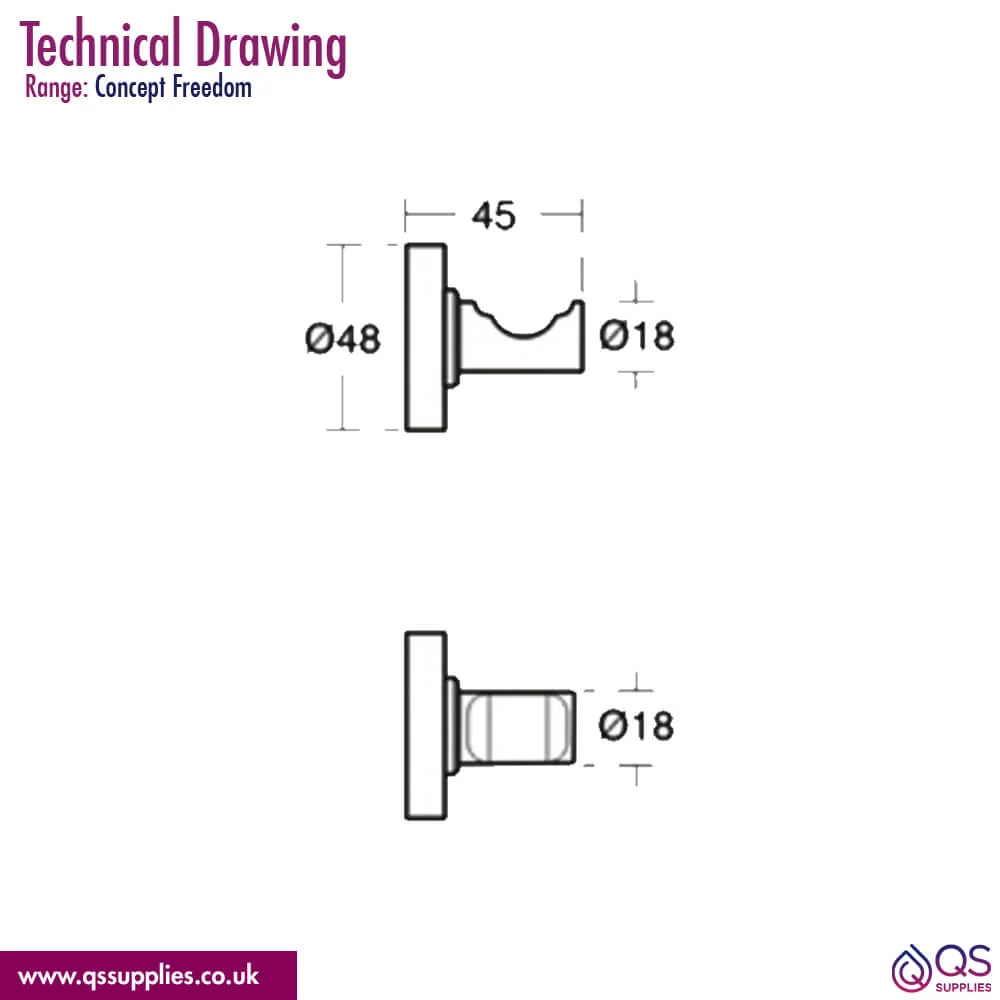

Robe Hook

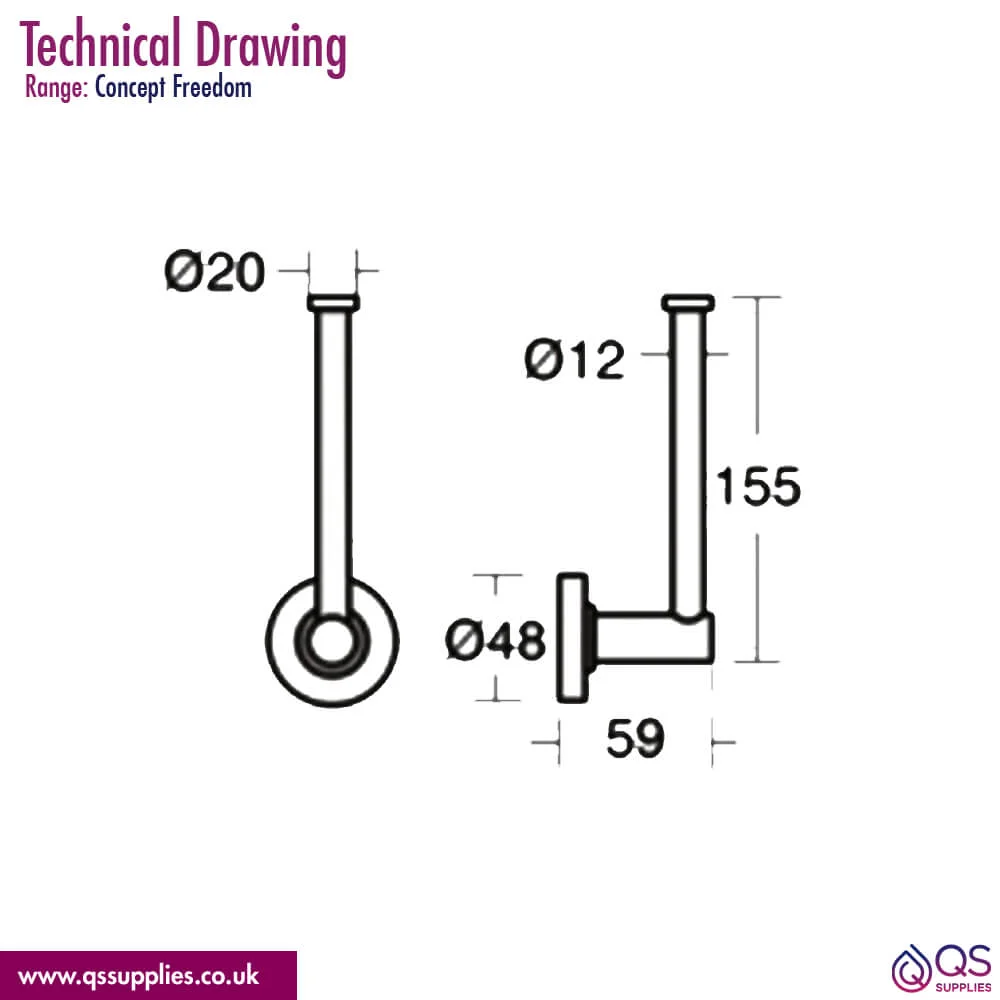

Toilet Roll Holder

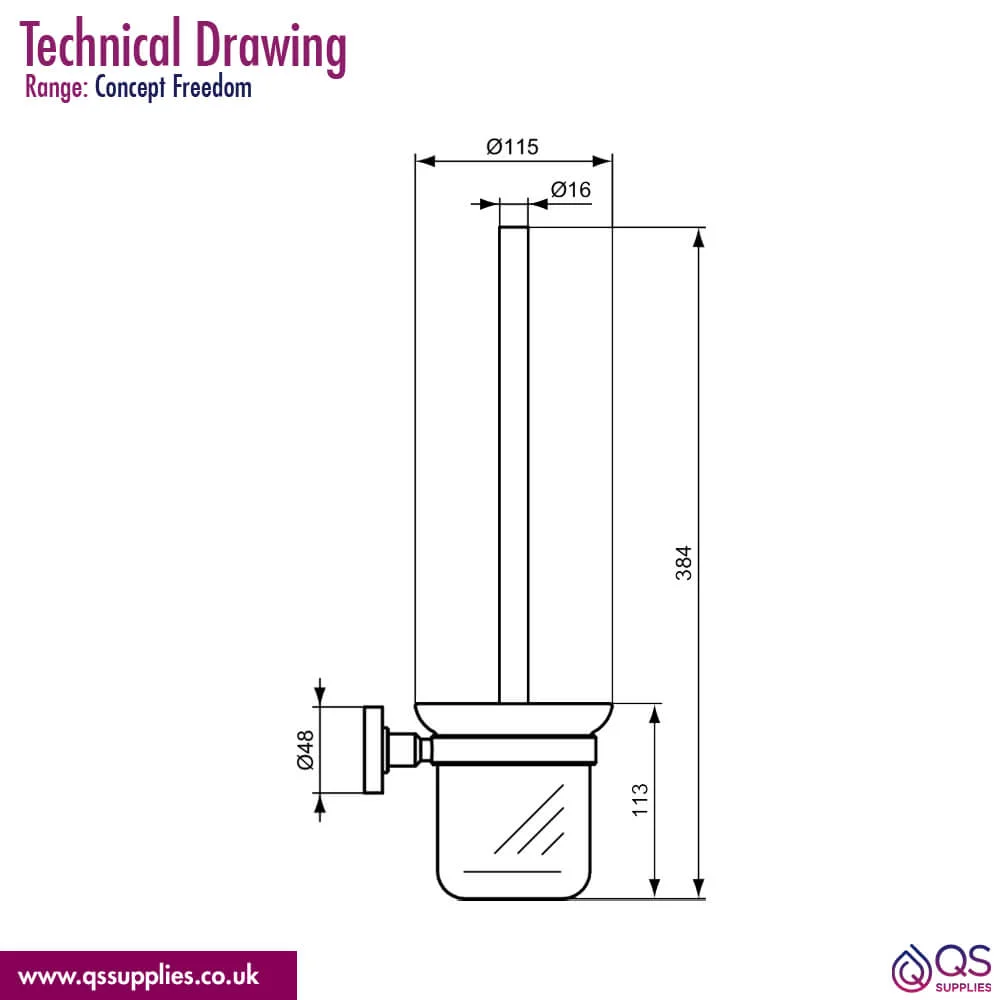

Toilet Brush Set

£1065.00

RRP: ~~£1754.08~~

Stock Availablity: 10-14 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.
