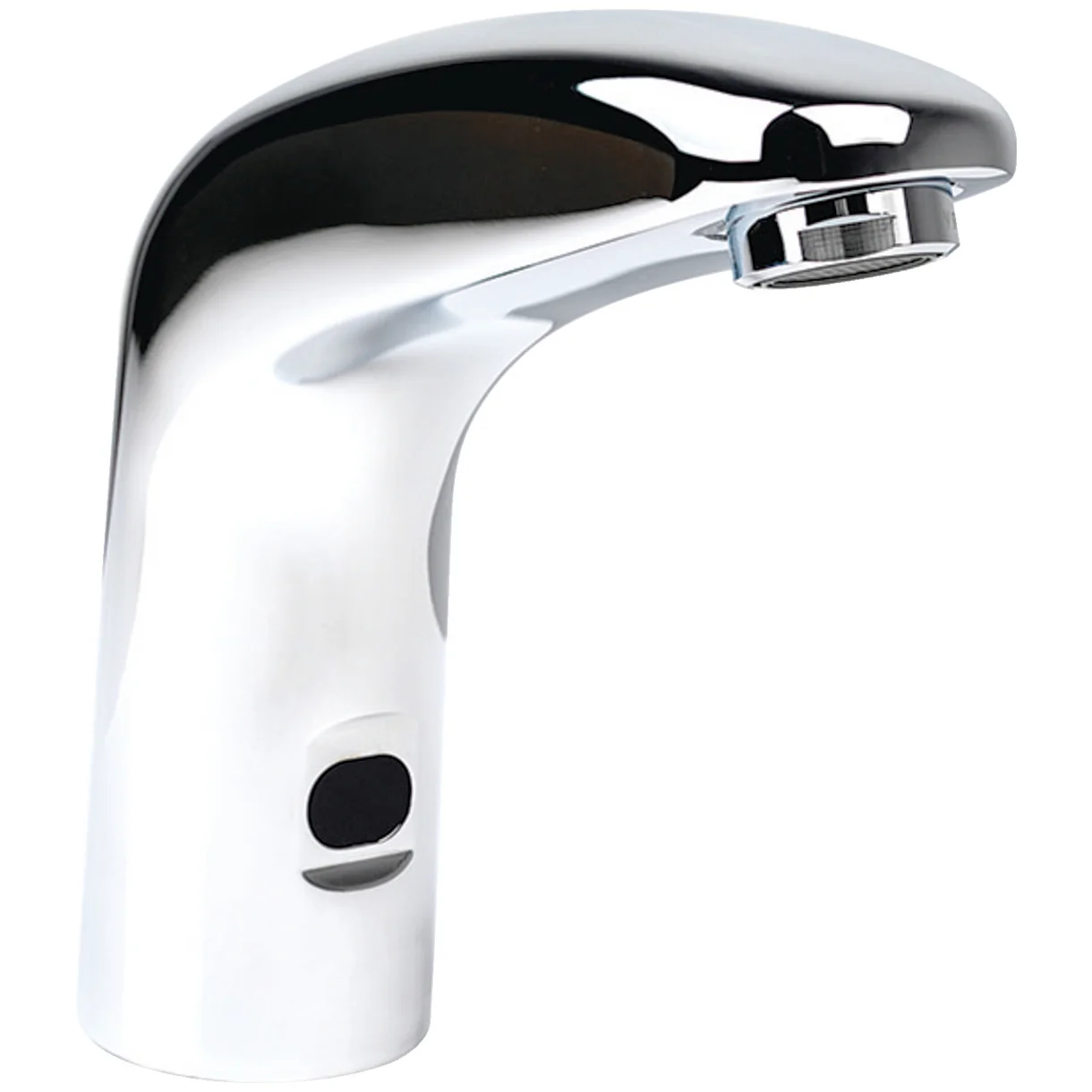

Twyford Sola Infrared Sensor Tap - Chrome Finish - Deck Mounted

Twyford Sola Infrared Sensor Tap - Chrome Finish - Deck Mounted.

• Choice of Variations: Mains or Battery Operated
• Deck Mounted Installation
• Infrared Hands-Free Activation – Hygienic, Touch-Free use for High-Traffic Environments
• Automatic 24-Hour Hygiene Flush – Prevents stagnant Water and Bacteria Build-Up
• Safety Shut-Off – Water Stops Automatically After 60 Seconds to Prevent Flooding
• Compatible with Thermostatic Mixing Valves – Maintain a Safe Outlet Temperature
• Height: 140mm [14cm]
• Base to Spout: 118mm [11.8cm]
• Centre of Inlet to Centre of Outlet: 106mm [10.6cm]
• Hands-Free Hygiene & Water Efficiency for Modern Washrooms
• Easy Maintenance – Replaceable Battery Pack and Accessible Filter Gasket
• Low Water Consumption – 3.6 L/min at 3 Bar with Aerator Flow Control
• Adjustable Sensing Range – Easily Set Detection Distance During Installation
• Frequently used for Education, Hotels, Healthcare, Commercial and Less Able Applications
• Durable and Easy to Clean
• Ideal for Retrofit or New Fit-outs

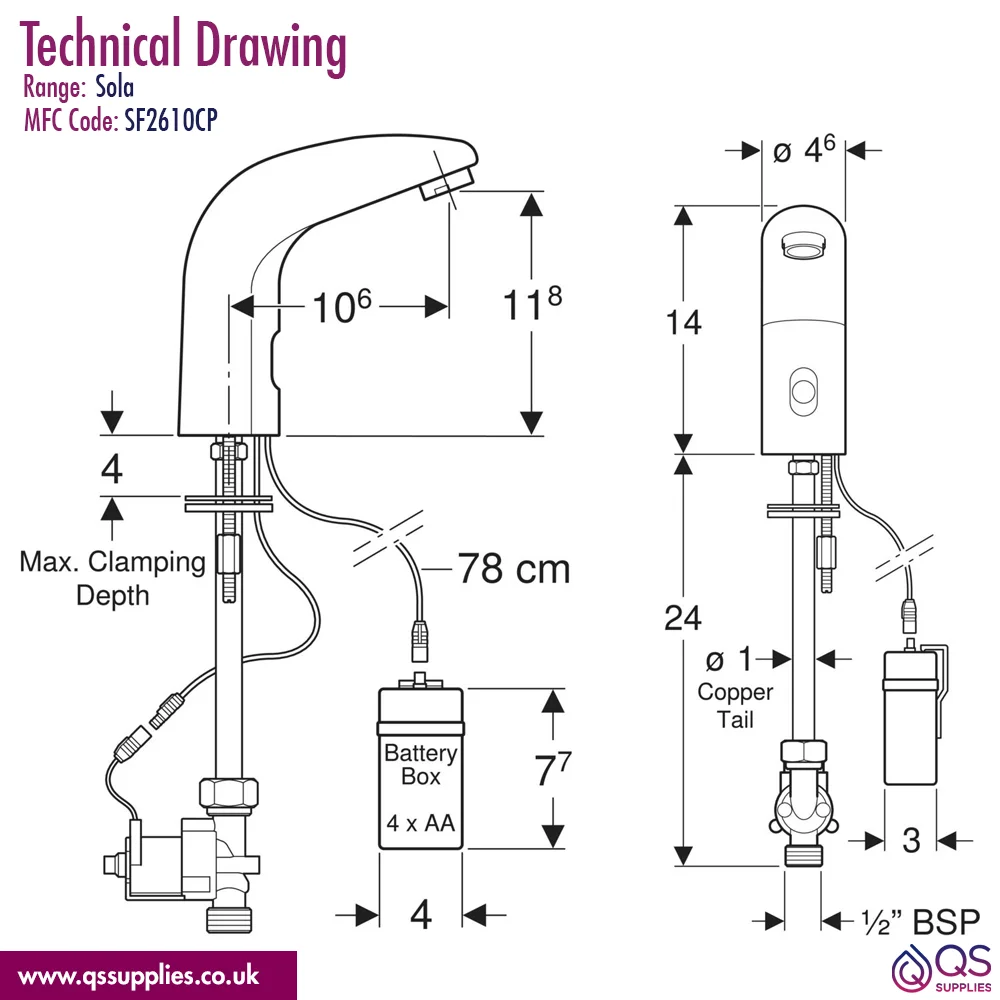

• Refer to the Technical Drawing for Size Details
• Details of Battery Operated:
• Battery Type: Alkaline [1.5 V AA]
• Operating Voltage: 6 V DC
• Max Hot Water Temp: 5 – 65°C [Use TMV to Limit to ≤41 °C]
• Operating Pressure: 0.5 - 5 bar
• Connection: 1/2 Inch BSP
• Hygiene Flush: 24h Automatic
• Battery Powered [4×AA] – No Mains Wiring Required, Up to 2 Years Battery Life [Average Use]
• Details of Mains Operated:
• Power: 230 V AC to 6 V DC Transformer [Included]
• Max Hot Water Temp: 5 – 65°C [Use TMV to Limit to ≤41 °C]
• Connection: 1/2 Inch BSP with 350mm Copper Tail
• Hygiene Flush: 24h Automatic [60s Default]
• Supplied with Solenoid Valve, Copper Tail and Fixing Kit
• Built-In Solenoid Valve & Filter Gasket – Protects Against Debris Damage
