Twyford Alcona Square Compact Wall Hung Rimfree WC Pan - Washdown - 355 x 520mm

Not Yet Rated No Rating

£154.18

RRP: £256.96
SKU: QS-V110684
Key Features
  • Washdown Model
  • Manufactured Using Vitreous China Material
  • Outlet: Horizontal
  • Type 2 in Accordance with EN 997
  • 10-Year Guarantee from the Manufacturer Against any Manufacturing Defects
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

5-7 Working Days Approx.

Twyford Alcona Details

MFC: AR1778WH

Twyford Alcona Square Compact Wall Hung Rimfree WC Pan - Washdown - 355 x 520mm.

  • Manufacturing Code of this Product: AR1778WH
  • It Comes in a White Finish
  • Space Saving Design
  • Size [mm]: 355 x 350mm [Width x Height]
  • Size [cm]: 35.5 x 35cm [Width x Height]
  • Projection: 520mm [52cm]
  • Weight: 17.50kg
  • Designed for use with a Concealed Cistern and Wall-Hung Frame
  • Perfect for Residential, Hotel, and Office use
  • Rimless Technology Ensures There are no Hidden Ledges Where Germs and Limescale Can Build up - Making Cleaning Quicker, Easier, and More Effective
  • Installation Notes:
  • Outlet Compatible with Standard 110mm Pan Connectors
  • Fixing Distance: 180mm Between Wall Bolts
  • Supplied with Fixing

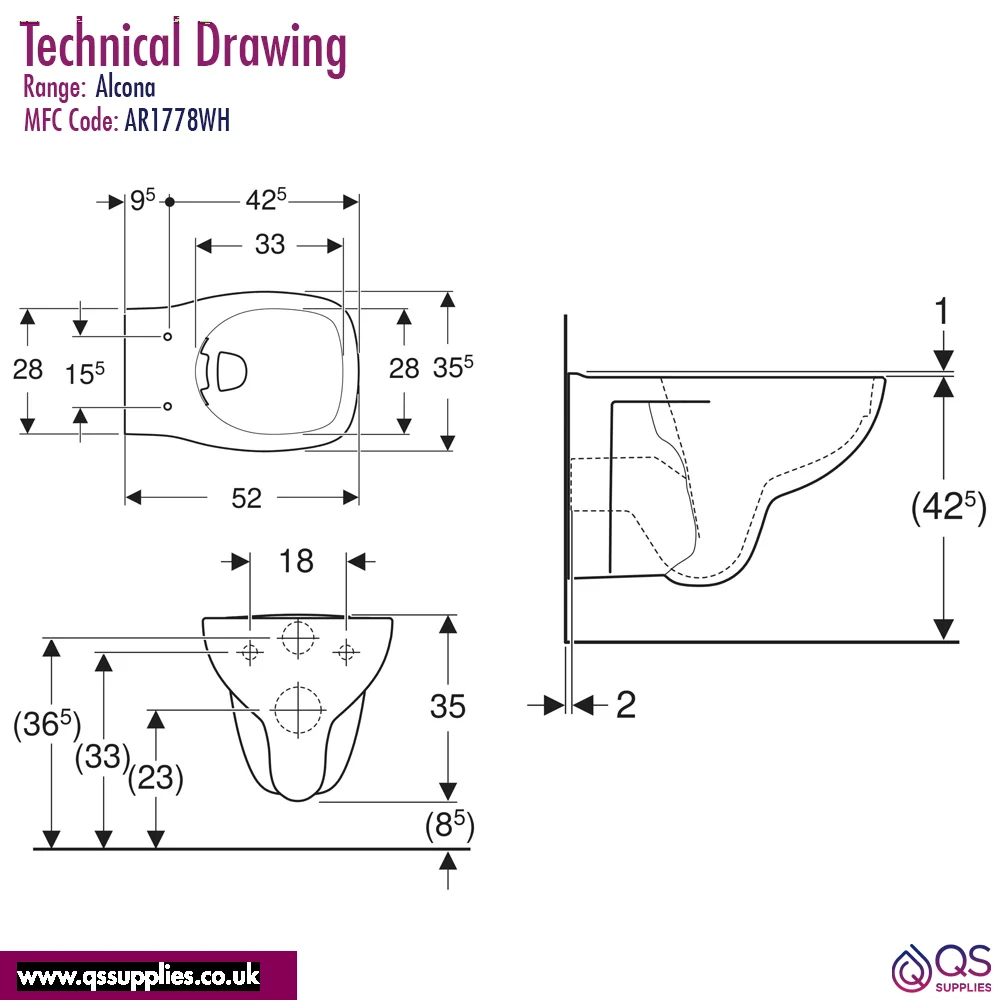

  • Refer to the Technical Drawing for Size Details
  • Available Optional:
  • Seat & Cover
  • Concealed Cistern & Lever
  • Supporting Bracket & Fixing Kit

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Alcona
  • ⤷ Colour
  • : White
  • ⤷ Weight in kg
  • : 17.50
  • ⤷ Warranty/Guarantee
  • : 10 Years
  • ⤷ Material
  • : Vitreous China
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Hung
  • ⤷ Water Saving
  • : Yes
  • ⤷ Pan Width
  • : 355
  • ⤷ Pan Height
  • : 350
  • ⤷ Projection (Depth)
  • : 520
  • ⤷ Rimless Bowl
  • : Yes
  • ⤷ Outlet
  • : Horizontal
  • ⤷ Configuration
  • : Bowl Only
  • ⤷ Compact Design
  • : Yes
  • ⤷ Seat Included
  • : Sold Separately
  • ⤷ Seat Type
  • : Soft Close
  • ⤷ Seat Finish
  • : White
  • ⤷ Barcode
  • : 5024959435985
  • ⤷ Bowl Shape
  • : Square
  • ⤷ Product Type
  • : Toilets & Bidets
  • ⤷ Seat Post Hole Centers
  • : 155
  • ⤷ Pan fixing centres
  • : 180
  • ⤷ Base to centre of outlet
  • : 230

Additional Info & Downloads

This item can also be found in:

Add-Ons

Compatible Seat
Compatible Seat

Compatible Seat And Cover Available As An Optional. Note: Image Is For Illustration Purpose Only.

Cistern
Cistern

Select compatible cistern for your WC Toilet from Twyford. Please note: The image shown is for illustration purposes only.

Cistern Lever
Cistern Lever

Choose the desired cistern lever from the huge range. A variety of finishes, styles, and designs are available. Please note, images shown are for illustration purpose only.

Twyford Wall hung bracket fixing kit
Twyford Wall hung bracket fixing kit

Give dynamic grip and consistence performance. Please Note Image for illustration purpose only

£154.18
RRP: £256.96
Stock Availablity: 5-7 Working Days Approx
QS Supplies

6 Features Included In This Product Explained

Washdown Model

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Horizontal Outlet

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Compact Toilet

Compact Toilet

True to its name, a compact toilet has smaller dimensions and takes up less space by incorporating design changes such as a smaller tank, seat, and a round rather than an elongated bowl. Also, a toilet with a depth of under 500mm can qualify as a compact toilet. However, a compact toilet can be subjective as it depends on the size of your bathroom and what size of toilet your bathroom can accommodate.

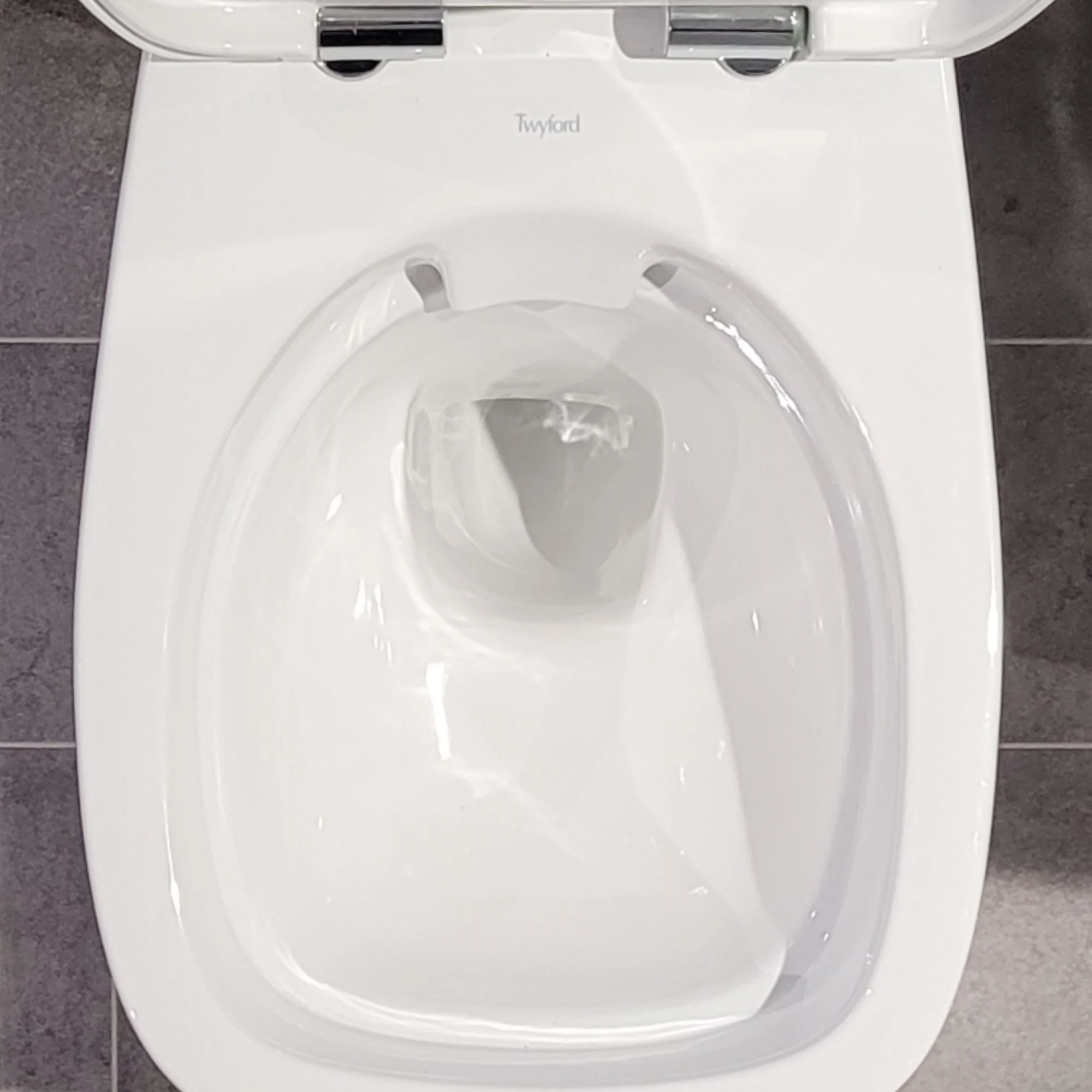

Rimless

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards their edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.

Optional: Soft-Close Seat

Optional: Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.
