Stuart Turner Supervort 140A Submersible Pump

Stuart Turner Supervort 140A Submersible Pump.

• Suitable for Foul Sewage
• Provide a Solution to Most General Purpose Applications
• Incorporate an Adjustable Float Switch, Providing Automatic Pump Control
• Suitable for Dirty Water Applications and Capable of Handling Semi-Solids in Suspension of up to 20mm in Diameter
• Ideal for Ponds with Large Gravity Fed Filter Systems Where the Pump Can be Incorporated in the Filter, with Suitable Protection to Allow Water Only to Enter the Pump
• Built to IPX8, Designed for Continuous Running and Feature Thermal Overload Protection
• A Residual Current Device Having a Rated Current not exceeding 30 mA must be installed in the supply circuit Pump Connection Sizes: G 1½ Female
• Supplied with a G 1½ M x G 1½ M x 900 Elbow and a G 1½ F Stepped Hose Connector, Suitable for 25, 32 or 38mm Bore Hose
• Materials:
• Body: Polypropylene
• Impeller: Polyamide
• Motor Casing: Aluminium & Stainless Steel
• Pump Shaft: 304 Stainless/Ceramic
• Seal: Two Separate Lip Seals
• Operating Conditions:
• Maximum Liquid Temperature: 35°C
• Minimum Liquid Temperature: 4°C
• Maximum Immersion Depth: 7m
• Cable: HO5RN-F3 10m
• Pump Connection Sizes: G1½ Female
• Specifications:
• Model: 140VA
• Motor: 230/1/50
• Nominal Watts: 225
• Watts Full Flow: 320
• Amps Full Load: 1.4
• Impeller: Polyamide
• Seal: Double Lip
• Carton Dimensions in [mm]: 220 x 160 x 360mm [Length x Width x Height]
• Carton Dimensions in [cm]: 22 x 16 x 36cm [Length x Width x Height]
• Gross Weight: 4.6kg
• Pump Automatic Pump Switch: Yes
• Pump Current: 1.4 Amps
• Pump Duty: Continuous
• Pump Flexible Hoses: 25mm or 32mm
• Pump Fuse Rating: 13 Amps
• Pump Induction: Auto-Reset Thermal Trip
• Pump Maximum Immersion: 7 metres
• Pump Maximum Water Flow: 140 L/min
• Pump Minimum Immersion: 120mm
• Pump Performance 1: Performance @ 50 l/min 3.7 metres
• Pump Performance 2: Performance @ 100 l/min 2.4 metres
• Pump Power Consumption: 320 Watts
• Pump Power Supply: 230 V
• Pump Protection: IPX8

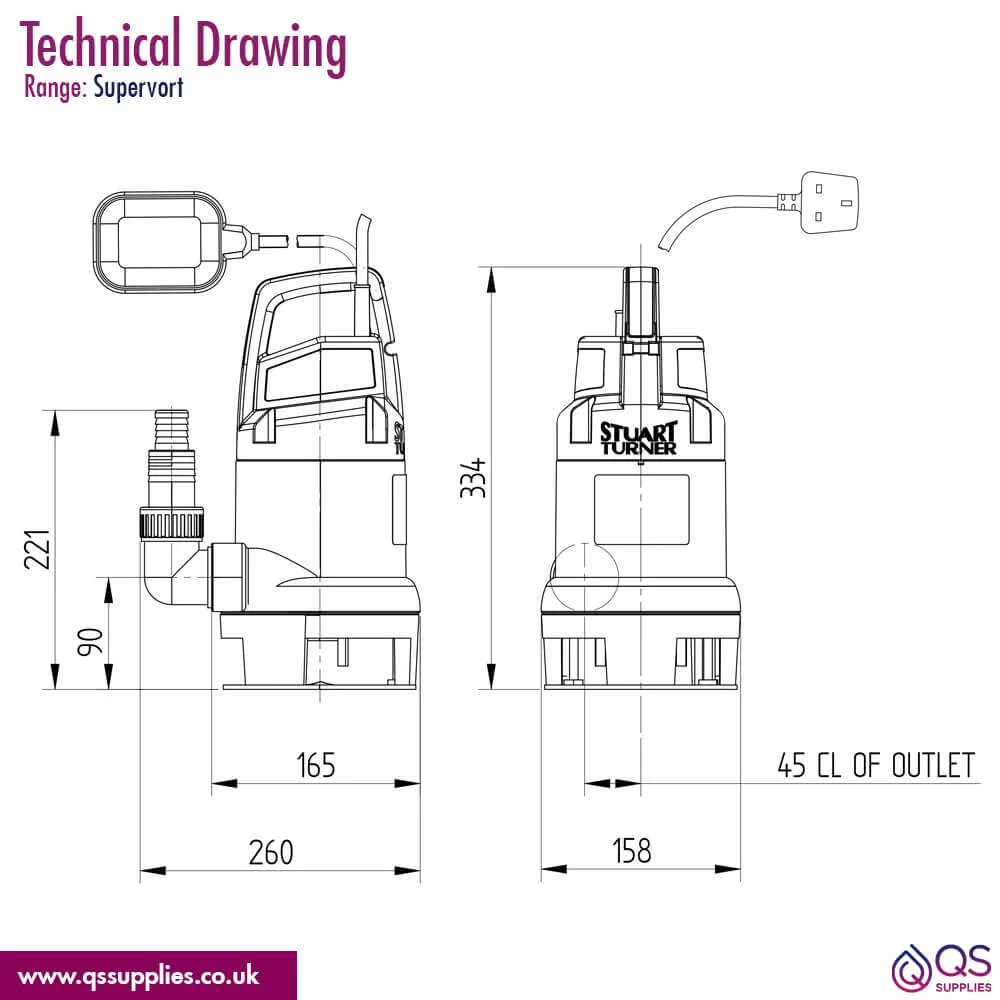

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download the Product Data Sheet and Installation Instructions PDF from the Additional Info Section
