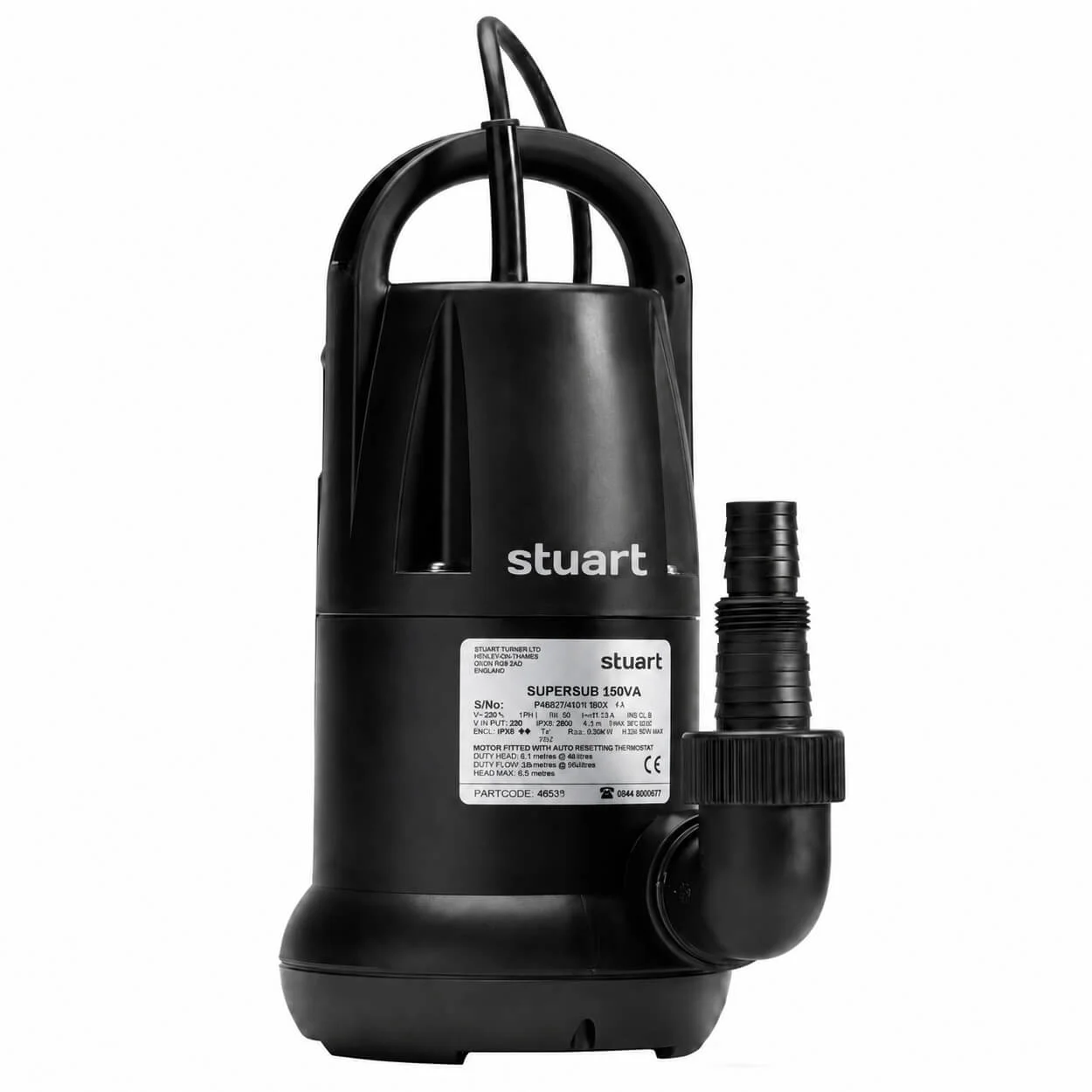

Stuart Turner Supersub 150VA Submersible Pump

Stuart Turner Supersub 150VA Submersible Pump.

• Manufacturing Code of this Item is 46538
• Automatic-Vertical Float Switch
• Switch for Automatic/Manual Mode
• Suction to a Remaining Depth of 3mm-6mm (Manual Mode)
• Suction to a Remaining Depth of 35mm (Auto Mode)
• Passes Suspended Particles up to 5mm Diameter
• Motor can be Partially Submerged for Short Term Operation
• Top Vertical Outlet Connection
• Suitable for Foul Sewage
• Pump Connection Sizes: G 1½ Female
• Supplied with a G 1½ M x G 1½ M x 900 Elbow and a G 1½ F Stepped Hose Connector, Suitable for 25, 32 or 38mm Bore Hose
• Ideal for Transfer of Rain, Dirty or Waste Water, Where Automatic Control is Required in a Confined Space, Cellar Drainage is a Popular Application
• Supplied Complete with a Stepped Hose Union and Elbow
• It offers a Compact Design Ideal for General Purpose Applications Where Space is at a Premium
• A Simple Lever Allows Quick Selection of Manual or Automatic Mode of Operation
• Materials:
• Body: Polypropylene
• Impeller: Polyamide
• Motor Casing: Aluminium & Stainless Steel
• Pump Shaft: 304 Stainless/Ceramic
• Seal: Two Separate Lip Seals
• Operating Conditions:
• Maximum Liquid Temperature: 35°C
• Minimum Liquid Temperature: 4°C
• Maximum Immersion Depth: 7m
• Cable: HO5RN-F3 10m
• Specifications:
• Model: 150VA
• Motor: 230/1/50
• Nominal Watts: 180
• Watts Full Flow: 275
• Amps Full Load: 1.2
• Impeller: Polyamide
• Seal: Double Lip
• Carton Dimensions in [mm]: 220 x 160 x 360mm [Length x Width x Height]
• Carton Dimensions in [cm]: 22 x 16 x 36cm [Length x Width x Height]
• Gross Weight: 4.6kg
• Pump Automatic Pump Switch: Yes
• Pump Current: 1.4 Amps
• Pump Duty: Continuous
• Pump Flexible Hoses: 25mm or 32mm
• Pump Fuse Rating: 13 Amps
• Pump Induction: Auto-Reset Thermal Trip
• Pump Maximum Immersion: 7 metres
• Pump Maximum Water Flow: 150 L/min
• Pump Minimum Immersion: Fully Submerged
• Pump Performance 1: Performance @ 50 l/min 5.0 metres
• Pump Performance 2: Performance @ 100 l/min 3.5 metres
• Pump Power Consumption: 275 Watts
• Pump Power Supply: 230 V
• Pump Protection: IPX8

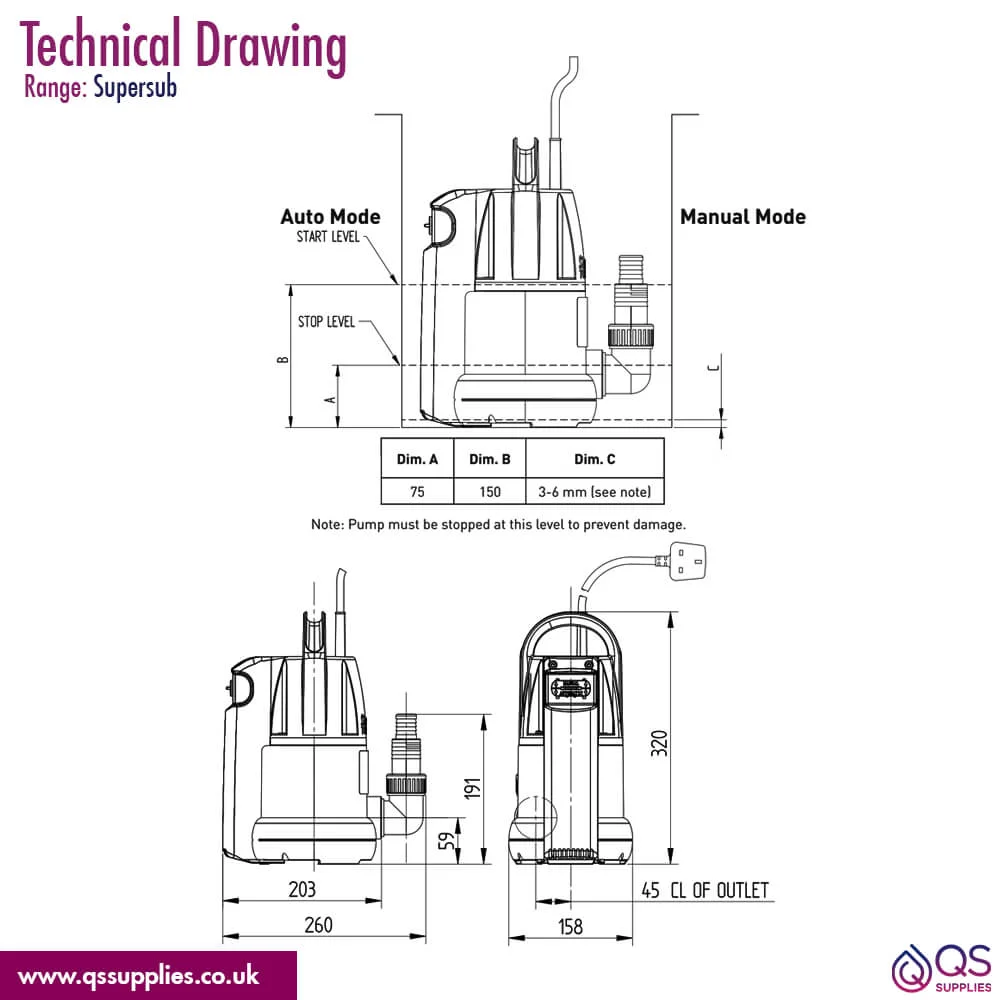

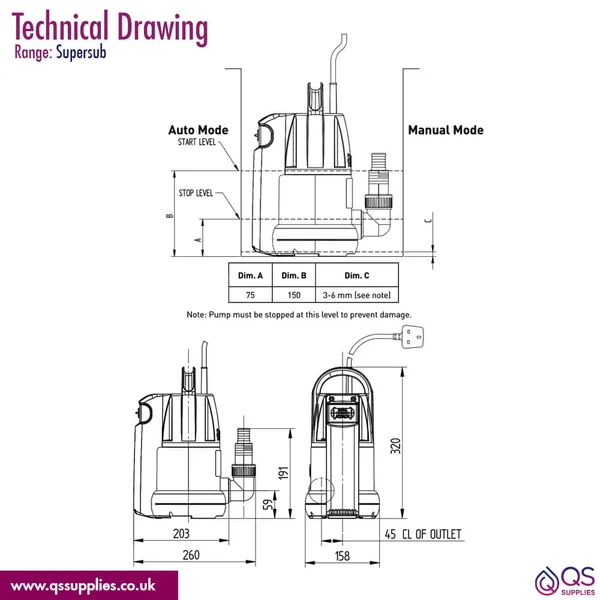

• Refer to the Technical Diagram for Complete Technical Dimensions
• Download the Product Data Sheet and Installation Instructions PDF from the Additional Info Section
