Deva Wexford Chrome Bridge Bath Filler Tap, Straight Spout, WEX108

Deva Wexford Details

MFC: WEX108

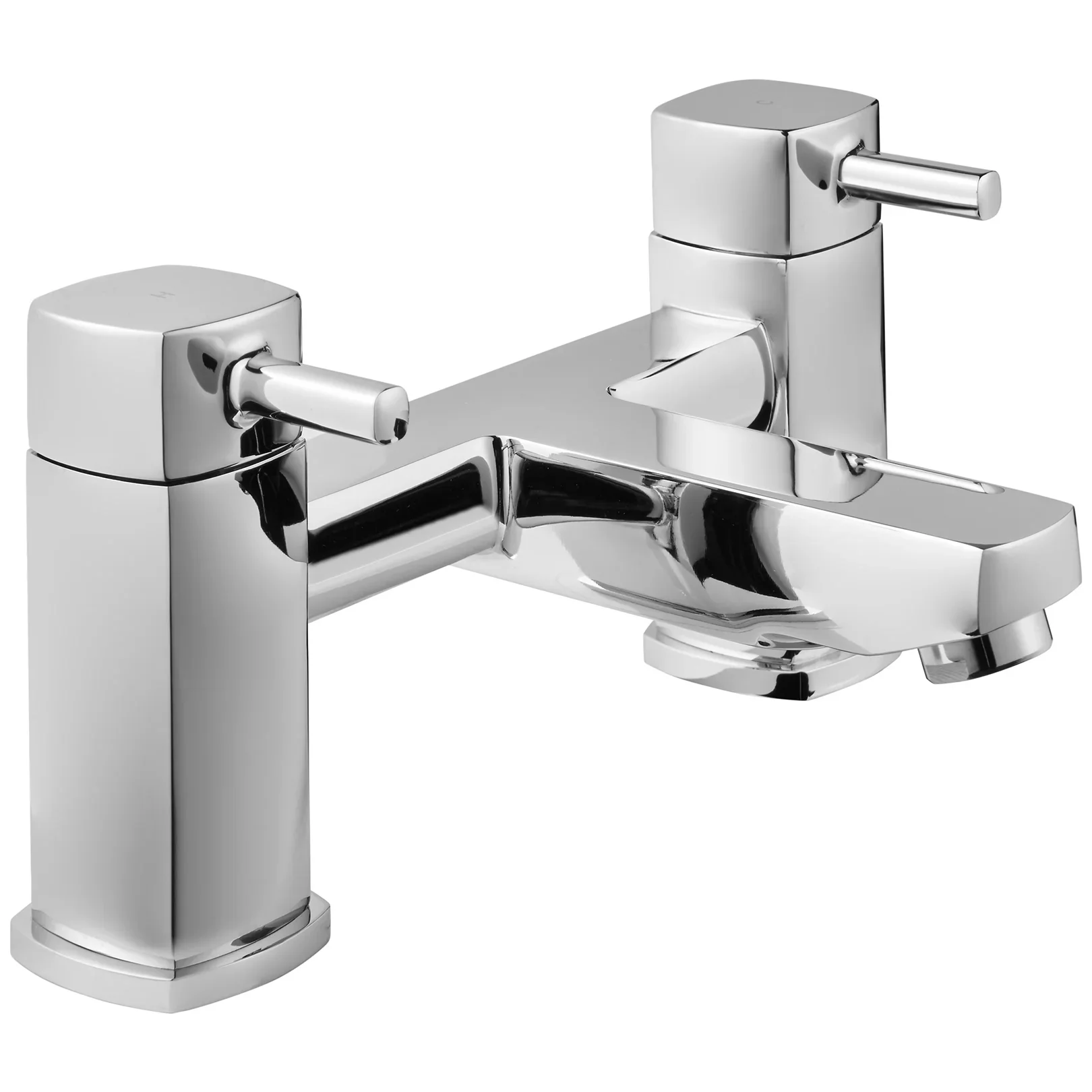

Deva Wexford Chrome Bridge Bath Filler Tap with Straight Spout - Stick Handles - Deck Mounted.

Key Features

✔WRAS Approved Product
✔Manufactured using Brass Material
✔Supplied with Metal Back Nuts
✔Valve/Cartridge Type: Ceramic Disc
✔12-Year Warranty from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Without Kit, With Shower Kit
Single Flow Outlet with Pre-Fitted Flow Straightener
Inlet connections: 3/4 Inch BSP
Inlet Centre: 180mm [18cm]
1/4 Turn Ceramic Disc Handles Ensure a Smooth Operation and Longer Life
Suitable For Low and High Pressure Systems
Requires a Minimum of 0.3 Bar to a Maximum of 5.0 Bar of Water Pressure

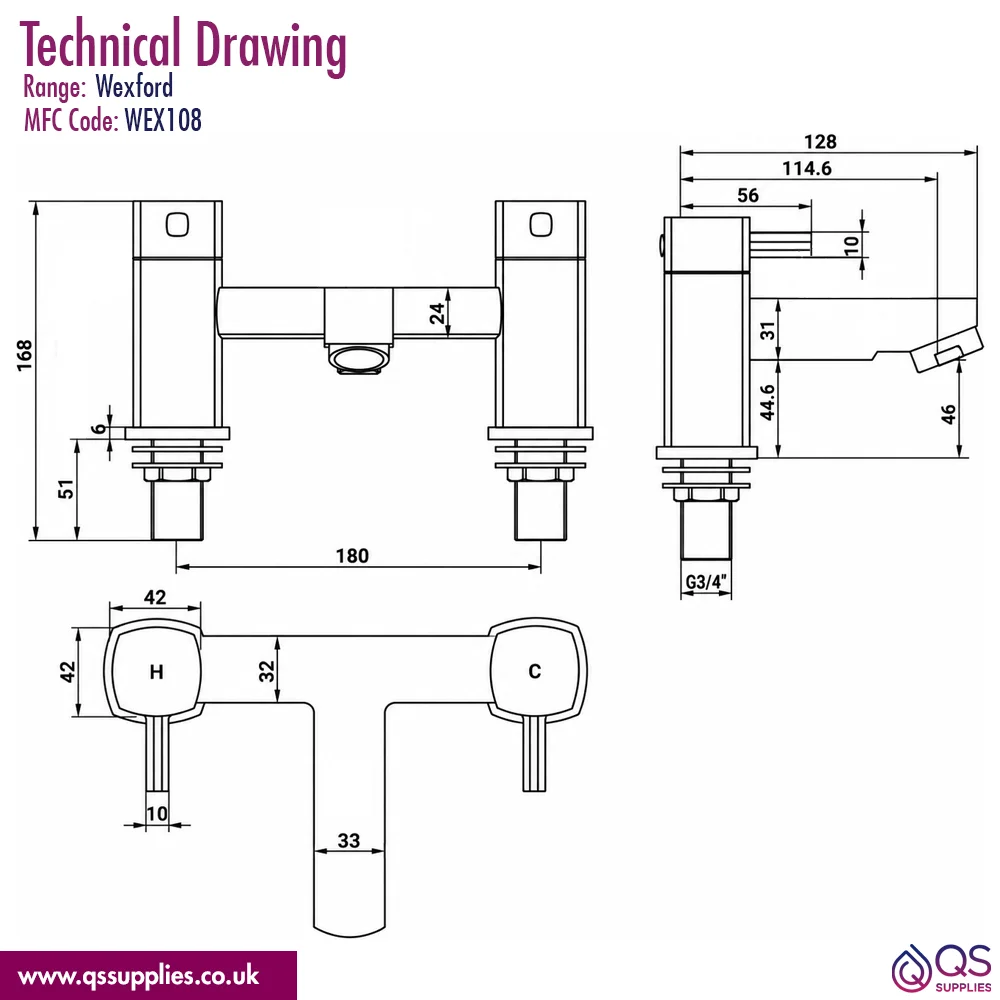

Refer to the Technical Drawing for Size Details
Download the Installation Instructions PDF Files from the Additional Info Section
Details of Without Kit:
Height: 168mm [16.8cm]
Base to Spout: 46mm [4.6cm]
Centre of the Inlet to Centre of the Outlet: 114.5mm [11.45cm]

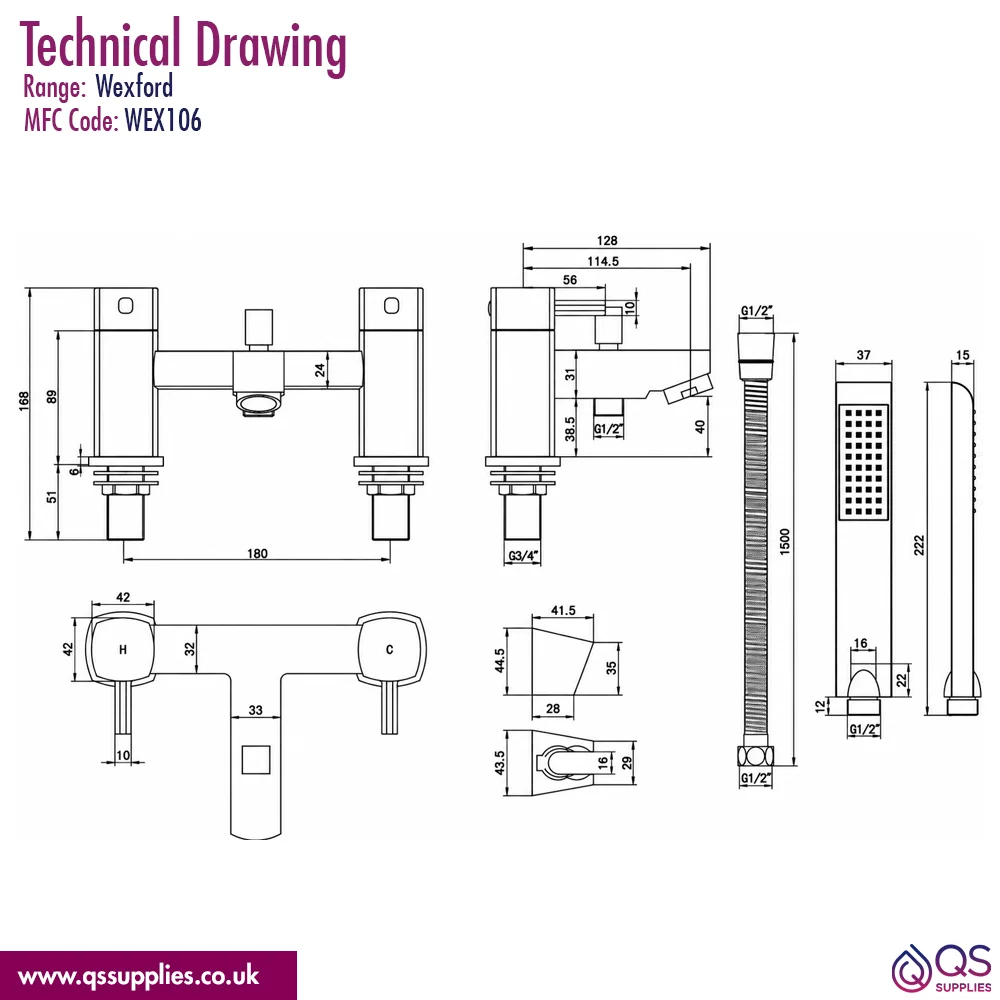

Details of With Shower Kit:
Height: 168mm [16.8cm]
Base to Spout: 40mm [4cm]
Centre of the Inlet to Centre of the Outlet: 114.5mm [11.45cm]
Size of Handset [mm]: 37 x 222mm [Width x Height]
Size of Handset [cm]: 3.7 x 22.2cm [Width x Height]
Length of Hose: 1500mm [150cm]

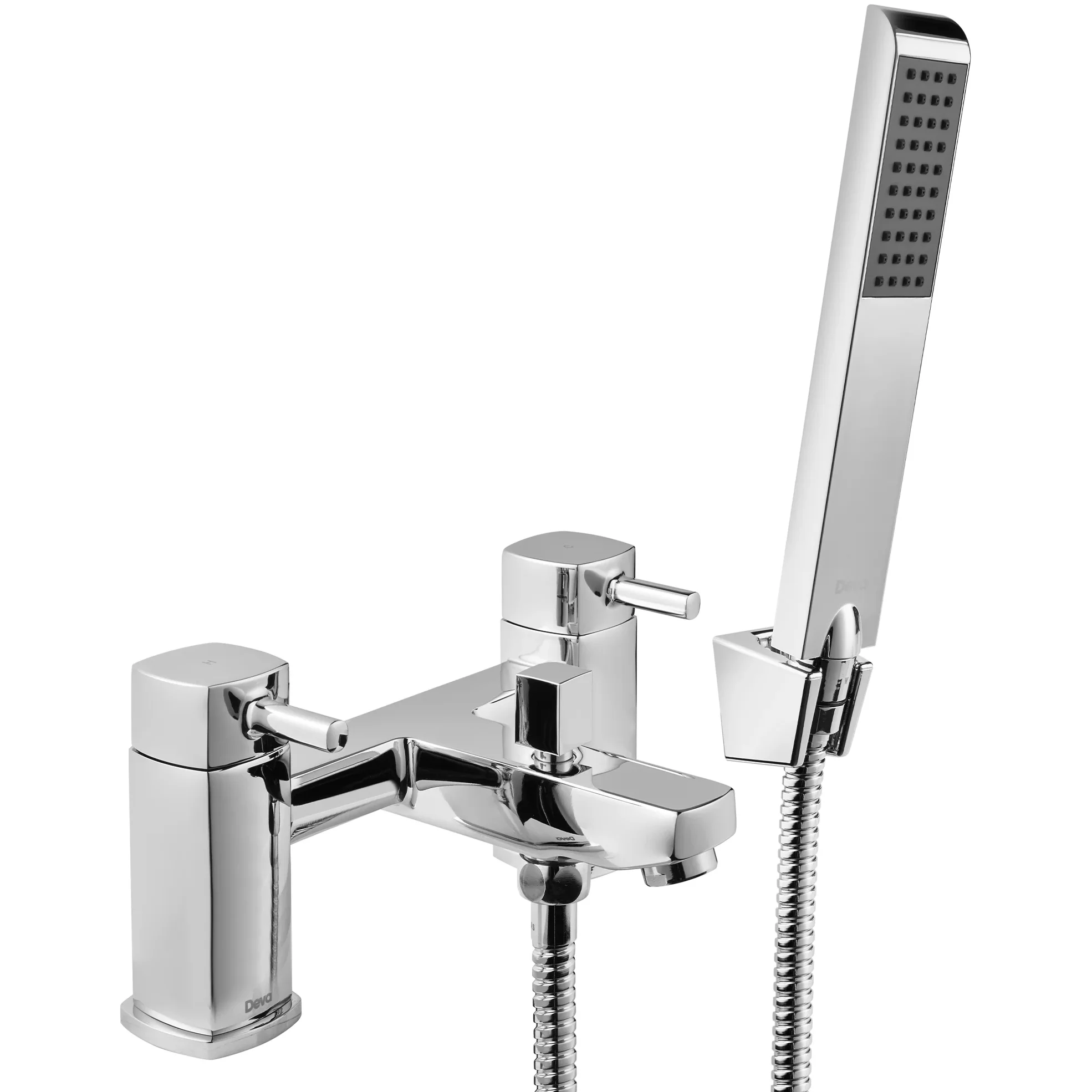

Comes Complete with Single Mode Handset, 1.5m Shower Hose and Wall Bracket
Lockable Diverter to Shower Outlet

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Square
⤷ Range
: Wexford
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 12 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc

⤷ Base To Spout
: 46
⤷ Spout Reach
: 114.5
⤷ Inlet Centres
: 180
⤷ Overall Height
: 168
⤷ Inlet Connections
: 3/4" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Number of Handles
: 2
⤷ No. of Tap Holes
: 2
⤷ Barcode
: 5057199881731
⤷ Product Type
: Bath Mixer Tap
⤷ Maximum Operating Pressure (Bar)
: 5.0

Additional Info & Downloads

Download the Installation Instruction Of Without Kit Pdf File Download the Installation Instruction Of With Shower Kit Pdf File

This item can also be found in:

Technical Images

Deva Wexford Chrome Bridge Bath Filler Tap with Straight Spout - Stick Handles - Deck Mounted

Without Kit

With Kit

£140.05

RRP: ~~£175.06~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
