Vado Aquablade Chrome Thermostatic Shower Column, AQB-149T-RRK-RO-CP

Vado Aquablade Details

MFC: AQB-149T-RRK-RO-CP

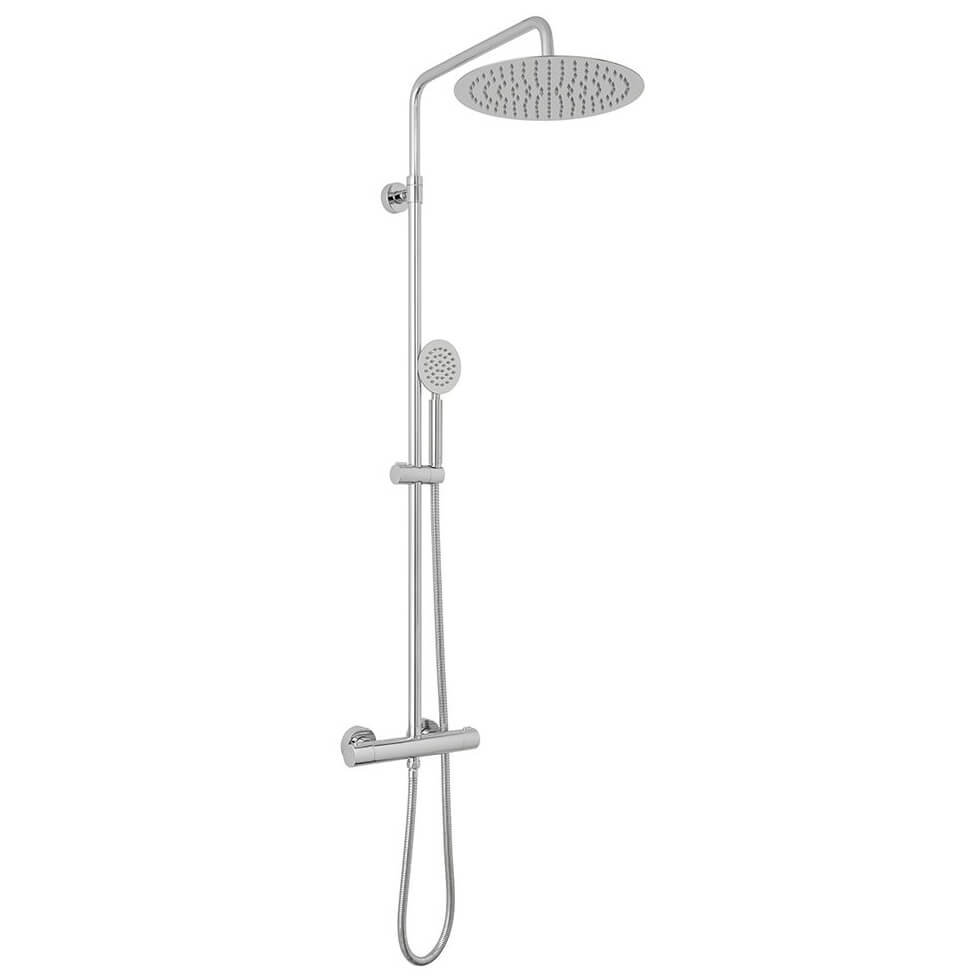

The Vado Aquablade Shower Column is a stylish, chrome-finished unit suitable for installation with any modern bathroom design and decor. Ideal for installation within a high-pressure water system.

Key Features

✔It Comes in a Chrome Finish
✔Single-Function Shower Handset
✔Suitable for High Water Pressure System
✔15-Year Guarantee Against any Manufacturing Defects

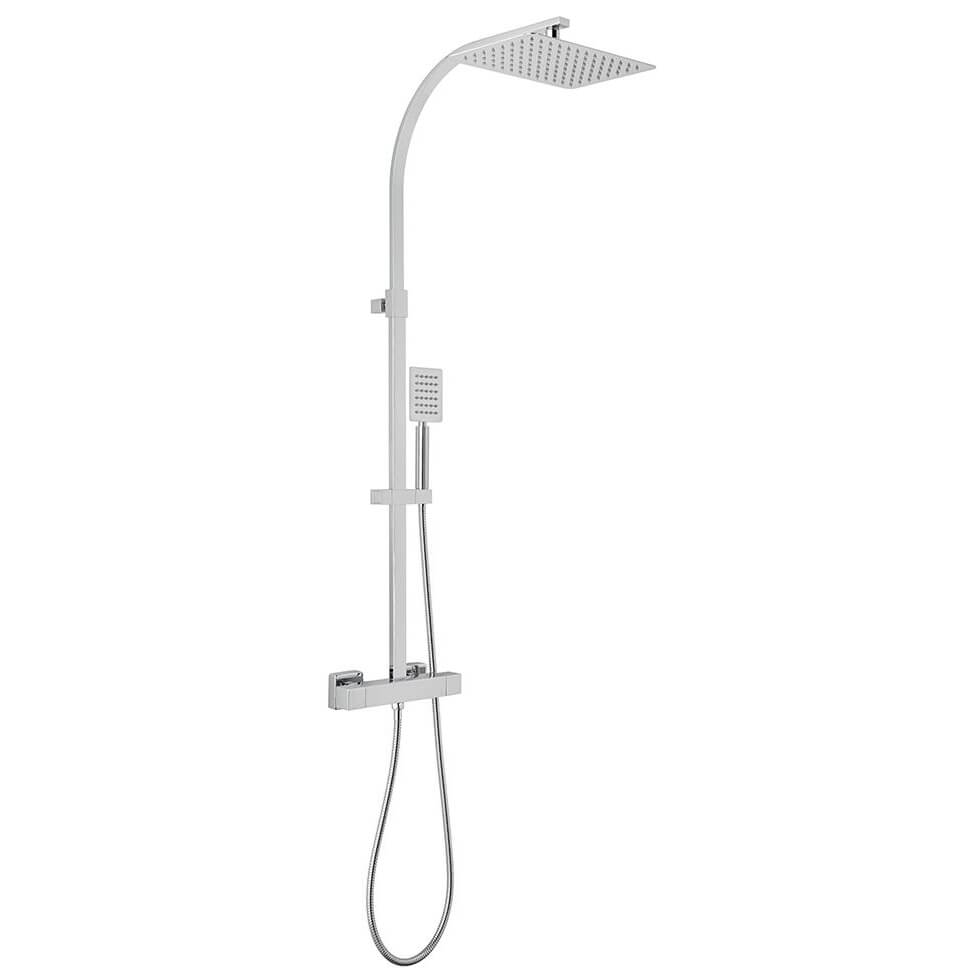

Choice of Variants: Round Shower Column and Square Shower Column
Wall-Mounted Installation
Handles: 2 Handle
Valve Type: Exposed
Includes: Thermostatic Shower Valve with Integrated Diverter, Rigid Riser and Round Shower Head
210mm Height Adjustment Tolerance: Min 1080mm – Max 1290mm
30mm Depth Adjustment Tolerance: Min 60mm – Max 90mm
Offset Connectors and Easy-Fit Brackets Included
Diameter of Shower Head: 300mm [30cm]
Diameter of the Handset: 100mm [10cm]
Height of Handset: 233mm [22.3cm]
Size of Square Shower Head: 200 x 300mm [20 x 30cm]
Width of Square Handset: 80mm [8cm]
Thermostatic Cartridge: V-701-34S
Diverter Cartridge: C-801-27/2X
Plumbing System Suitability: Pressurised System
Requires a Minimum of 1.0 Bar and a Maximum of 5.0 Bar
Refer to the Technical Diagram for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Year
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Height
: 1080-1290
⤷ Temperature Control
: Thermostatic
⤷ Product Type
: Shower Set

⤷ Showerhead Finish
: Chrome
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 300, 200 x 300
⤷ Hose Retainer Included
: Yes

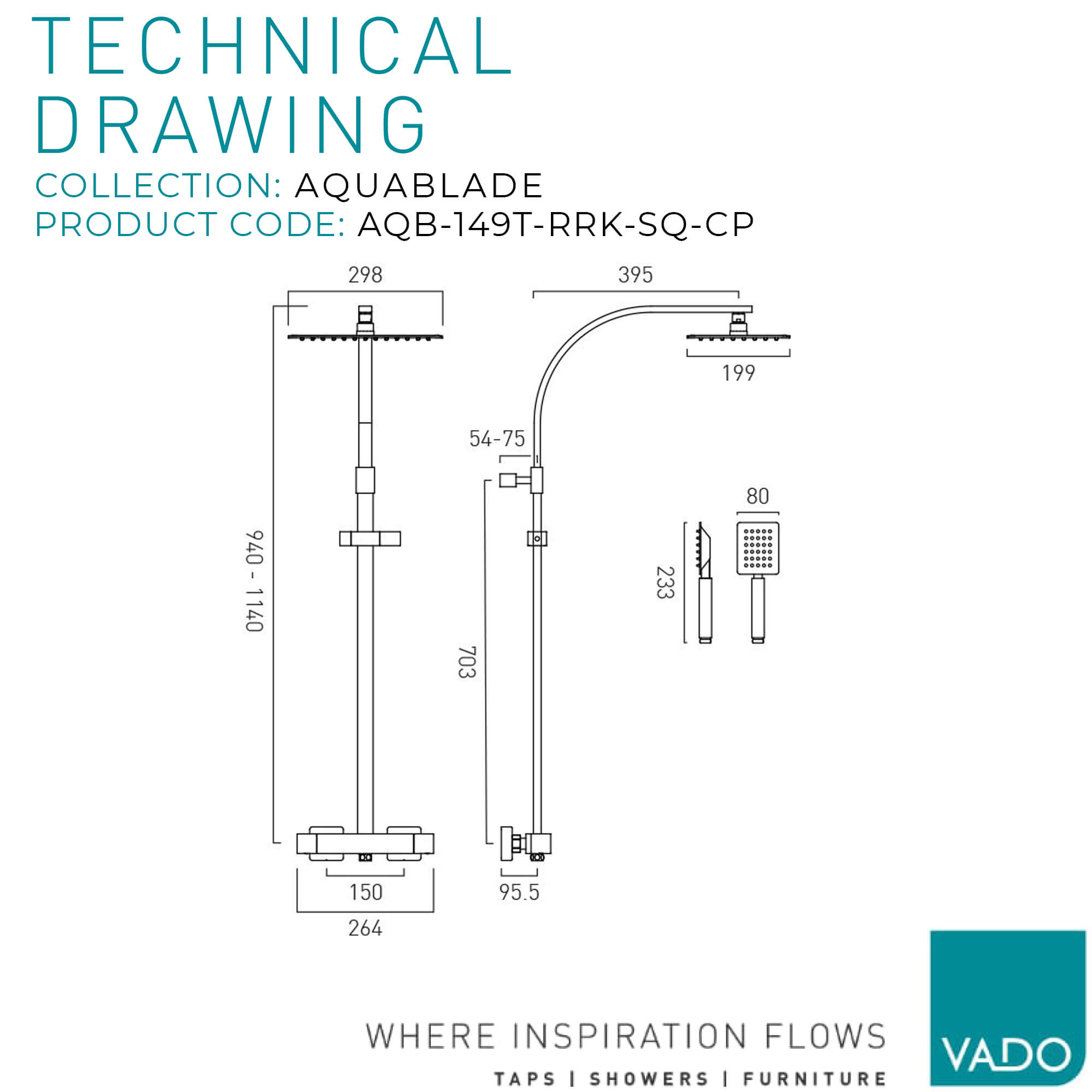

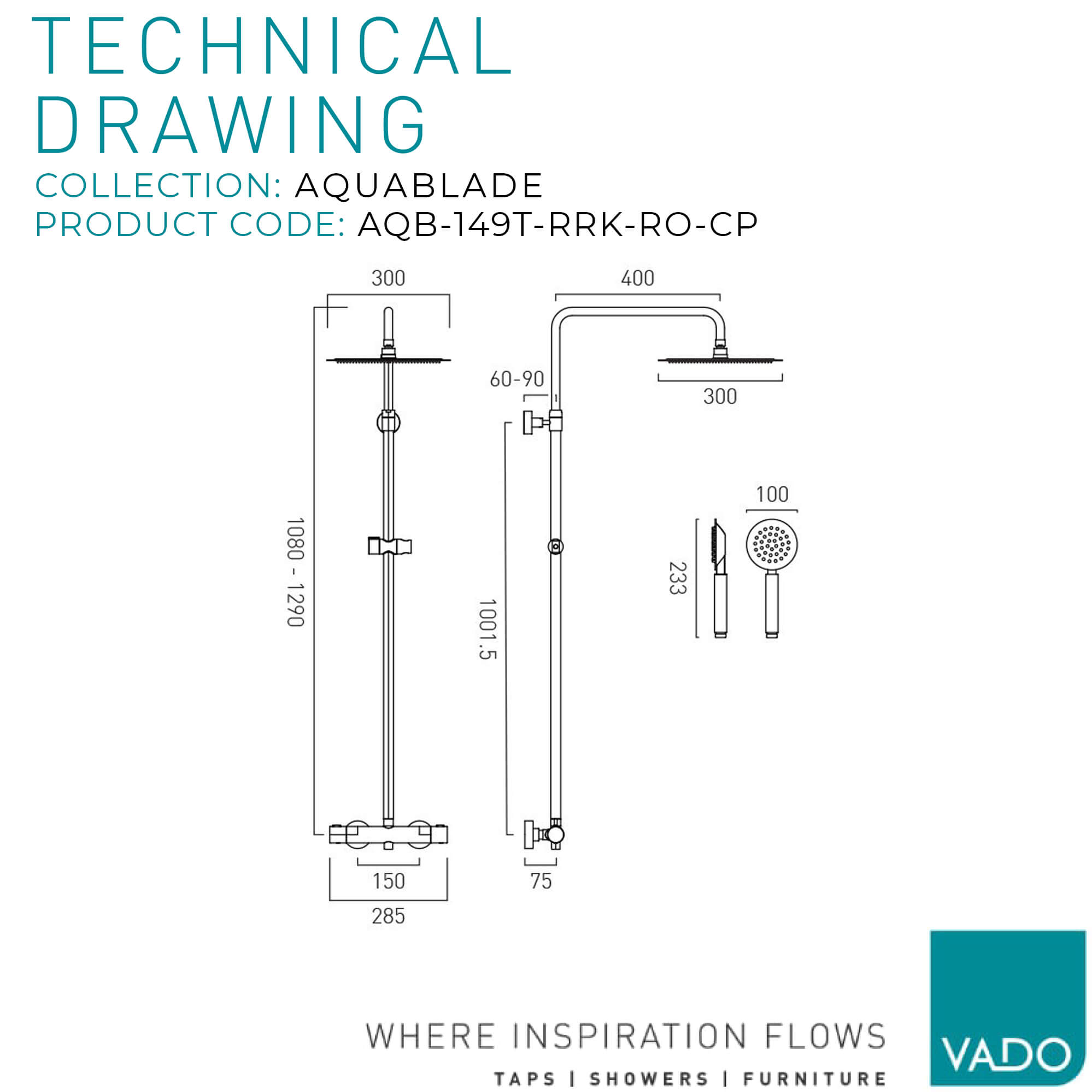

Technical Images

Vado Aquablade Chrome Thermostatic Shower Column

Round

Square

£357.50

RRP: ~~£650.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Diverter

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
