Vado Safari Contemporary Bridge Bath Mixer Tap with Long Spout, SAF-137-CP

Details

MFC: SAF-137-CP

Vado Safari Contemporary Bridge Bath Mixer Tap with Long Spout - Deck Mounted

Key Features

✔Made from Brass Material
✔Cold Ceramic Cartridge - C-302-RTC
✔Hot Ceramic Cartridge - C-302-LTC
✔15 Year Guarantee from The Manufacturer

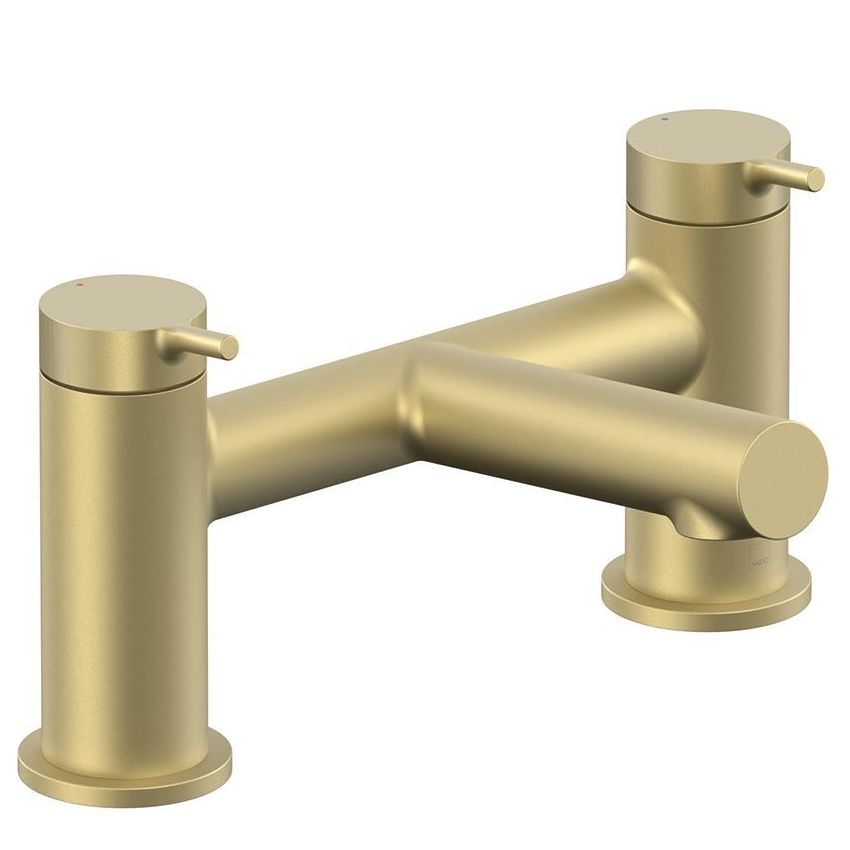

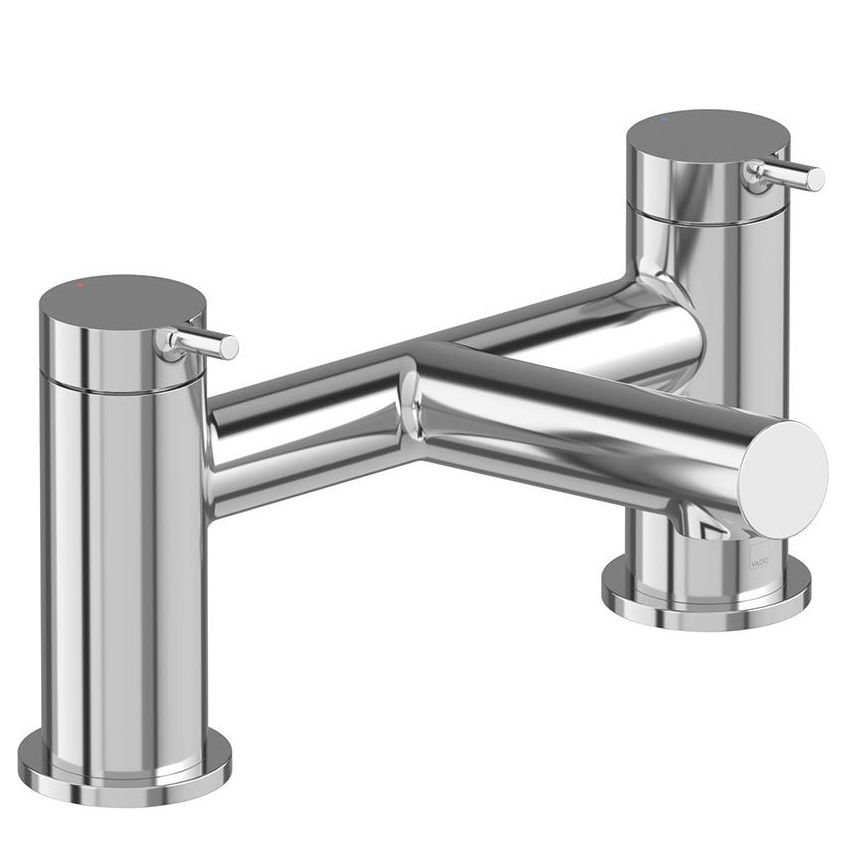

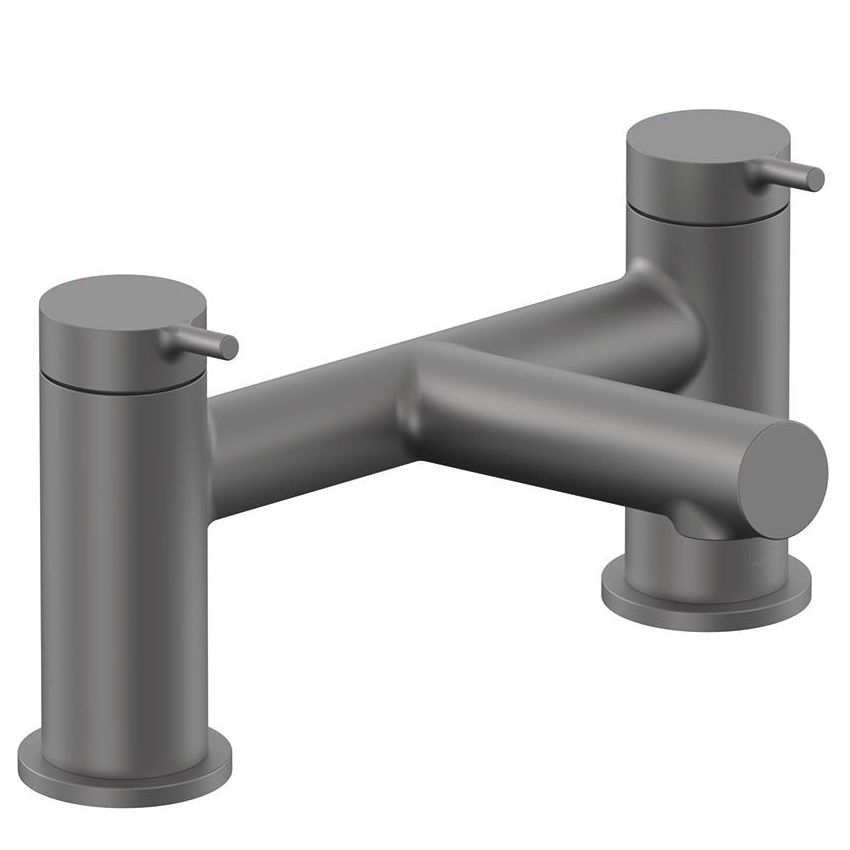

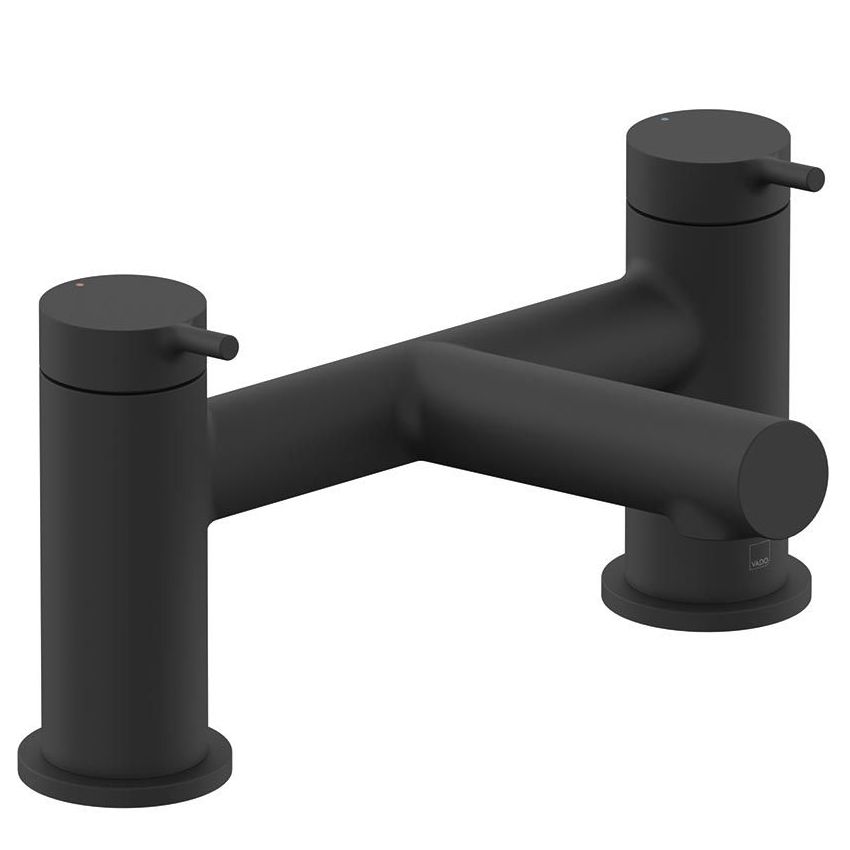

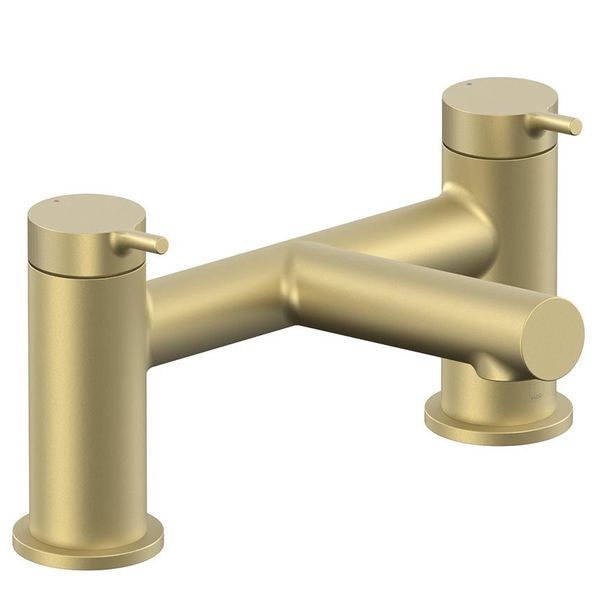

Choice of Finishes: Chrome, Matt Black, Satin Brass and Pewter
Choice of Handles: Stick or Fluted Knob Handles
Choice of Variations: Tap without Kit, Tap with Kit
Deck Mounted Installation
Refer Technical Drawing for Complete Size Details
Download Installation and User Guide PDF from the Additional Info Section
Specification of Tap without Kit:
Size mm: 219 x 152mm [Width x Depth]
Tap with Stick Handle Height: 116mm
Tap with Knob Handle Height: 135mm
Centre of Inlet to Centre of Outlet: 110mm
Base to Spout: 74mm
2 x 3/4" 48.5mm Male Threaded Inlet Connections
Deck Hole Drill Diameter: 2 x 28-38mm
Suitable for Low Water Pressure System
Requires Minimum 0.2 Bar and Maximum 5.0 Bar
Plumbing System Suitability: Combination Boiler, Gravity, Pumped and Pressurised System
Specification of Tap with Kit:
Supplied with Handset and 1500mm Smooth Hose
Size mm: 219 x 156mm [Width x Depth x Height]
Tap with Stick Handle Height: 125mm
Tap with Knob Handle Height: 145mm
Centre of Inlet to Centre of Outlet: 112mm
Base to Spout: 83mm
2 x 3/4" 48.5mm Male Threaded Inlet Connections
6 l/m Optional Flow regulator Included (Handset)
Deck Hole Drill Diameter: 2 x 28-38mm
Suitable for Medium Water Pressure System
Requires Minimum 0.5 Bar and Maximum 5.0 Bar
Plumbing System Suitability: Pressurised System

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Tap Body Shape
: Round
⤷ Range
: Safari
⤷ Water Activation
: By Lifting/Tilting
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Base To Spout
: 74
⤷ Spout Reach
: 110

⤷ Width
: 219
⤷ Depth
: 152
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Stick
⤷ Deck Mount Drill Hole Diameter
: 28-38
⤷ Height
: 116
⤷ Number of Handles
: 2
⤷ Barcode
: 5052120294376
⤷ Maximum Operating Pressure (Bar)
: 5.0
⤷ Cartridge Included
: Yes

Additional Info & Downloads

Download the Installation Instruction for Tap Without Kit Pdf File Download the Installation Instruction for Tap With Kit Pdf File Download the User Guide for Tap Without Kit Pdf File Download the User Guide for Tap With Kit Pdf File

This item can also be found in:

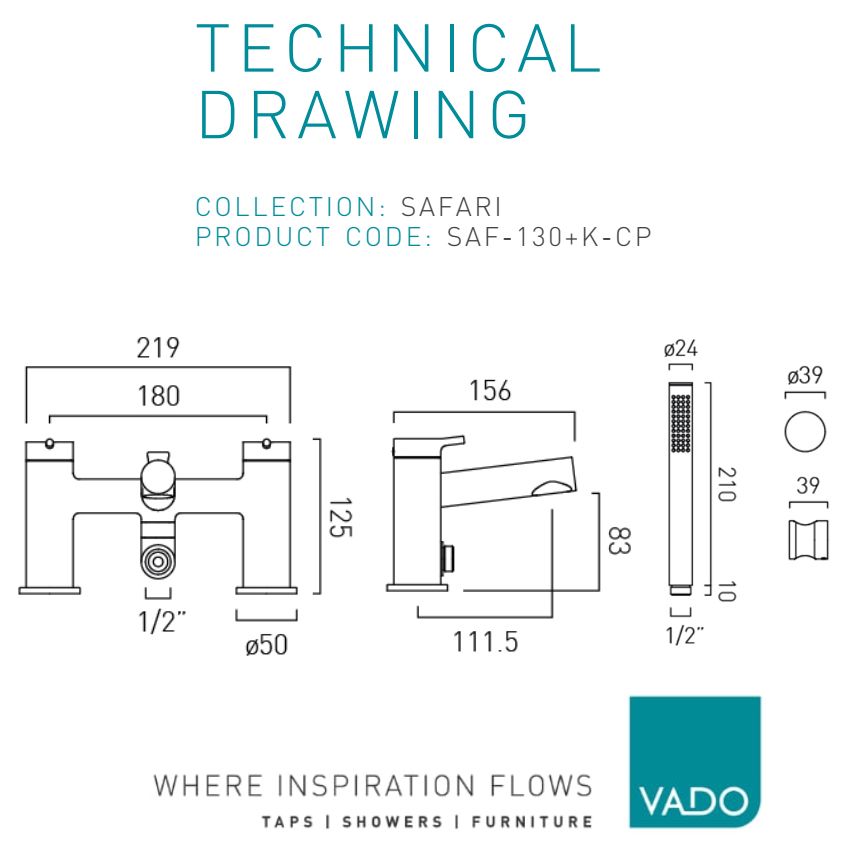

Technical Images

Vado Safari Contemporary Bridge Bath Mixer Tap with Long Spout - Deck Mounted

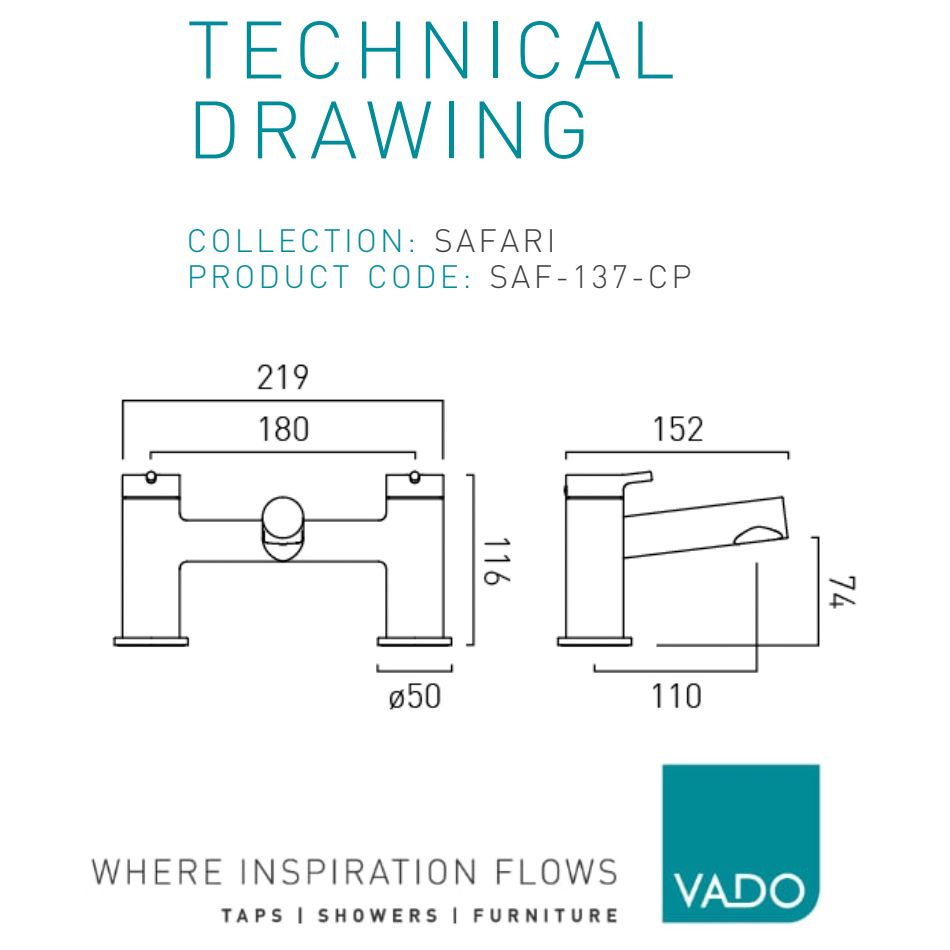

Stick Handle - Without Kit

Stick Handle - With Kit

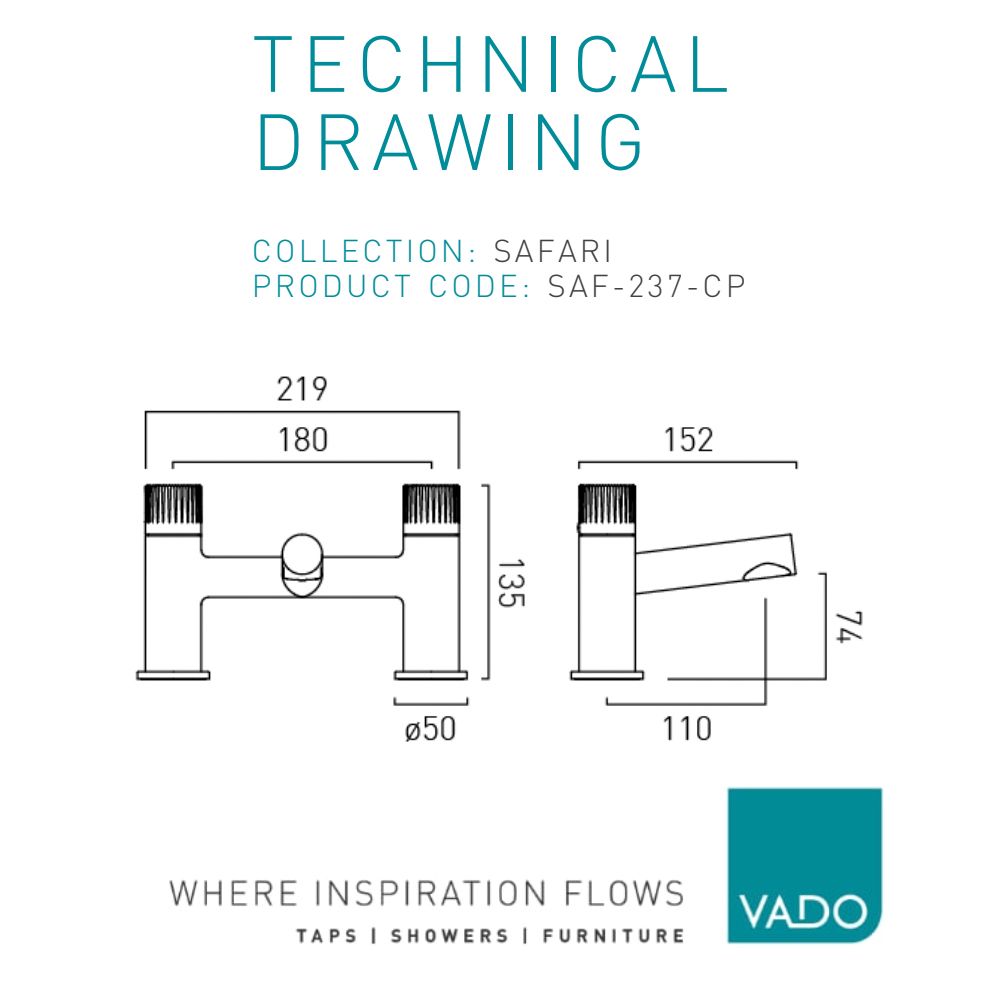

Fluted Knob Handle - Without Kit

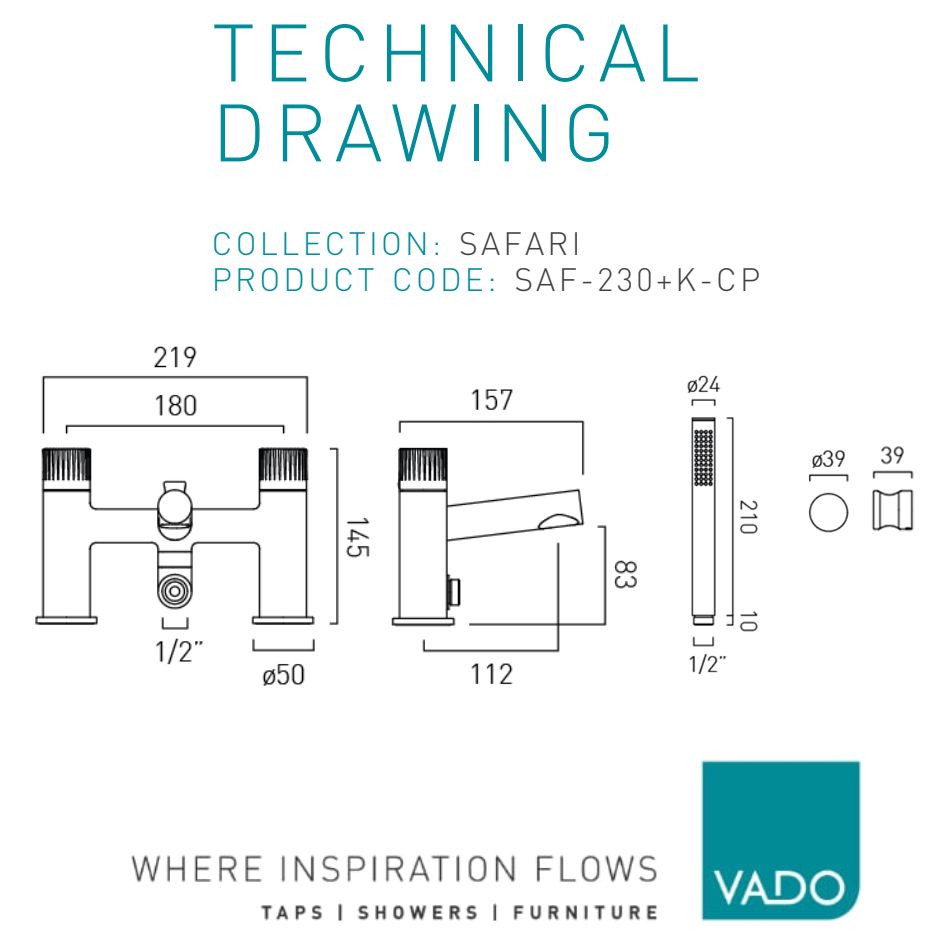

Fluted Knob Handle - With Kit

£210.00

RRP: ~~£300.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
