Vado Metiz Mini Mono Basin Mixer Tap with Waste, Flat Handle, AX-MET-100M/CC-CP

Vado Metiz Details

MFC: AX-MET-100M/CC-CP

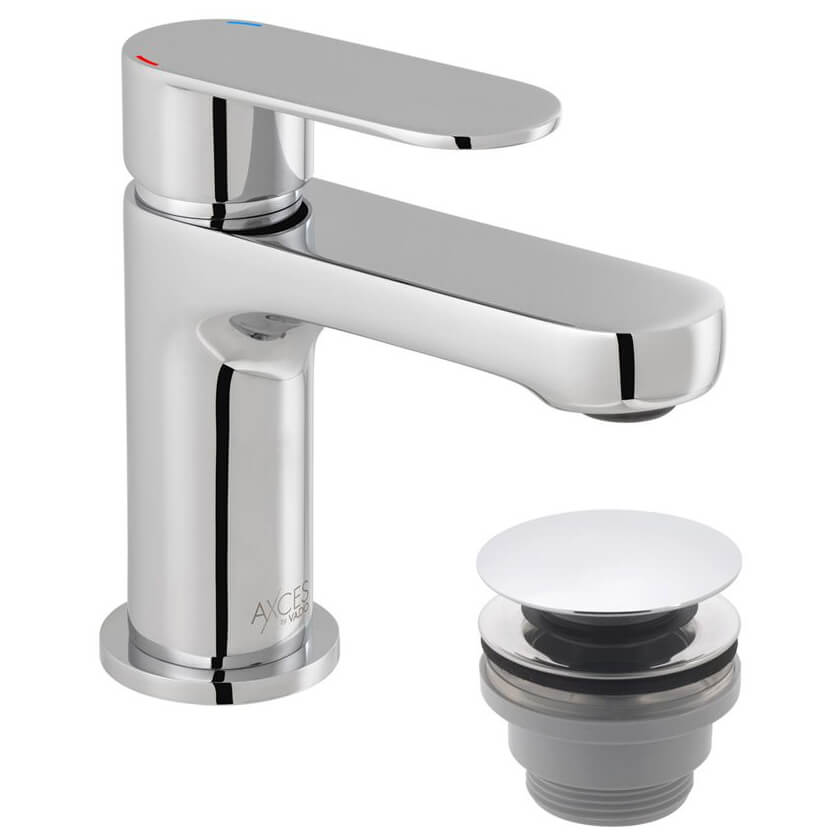

Vado Metiz Contemporary Chrome Mini Mono Basin Mixer Tap with Push Waste - Flat Handle

Manufacturing Code of this Product: AX-MET-100M/CC-CP
It Comes in a Chrome Finish
Size in [mm]: 46 x 125 x 121mm [Width x Depth x Height]
Size in [cm]: 4.6 x 12.5 x 12.1cm [Width x Depth x Height]
Deck Hole Drill Diameter: 32mm
Ceramic Disc Cartridge: W-001-N25
Suitable for Low and High Water Pressure Systems
Works On a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Water Pressure
Connections / Fittings: 2 x 1/2 Inch Nut x 400mm Flexi Pipe Connections
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

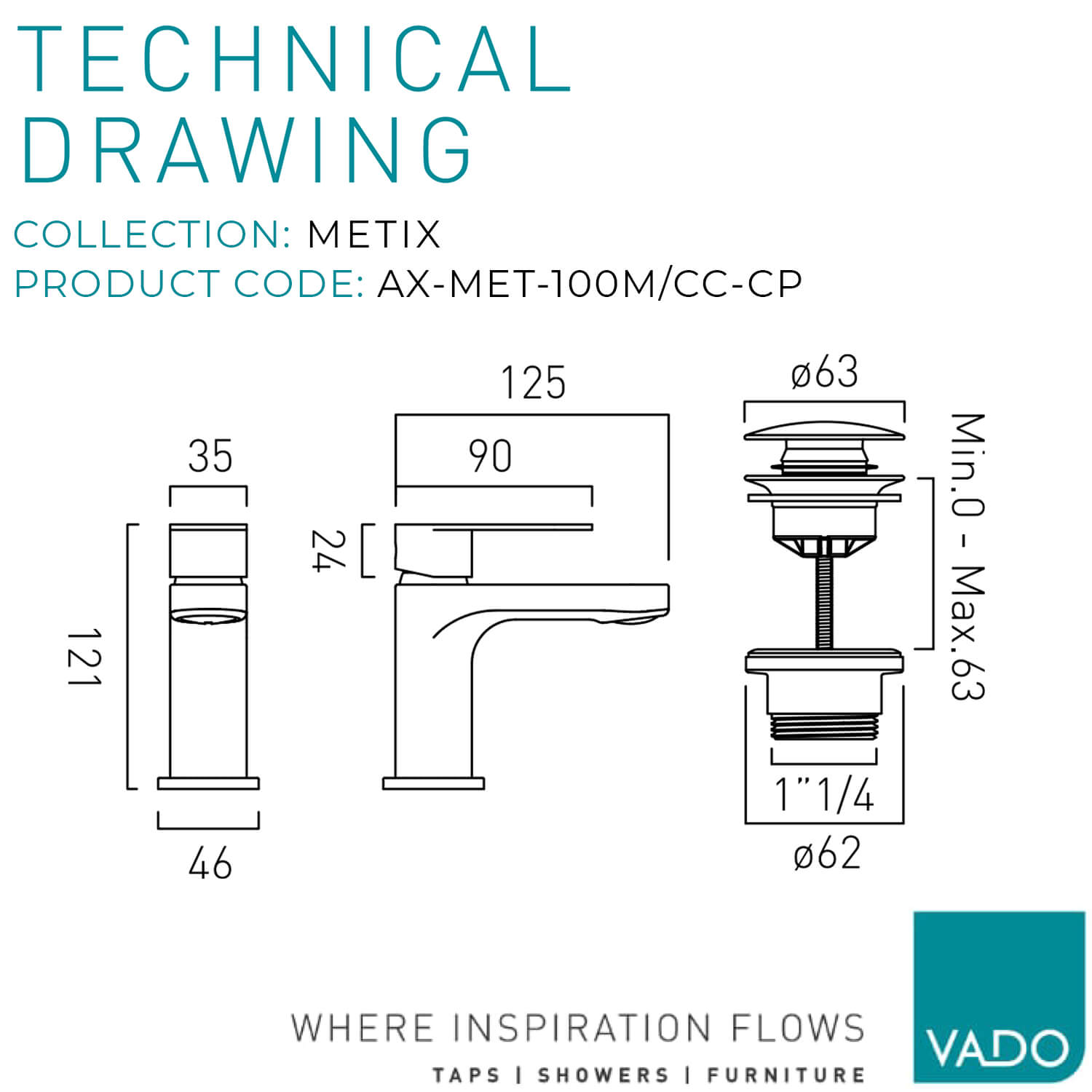

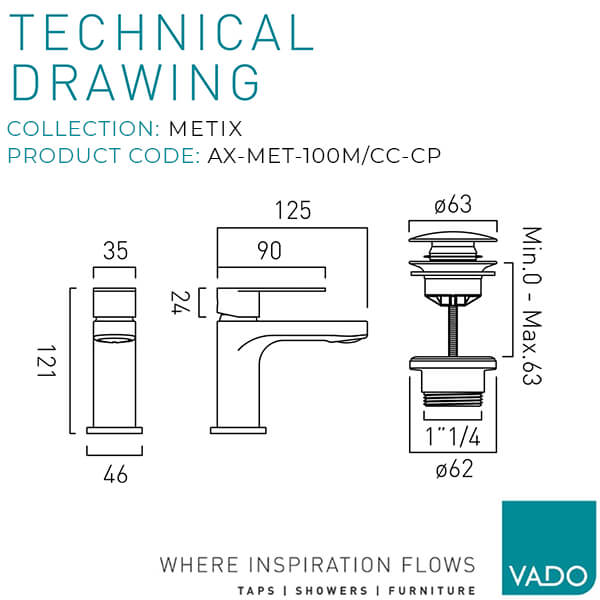

Refer Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Metiz
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Year
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Overall Height
: 121
⤷ Width
: 46

⤷ Depth
: 125
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Push
⤷ Diameter of Waste Connection
: 62
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Deck Mount Drill Hole Diameter
: 32
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120241158
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Vado Metiz Contemporary Chrome Mini Mono Basin Mixer Tap with Push Waste - Flat Handle

£97.50

RRP: ~~£150.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Neoperl Aerator

Neoperl aerators control the flow stream's straightness and diameter while reducing splashes by adding air to the stream. This effectively saves water and, thereby, water bills. It is compliant with local plumbing standards and codes.
