Vado Metiz Chrome Mono Bath Filler Tap, AX-MET-137M-CP

Details

MFC: AX-MET-137M-CP

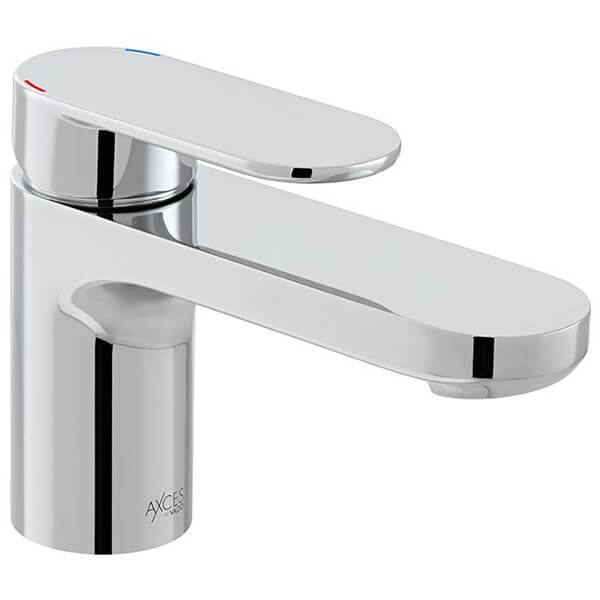

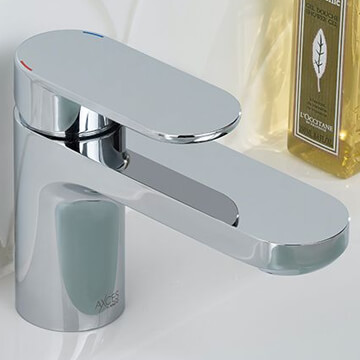

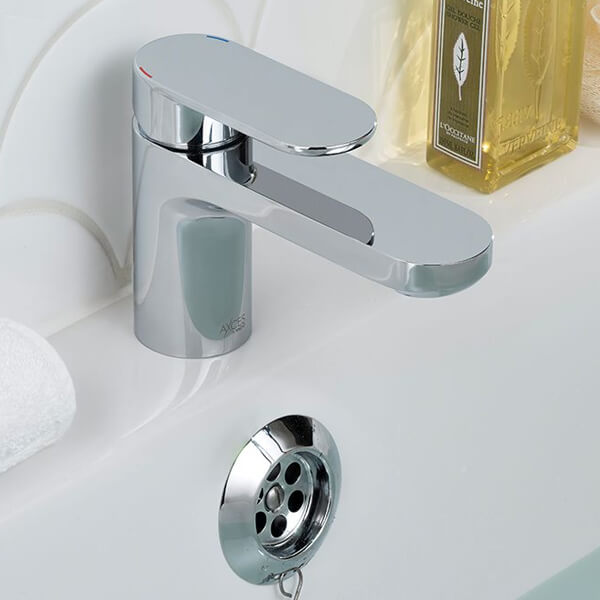

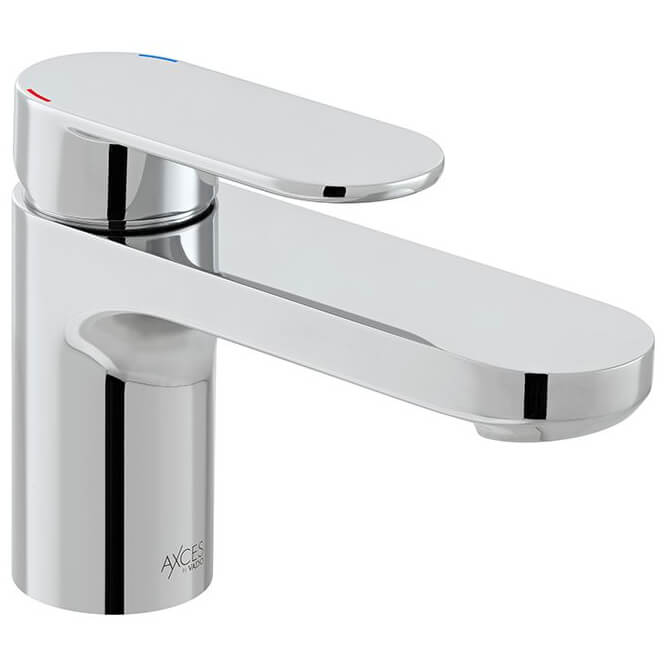

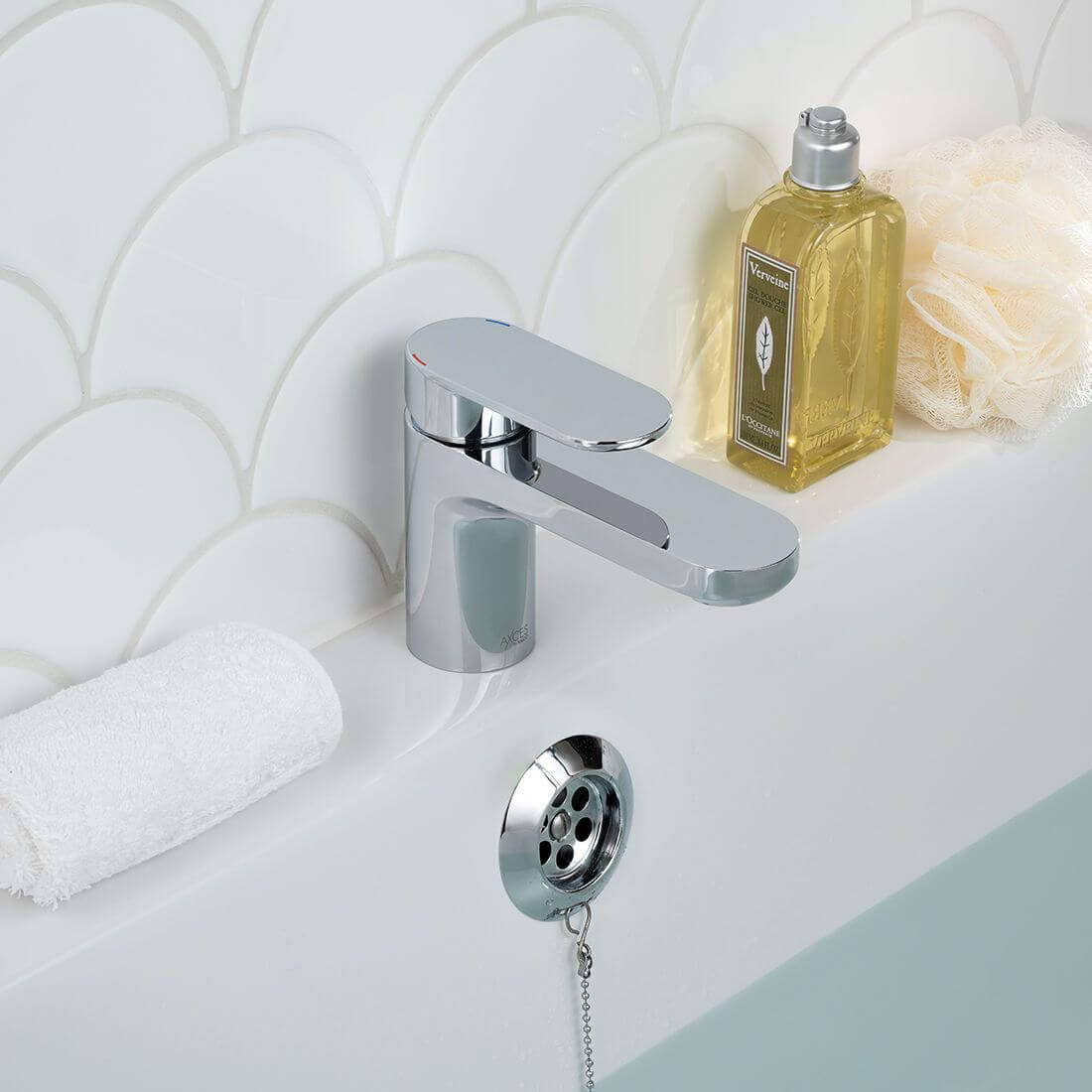

Vado Metiz Chrome Mono Bath Filler Tap - Flat Handle and Spout.

Manufacturing Code of this Item is AX-MET-137M-CP
Cartridge W-001-N40
Deck Hole Drill Diameter: 35-38mm
Base to Spout Height: 79mm [7.9cm]
Centre of Inlet to Centre of Outlet: 138mm [13.8cm]
Size in [mm]: 50 x 183 x 129mm [Width x Depth x Height]
Size in [cm]: 5 x 18.3 x 12.9cm [Width x Depth x Height]
Connections: 2 x 1/2inch nut x 400mm Flexipipe Connections
Suitable for High Water Pressure Systems
Works On Minimum 1.0 Bar or Above Water Pressure
Plumbing System Suitability: Pumped System
Fitted with Neoperl Water Flow Straightener
Delivers 29 l/m (Spout) Flow Rate at 3 Bar Water Pressure

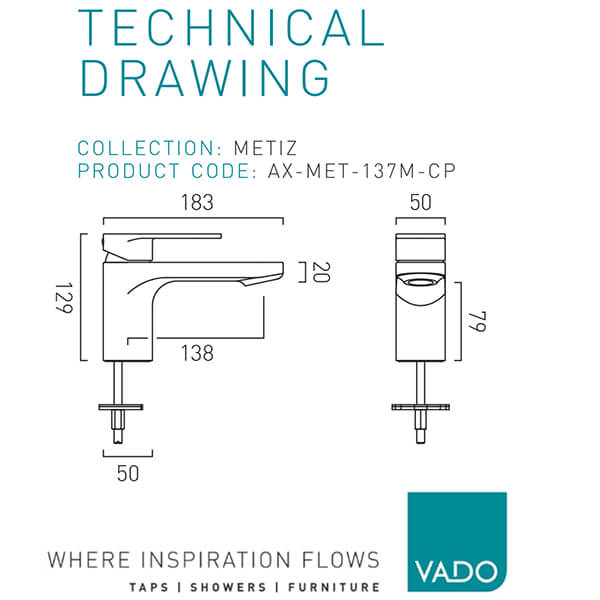

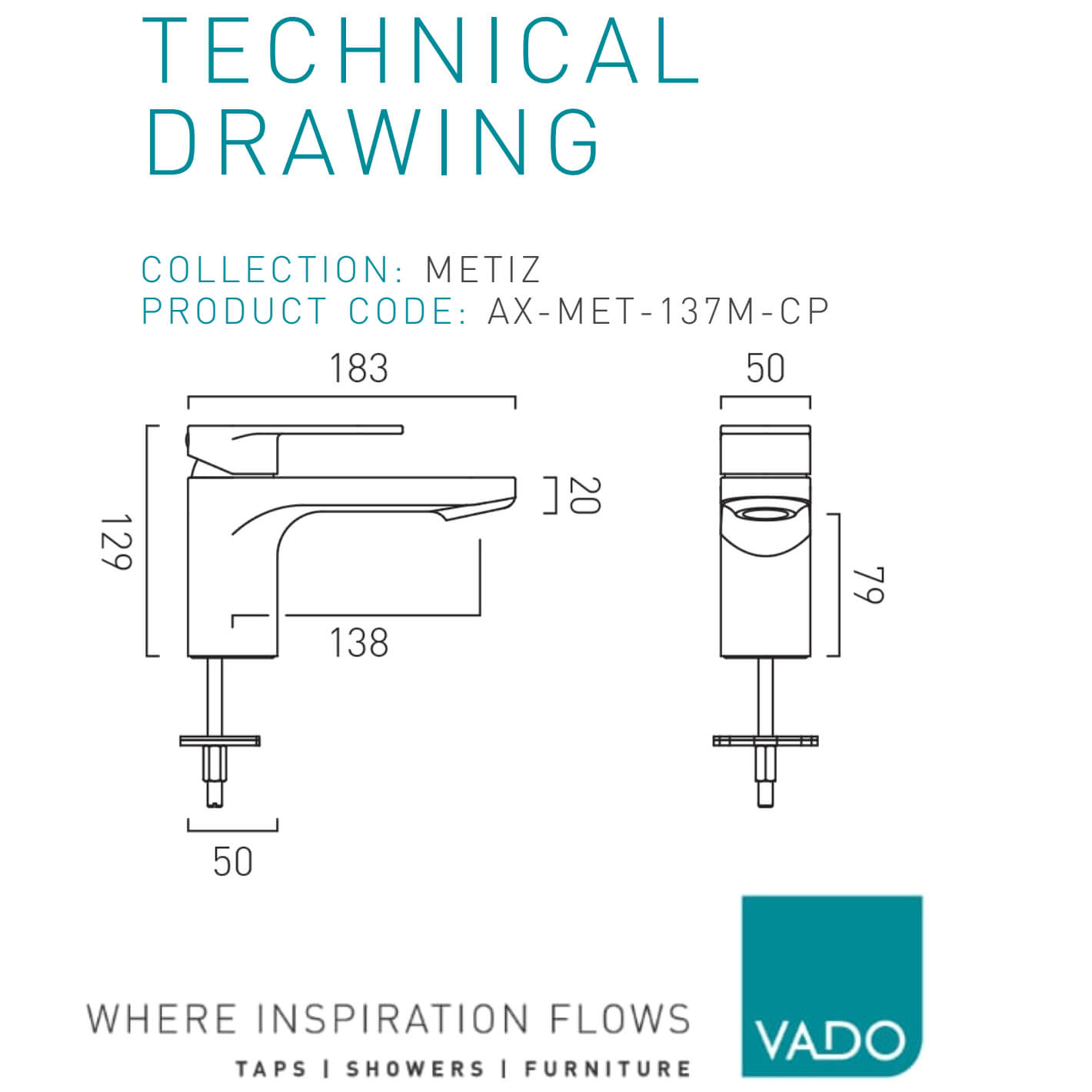

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Metiz
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Base To Spout
: 79
⤷ Spout Reach
: 138
⤷ Overall Height
: 129
⤷ Width
: 50
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Handle Style
: Lever
⤷ Barcode
: 5052120289259
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

This item can also be found in:

Vado Metiz Chrome Mono Bath Filler Tap - Flat Handle and Spout

£110.00

RRP: ~~£200.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
