Bristan Frammento Eco Start Basin Mixer Tap, Clicker Waste, FRM ES BAS C

Bristan Frammento Details

MFC: FRM ES BAS C

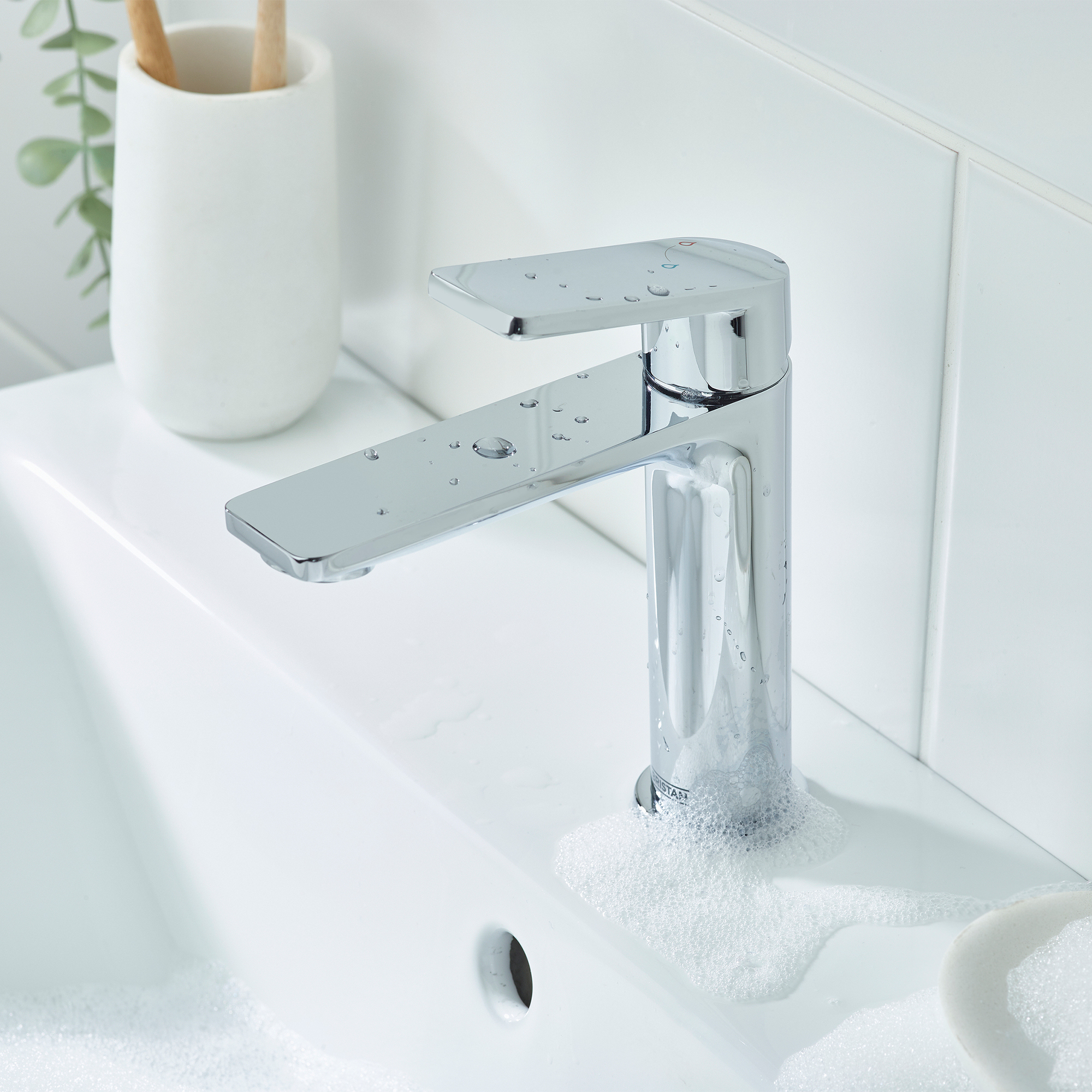

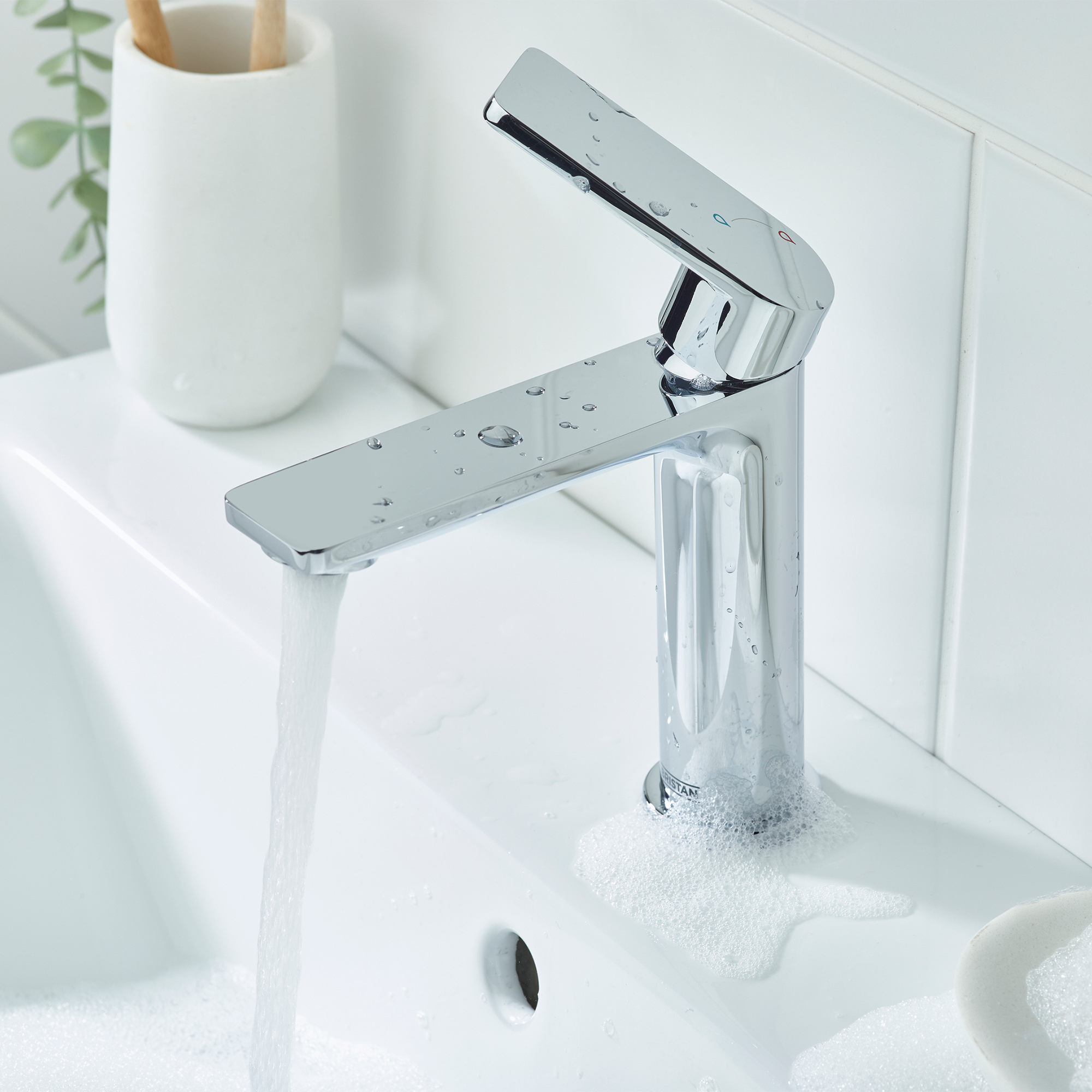

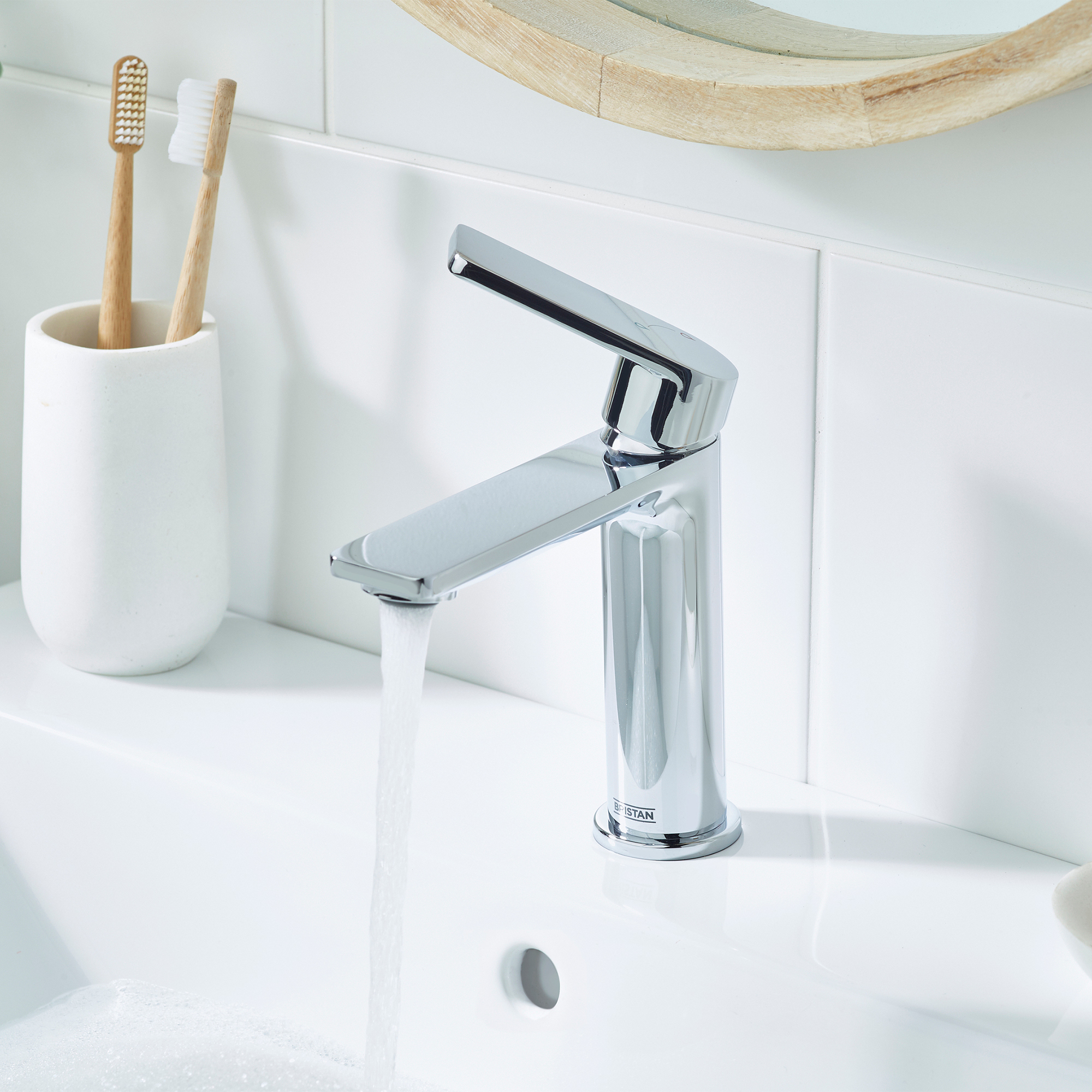

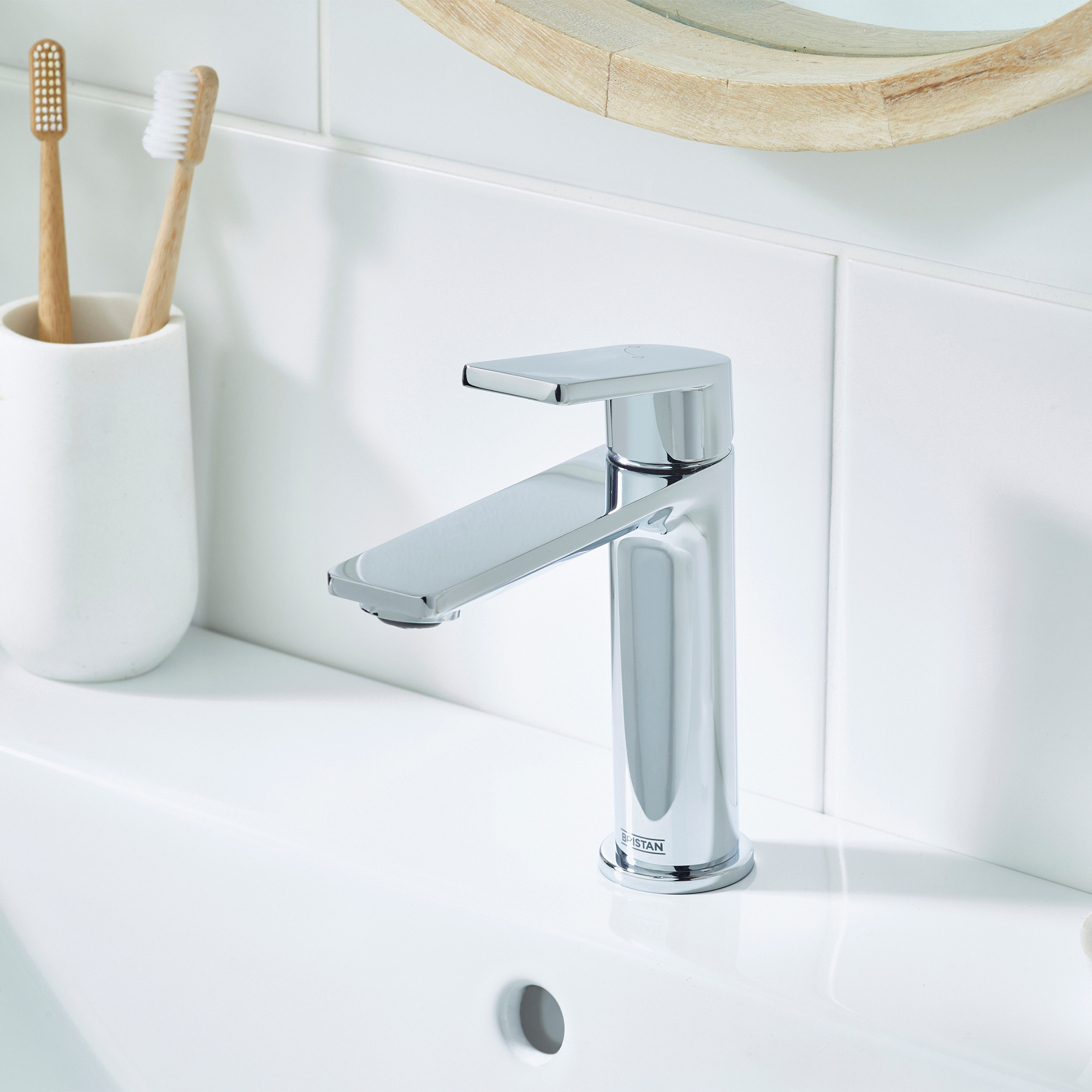

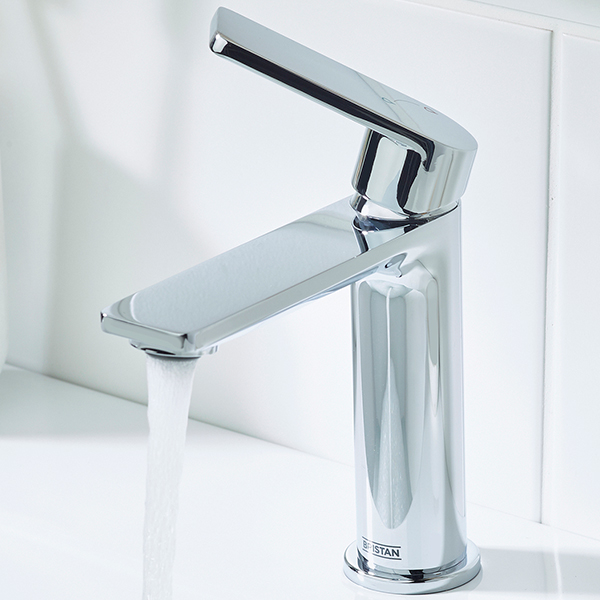

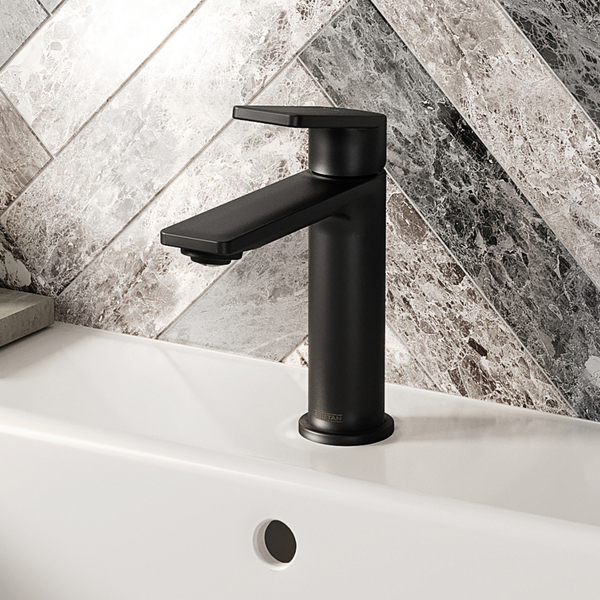

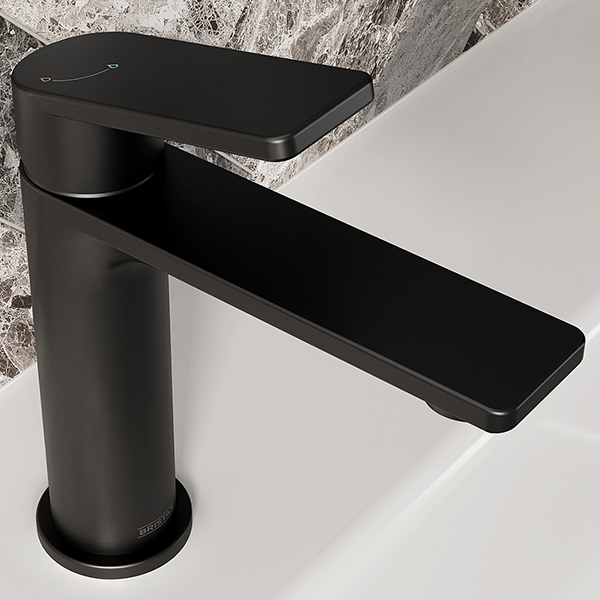

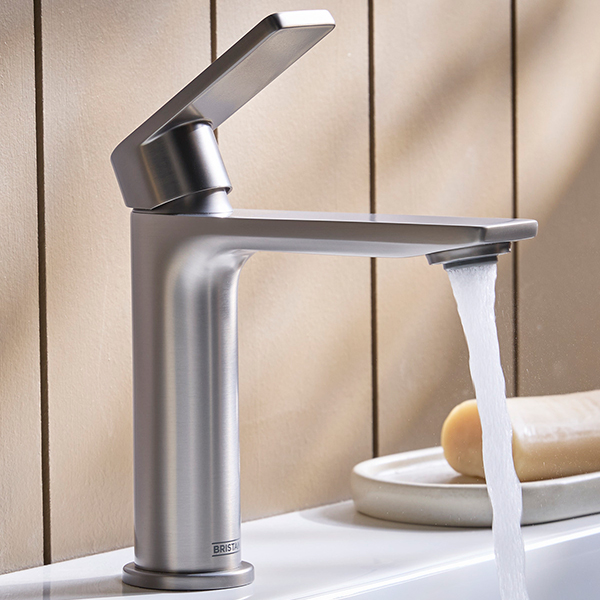

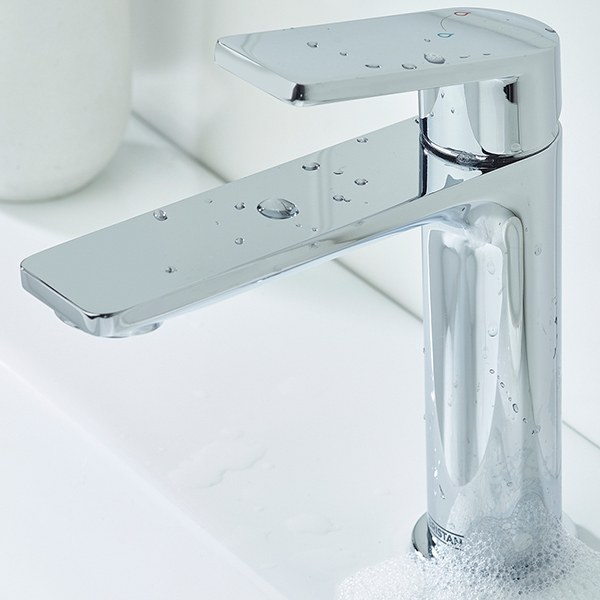

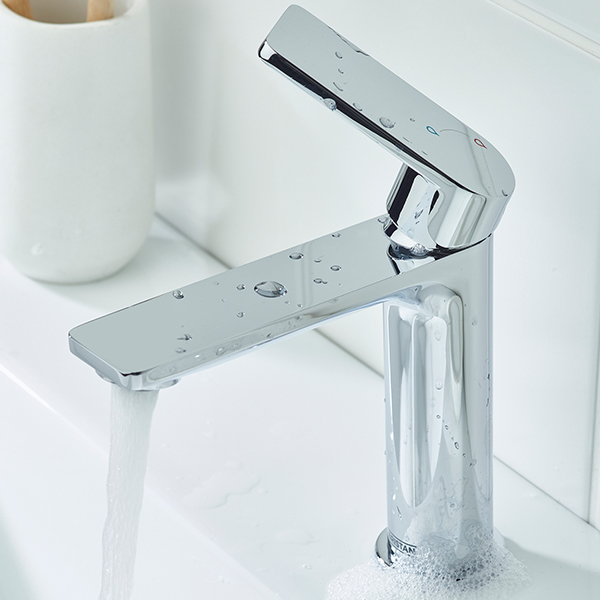

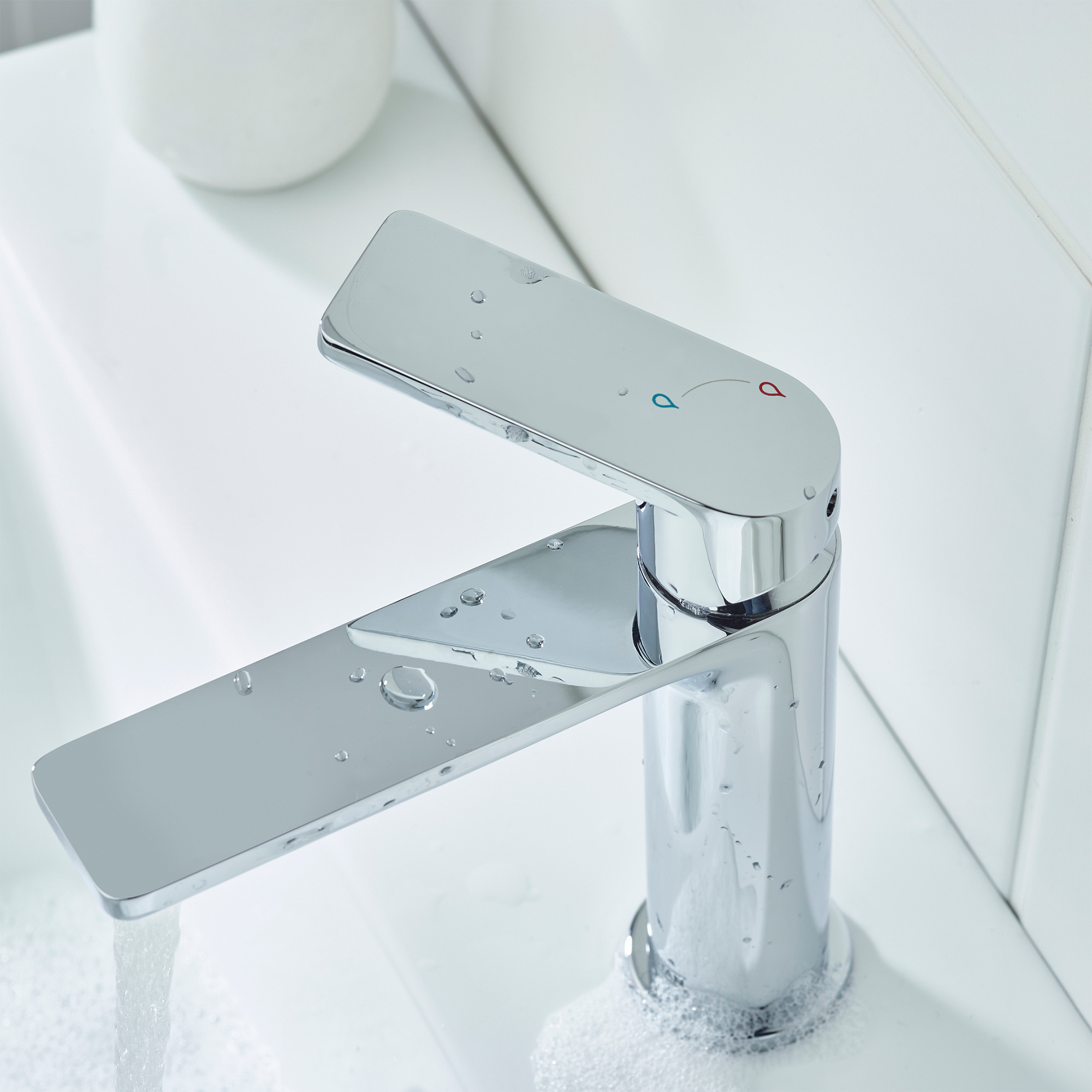

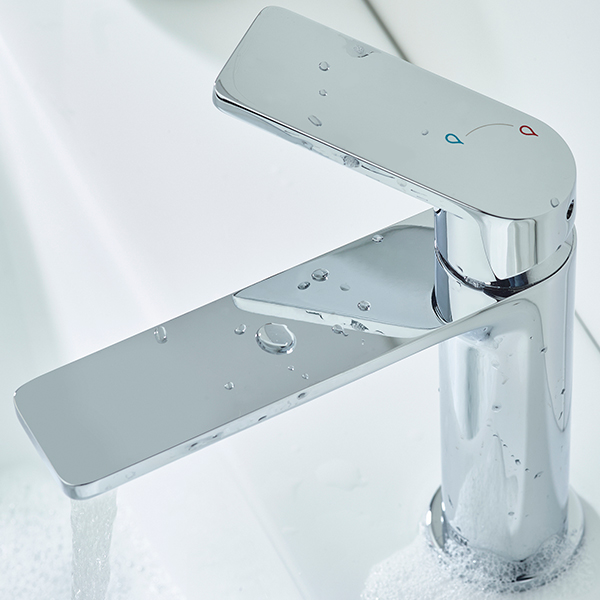

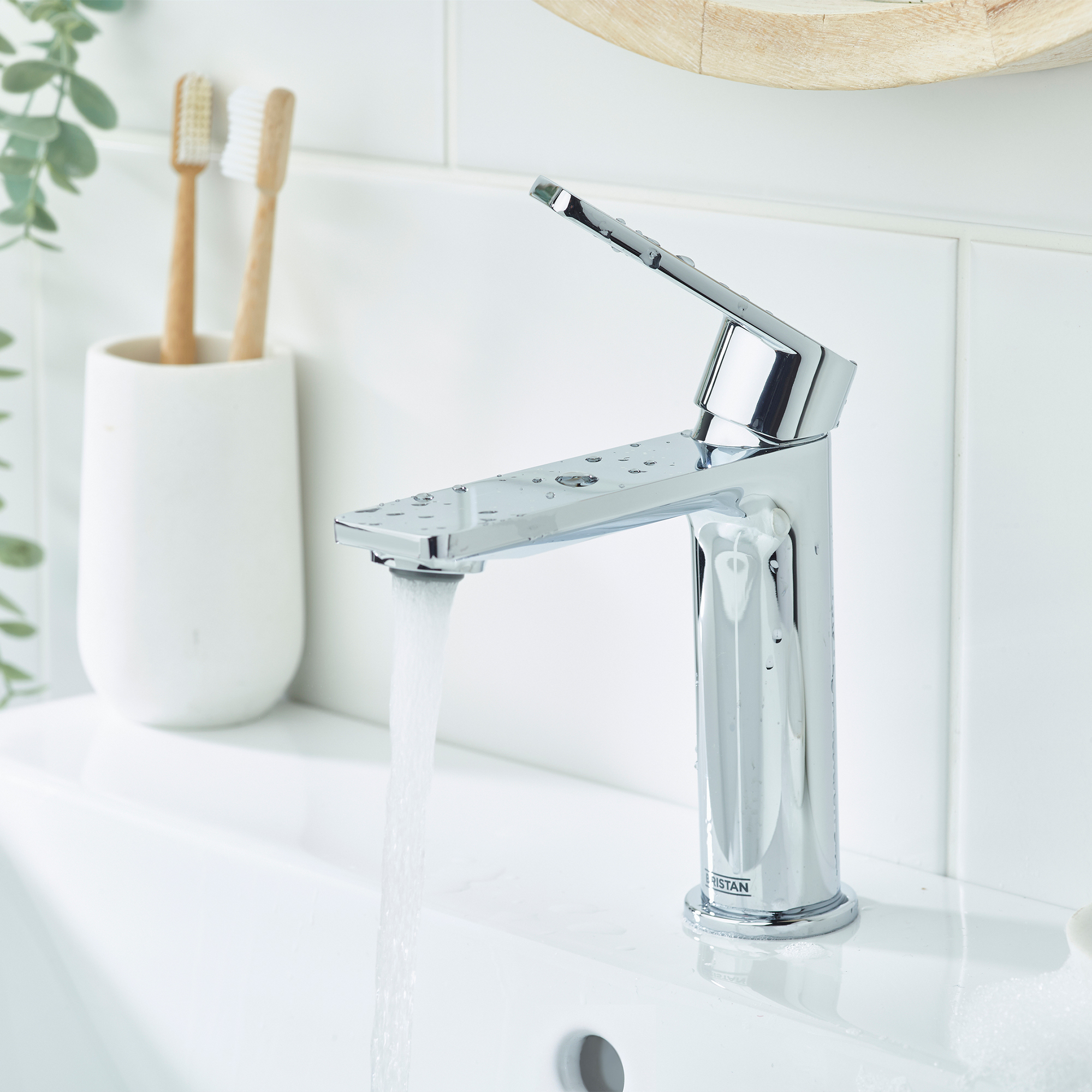

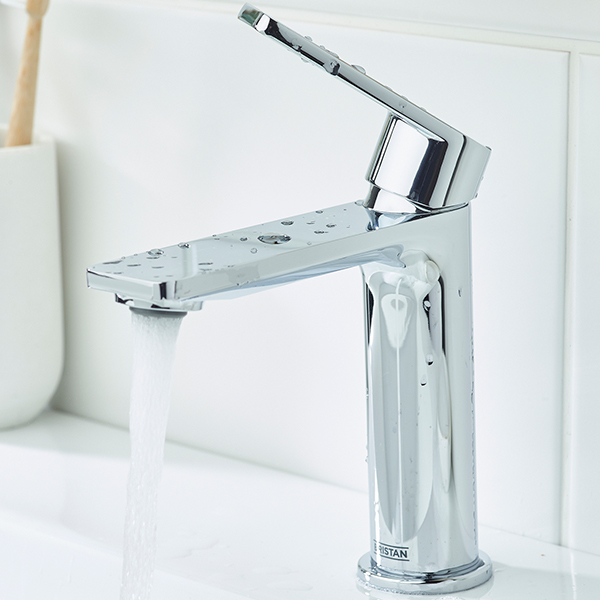

Bristan Frammento Eco Start Basin Mixer Tap with Clicker Waste - Flat Handle and Spout.

Key Features

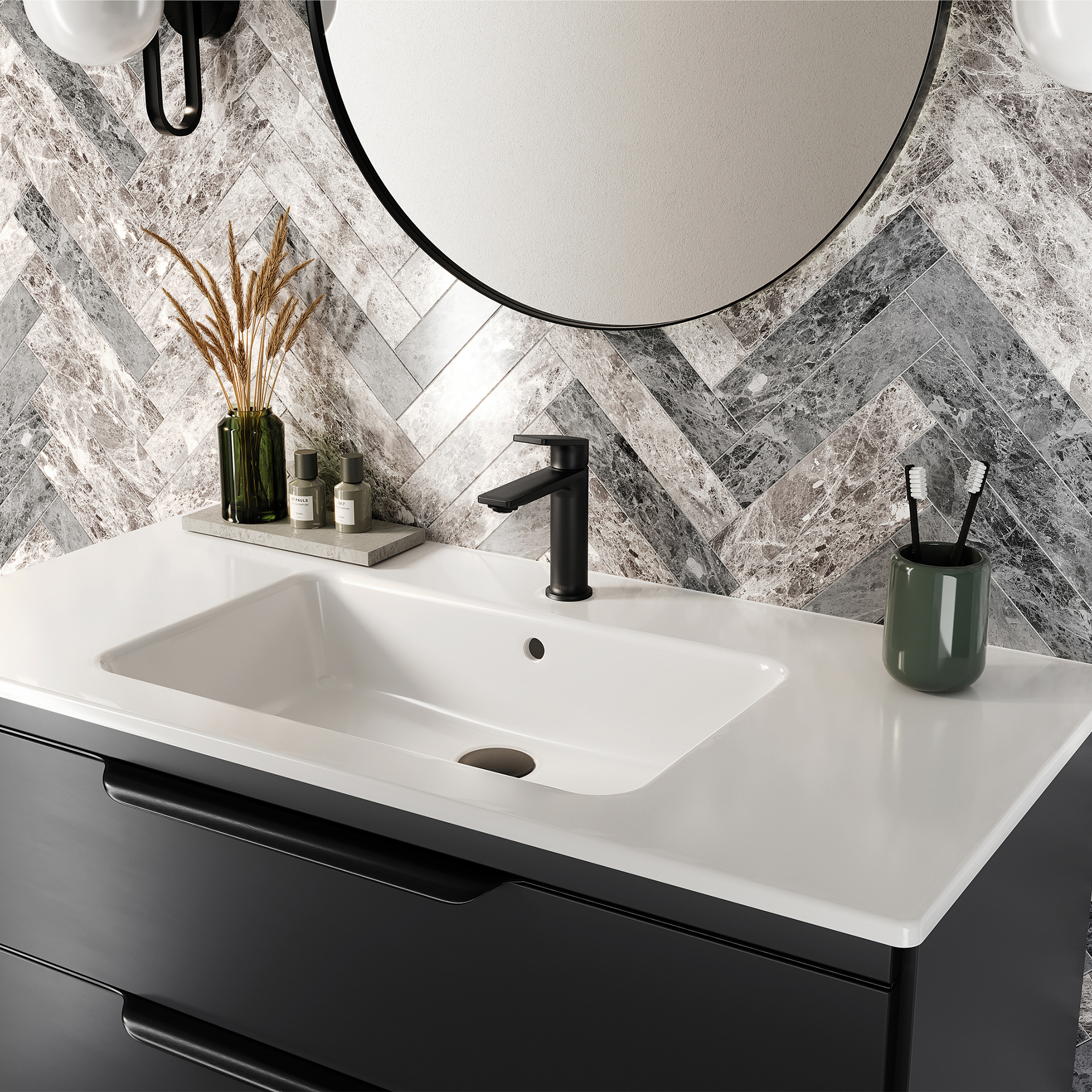

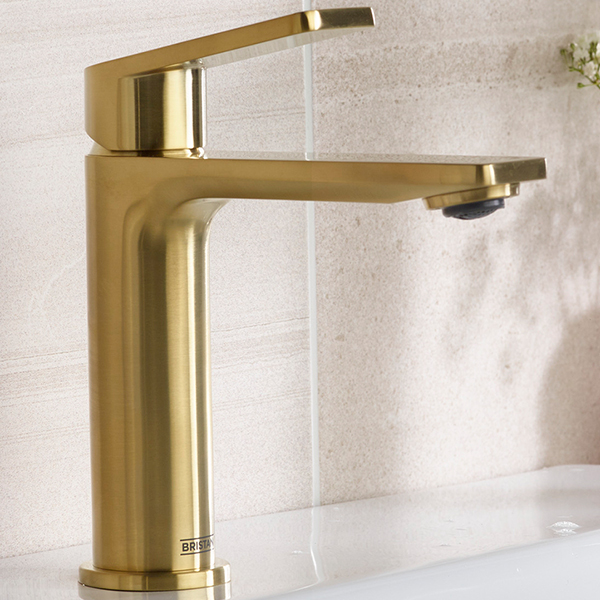

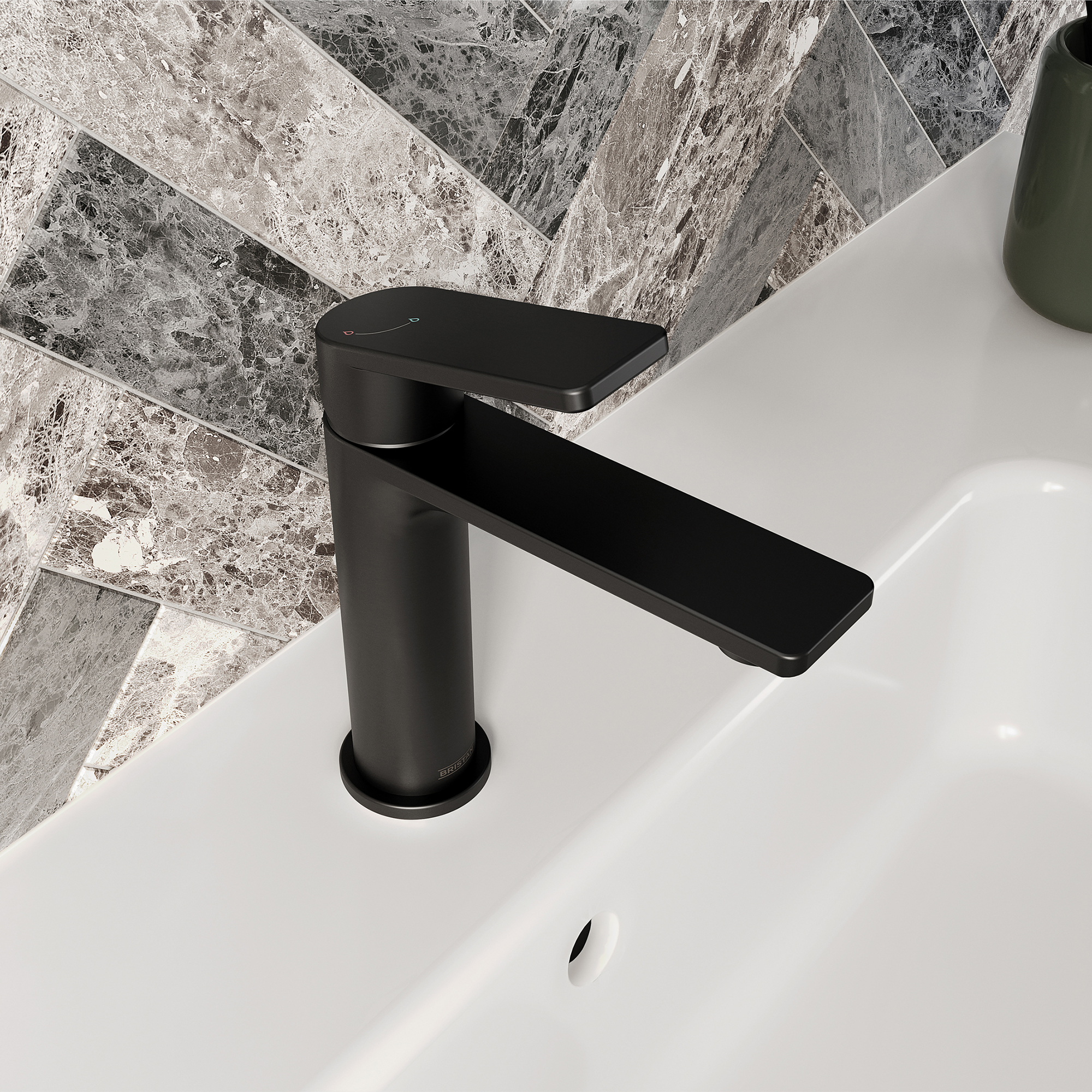

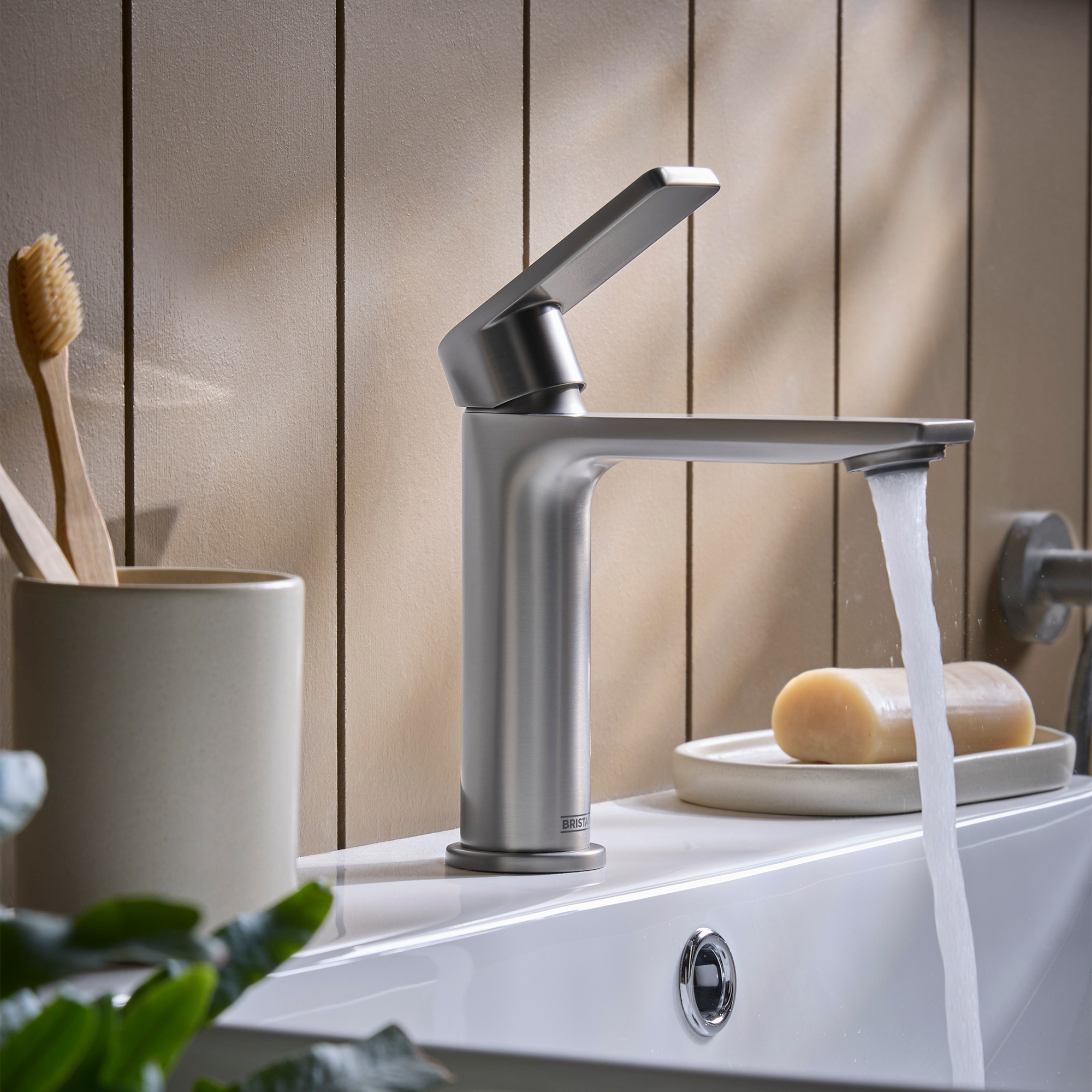

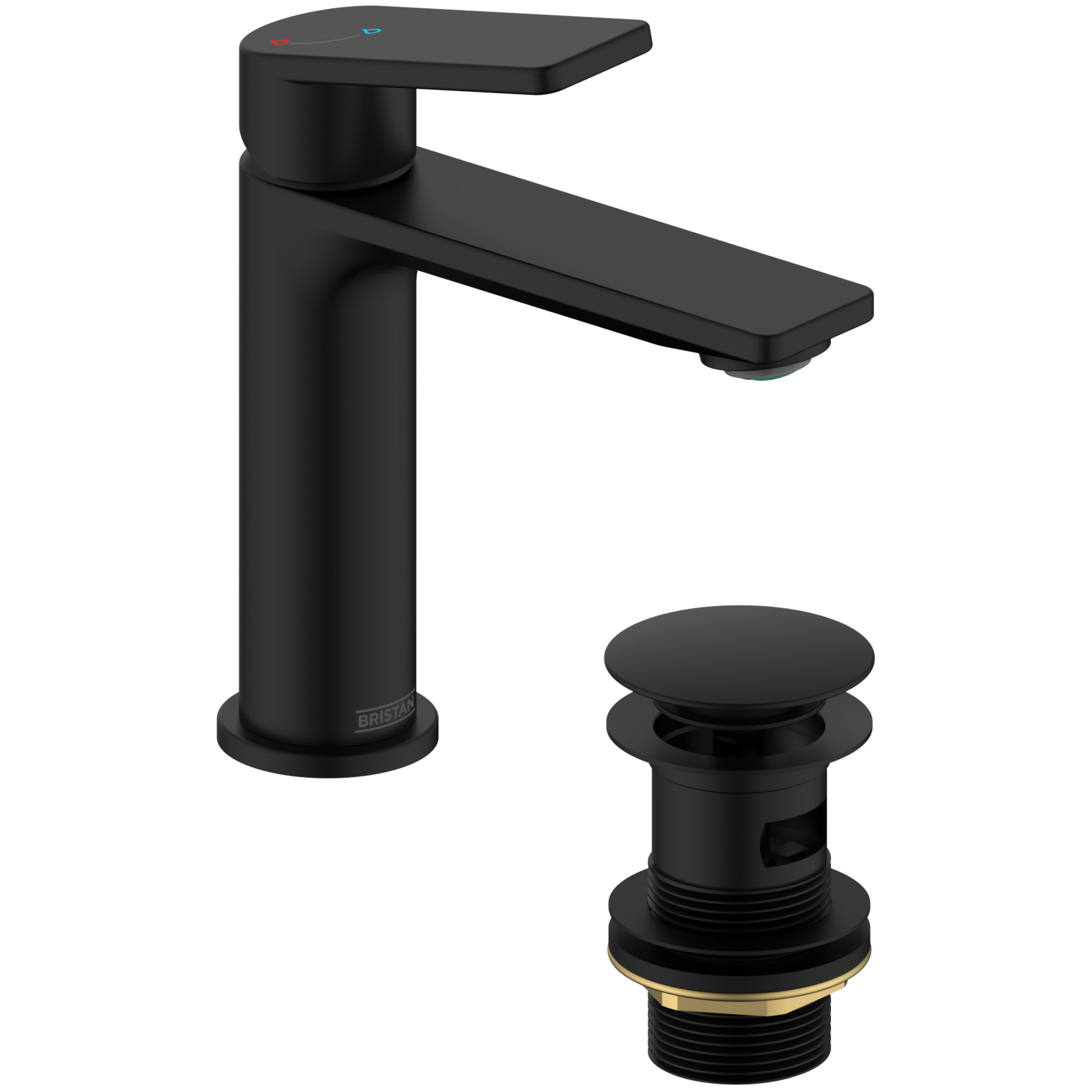

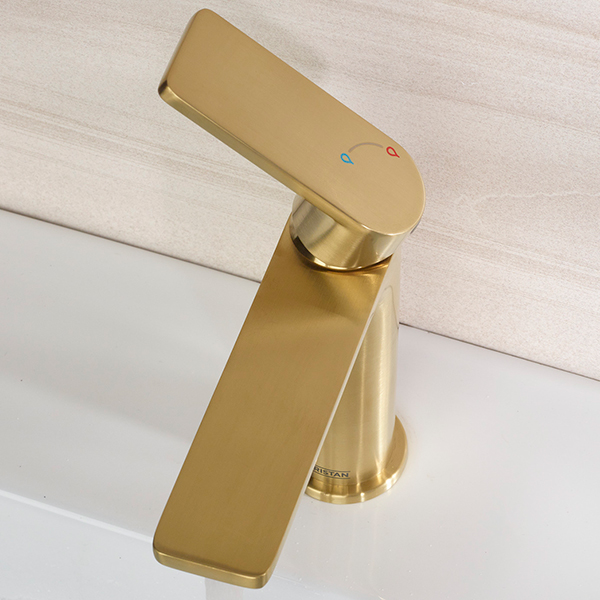

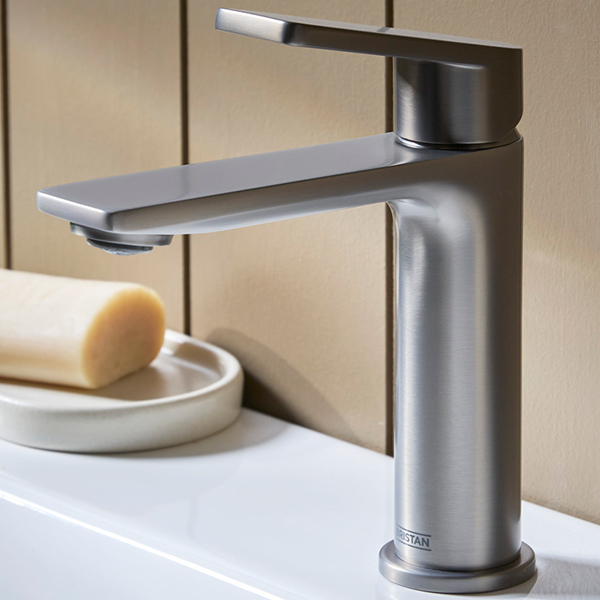

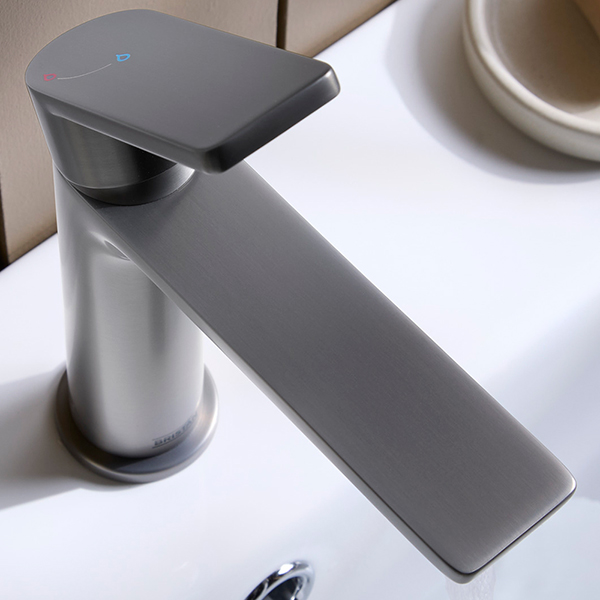

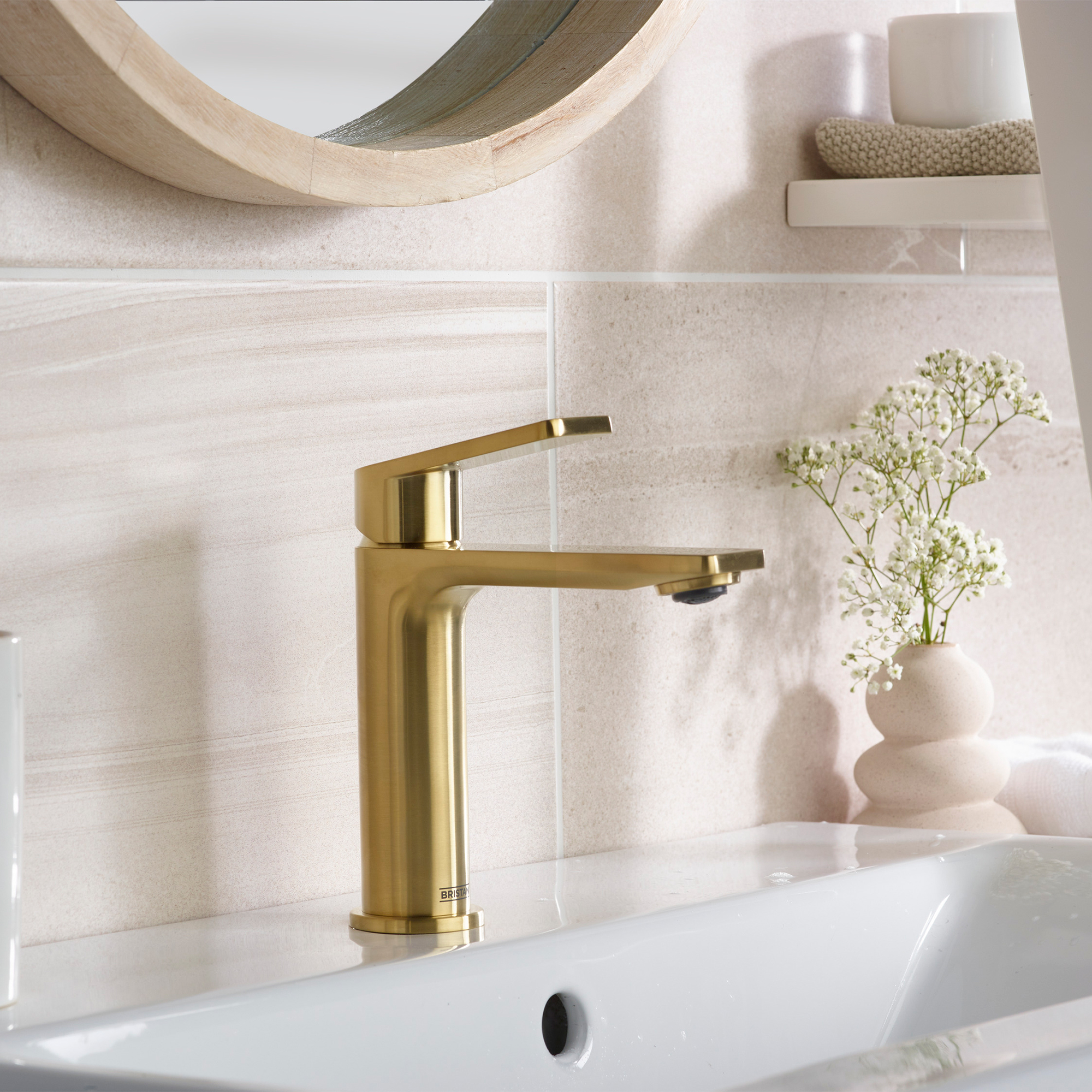

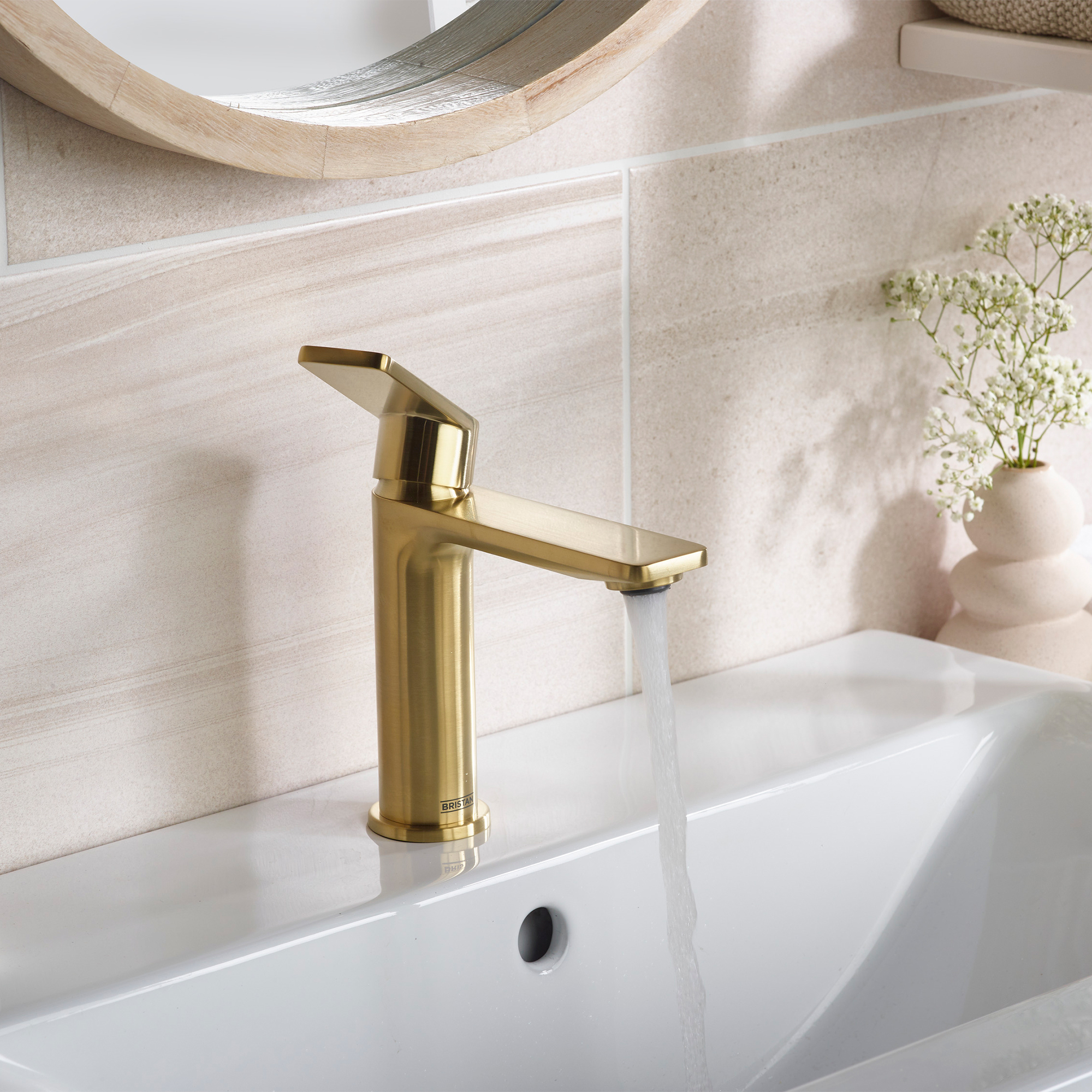

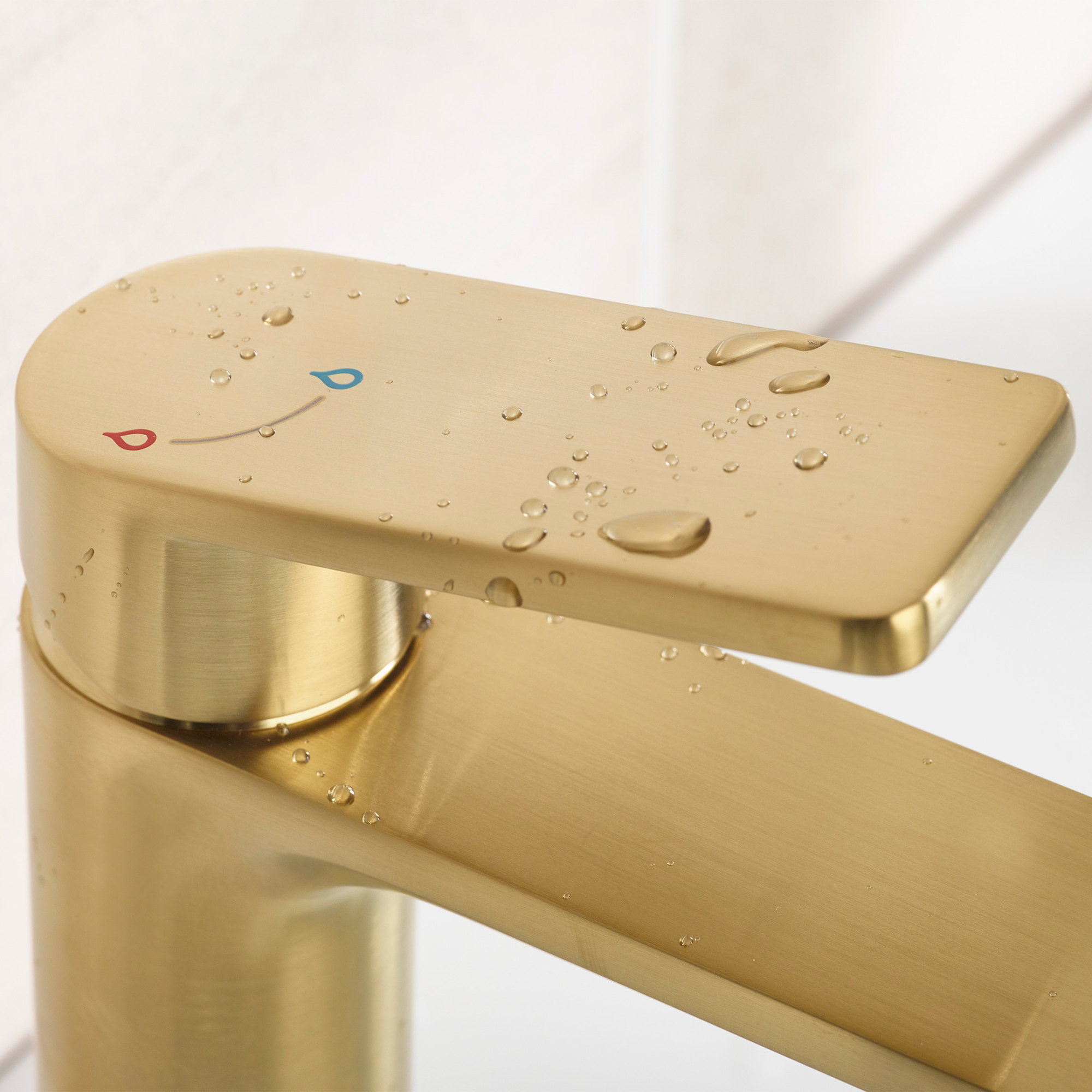

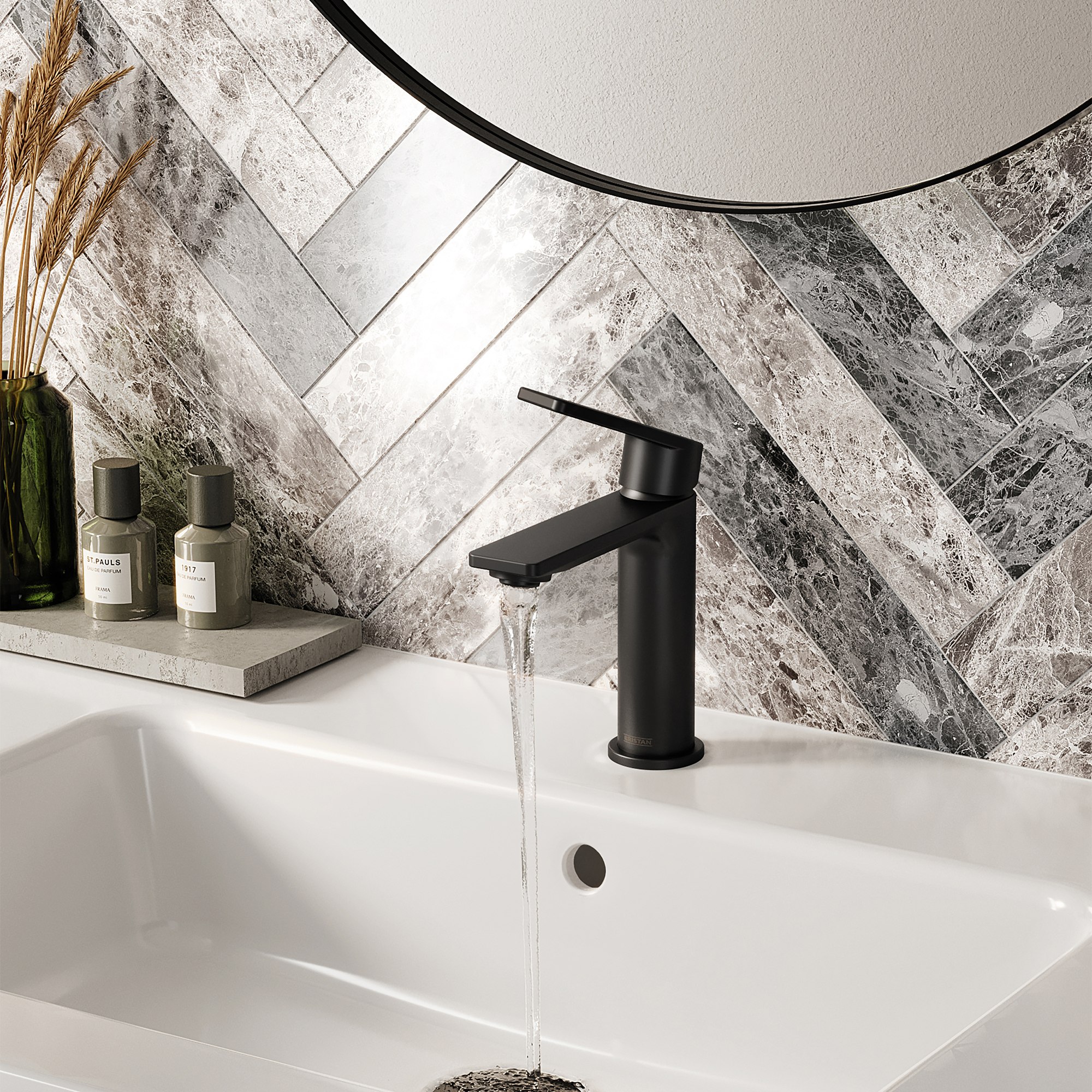

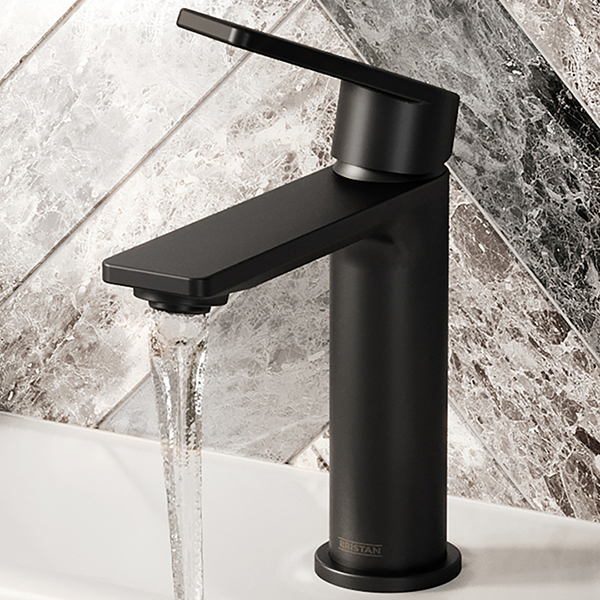

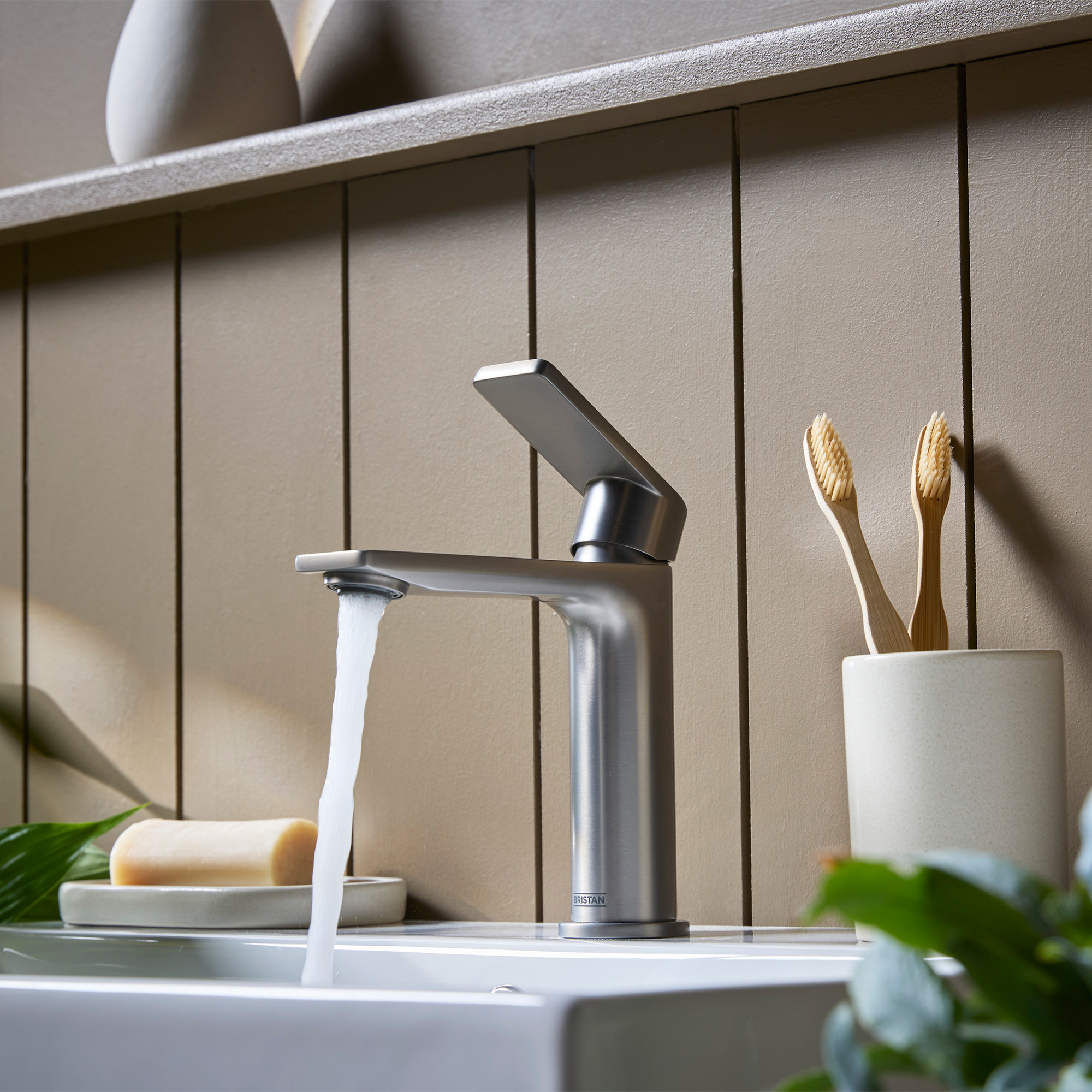

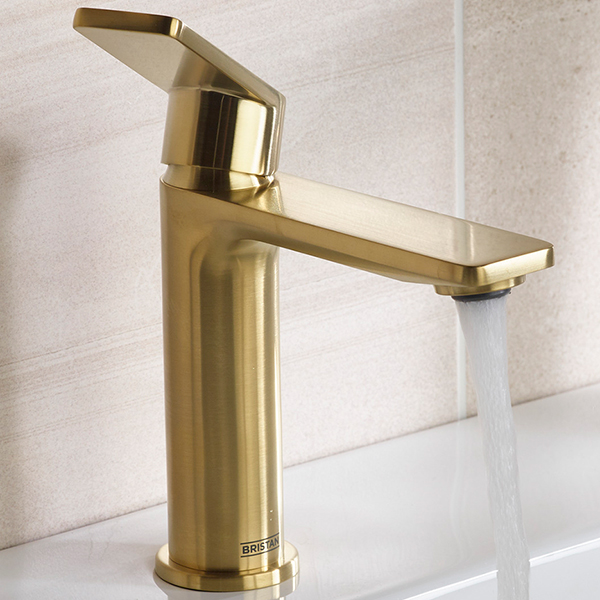

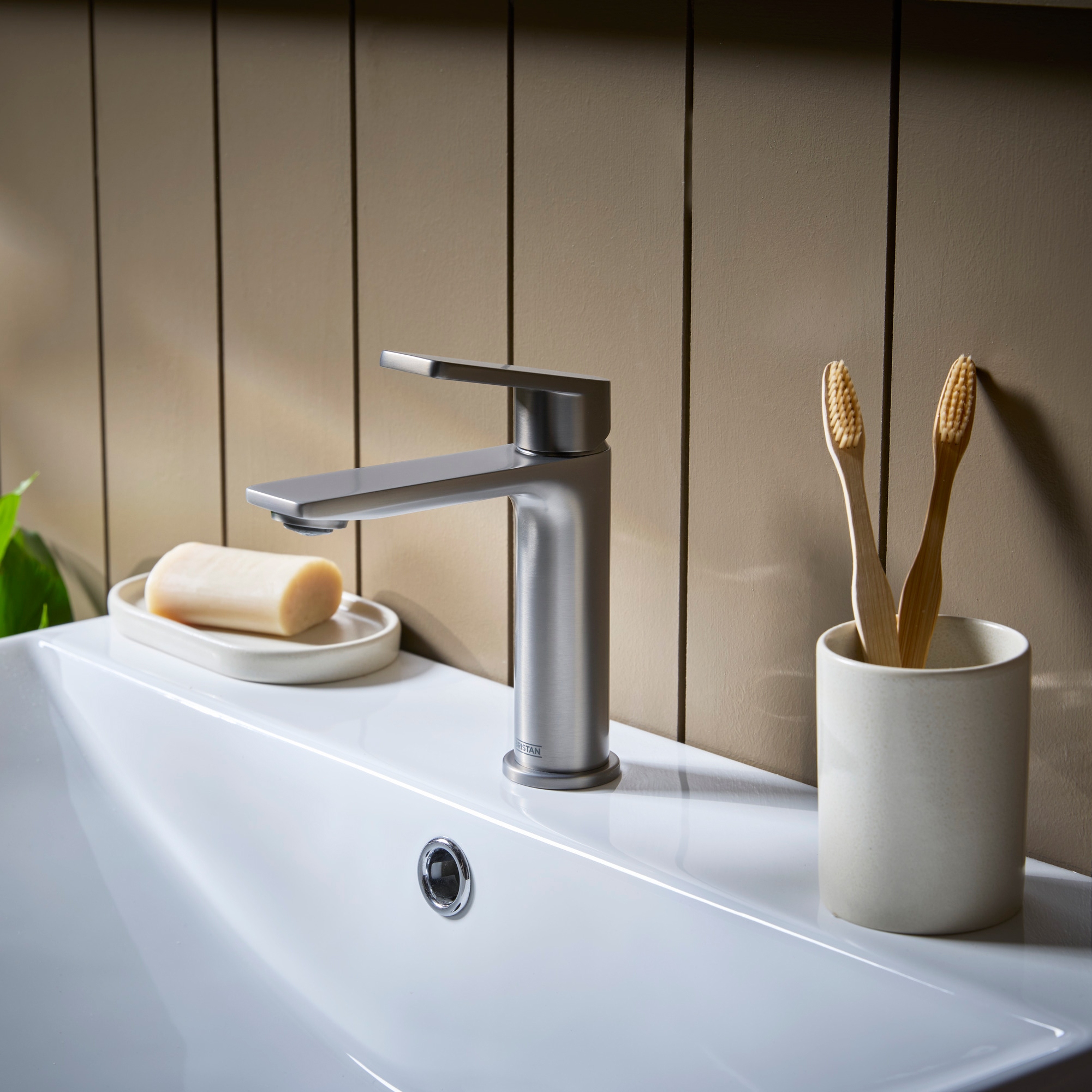

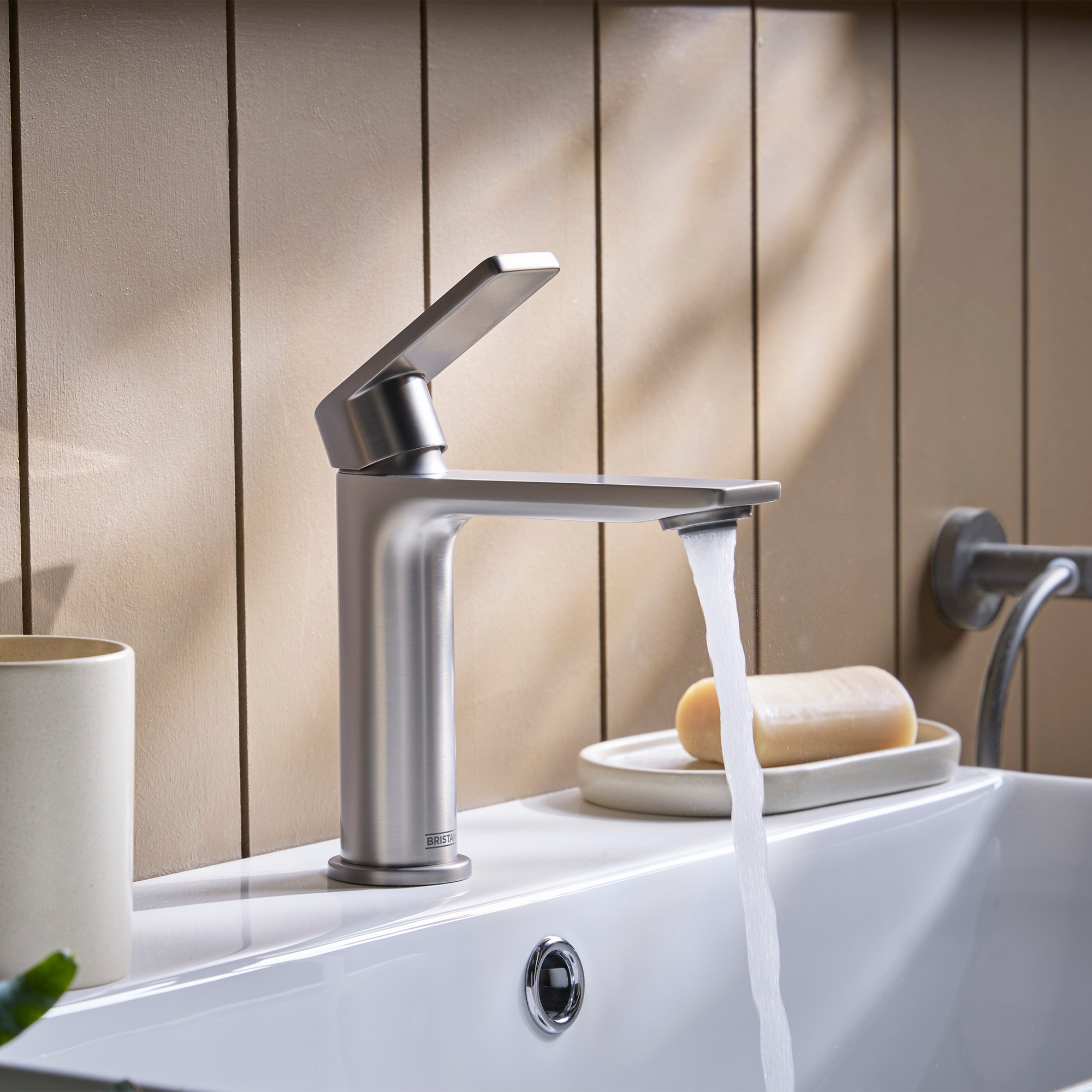

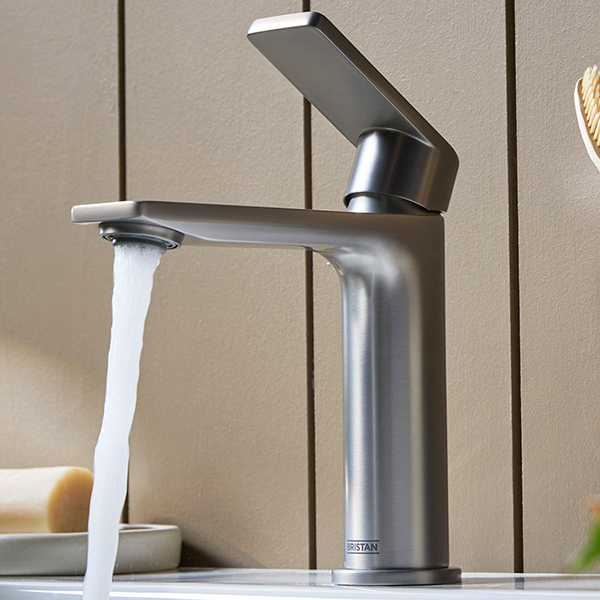

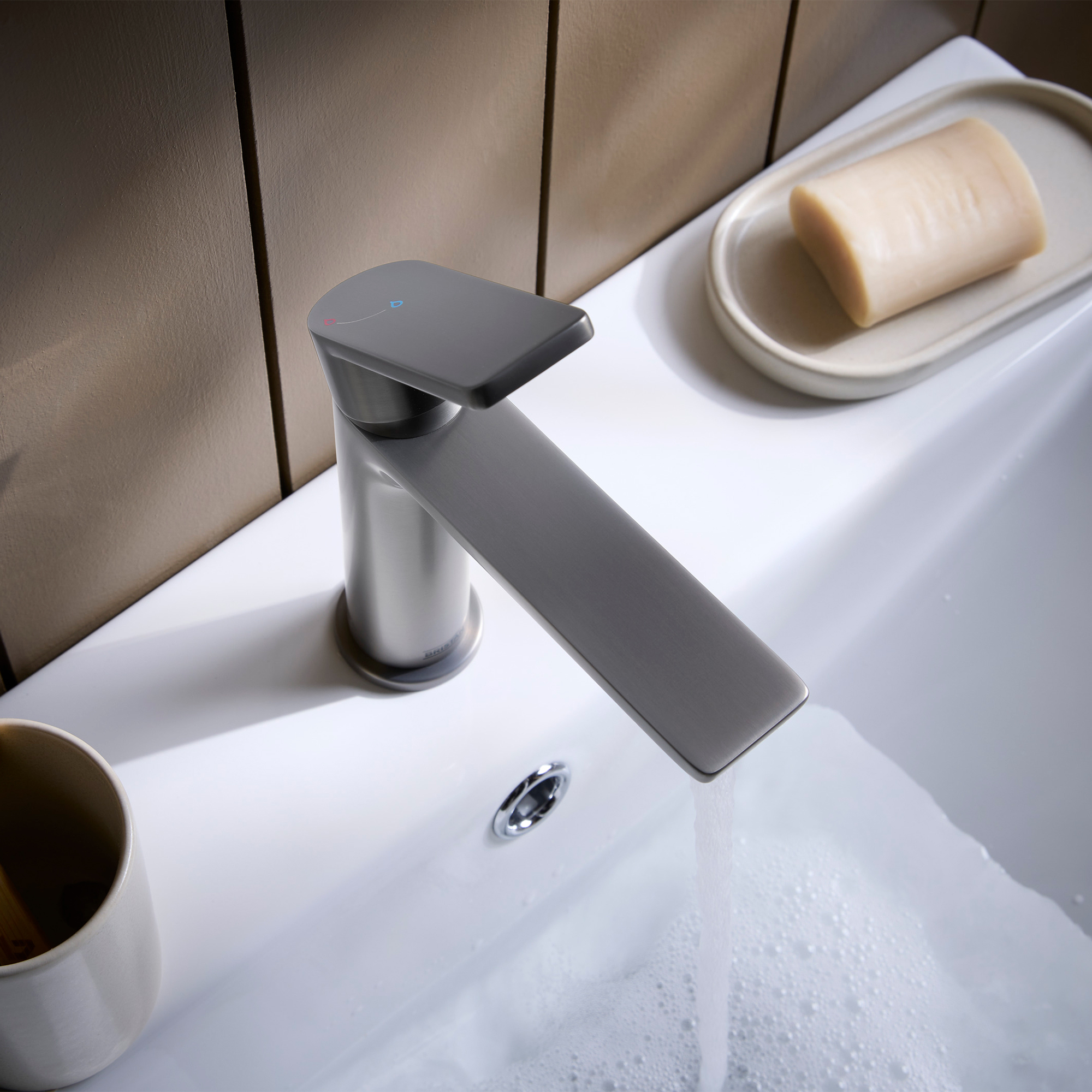

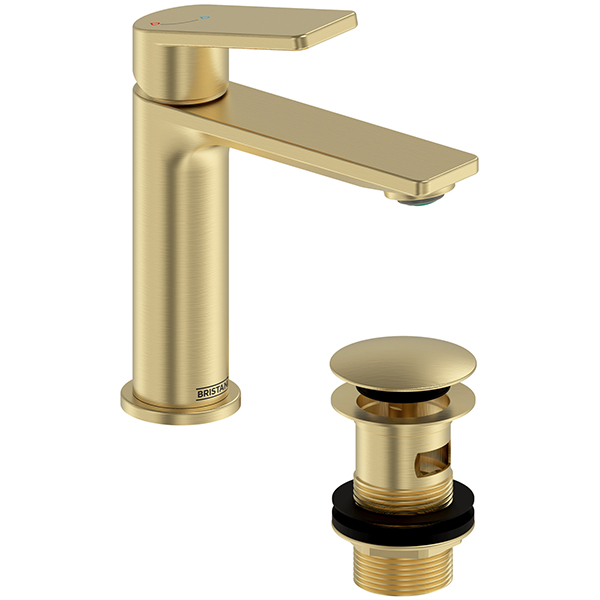

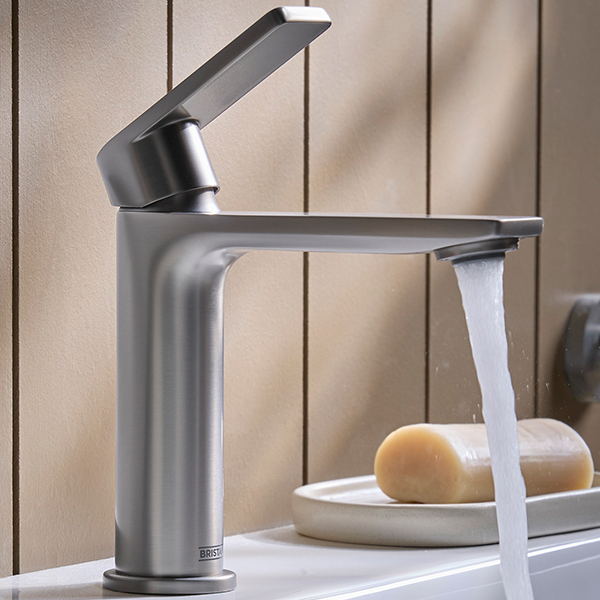

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass, Gun Metal Grey
✔WRAS Approved Product
✔Manufactured using Brass Material
✔Lifetime Guarantee from the Manufacturer Against any Manufacturer Defects

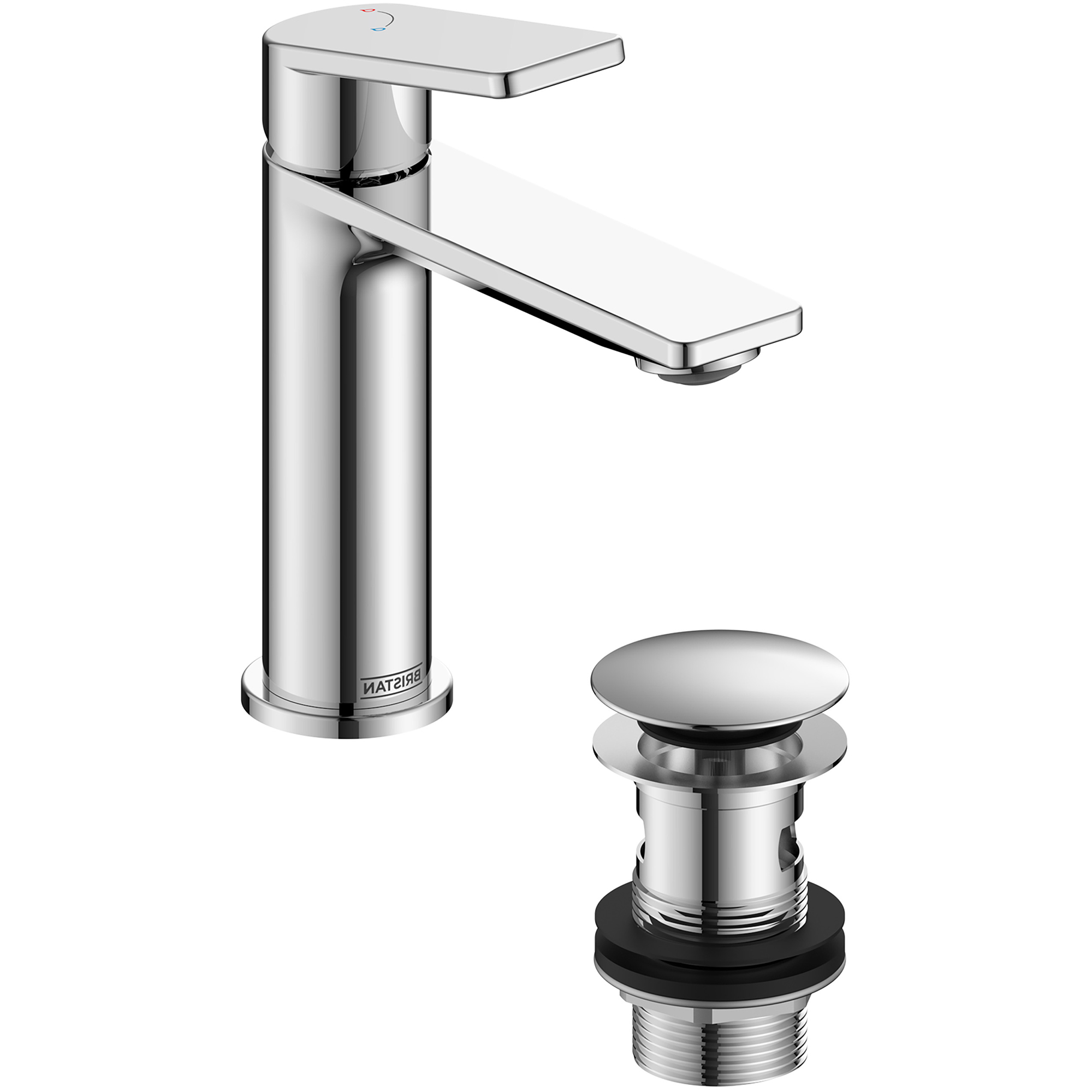

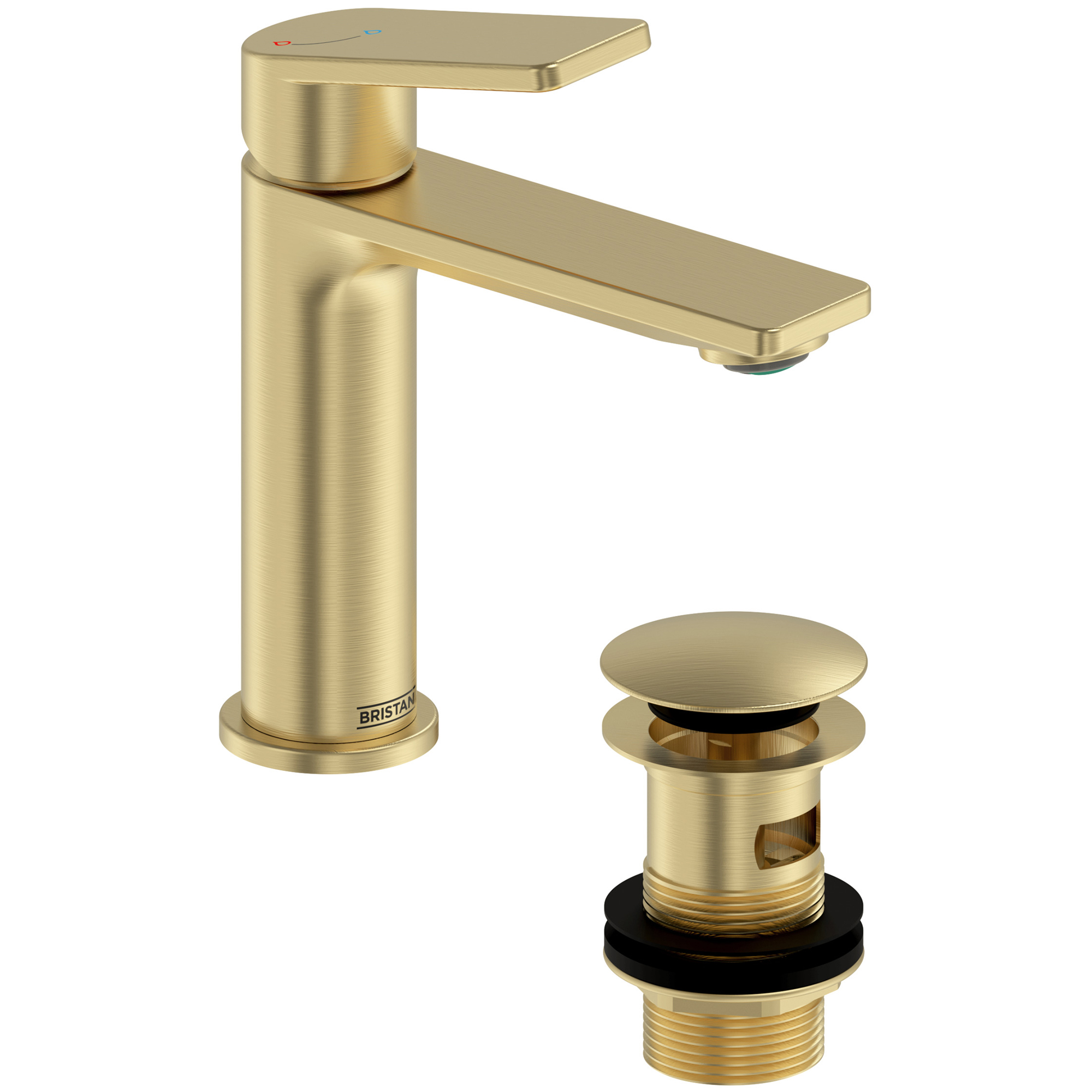

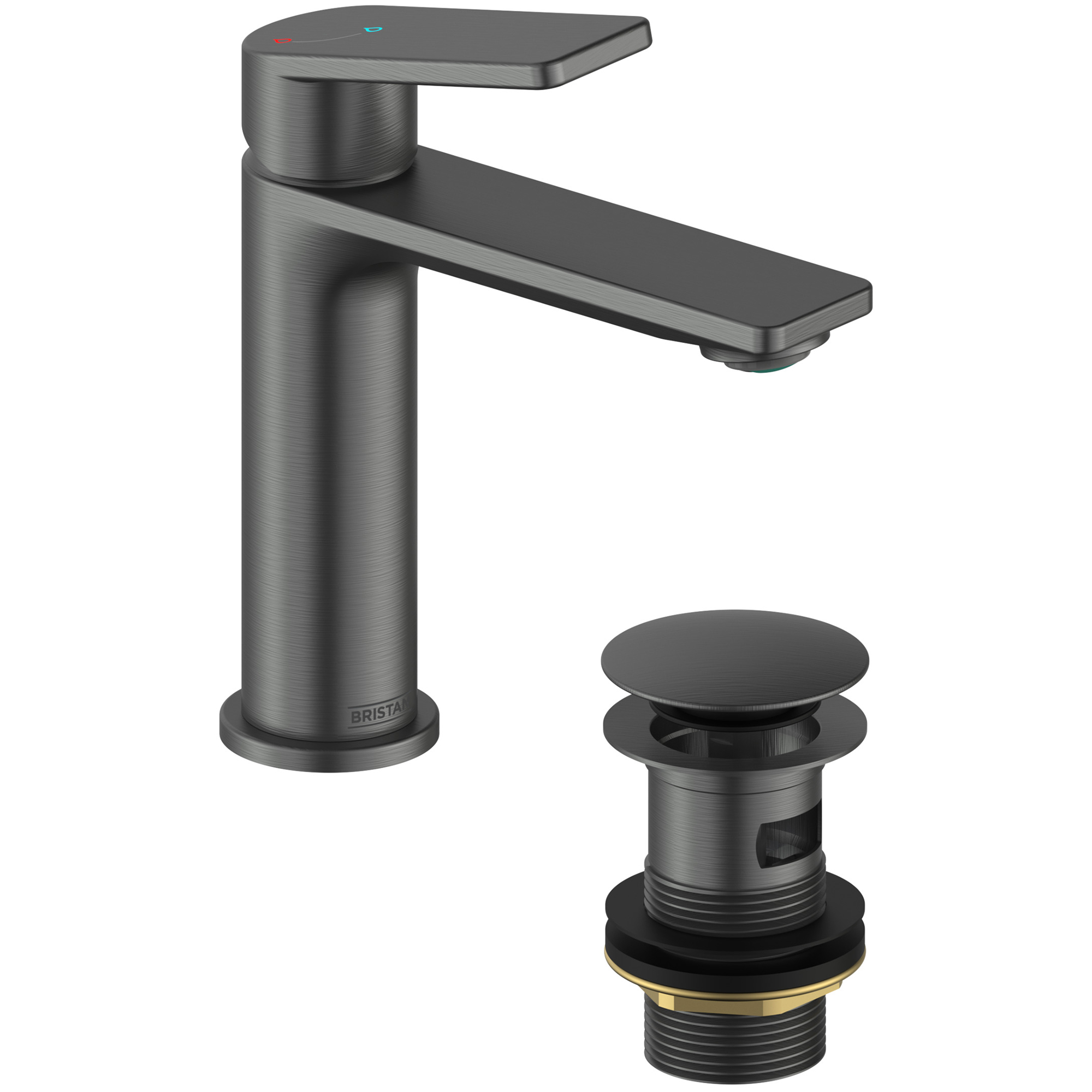

✔All-in-One Box - Includes Flexible Tails and Clicker Waste, So There is Nothing to Buy Separately

Deck-Mounted Installation
Handle Type: Long Angled
Number of Tap Holes: 1
Size [mm]: 45 x 155 x 170mm [Width x Depth x Height]
Size [cm]: 4.5 x 15.5 x 17cm [Width x Depth x Height]
Centre of the Inlet to Centre of the Outlet: 115mm [11.5cm]
Base to Spout: 110mm [11cm]
Inlet Connection: 1/2 Inch BSP Flexible Tails
Outlet Connection: M24 5lpm Coin-Slot Aerator
Valve/Cartridge Type: 28mm Eco-Start Cartridge
Suitable for All Plumbing Systems
Suitable for Medium Water Pressure Systems
Requires a Minimum of 0.5 Bar to a Maximum of 5.0 Bar of Water Pressure
Maximum Hot Water Temperature °C: 60°C
Maximum Static Pressure [Bar]: 10 bar
Long-Lasting Ceramic Cartridge for Added Durability and Ease of Use
Supplied with a Metal Fixing Nut for Added Durability and to Secure Your Tap in Place
Water Saving Flow Regulator - Limits Flow to 5 Litres Per Minute, Reducing Water Usage
Reduce Energy Usage with our Eco Start Technology - the Tap Runs Cold When the Lever is in the Central Position and Only Activates Hot Water When Needed, Helping Cut Unnecessary Boiler Use

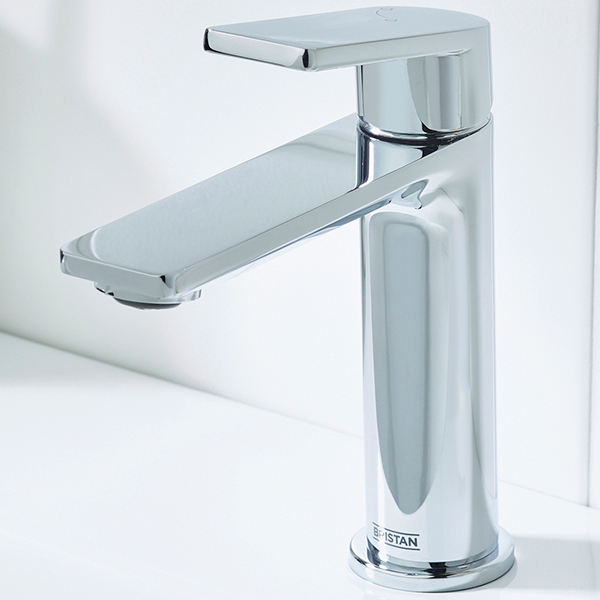

A Hardwearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Frammento
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 28mm Eco-Start Cartridge
⤷ Base To Spout
: 110
⤷ Spout Reach
: 115

⤷ Overall Height
: 170
⤷ Width
: 45
⤷ Depth
: 155
⤷ Inlet Connections
: 1/2” BSP Flexible Tails
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Water Saving
: Yes
⤷ Waste Type
: Clicker
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5057199880130
⤷ Product Type
: Basin Mixer Tap
⤷ Warranty/Guarantee
: Lifetime

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Bristan Frammento Eco Start Basin Mixer Tap with Clicker Waste - Flat Handle and Spout

£89.78

RRP: ~~£157.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

9 Features Included In This Product Explained

Eco-Start

Eco-Start ensures your tap water is always cold when you start the tap. You can activate hot water when needed by moving the handle towards the hot indicator. This way you save money on your energy bills and reduce your carbon impact.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Secure Fix

The design features metal fixings that secure your tap, preventing any movement or rotation during use.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Click-Clack Waste

Also called the Push button or Sprung waste, this waste needs a push down on the stopper to close and a click to open it back again. It is the most commonly used waste due to the ease of its operation.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
