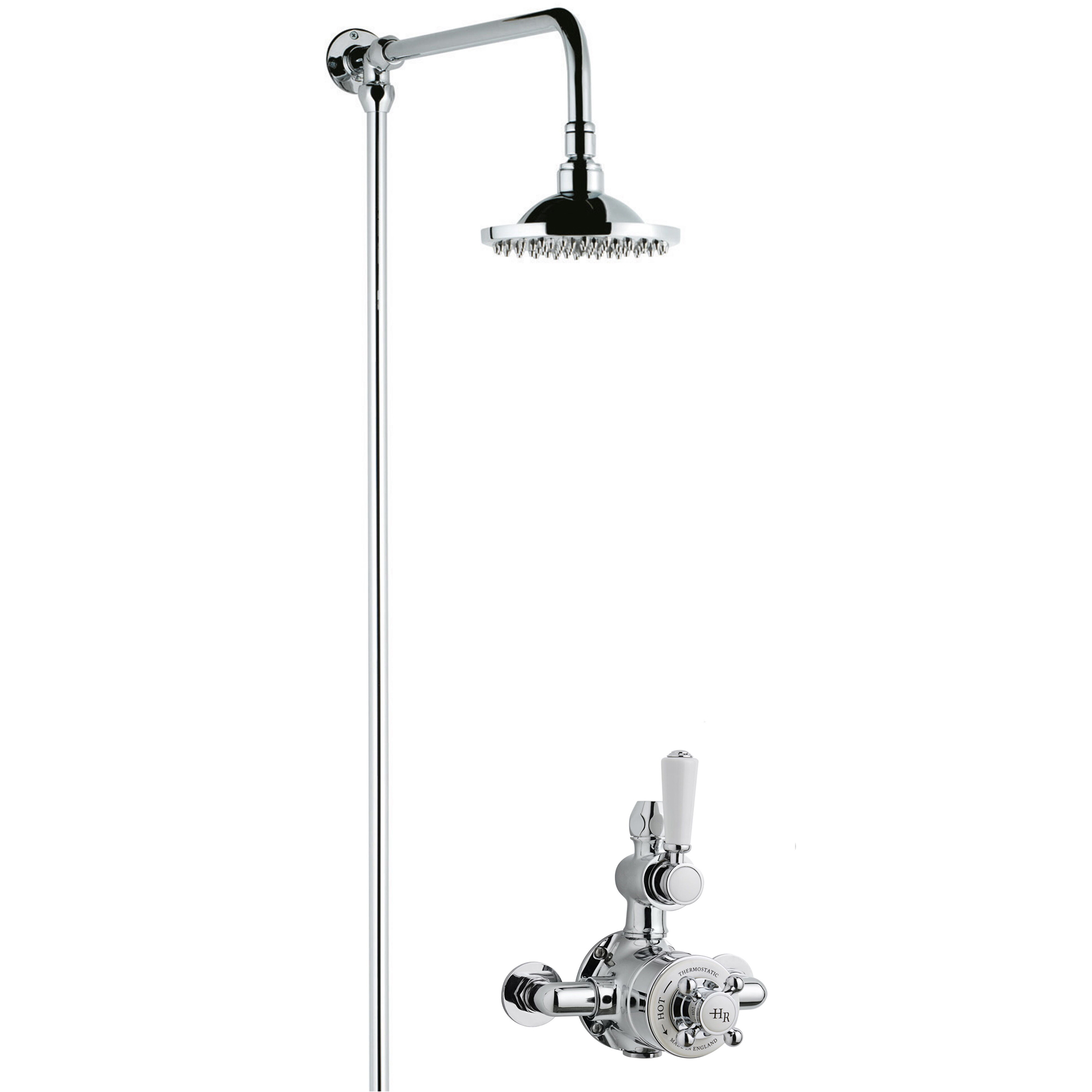

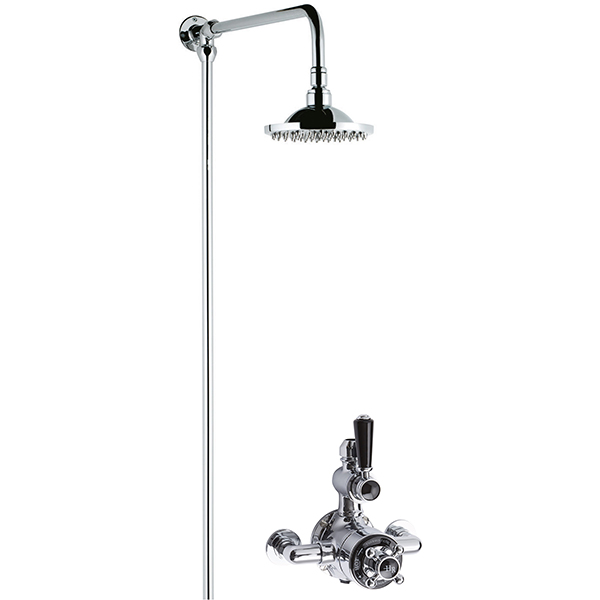

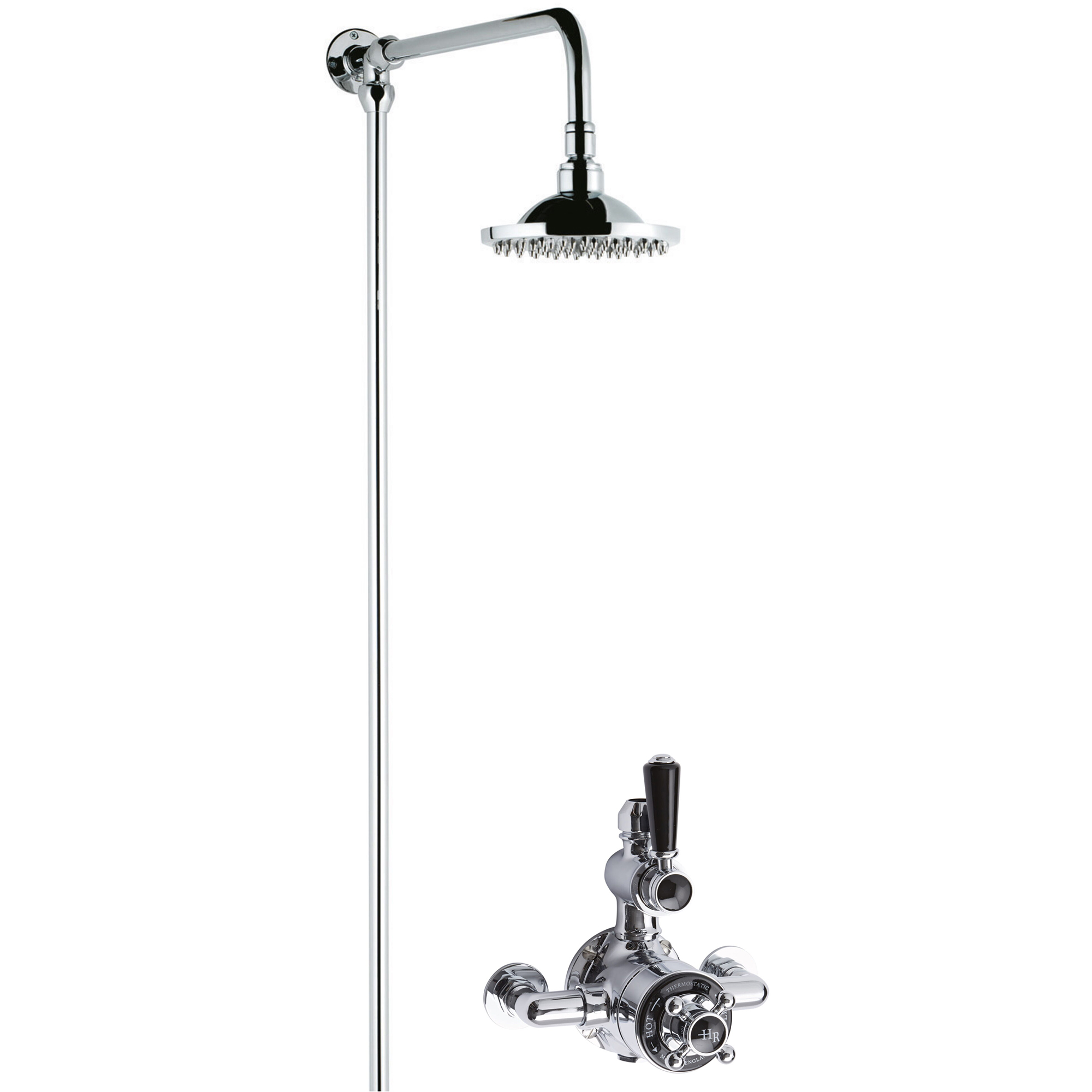

Nuie Traditional Exposed Thermostatic Valve with Rigid Riser Shower Kit

Nuie Traditional Exposed Thermostatic Valve with Rigid Riser Shower Kit.

• Pack Includes: Thermostatic Shower Valve, Rigid Riser Kit with Shower Head
• Download the Customer Data Sheet PDF Files from the Additional Info Section
• Refer to the Technical Drawing for Size Details
• Specification of Thermostatic Shower Valve
• Size [mm]: 195 x 136 x 206mm [Width x Depth x Height]
• Size [cm]: 19.5 x 13.5 x 20.6cm [Width x Depth x Height]
• Pipe Size: 15mm (1.5cm)
• Pipe Centres: 150mm (15cm)
• 1/4-Turn Ceramic Disc Cartridge
• No. of Outlets: 1
• Exposed Wall-Mounted Installation
• Full Thermal Protection to Prevent Scalding in the Event of Hot or Cold Water Shut-Off
• The Unique Cartridge is Highly Resistant to Calcium Buildup - Even in Hard Water Areas
• Accurate Flow Control and Excellent Flow Rates - Even at Low-Pressure
• Thermostatic Control to +/- 1 Degree - Even if the Water Pressure Fluctuates
• In the Event of Hot or Cold Water Failure, the Valve Will Shut Down as Per the Relevant Standard
• Our Valves are Suitable for Use with All Systems: Gravity-Fed Pumped, Unvented High Pressure or Fully Modulated Combi-Boilers
• The Cartridge is Fully Reversible, Meaning if Hot and Cold Supplies are the Wrong Way Round, it doesn't Need Re-Plumbing
• Remove the Cartridge, Turn 180° and Replace
• Suitable for Low-Pressure Water System
• Requires a Minimum of 0.1 Bar or Above Water Pressure to Operate Smoothly
• Specification of Rigid Riser Kit
• Round 200mm Shower Head Included
• It Comes in a Chrome Finish
• Size [mm]: 505 x 1090mm [Depth x Height]
• Size [cm]: 50.5 x 109cm [Depth x Height]
• Pipe Size: 18mm (1.8cm)
• Suitable for Medium Water Pressure System
• The Minimum Water Pressure Recommended for Smooth Working is 0.5 Bar
