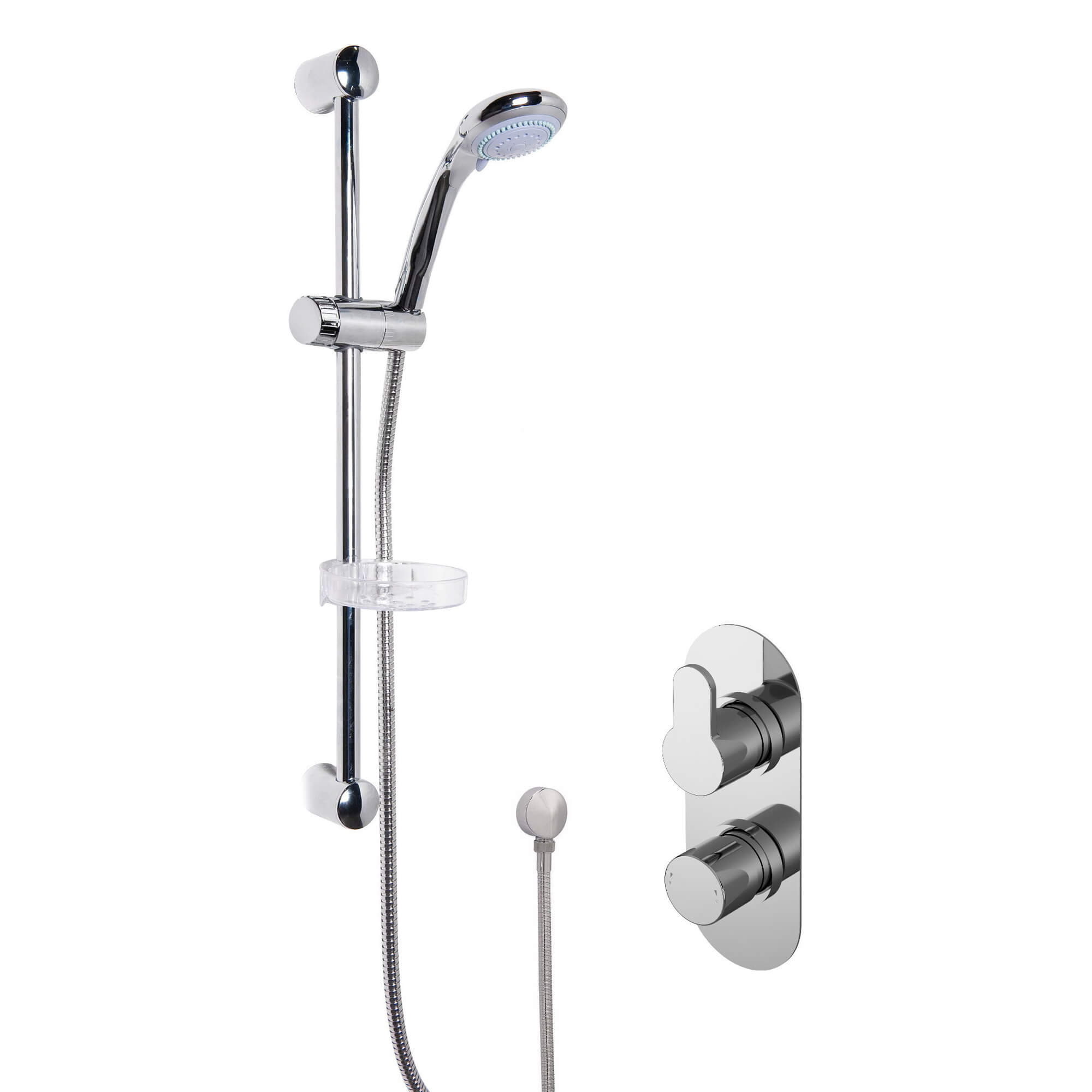

Nuie Arvan Twin Thermostatic Shower Valve

Details

MFC: SBR14TW1

Nuie Arvan Twin Thermostatic Shower Valve - Slide Rail Kit

Manufacturing Code of this Product: SBR14TW1
Complete Set in a Chrome Finish
Download the Customer Data Sheet PDF Files from the Additional Info Section
Refer to the Technical Drawing for Size Details
5-Year Guarantee from Nuie Against Manufacturing Defects
Specifications Of Twin Thermostatic Valve:
Number of Outlets: 1
Number of Handles: 2
WRAS and TMV2 Approved
Manufactured Using Brass and ABS Material
Installation Type: Recessed and Wall
Stain- and Rust-Resistant Valve
Supplied with Valve and Cartridge
Accurate Flow Control Thermostatic Valve
1/4-Turn Ceramic Cartridge Disc
Overall Size [mm]: 80 x 136 x 215mm [Width x Depth x Height]
Overall Size [cm]: 8 x 13.6 x 21.5cm [Width x Depth x Height]
Wall-Mount Cavity: Min. 72mm [7.2cm] and Max. 85mm [8.5cm]
Can be Fitted Vertically or Horizontally
Inlet and Outlet Connection: G 1/2 Inch
Suitable for Low-Pressure Water System
Requires 0.1 Bar Operating Water Pressure
Specifications Of Slide Rail Kit:
Height: 595mm (59.5cm)
Inlet Connection: G1/2-Inch
Weight: 0.68kg
Supplied with Transparent Soap Dish
Manufactured Using ABS and Brass Material
Number of Outlets: 1
Suitable for Low Water Pressure System
Requires a Minimum of 0.1 Bar of Water Pressure
Specifications For Outlet Elbow:
Size: Depth 26mm x Height 53mm
Weight: 0.2kg
Manufactured using plastic material
Mount type: Surface, Wall

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4 Turn
⤷ Inlet Connections
: G 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Hose Included
: Yes
⤷ Configuration
: Thermostatic Shower Valve | Slide Rail Kit

⤷ Temperature Control
: Themostatic
⤷ Diverter Included
: Yes
⤷ Soap Dish Included
: Yes
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Rail Length
: 595
⤷ Outlet Elbow Included
: Yes

Nuie Arvan Twin Thermostatic Shower Valve - Slide Rail Kit

£216.80

RRP: ~~£542.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
