Nuie Minimalist Thermostatic Bar Shower Valve and Slide Rail Kit, SBR82BV1

Details

MFC: SBR82BV1

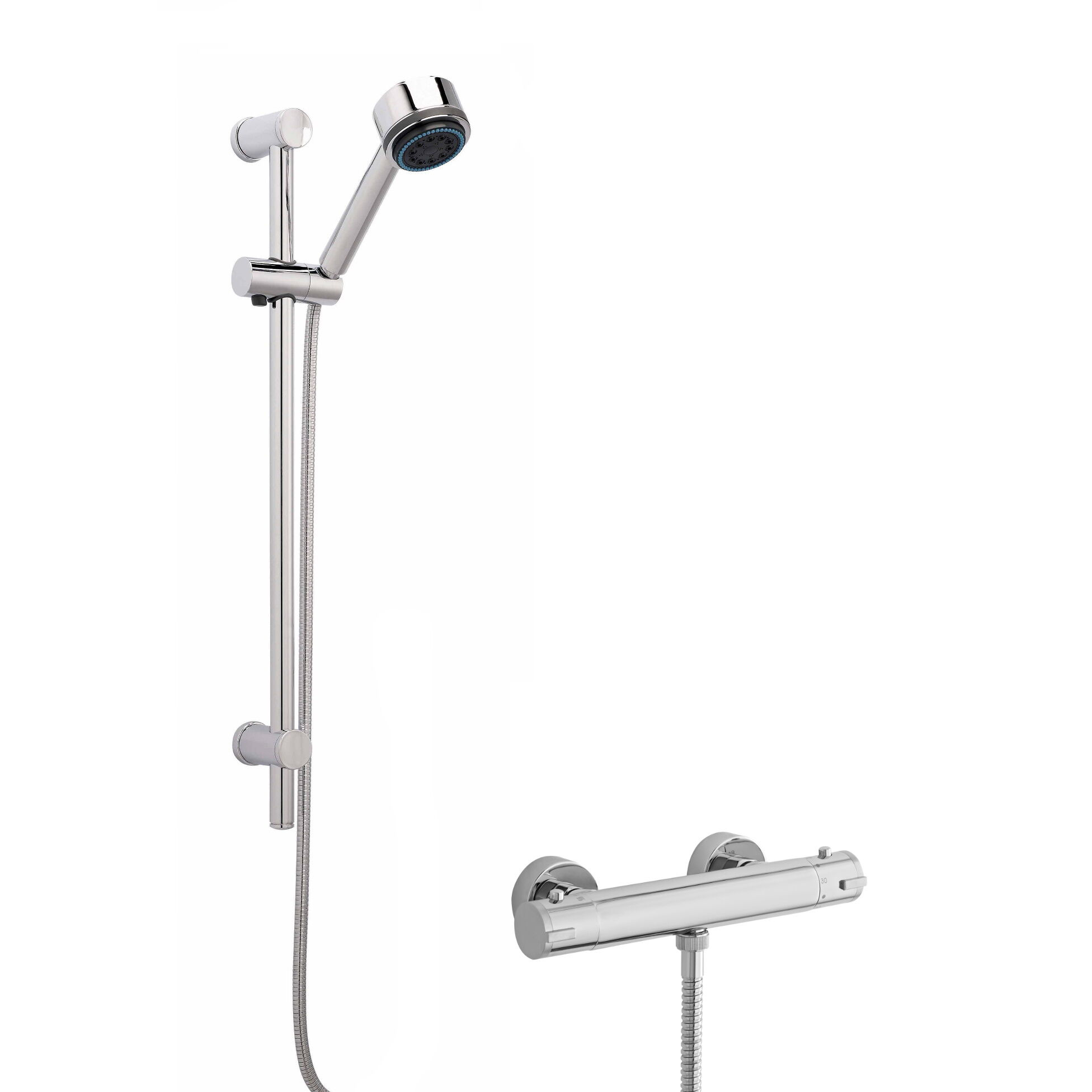

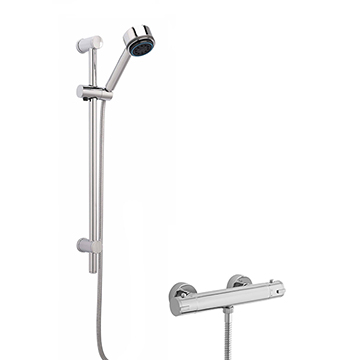

Nuie Minimalist Thermostatic Bar Shower Valve and Slide Rail Kit - 660mm High - Chrome

Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specifications of Thermostatic Bar Valve:
1 Bottom Outlet and 2 Controls
Round Exposed Bar Shower Valve
Accurate Flow Control
Patented Valquest Cartridge - Made in Britain
Manufactured from Brass & ABS Material
Anti-Scald Feature Blends Hot Water to a Safe Temperature
Auto-Shutdown in 1.5 Seconds during Cold Water Failure Ensures Utmost Safety and Protection
Width: 268mm
1/4-Turn Ceramic Disc
Thermostatic Control to +/- 2°C even if the Water Pressure Fluctuates
Suitable for All Plumbing Systems
Stain and Rust-Resistant
The Minimum Water Pressure Recommended for Smooth Working is 0.2 Bar [LP-Low Pressure]
Ideal for Unvented Mains Pressure Systems
Suitable for Shower Pumps, Combi Boilers and Gravity-Fed Systems
Specifications of Shower Kit:
Includes: Slide Rail, Shower Handset, Hose, Outlet Elbow
Brass & ABS Construction
Round Handset with Multiple Function Settings
Stain and Rust-Resistant
Adjustable Brackets - Ideal for Replacing an Existing Slide Rail
Easy-Clean Shower Head
Height of Rail: 660mm
1500mm Flexible Shower Hose
Suitable for Medium-Pressure Water System
Requires 0.5 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4-Turn Ceramic Disc
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Shower Valve & Slide Rail Kit

⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Plumbing System Compatibility
: Exposed
⤷ Adjustable maximum temperature stop
: Yes
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi-Function
⤷ Rail Length
: 1500
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Technical Datasheet Pdf File

Nuie Minimalist Thermostatic Bar Shower Valve and Slide Rail Kit - 660mm High - Chrome

£308.00

RRP: ~~£385.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
