Nuie Exposed Thermostatic Bar Shower Valve & Multi-Function Slide Rail Kit, SBR73BV1

Details

MFC: SBR73BV1

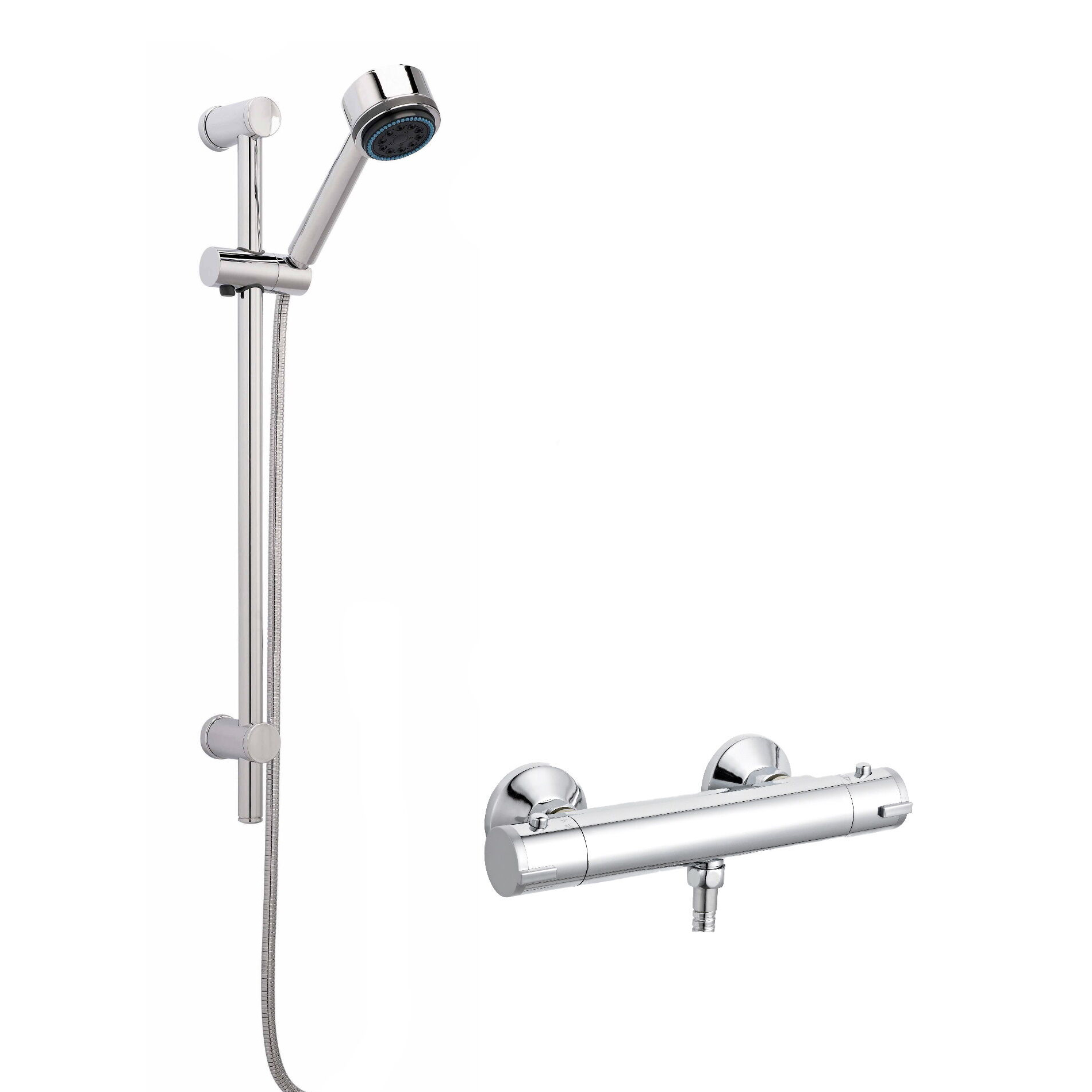

Nuie Exposed Thermostatic Bar Shower Valve and Multi-Function Slide Rail Kit - Chrome

Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specifications of Bar Shower Mixer Valve:
1 Outlet and 2 Controls
Thermostatic Control
Stain and Rust-Resistant Exposed Bar Valve
Manufactured using Brass and ABS Material
Complete with 1/4-Turn Ceramic Disc Cartridge
Full Thermal Protection to Prevent Scalding in the event of a Hot or Cold Water Shut-Off
Accurate Flow Control
Thermostatic Control to +/- 2 Degrees, even if the water Pressure Fluctuates
Bottom Outlet
Installation Type: Wall-Mounted
Size: 266 x 66mm [Width x Depth]
Suitable for Medium-Pressure Water System
Requires 0.5 Bar Operating Water Pressure
Specifications of Shower Kit:
Includes: Slide Rail, Shower Handset, Hose & Outlet Elbow
Height of Rail Kit: 660mm
Hose Length: 1500mm
Adjustable Bracket
Stain and Rust-Resistance
Round Handset with Multiple Function Settings
Suitable for Surface and Wall-Mounted Installation
Suitable for Medium-Pressure Water System
Requires 0.5 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4-Turn Ceramic Disc
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Shower Valve & Slide Rail Kit

⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Plumbing System Compatibility
: Exposed
⤷ Water Entry Points
: Bottom
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi-Function
⤷ Rail Length
: 660
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Technical Datasheet Pdf File

Nuie Exposed Thermostatic Bar Shower Valve and Multi-Function Slide Rail Kit - Chrome

£242.40

RRP: ~~£303.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
