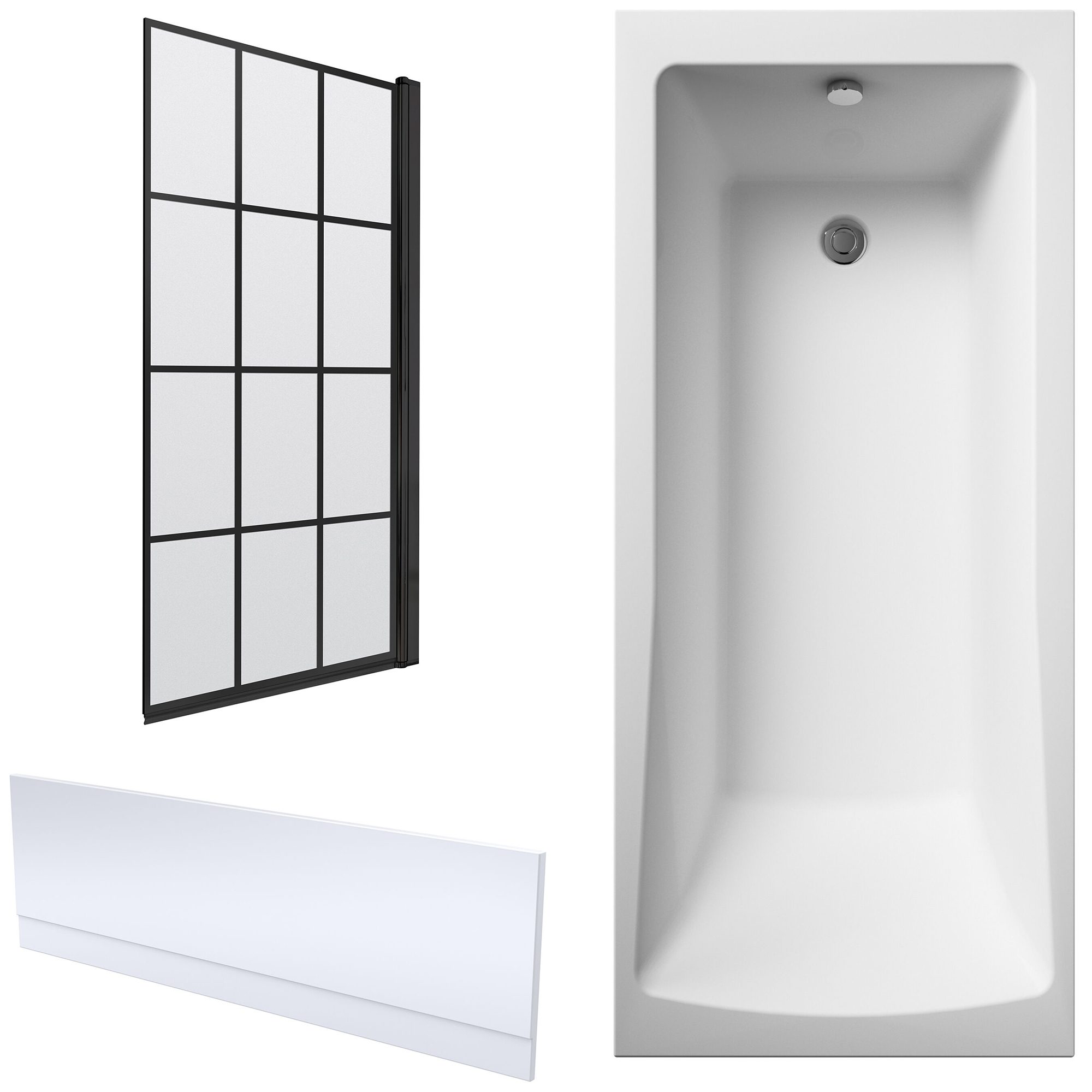

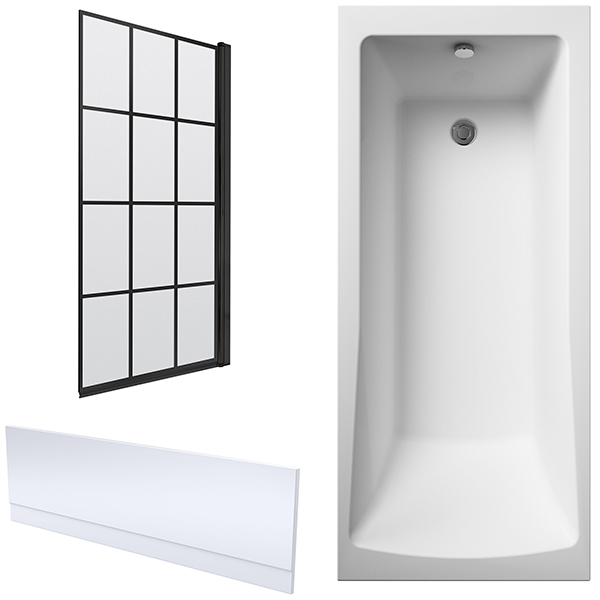

Nuie Single Ended Straight Eternalite Bath with Grid Screen and Panel - 1700mm Length

Not Yet Rated No Rating

£708.79

RRP: £886.00
SKU: QS-V110573
Select Size
Selected: OP-251837 - 1700 x 700mm
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

10 Working Days Approx.

Nuie Details

MFC: BAZSE115

Nuie Single Ended Straight Eternalite Bath with Grid Screen and Panel - 1700mm Length.

Key Features
  • Pack Includes:
  • Single Ended Bathtub with Panel and Legs
  • Swing Bath Screen
  • 5 Years of Guarantee Against Any Manufacturing Defects
  • Choices of Bath Size: 1700 x 700mm and 1700 x 750mm
  • Contemporary Design
  • Refer to the Technical Drawing for More Details
  • Download the Product Data Sheet and Installation Instruction PDF File from the Additional Info Section
  • Features of Bathtub:
  • CE Certified
  • Manufactured using Acrylic with Eternalite Material
  • Eternalite Finish - Colour Will not Rub Off or Fade Over Time
  • Retains Heat for Up to 30 Minutes Longer than a Standard Bath
  • Thickness: 4mm
  • Water Capacity: 169 ltr [1700 x 700mm], 181 ltr [1700 x 750mm]
  • Displaced Capacity: 99 ltr [1700 x 700mm], 111 ltr [1700 x 750mm]
  • Waste Position: End Of Bath
  • Supplied Complete with Overflow and Legs
  • Straight Square Bath Design
  • Weight: 34.82kg
  • Supplied Undrilled for Taps, Suitable for Wall-Mounted or Deck-Mounted Taps
  • Size of 1700 x 700mm Bath: 1700 x 700 x 400mm [Length x Width x Depth]
  • Size of 1700 x 750mm Bath: 1700 x 750 x 400mm [Length x Width x Depth]
  • Size of Panel: 1700 x 510 x 20mm [Length x Height x Thickness]
  • Features of Swing Bath Screen:
  • UKCA and CE Certified
  • Frame Finish: Matt Black
  • Glass Thickness: 6mm Toughened Safety Glass
  • Supplied Complete with Fixings
  • Frame Material: Aluminium
  • Weight: 17.9kg
  • Bath Screen Features Semi-Frameless Design
  • Reversible Orientation for Flexible Installation
  • Size [mm]: 775-790 x 1430mm [Width x Height]
  • Swing In-Out: 700mm [70cm]
  • Waste Shown in the Image is not Included

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Position of Drain
  • : Foot-End
  • ⤷ Bath Type
  • : Single Ended
  • ⤷ External Length
  • : 1700
  • ⤷ External Width
  • : 700, 750
  • ⤷ Tub Depth
  • : 400
  • ⤷ Feets Included
  • : Yes
  • ⤷ Front Panel Included
  • : Yes
  • ⤷ Colour
  • : White
  • ⤷ Internal Bottom Length
  • : 1142
  • ⤷ Internal Bottom Width
  • : 400
  • ⤷ Height of Rim
  • : 40
  • ⤷ Distance Tub edge to centre of drain hole
  • : 280
  • ⤷ Distance Top edge to centre of overflow hole
  • : 70
  • ⤷ Diameter of overflow hole
  • : Ø52
  • ⤷ Diameter of Drain hole
  • : Ø52
  • ⤷ Rim Width
  • : 70, 90
  • ⤷ Weight in kg
  • : 53
  • ⤷ Shape
  • : Rectangular
  • ⤷ Capacity in litres
  • : 169 [1700x700], 181 [1700x750]
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Acrylic Eternalite
  • ⤷ No. of Bathers
  • : 1
  • ⤷ Theme
  • : Modern
  • ⤷ Waste Included
  • : Sold Separately
  • ⤷ Tap Holes
  • : 0
  • ⤷ Barcode
  • : 5056678408711

Additional Info & Downloads

Download PDFDownload the Product Data Sheet Pdf File Download PDFDownload the Installation Instruction Of Straight Square Bath Pdf File Download PDFDownload the Installation Instruction Of Front Panel Pdf File Download PDFDownload the Installation Instruction Of Grid Screen Pdf File

Technical Images

£708.79
RRP: £886.00
STOCK AVAILABLITY: 10 Working Days Approx
QS Supplies

8 Features Included In This Product Explained

CE Certified Product

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

UKCA Certified

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

With / Without Overflow

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Aluminium Frame

Aluminium Frame

Aluminium frames are durable and naturally form a protective oxide coating, making them highly resistant to corrosion and a perfect fit for a bathroom.

Toughened Safety Glass

Toughened Safety Glass

Toughened glass, tempered or safety glass as it is rightly called, is five times harder than regular glass of the same size and thickness, which makes it so that it won’t break as easily. It also shatters with scattering as it tends to break into tiny, blunt pieces without harming anyone nearby. Known to have greater thermal strength, this durable material with double glazing has almost twice the soundproofing abilities and provides excellent heat insulation.

Front Panel

Front Panel

A front bath panel is a decorative accessory that is used to cover the front-facing side of a bathtub for a neat and polished look. It also conceals plumbing and framework and comes in different sizes, textures and materials.

Reversible Design

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

Eternalite

Eternalite

It is an extra-strong material which is used in the construction of a range of premium bathtubs. These bathtubs consist of 3 layers: 1st layer features a high gloss finish that is resistant to fading, the 2nd layer provides a fully encapsulated base board with glass fibre reinforcement, and the 3rd layer offers extra rigidity and thermal insulation. Besides strength, this material keeps water in the tub warm for longer.
