Nuie Arvan Thermostatic Concealed Valve, Fixed Head & Handset Kit, SBR118BV2

Details

MFC: SBR133ST2

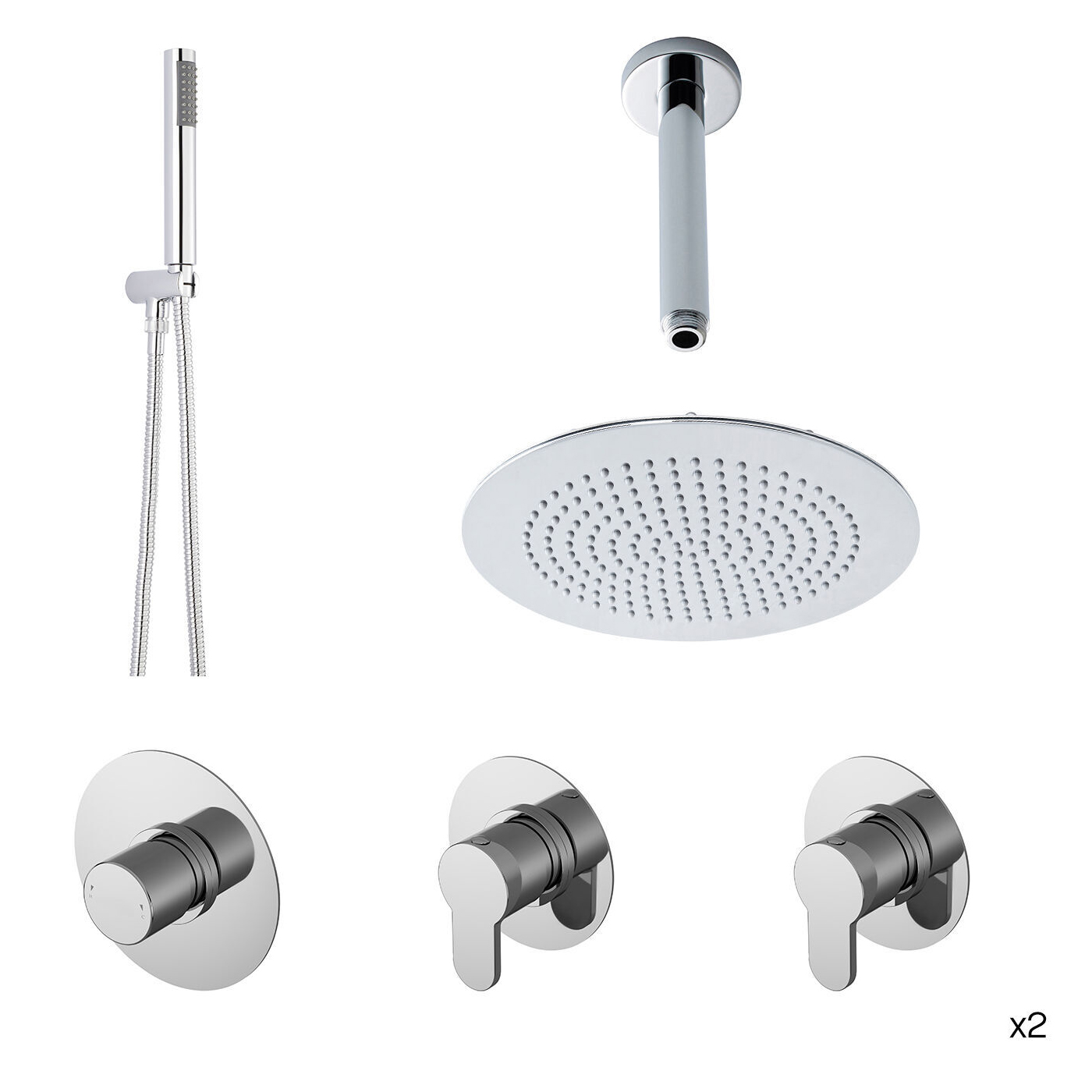

Nuie Arvan Thermostatic Concealed Valve with Fixed Head and Shower Handset Kit - Chrome

Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specifications of Thermostatic Shower Valve:
Concealed Round Temperature Control Valve
Supplied with Valve and Cartridge
Constructed from High-Quality Brass and ABS
Stain- and Rust-Resistant
Size: 125 x 135 x 125mm [Width x Depth x Height]
Installation Type: Recessed
Suitable for Low-Pressure Water System
Requires 0.1 Bar Operating Water Pressure
Specifications of Stop Valve:
Concealed Thermostatic Round Chrome Stop Valve
Constructed using High-Quality Brass Material
Cartridge Included 1/4-Turn Ceramic Disc Technology
Size: 100 x 104 x 100mm [Width x Depth x Height]
Lever Handle
Suitable for Low-Pressure Water System
Requires 0.2 Bar Operating Water Pressure
Specifications of Fixed Shower Head:
Supplied with Ceiling-Mounted Shower Arm
Single Function
Easy Clean Shower Head
Constructed Using Stainless Steel
Diameter: 300mm
G 1/2 Inch Inlet Connection
Suitable for Medium Pressure System
Requires 0.5 Bar or Above Water Pressure
Specifications of Shower Handset Kit:
Includes: Shower Handset, Hose, Outlet Elbow & Brass Parking Bracket
Stain and Rust-Resistance
Manufactured Using Brass and ABS Material
Rub-Clean Nozzles
Hose Length: 1500mm
Single-Function
Suitable for Low-Pressure Water System
Requires 0.1 Bar of Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4-Turn Ceramic Disc
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Complete Shower Set

⤷ Temperature Control
: Thermostatic
⤷ Plumbing System Compatibility
: Concealed
⤷ Showerhead Type
: Ceiling Mounted
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Single
⤷ Spray Patterns (Shower Head)
: Single
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 300

Additional Info & Downloads

Download the Product Data Sheet Pdf File

This item can also be found in:

Shower Sets

Nuie Arvan Thermostatic Concealed Valve with Fixed Head and Shower Handset Kit - Chrome

£720.80

RRP: ~~£1802.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
