Joseph Miles Single Ended Built-In Whirlpool Bath 1700mm

Details

MFC: JMA609-J11

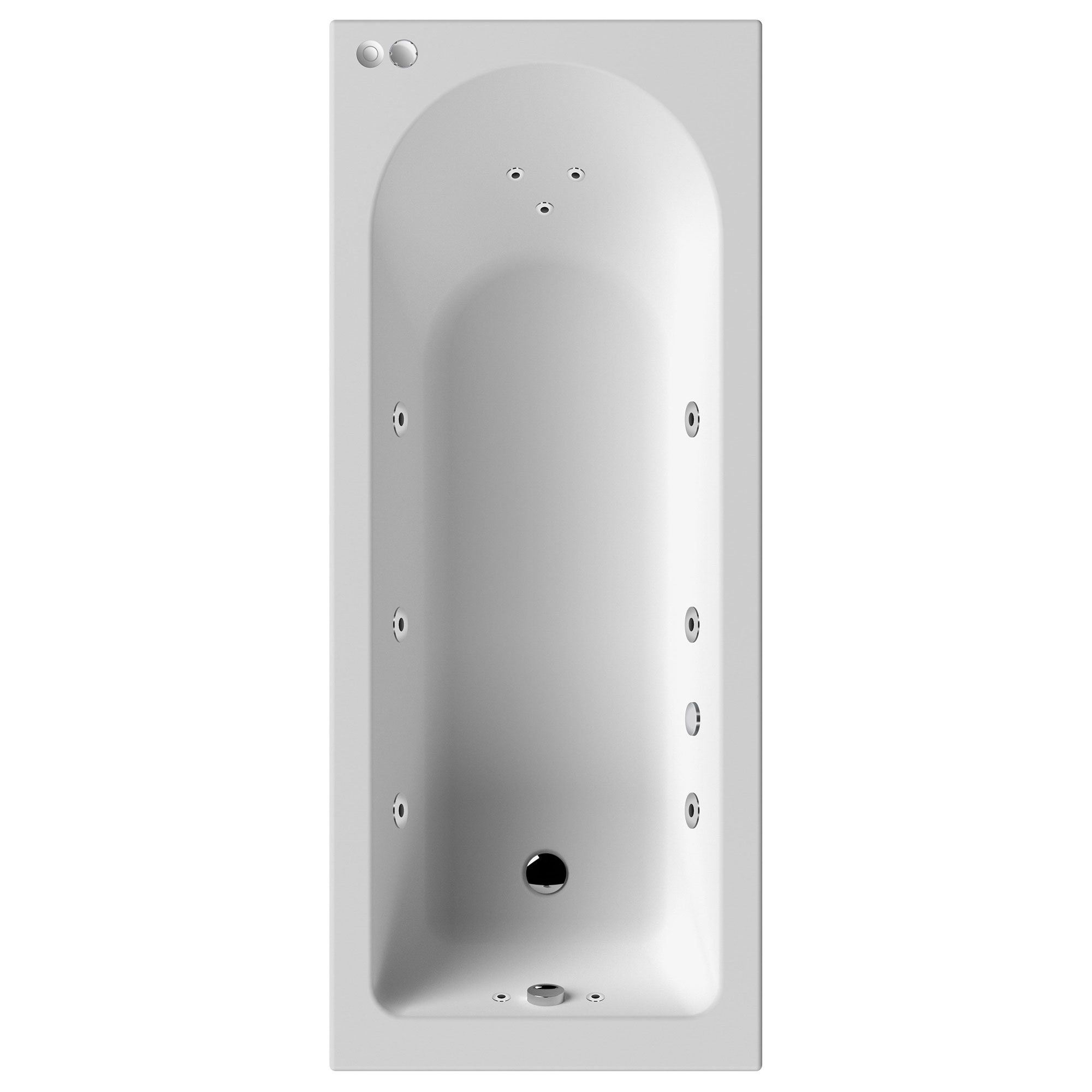

Joseph Miles Single Ended Built-In Whirlpool Bath 1700mm - 11 Jet

Key Features

✔Single-Ended Round Whirlpool Bath
✔11 Chrome Whirlpool Jets (6 Large directional and 5 Micro Jets)
✔Water Capacity: 180 Litres
✔Displace Capacity: 110 Litres
✔Supplied without Taphole
✔5-Year Guarantee from the manufacturer

Available Width: 700mm and 750mm [ Optional]
Bath with or Without Light [Optional]
Size (mm): Length 1700 x Height 355mm
Size (cm): Length 170 x Height 35.5cm
Material: 4mm Acrylic
Comes in a Gloss White Finish
Finish (Jets): Chrome
Flush-fit pneumatic control system
Low-noise, energy-efficient pump
Hardwearing and easy to maintain
Adjustable Leg-set and overflow included
Style: Contemporary
Waste Position: End of the Bath
CE Certified Bath
Download Installation Instruction PDF from the Additional Info & Download section

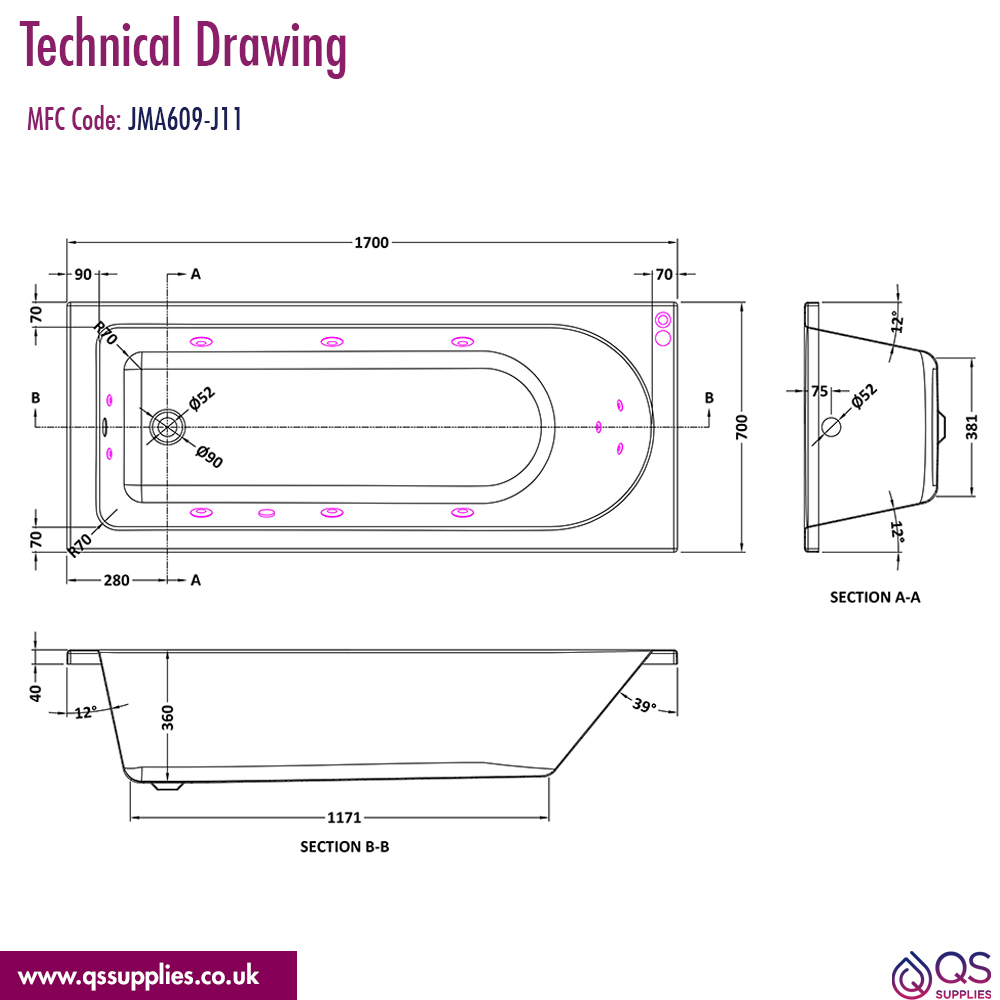

Refer to the Technical Drawing for more Technical Details
Bath waste and taps shown in the image are not included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: End Of Bath
⤷ Interior Shape
: Oval
⤷ Bath Type
: Whirlpool
⤷ External Length
: 1700
⤷ Coating
: Standard
⤷ External Width
: 700
⤷ Tub Depth
: 360
⤷ Feets Included
: Yes
⤷ Colour
: Gloss White
⤷ Height of Rim
: 400

⤷ Distance Tub edge to centre of drain hole
: 280
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 90
⤷ Weight in kg
: 28.5
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 168
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Whirlpool

Additional Info & Downloads

Download the Whirlpool Fitting Instructions Pdf File

Technical Images

Joseph Miles Single Ended Built-In Whirlpool Bath 1700mm - 11 Jets

700mm Bath

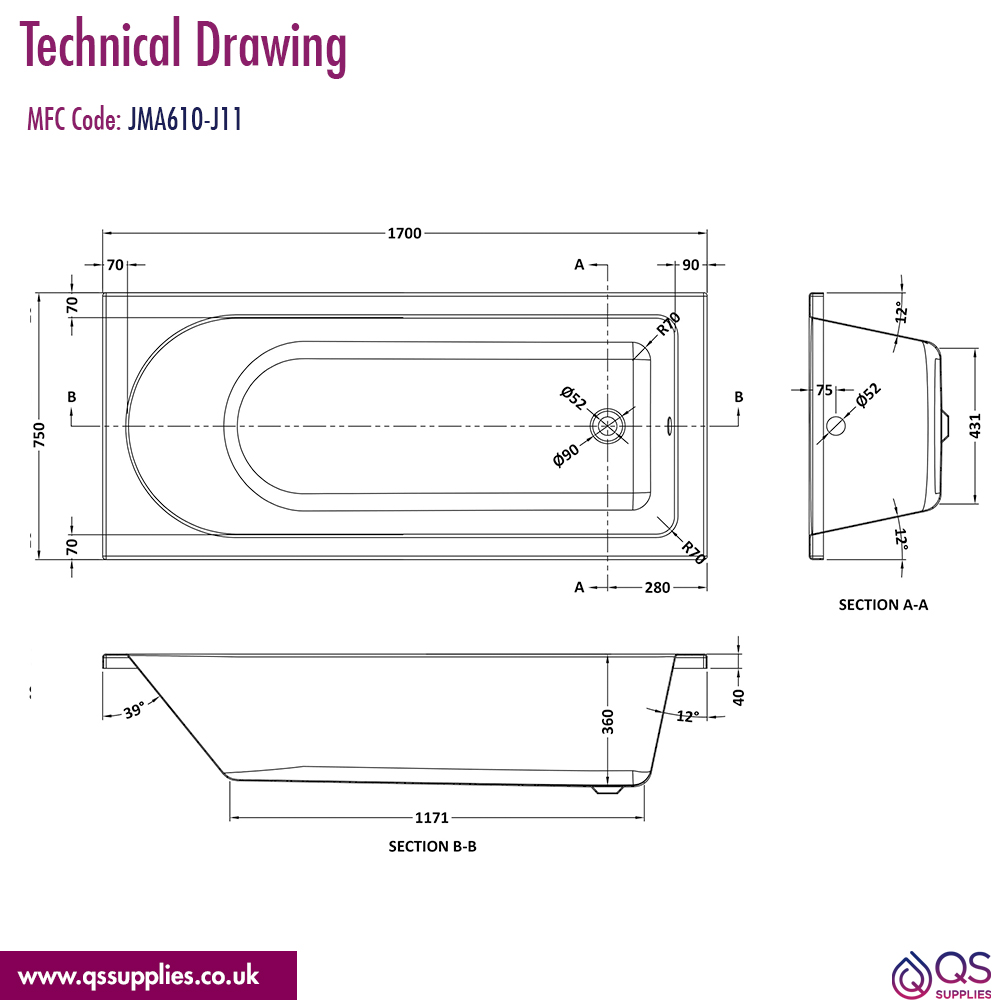

750mm Bath

£751.20

RRP: ~~£939.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Joseph Miles Single Ended Built-In Whirlpool Bath 1700mm - 11 Jets
