Vitra Aquacontrol Matt Black Concealed Thermostatic Shower Valve, A4274636EXP|A42806

Vitra Aquacontrol Details

MFC: A4274636EXP|A42806

Vitra Aquacontrol Matt Black Concealed Thermostatic Shower Valve - 2 Outlet - 2 Control.

Key Features

✔Choice of Shape: Square or Round
✔WRAS Approved Product
✔Manufactured using Brass Material
✔Number of Outlet: 2
✔5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

It Comes in a Matt Black Finish
Wall-Mounted Installation
Backplate Size [mm]: Ø170 x 95mm [Width x Depth]
Backplate Size [cm]: Ø17 x 95cm [Width x Depth]
Safety Stop at 38°C
Thermostatic Cartridge
Push-Button Diverter
Cartridge: Adjustable Heat-Flow Rate
Must be used in Conjunction with the Supplied V-Box Concealed Part
The V-Box Can be Trimmed to Fit 77mm Wall Thickness
Suitable for Medium or High Water Pressure System
Requires a Minimum of 0.5 Bar to a Maximum of 10 Bar Operating Water Pressure
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Aquacontrol
⤷ Handle Position
: Front
⤷ Colour
: Matt Black
⤷ Shape
: Squre
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Minimum Operating Pressure (Bar)
: 0.5

⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Backplate Width
: 170
⤷ Backplate Height
: 170
⤷ Number of Handles
: 2
⤷ Number of Outlet
: 2
⤷ Barcode
: 8697221227914
⤷ Product Type
: Shower Valve
⤷ Maximum Operating Pressure (Bar)
: 10

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Technical Images

Vitra Aquacontrol Matt Black Concealed Thermostatic Shower Valve - 2 Outlet - 2 Control

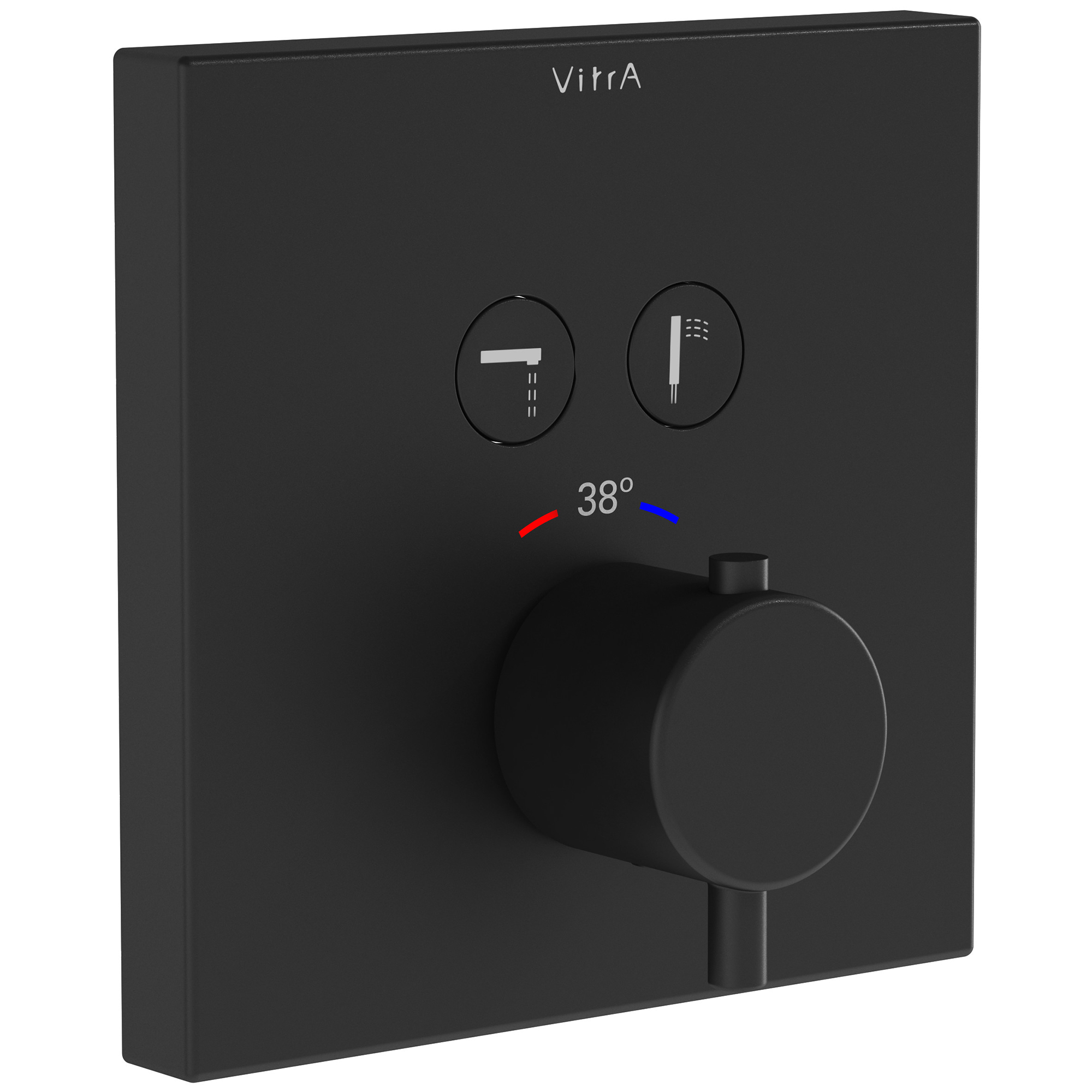

Square Shape

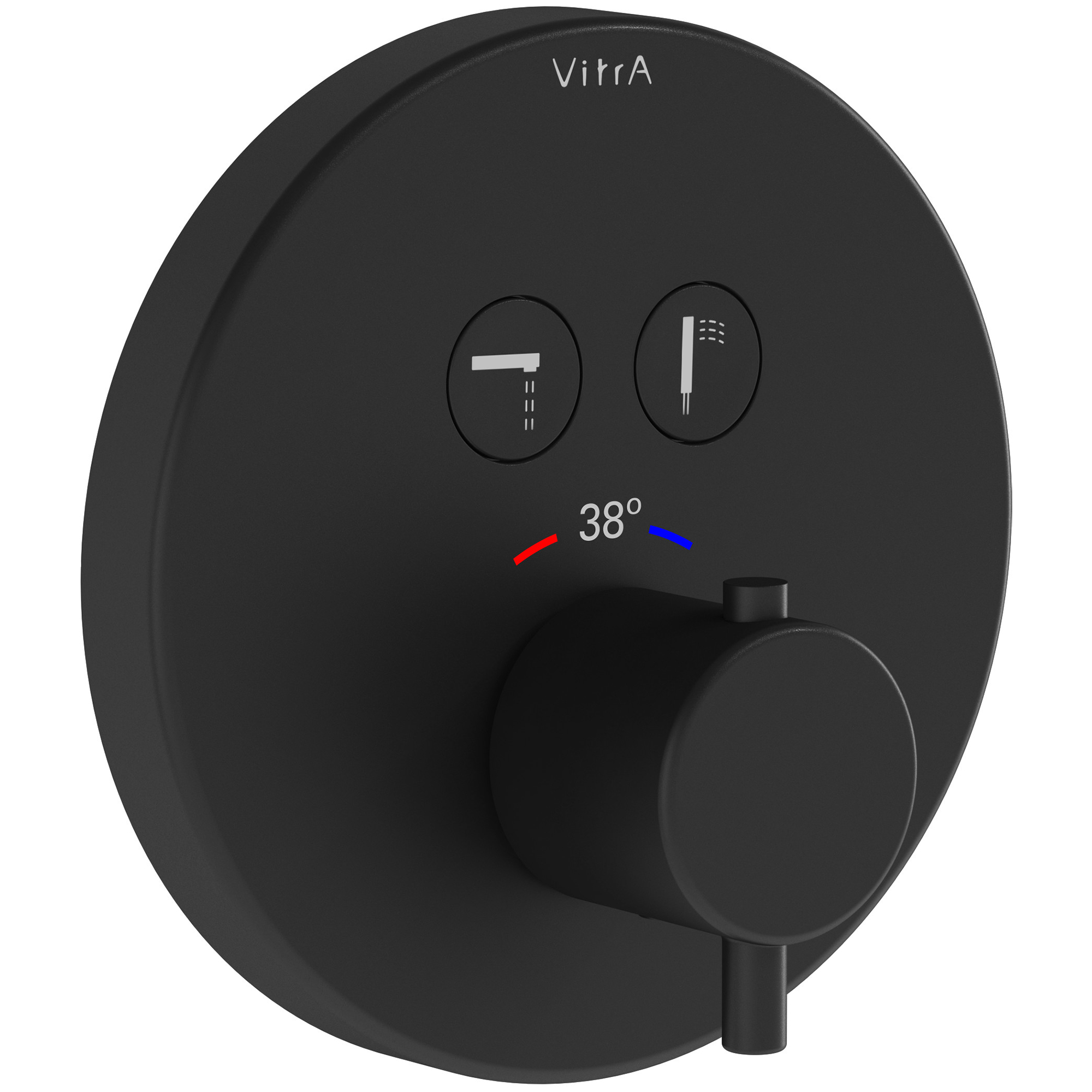

Round Shape

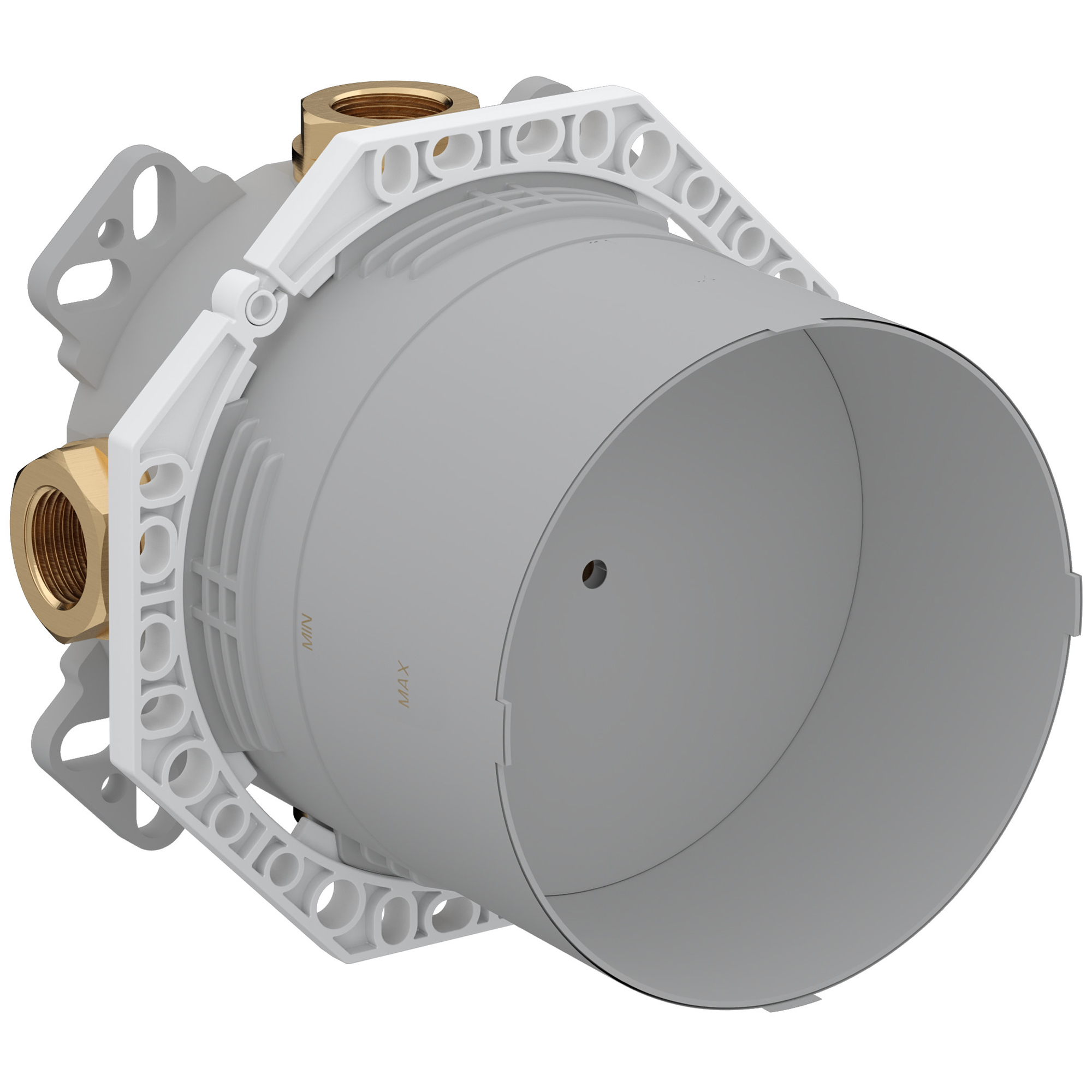

V-Box

£266.42

RRP: ~~£603.00~~

STOCK AVAILABLITY: 10 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.
