Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-7, CBSET7C200

Details

MFC: CBSET7C200

Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-7

Key Features

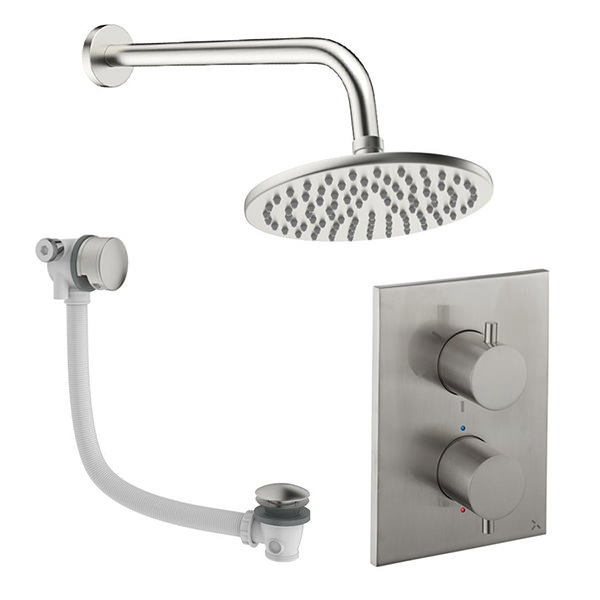

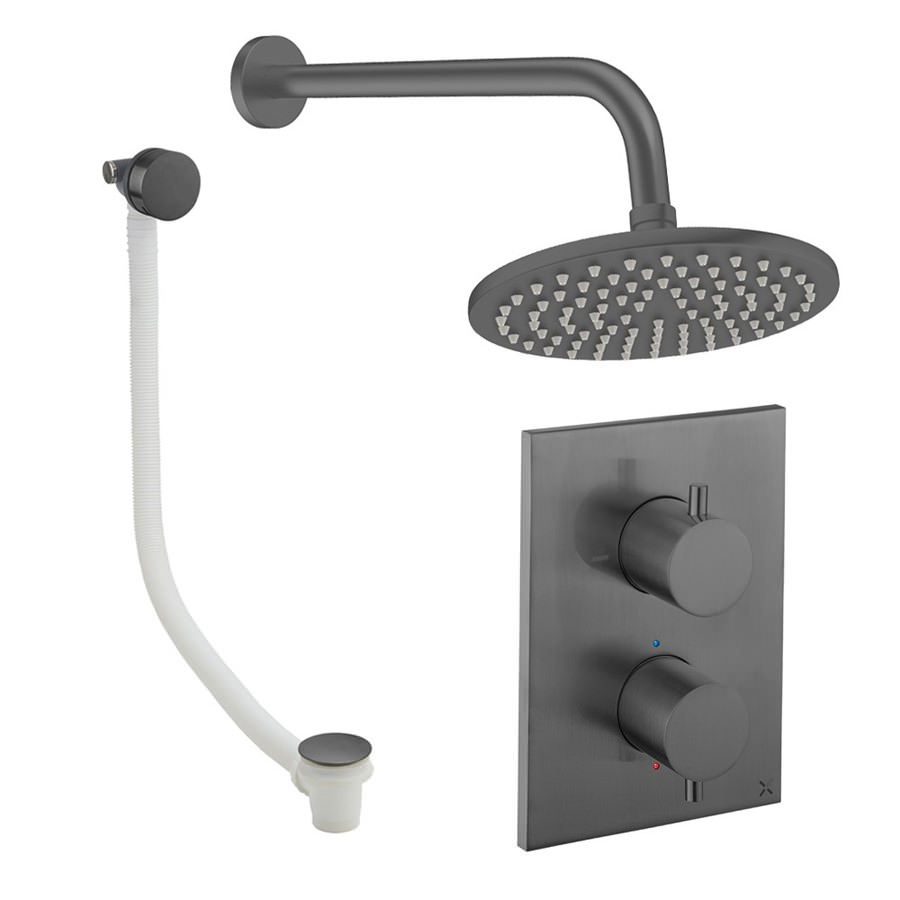

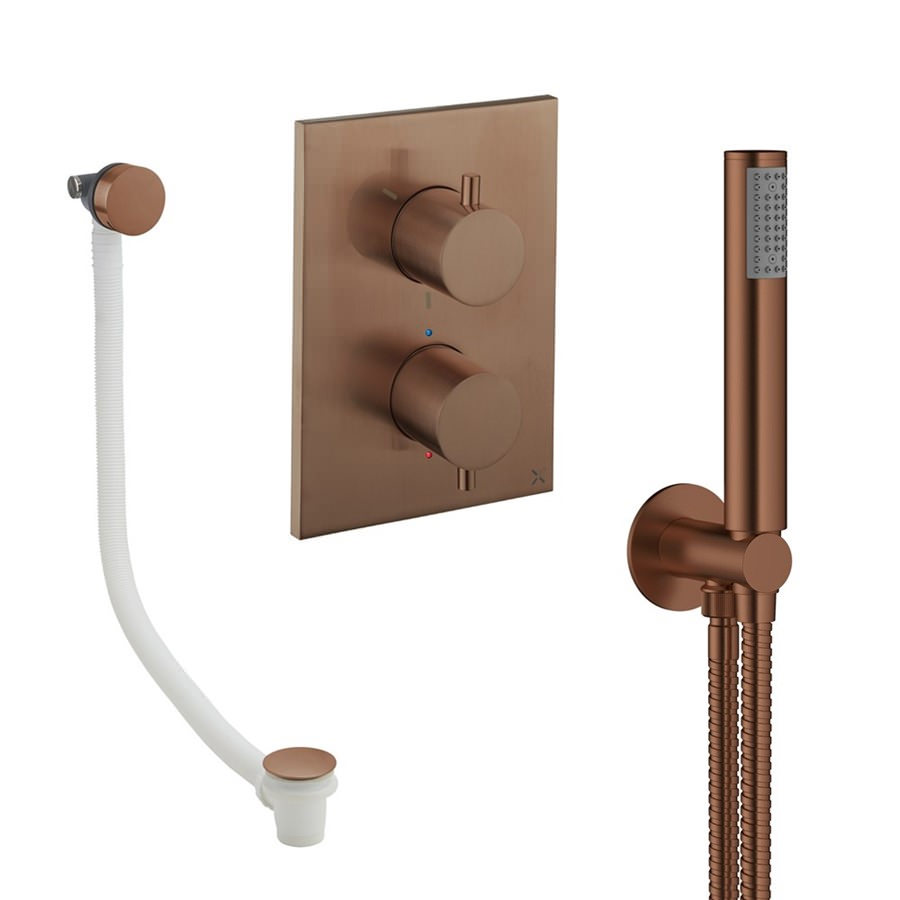

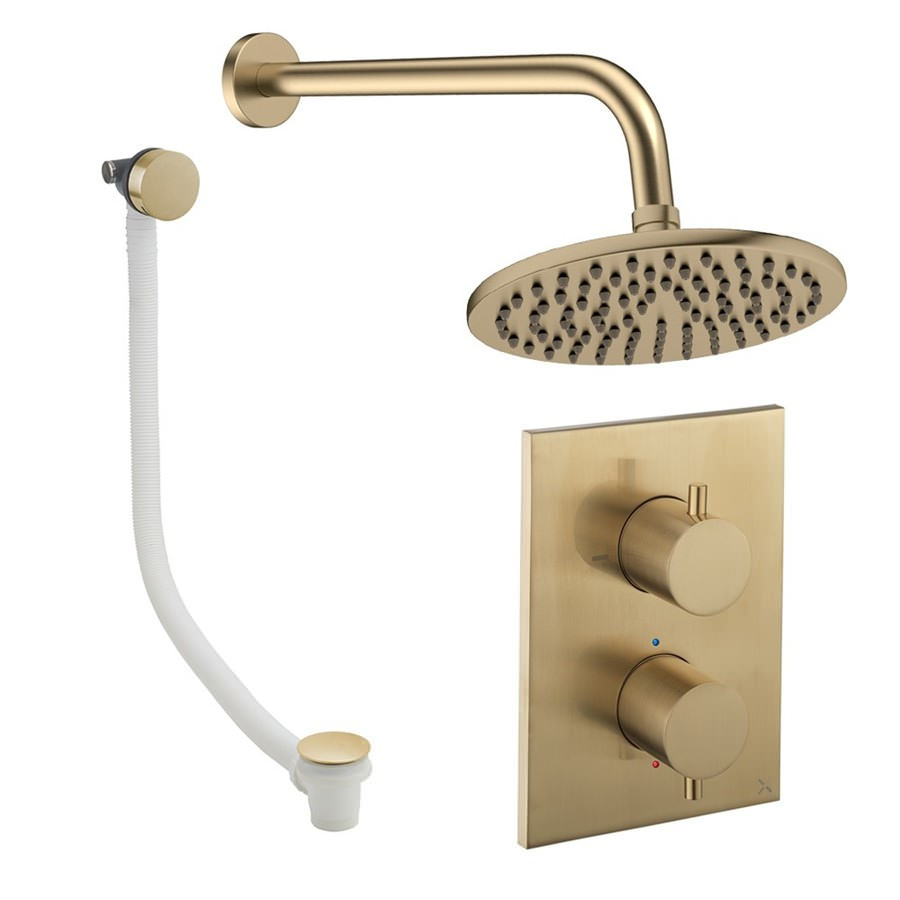

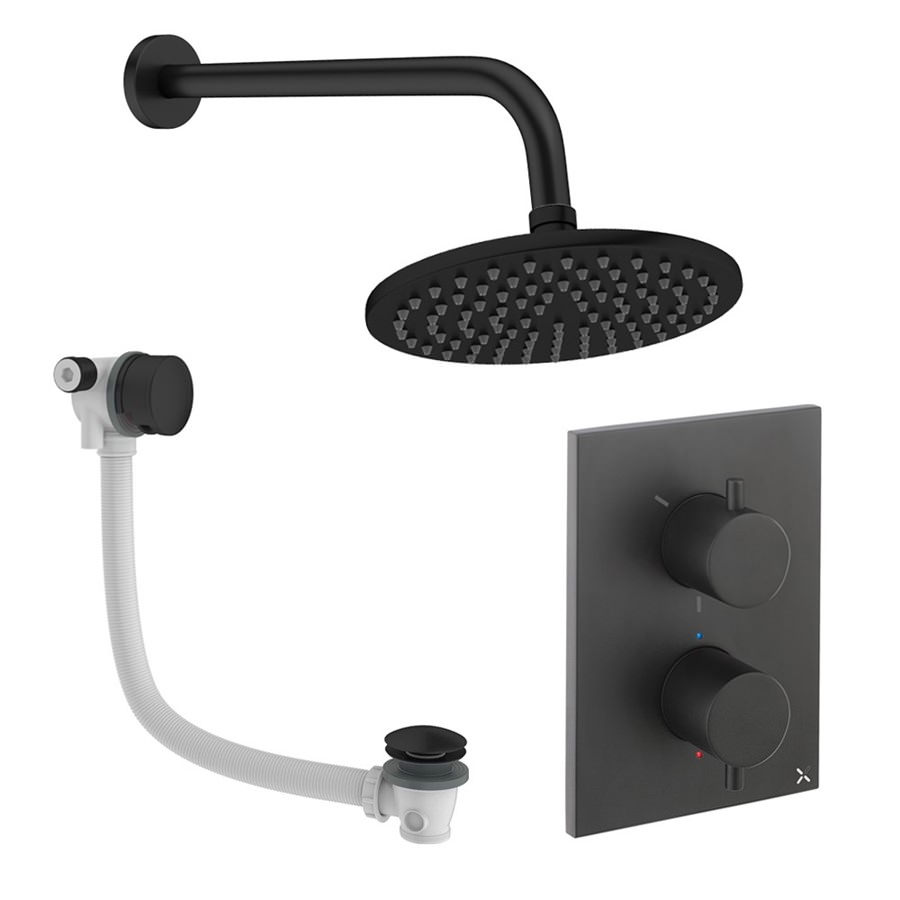

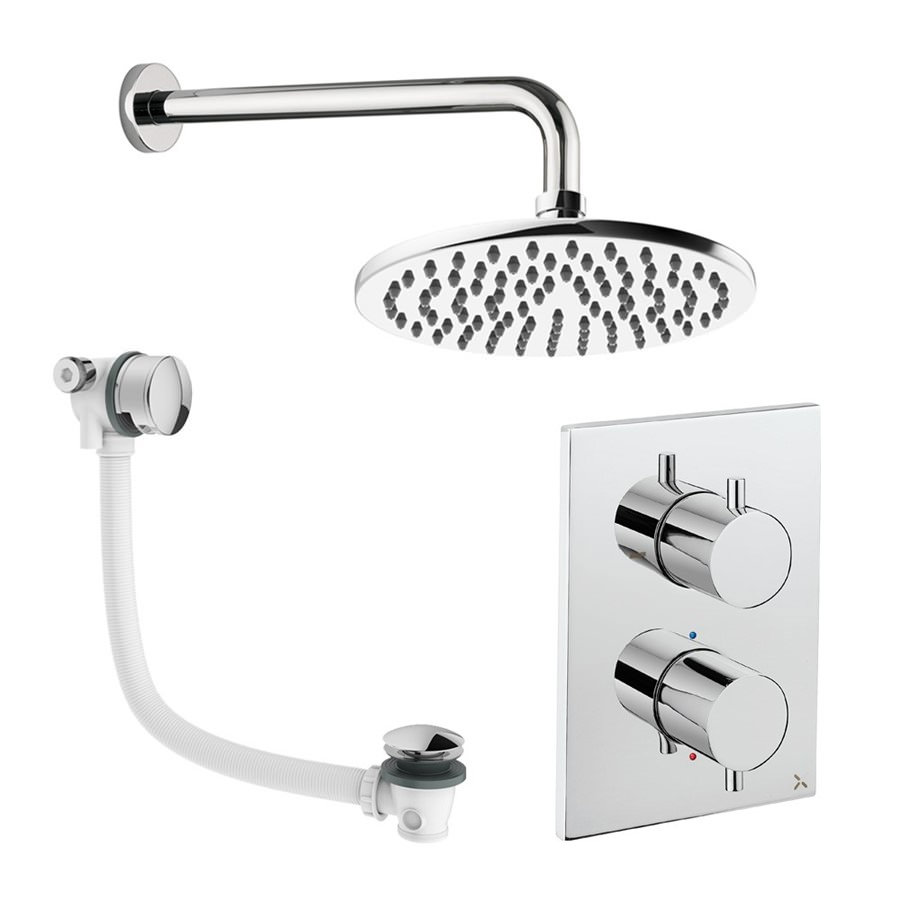

✔Choice of Finishes: Chrome, Matt Black, Brushed Bronze, Brushed Brass, Brushed Nickel, Slate
✔Quiet, Powerful Shower Performance
✔Fast and Easy Installation
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Ideal for All Bathroom Types
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Pack Includes:
MPRO Concealed Thermostatic Shower Valve
Crossbox Universal Box
Fixed Shower Head and Arm
Bath Filler With Click-Clack Waste
Details of Thermostatic Shower Valve:
WRAS-Approved
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
2-Outlet Multi-Flow Thermostatic
Wall-Mounted Installation
Thermo Type: Recessed
Size of Backplate In [mm]: 130 x 180mm [Width x Height]
Size of Backplate In [cm]: 13 x 18cm [Width x Height]
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage
'Flush-block' Testing Plate Included for Easy Pressure Testing
Easy-Fix 2nd-Stage Trim Sets Reduce Installation Times
Built-In Easy-Switch Thermostatic Module Allows for Simple, Quick Flow Reversal if Feeds are Plumbed in the Wrong Way Round
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Details of Crossbox:
Super Slim 60mm Minimum Installation Depths Require Reduced Solid Wall Preparation for Quicker Installation Time
Front or Rear Mounting Options Increase Ease of Installation and Flexibility
Simple 2-Stage Fixing Allows Installation of In-Wall Components and Final Trim Separately, Reducing Possible On-Site Damage 'Flush-Block' Testing Plate Included for Easy Pressure Testing
Improved Flow Dynamics Allow 90-Degree Elbows to be Fitted Directly to Outlets to Create a More Compact Piping Footprint
Suitable for High Water Pressure System
Works On a Minimum of 1.0 Bar or Above Water Pressure
Details of Fixed Shower Head and Arm:
Manufactured Using High-Quality Brass Material
WRAS- and KIWA-Approved
Choice of Diameters: 200mm, 300mm
Style: Round
Head thickness: 5.8mm
Weight: 1kg
Inlet Connection: G1/2 Inch
Wall-Mounted Installation
Supplied with Shower Arm
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar or Above Water Pressure
Arm Length: 330mm - (33cm)

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern

⤷ Valve Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes

Additional Info & Downloads

Download the Data Sheet - Crossbox Pdf File Download the Installation Guide - CrossBox Pdf File Download the COMPLETION CONCEALED BOX MOUNTING INSTRUCTIONS Pdf File Download the Data Sheet - Valve Pdf File Download the Data Sheet - Shower Arm Pdf File Download the Data Sheet - Showerhead Pdf File Download the Data Sheet - Bath Clicker Waste & Filler Pdf File

Technical Images

Crosswater MPRO Crossbox Concealed Thermostatic Shower Set-7

Valve

Crossbox

Showerhead-200mm

Showerhead-300mm

Shower Arm

Bath Filler Waste

£629.30

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.
