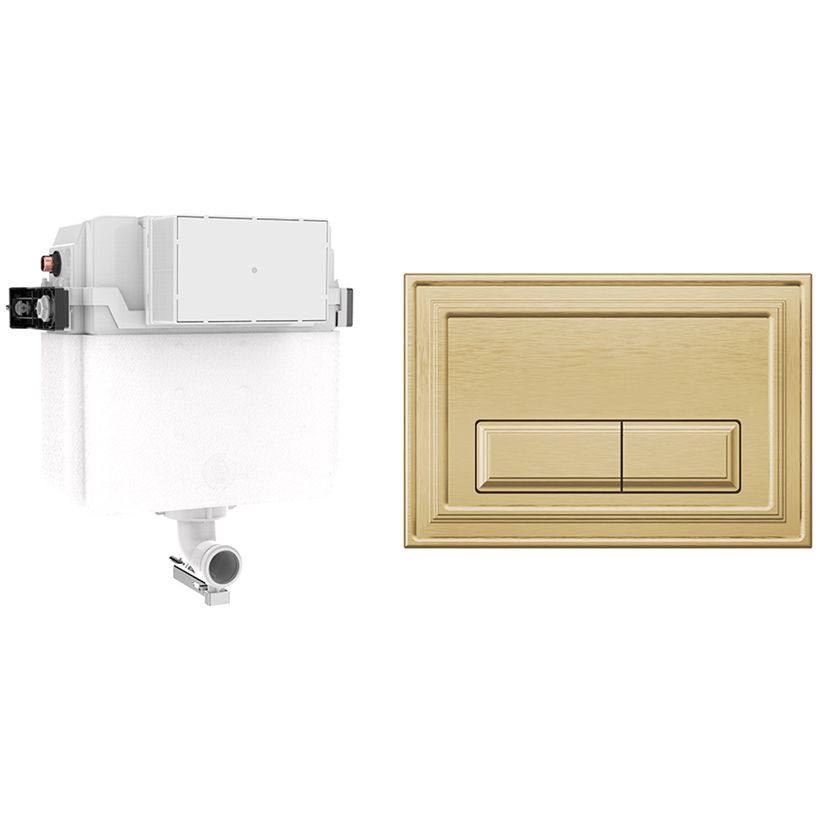

Crosswater Belgravia Dual Flush Concealed Cistern with Flush Plate - 414 x 143 x 387mm

Crosswater Belgravia Dual Flush Concealed Cistern with Flush Plate - 414 x 143 x 387mm.

• Pack Includes:
• Dual Flush Concealed Cistern
• Brass Flush Plate
• Refer to the Technical Drawing for Size Details
• Download The Installation Instruction PDF File from the Additional Info Section
• Details of Cistern
• WRAS-Approved
• Mechanical Flush
• Features Water Saving Dual-Flush Mechanism
• Manufactured Using Plastic Material
• Side Entry Feed
• Noise Class: Group I
• All Fittings Included
• Front Actuation
• Supplied with Discharge Pipe and Installation Kit
• Size [mm]: 414 x 143 x 387mm [Width x Depth x Height]
• Size [cm]: 41.4 x 14.3 x 38.7cm [Width x Depth x Height]
• Weight: 2.93kg
• Standards: BS EN 14055:2018
• Flush Volume: 6/4 Litre
• Maximum Supply Pressure 6 Bar
• Fixing Type: Wall-Mounted Fixing
• Designed for Use with Compatible Crosswater Back-to-Wall Toilets
• Includes Water-Saving Technology by Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
• Details of Flush Plate
• Features Dual-Flush Technology - Including Eco-Flush
• Manufactured using Brass Material
• Wall-Mounted Installation
• Size [mm]: 245 x 165mm [Width x Height]
• Size [cm]: 24.5 x 16.5cm [Width x Height]
• Weight: 0.33kg
• Actuation Force: <20nm
• Smooth Yet Positive Mechanical Operation
• Easy to Fit
• Fixings for the Mounting Frame Included
• The Dual Flush Technology Allows You to Reduce Your Water Usage by up to 40%
• Press the Large Button to Flush with the Entire Water Volume or the Smaller Button for an Eco Flush [Reduced 3-litre Volume]
• Compatible with Crosswater Toilet Frames and Concealed Cisterns
• All Cistern Parts can be Maintained Easily - Remove the Flush Plate to Gain Access
