Crosswater Module Shower Set 4, MODSET4C

Crosswater Module Details

MFC: MODSET4C

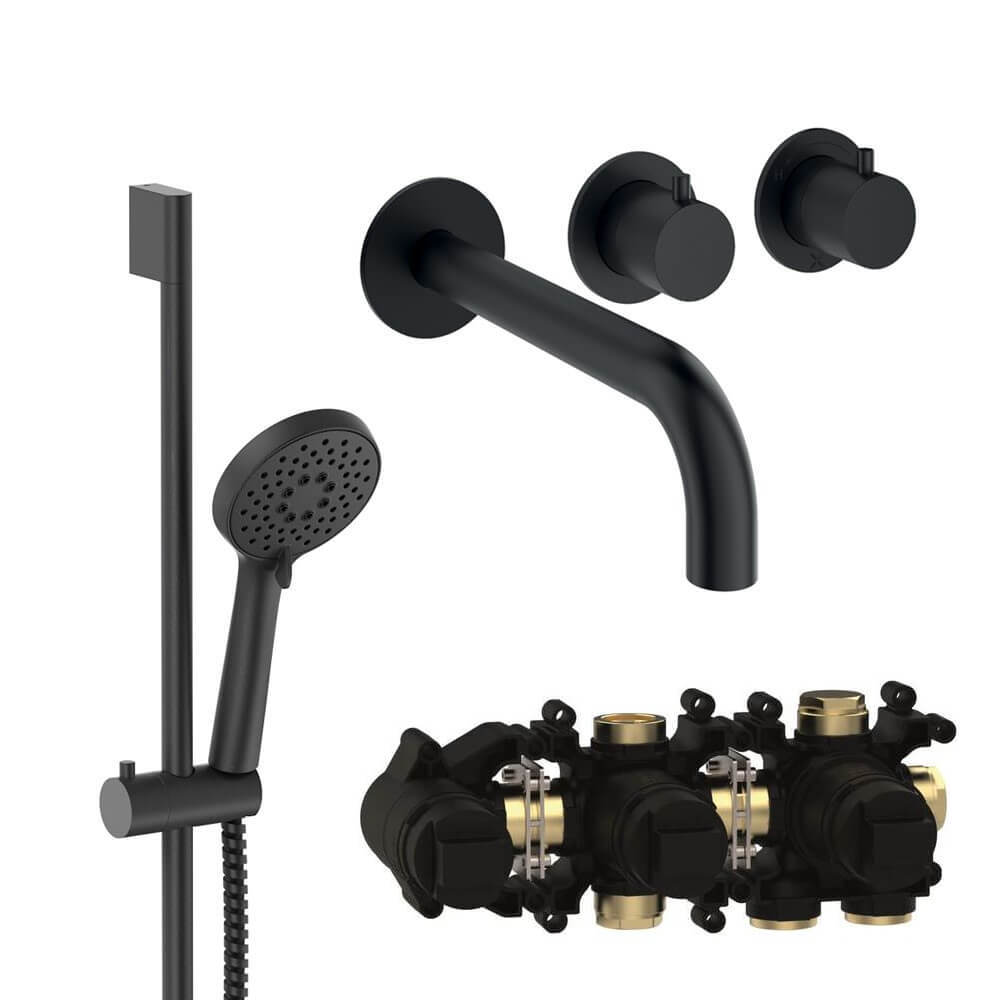

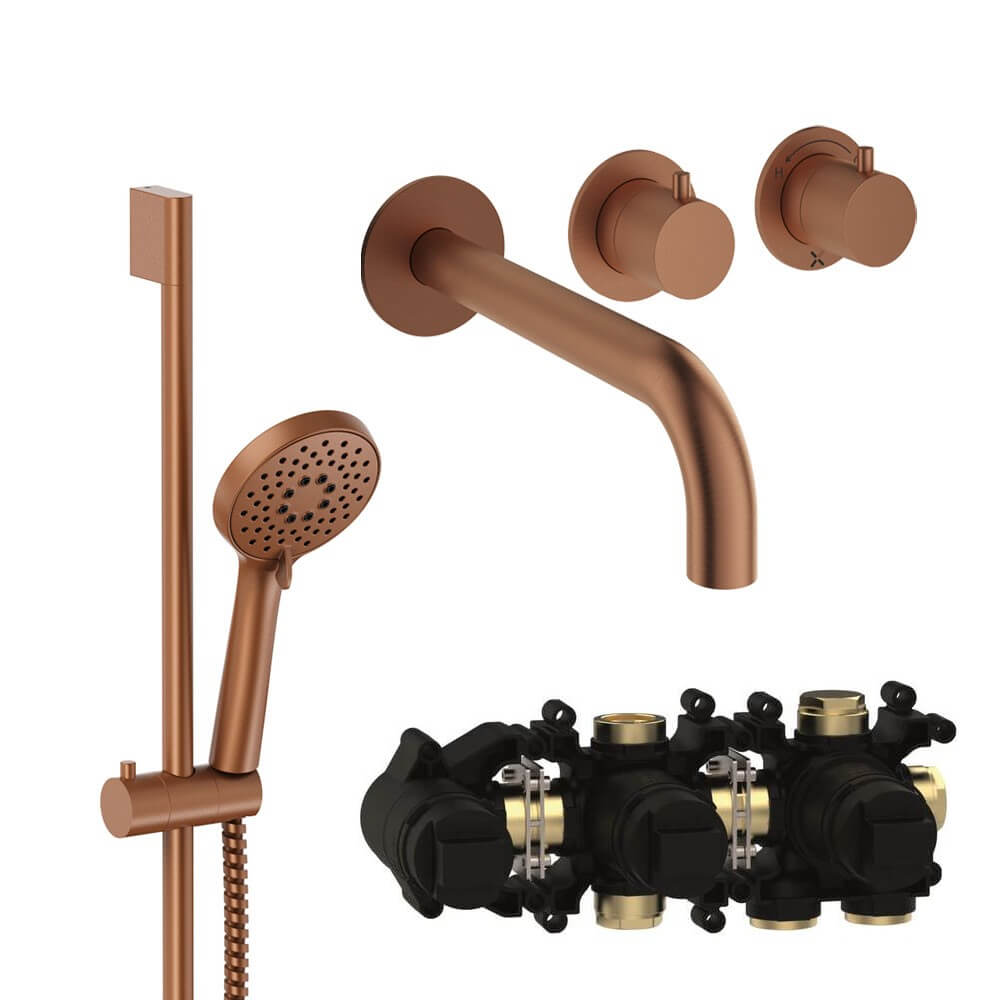

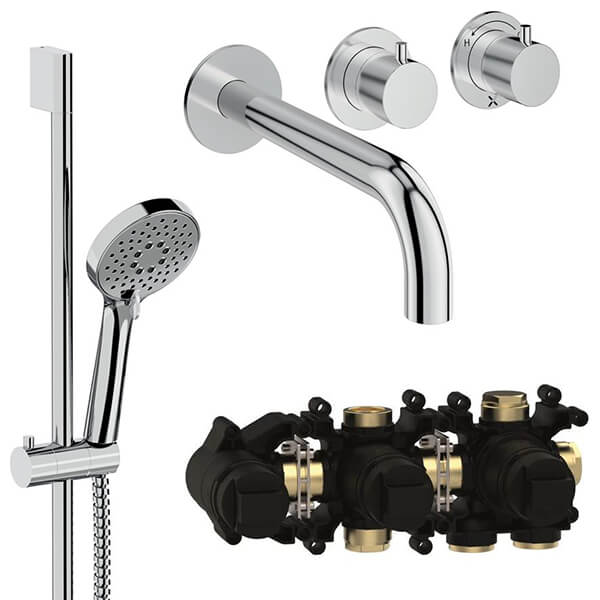

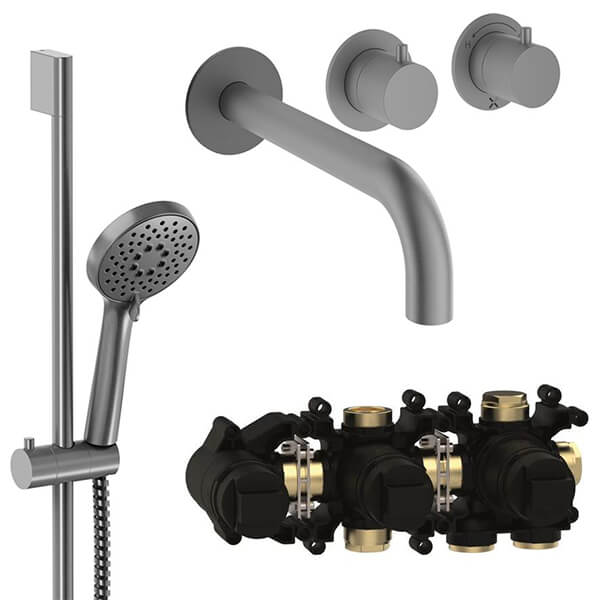

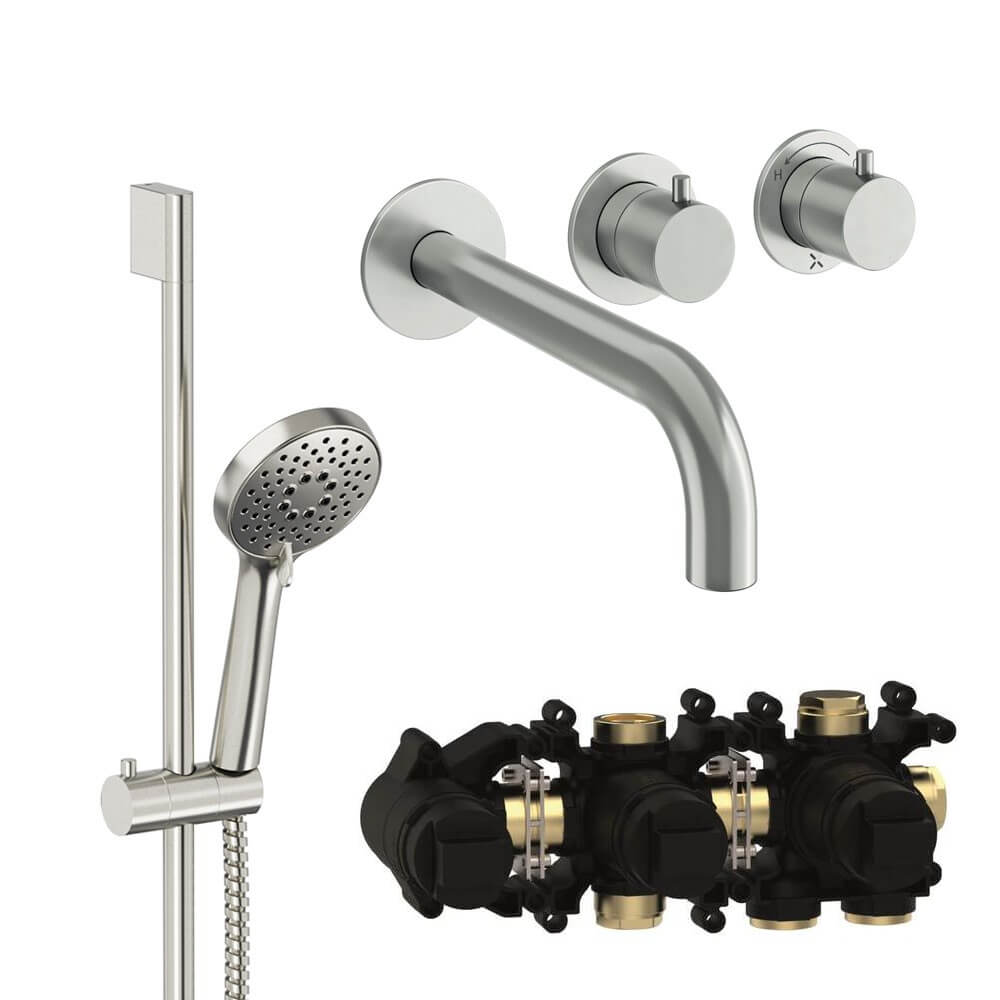

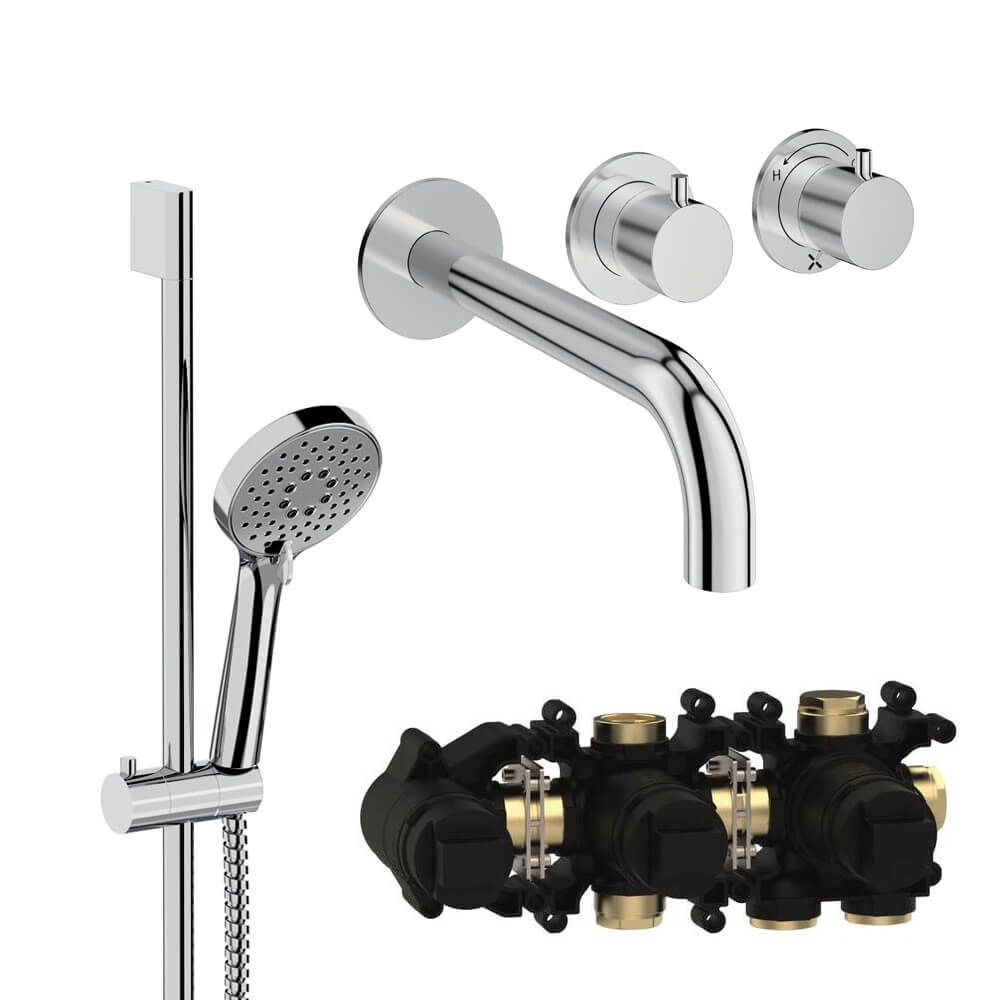

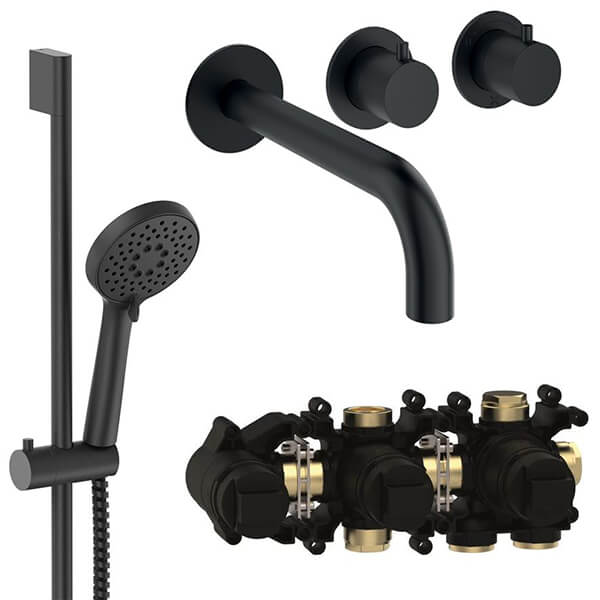

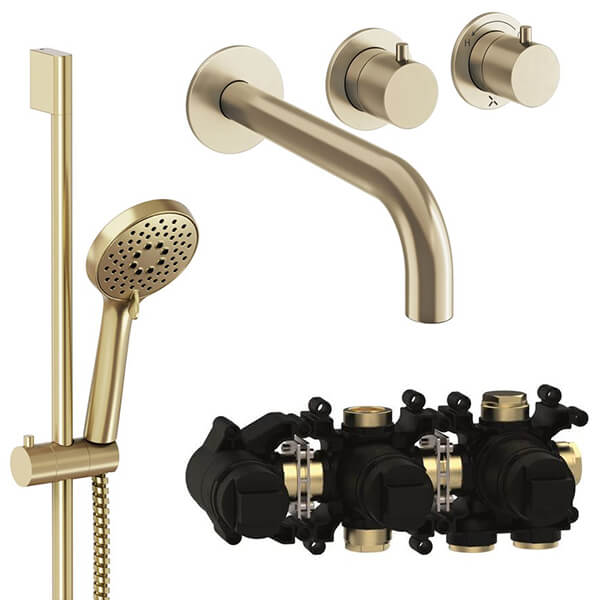

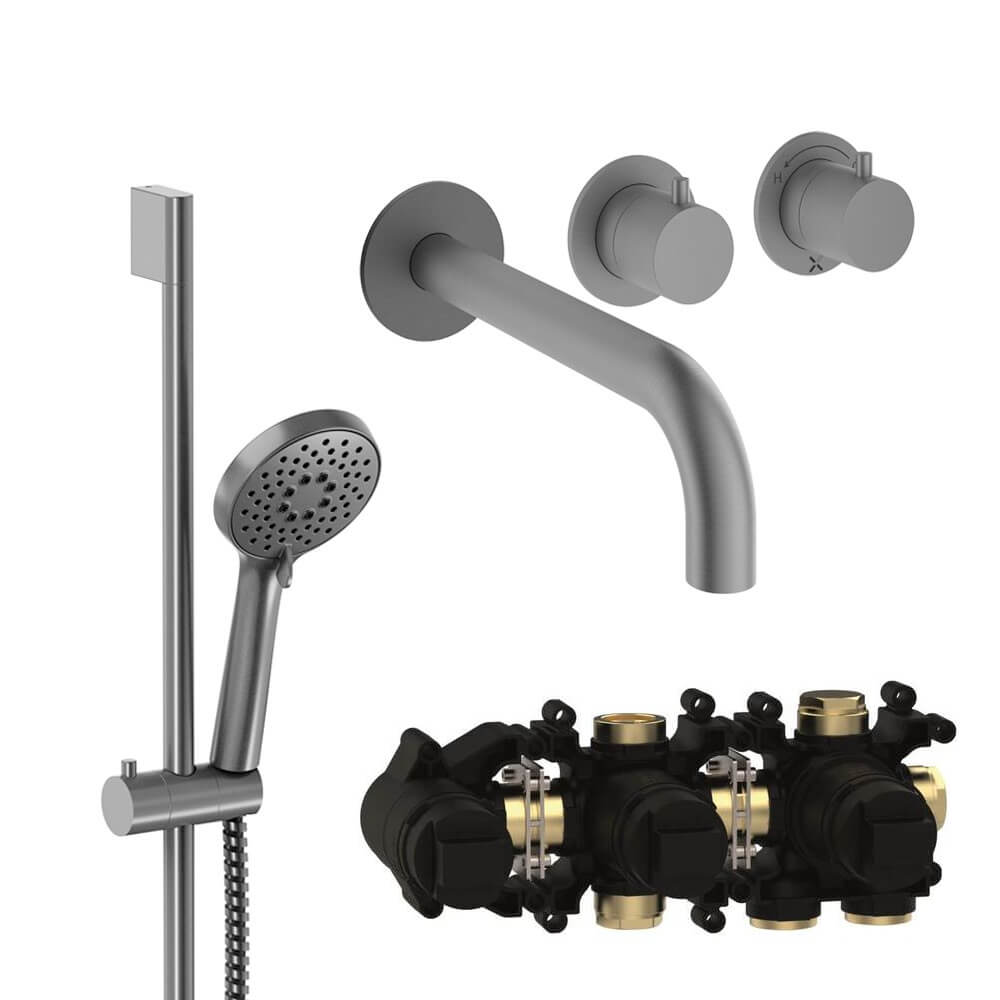

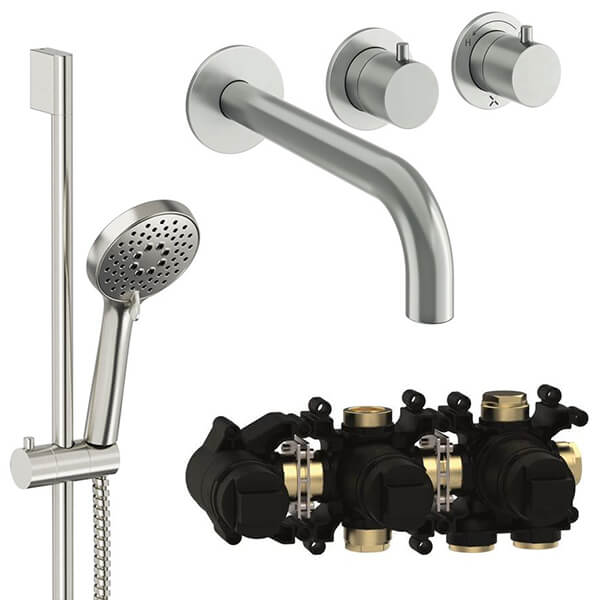

Crosswater Module Shower Set 4

Key Features

✔Available in 6 Finishes
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Suitable for High Water Pressure System
Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Pack Includes:
Module MPRO 2 Control Trimset With Bath Spout
Shower Set with Outlet Elbow
Module 2 Outlet Valve With Outlet For Bath Spout Or Handshower
Details of Trimset with bath spout:
KIWA Approved
Wall-Mounted Installation
Durable PVD Finish on Colours
Manufactured using zamac material
Weight: 1.2kg
Diameter of Trim-Set: Ø70mm [7cm]
Spout Projection: 237mm [23.7cm]
Standards: EN 1111:2017
Inlet and Outlet Connections Thread: G 3/4 inch
Details of Shower Set with Outlet Elbow:
WRAS Approved
Manufactured using Brass and ABS material
Rail height: 698mm [69.8cm]
Weight: 1.64kg
Handset height: 265mm [26.5cm]
Diameter of Handset: Ø102mm [10.2cm]
Number of Outlets: 1
Number of Functions: 3
Inlet Connections Thread: G1/2 Inch
Details of Valve:
Outlet: 2
Anti-Scald: Yes
KIWA Approved
Size [mm]: 296 x 141 x 119mm [Width x Depth x Height]
Size [cm]: 29.6 x 14.1 x 11.9cm [Width x Depth x Height]
Weight: 3kg
Standards: EN 1111:2017
Manufactured using Brass material
Headwork: Thermo Cartridge, Flow Controls
Inlet and Outlet Connections Thread: G 3/4 inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Weight in kg
: 5.84
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Zamac, Brass, ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermo Cartridge
⤷ Inlet Connections
: G 1/2, G 3/4
⤷ Minimum Operating Pressure (Bar)
: 1

⤷ Temperature Control
: Thermostatic
⤷ Compliance/Approvals/Standard
: WRAS, KIWA
⤷ Product Type
: Shower Set
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Rail Length
: 698
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Technical Images

Trimset with Bath Spout

Shower Set with Outlet Elbow

2 Outlet Valve

£879.60

RRP: ~~£1099.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.
