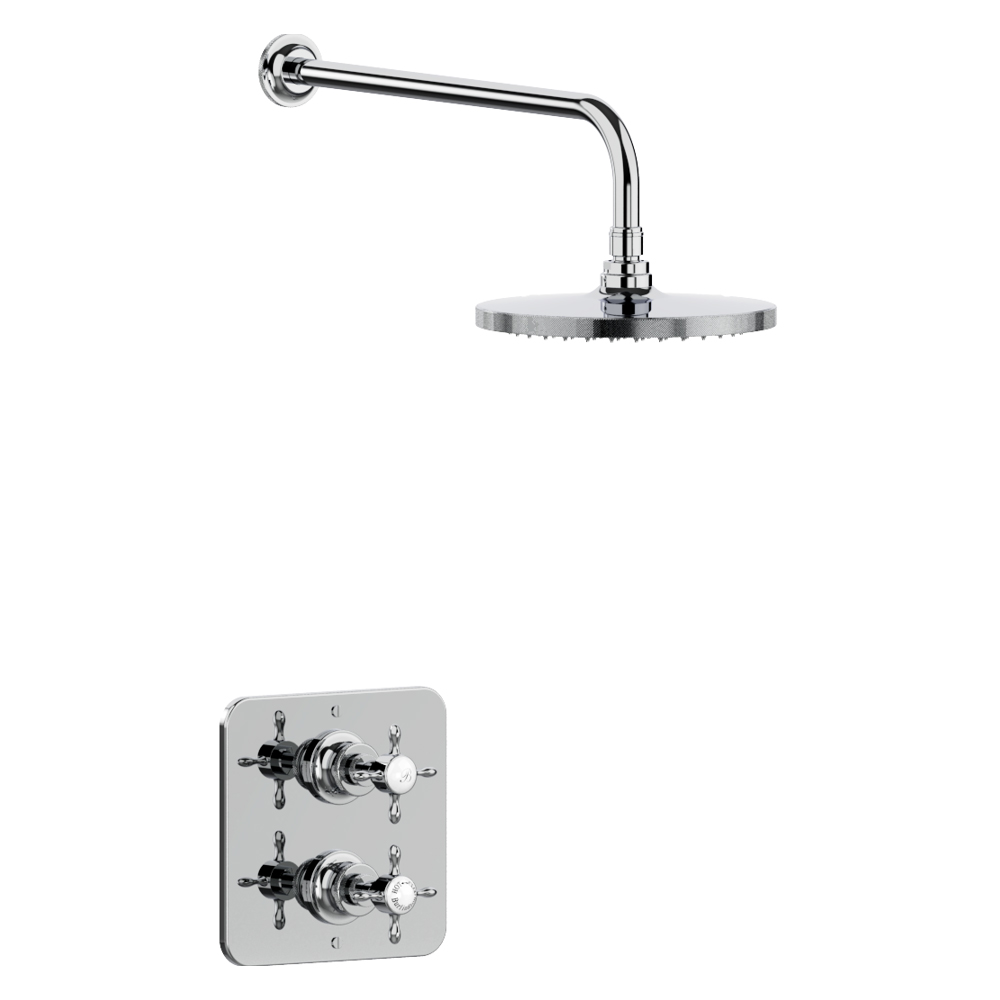

Burlington Guild Concealed Thermostatic Shower Mixer Valve with Fixed Head & Arm

Burlington Guild Details

MFC: GUSHOWERPACKSQ2C

Burlington Guild Concealed Thermostatic Shower Mixer Valve with Fixed Head and Arm

Key Features

✔Made from Brass
✔Quarter Turn Operation
✔Ceramic Cartridge
✔Choice of Finishes: Chrome, Gold, Brushed Nickel
✔15-Year Guarantee from the Manufacturer

Features a Minimalist Traditional Crosshead Design
Wall Mounted Installation
Thermostatic Concealed Shower Valve
Single Outlet
Supplied with Fixed Shower Head and Arm
Inlet Connections Thread: G 3/4"
Outlet Connections Thread: G 1/2"
Suitable for Medium Water Pressure System
Min Water Pressure Required for Smooth Working is 0.5 Bar and Max of 5 Bar
Flow Rate (l/min): 0.5 Bar: 8.2, 1 Bar: 11.6, 2 Bar: 14.16, 3 Bar: 17.08, 4 Bar: 19.48, 5 Bar: 21.8
Standards: EN1111
Refer Technical Diagram for Complete Size Details
Download Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic
⤷ Inlet Connections
: G 3/4 Inch
⤷ Minimum Operating Pressure (Bar)
: 0.5

⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 180
⤷ Backplate Height
: 180
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Traditional Showers

Burlington Guild Concealed Thermostatic Shower Mixer Valve with Fixed Head and Arm

£633.60

RRP: ~~£792.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
