Tavistock Axiom 3 Modes Push Button Valve with Handset and Shower Head, SAX2750

Tavistock Axiom Details

MFC: SAX2750

Tavistock Axiom 3 Function Push Button Valve with Handset and Shower Head

Manufacturing Code of this Product: SAX2750
It Comes in a Chrome Finish

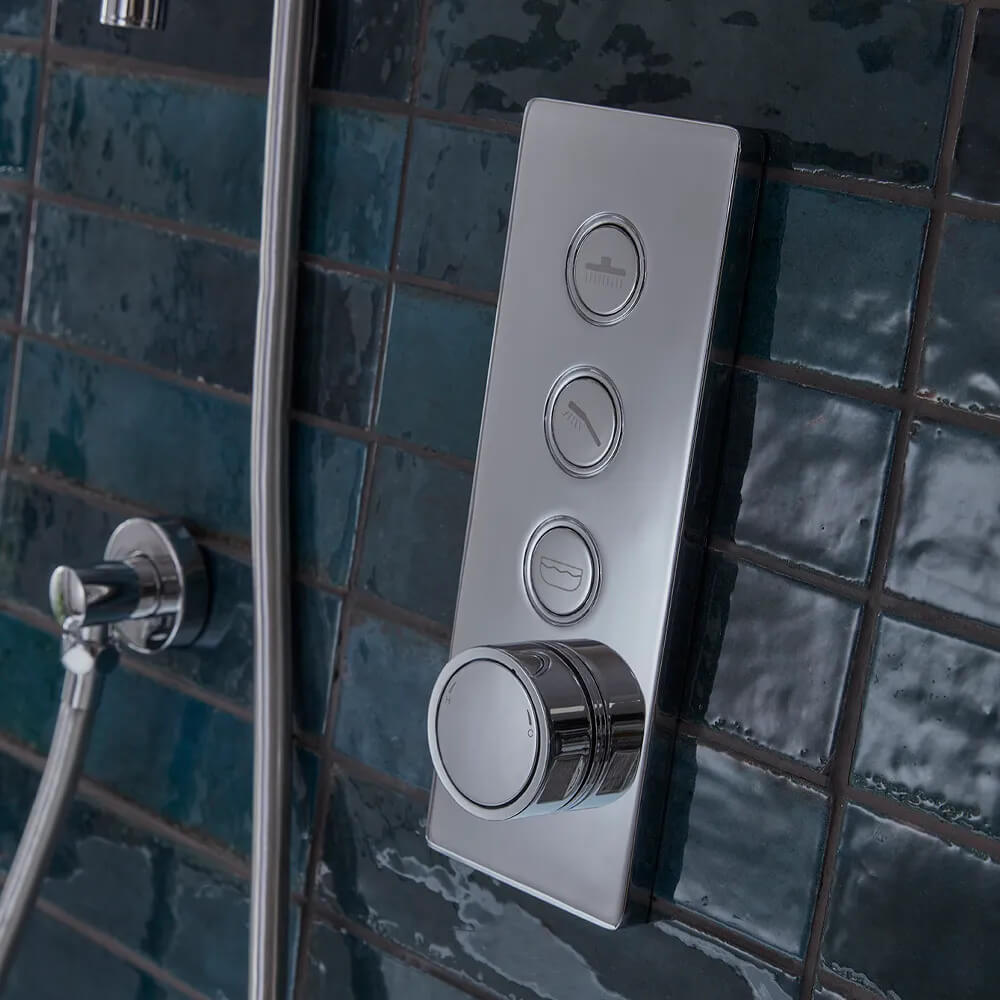

3 Function Concealed Push Button Valve
Comes with Smart Flow Bath Overflow Filler
Size of Valve [mm]: 100 x 268mm [Width x Height]
Size of Valve [cm]: 10 x 26.8cm [Width x Height]
Outlet: 3 Outlets
Size of Handset [mm]: 110 x 244mm [Width x Height]
Size of Handset [cm]: 11 x 24.4cm [Width x Height]
Overhead Shower Size: 225mm [22.5cm]
Valve Connection Size: 1/2 Inch BSP
Suitable for 15mm Pipework

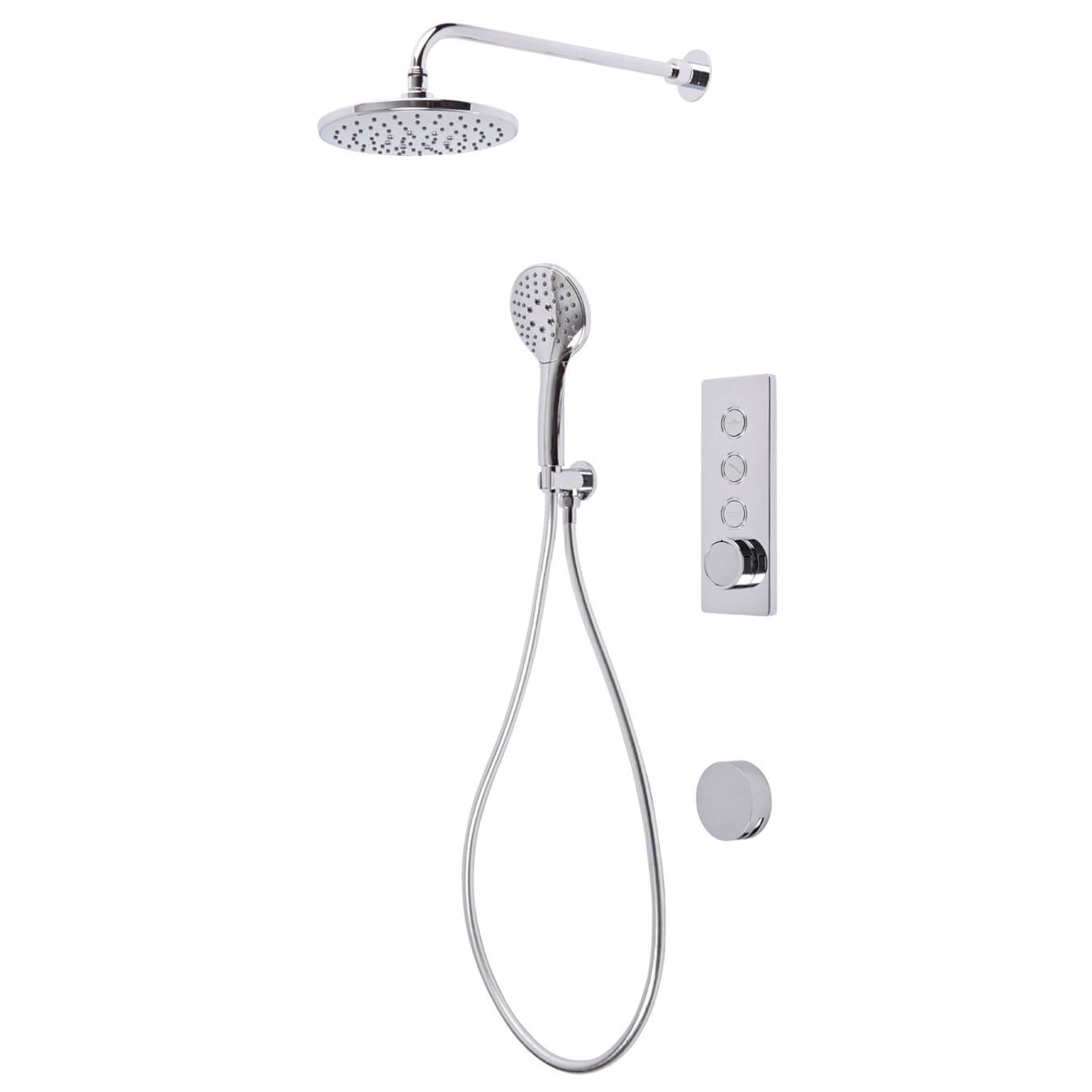

Shower Head and Handset with Holder Included
Supplied with Easy Fix Brass Shower Arm and 1500mm Hose
Suitable for High Water Pressure Systems
Required Minimum 1.0 Bar Water Pressure
A Three-Function Shower System, Allowing You to Divert Water Between Three Outlets, Including a Bath Filler
Valve Can be Mounted Vertically or Horizontally
Can be Easily Removed and Serviced Even After Tiling, Allowing for Ease of Installation and Maintenance
Refer to the Technical Drawing for More Technical Details
Download the Technical Data Sheet PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Inlet Connections
: 1/2 Inch
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100

⤷ Backplate Height
: 268
⤷ Anti-Scald
: Yes
⤷ Product Type
: Shower Set
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: 3
⤷ Spray Patterns (Shower Head)
: 1
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 225

Additional Info & Downloads

Download the Product Data Sheet Pdf File

Tavistock Axiom 3 Function Push Button Valve with Handset and Shower Head

£896.40

RRP: ~~£1120.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

3-Outlets

Also known as a triple valve, these valves feature three outlets, and either two or three can run simultaneously, depending on the manufacturer. You can also operate each outlet independently if required. The three outlet connections connect to three different fixtures, e.g., an overhead shower, body jets, side showers, or a bath mixer tap.
