Jaquar Blush Contemporary Sensor Tap with Control Box, Deck Mounted

Jaquar Sensor Details

MFC: SNR-CHR-51445PK

Jaquar Blush Contemporary Sensor Tap with Control Box - Deck Mounted

Key Features

✔Battery Operated
✔WRAS and ACS Approved
✔Manufactured Using Brass Material
✔Supplied with a Pre-Mixed Water Supply Kit
✔10-Year Warranty Against any Manufacturing Defect

Choice of Heights: 215mm and 325mm

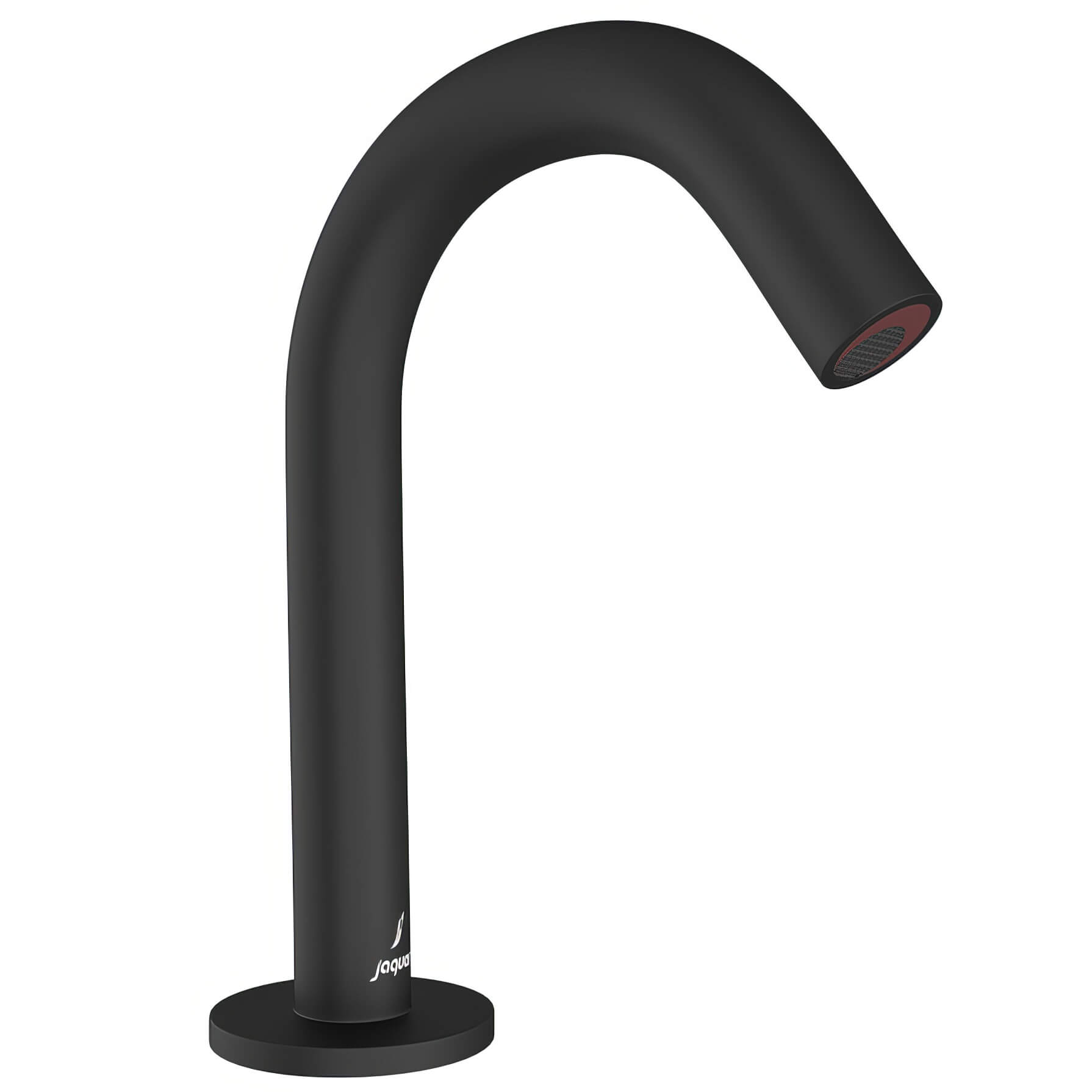

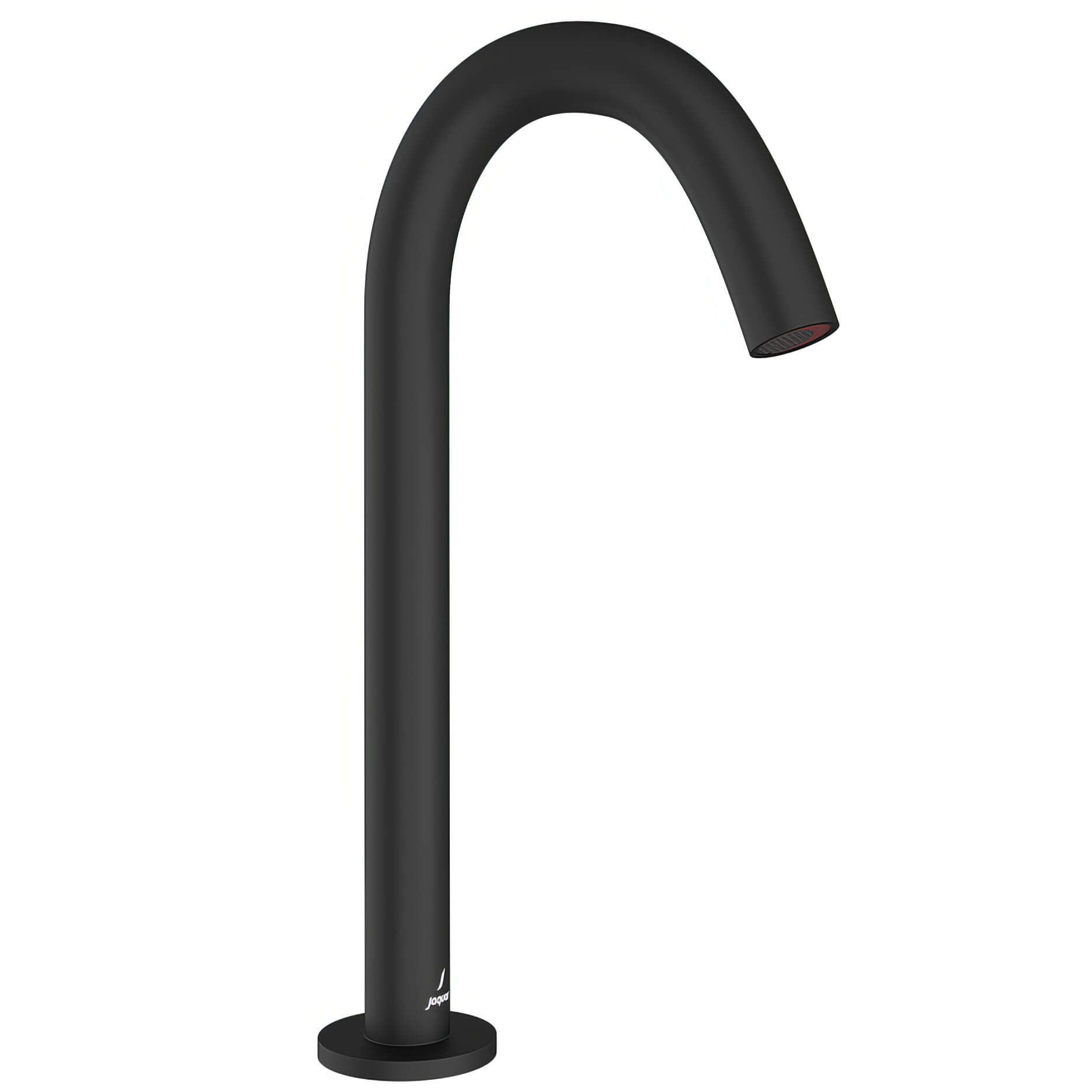

Choice of Finishes: Chrome, Matt Black
Chromium and Nickel Plating
Electronic Parameter Setting Procedure: Red Button On Control Box
Salt Spray Tested: [500 Hrs + Validated]
Adhesion: Pass
Aerator Size: M16.5 x 1
Adjustable Parameters: Only Detection Range: 100-300mm, Default: 150-180mm
Power Source: 6 Volt Battery - [4 *1.5V AA cell]
Water Supply: Hot & Cold [2 Inlets]
Water Temperature: Maximum 65ºC
Inlet Water Connection: 1/2 Inch BSP / 15mm
Suitable for High Water Pressure System
Requires a Minimum of 1.0 Bar to a Maximum of 5 Bar of Water Pressure
Refer to the Technical Drawing for Size Details
IP Rating:
Protection Against Intrusion [Control Box] IP65
Protection Against Intrusion [Sensor Eye] IP67
Solenoid Valve Specification:
Nominal Voltage: 6 Volt DC
Operating Pressure: 1.0 - 5.0 Bar
Low Power Consumption: Bi-Stable Pulse-Controlled
Details of 215mm Spout:

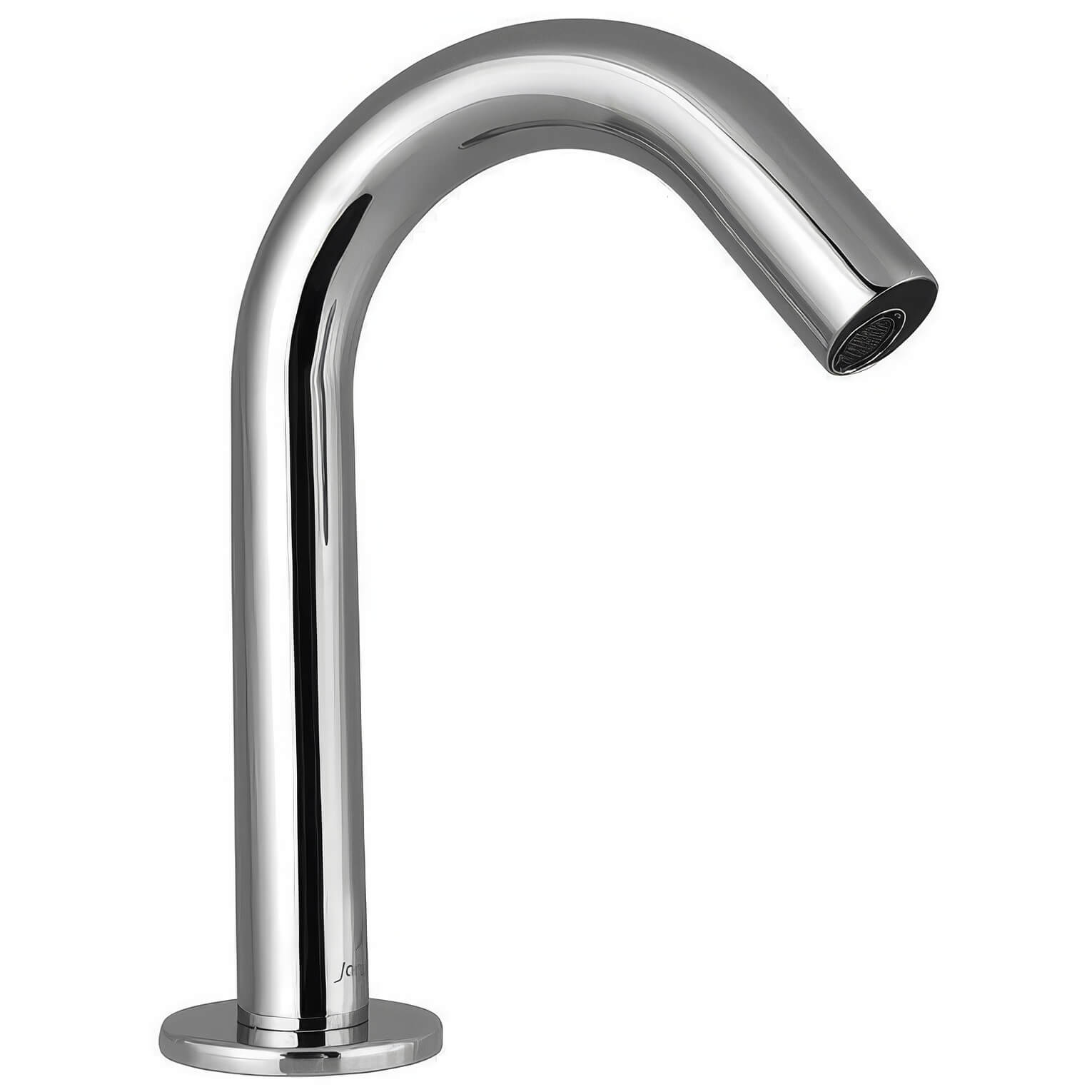

Height: 215mm [21.5cm]
Base to Spout: 135mm [13.5cm]
Centre of Inlet to Centre of Outlet: 135mm [13.5]
Flow Rate: 9.50 LPM at 3 Bar
Details of 325mm Spout:

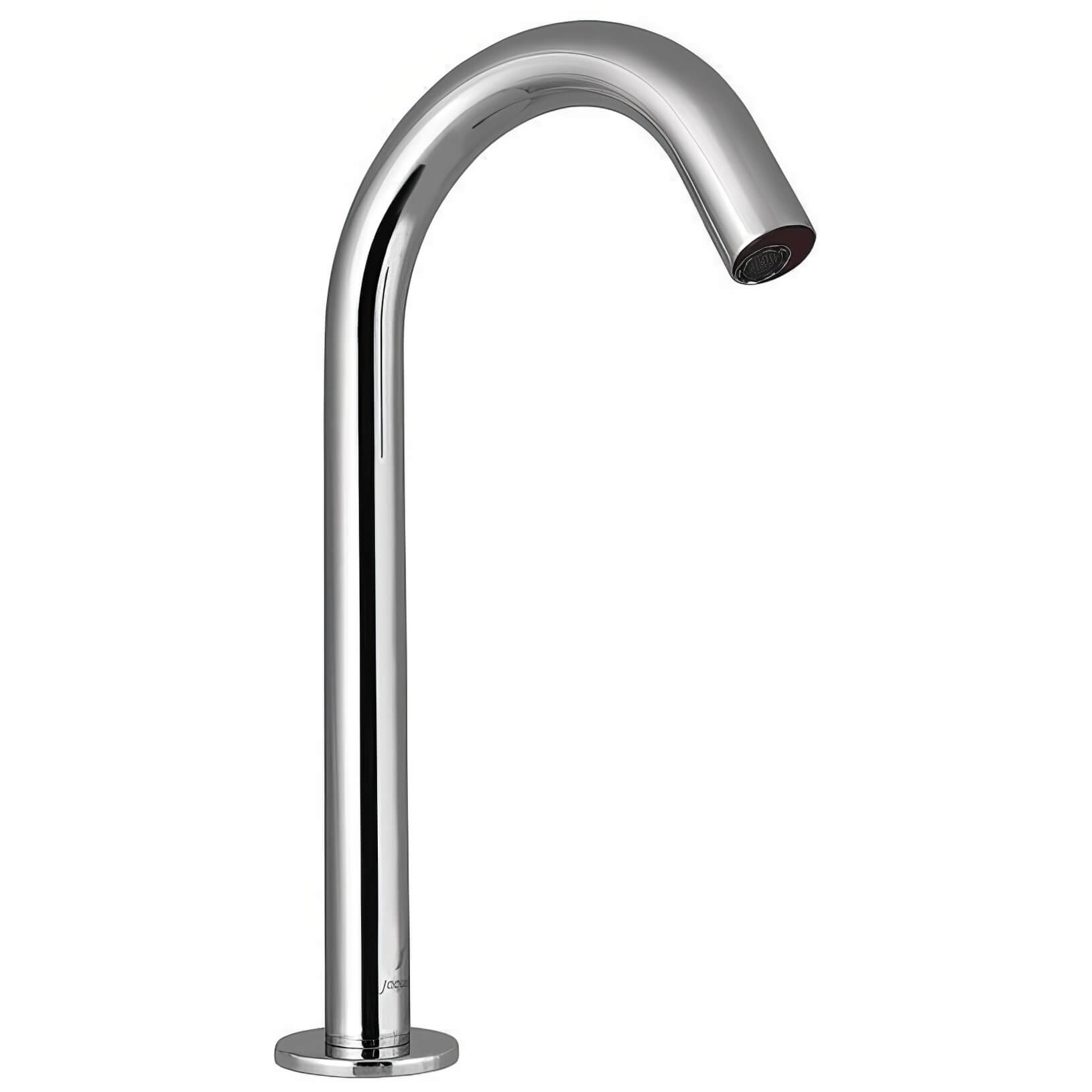

Height: 325mm [32.5cm]
Base to Spout: 230 [23cm]
Centre of Inlet to Centre of Outlet: 160mm [16cm]
Flow Rate: 8.20 LPM at 3 Bar

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Tap Body Shape
: Round
⤷ Range
: Sensor
⤷ Colour
: Chrome and Matt Balck
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Installation Type
: Deck Mounted
⤷ Base To Spout
: 135
⤷ Spout Reach
: 135

⤷ Inlet Connections
: 1/2 Inch and 3/4 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Power Source
: Battery Operated
⤷ Sensor Type
: Yes
⤷ Compliance/Approvals/Standard
: WRAS, ACS Approved
⤷ Barcode
: 5057199986450
⤷ Product Type
: Sensor Tap

Additional Info & Downloads

This item can also be found in:

Technical Images

Jaquar Blush Contemporary Sensor Tap with Control Box - Deck Mounted

215mm Height Tap

325mm Height Tap

£220.00

RRP: ~~£275.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Battery Operated

Battery-operated devices are smaller and have the advantage of portability. Once the power has run out, battery-powered devices need recharging or replacement.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
