Geberit Piave Gloss Chrome Finish Thermostatic Infrared Basin Mixer Tap - Wall Mounted

Geberit Piave Gloss Chrome Finish Thermostatic Infrared Basin Mixer Tap - Wall Mounted.

• The Manufacturing Code of this Product is 116.282.21.1
• It Comes in a Gloss Chrome Finish
• Spout Projection: 233mm (23.3cm)
• Centre of Inlet to Outlet: 220mm (22cm)
• Round Backplate Size: Width 80mm (8cm) x Height 80mm (8cm)
• Suitable for Wall-Mounted Installation
• Automatic Flush Actuation
• Infrared User Detection
• Temperature Presetting via Mixer
• Not Possible to Set just Hot Water or just Cold Water
• Thermal Disinfection According to DVGW W 551 is Possible
• Power Supply via Power Supply Unit
• Economy Mode can be Set
• The Water Saver Program can be Set
• An Interval Flush Program can be Set
• Continuous Flush can be Set Individually
• Flush Actuation can be Deactivated
• Comes with an Integrated Check Valve
• Functional Unit with Built-In Basket Filters
• Functions can be Set and Queried with the Geberit Service Handy
• Device Settings and Operation with the Mobile Device via the Integrated Bluetooth® Interface
• Compatible with Geberit Control App
• Wired Networkable with Geberit Gateway via GEBUS Converter
• Wirelessly Connectable with Geberit Gateway via Bluetooth®
• Compatible with Geberit Connect
• Protection Degree: IPX4 Rated
• Power Consumption: 0.1 W
• Nominal Voltage: 110-240 V AC
• Mains Frequency: 50-60 Hz
• Operating Voltage: 4.5 V DC
• Operating Pressure: 0.5-10 Bar
• Maximum Differentiated Pressure CW/WW: 1.5 Bar
• Maximum Test Pressure of Water: 16 Bar
• Maximum Test Pressure of Air / Inert Gas: 3 Bar
• Ambient Temperature: 1-40° Celsius
• Storage Temperature: -20 - +70° Celsius
• Maximum Operating Temperature of Water: 60° Celsius
• Short-Term Maximum Operating Temperature of Water: 90° Celsius
• Flow Rate at 3 Bar: 5 l/Min
• Minimum Flow Pressure: 0.5 Bar
• Calculated Flow Rate: 0.07 l/s
• Interval Flush, Adjustment Range: 1-168 h
• Interval Flush, Factory Setting: 24 h
• Interval Flush Time, Adjustment Range: 5-200 s
• Interval Flush Time, Factory Setting: 5 s
• Material: Brass and Plastic
• Refer to the Technical Drawing for More Details
• 5-Year Guarantee from Geberit against Manufacturing Defects
• Application Purposes
• For Extracting Tap Water
• For Public and Semipublic Areas
• For Installation in Geberit Elements for Washbasins, a Wall-Mounted Tap with a Concealed Function Box
• For Connecting Cold and Hot Water
• For Use with Stainless Steel Bowls
• For Panelling Thickness: 10-50mm

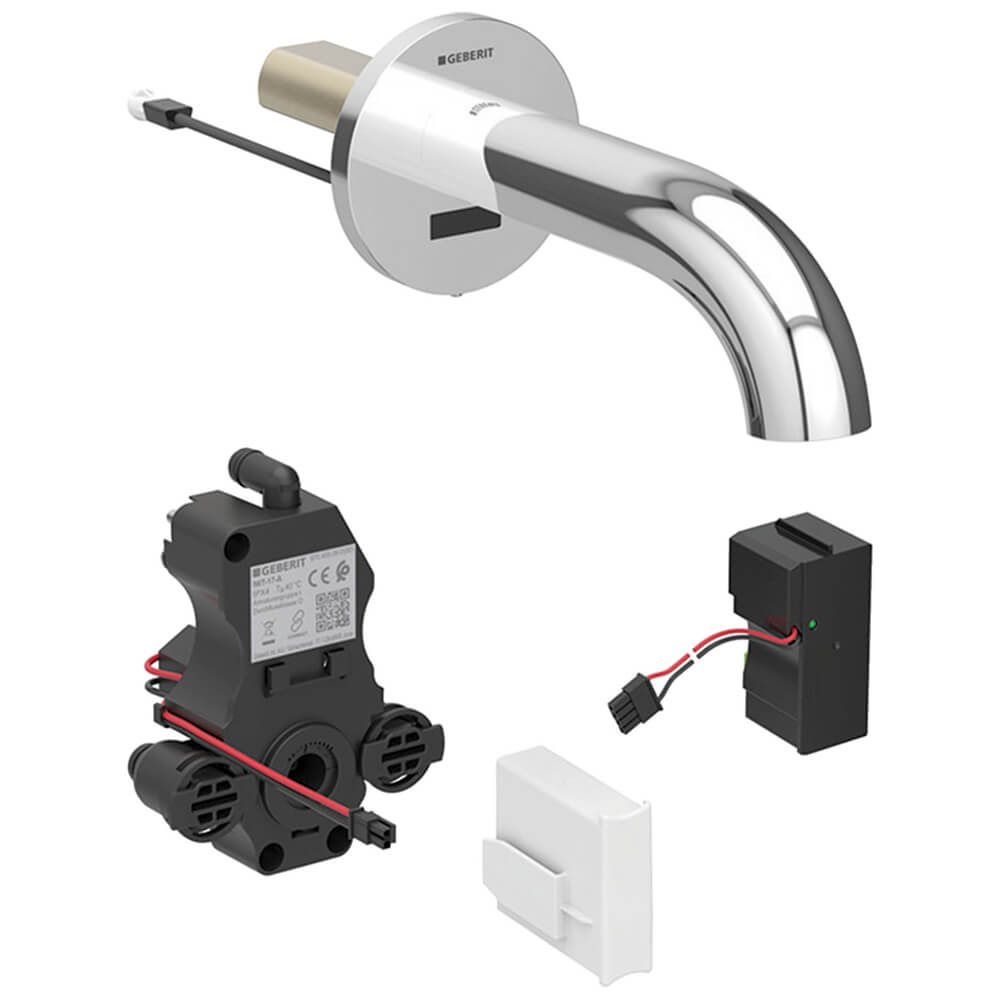

• Scope of Delivery
• Washbasin Tap
• Infrared Sensor with Connection Cable
• Control Electronics
• Functional Unit
• Power Supply Unit
• Tap Aerator Key
• Fastening Material
