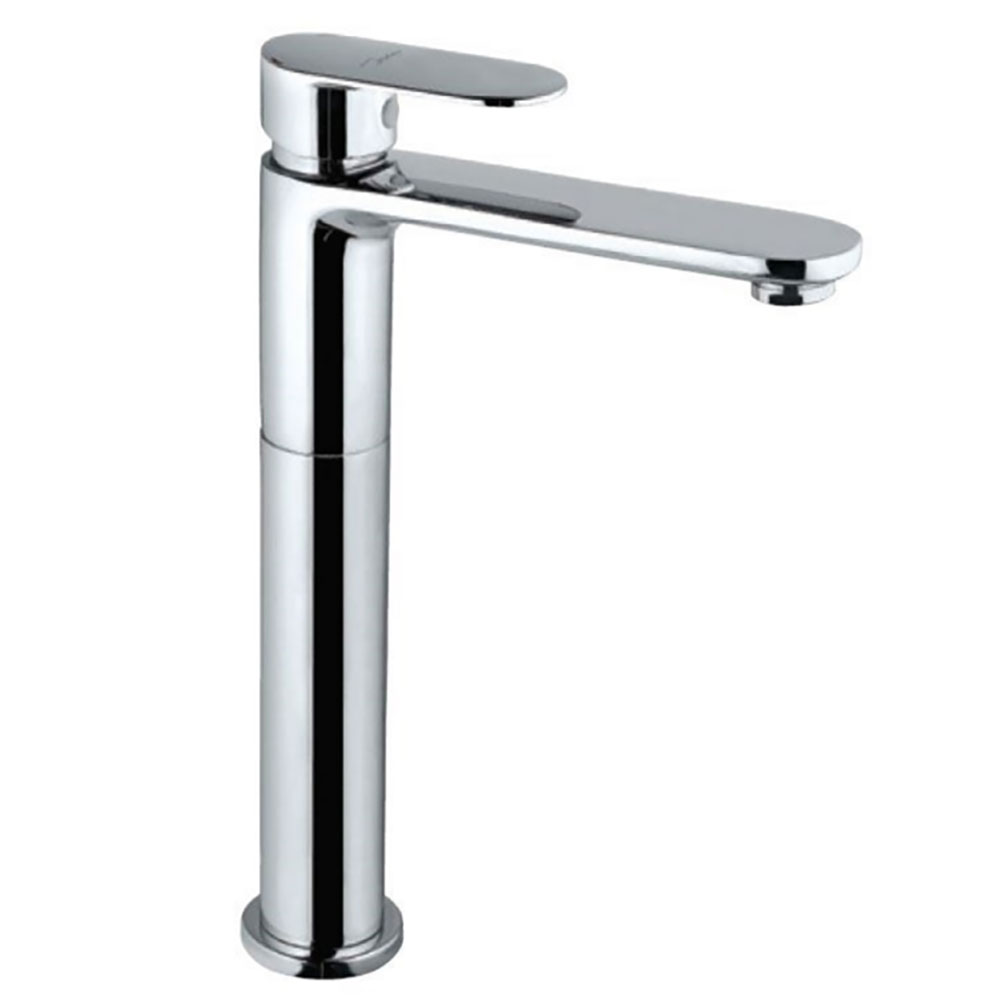

Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

No Rating

Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Technical drawing QS-V114081 / OPP-CHR-15005BPM

Additional image of Jaquar OPP-CHR-15005BPM

Additional image of Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Additional image for QS-V114081 Jaquar - OPP-CHR-15005BPM

Jaquar image

Alternate image of Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Alternate image of Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Alternate image of Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

Alternate image of Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle

QS-V114081 small Image 1

QS-V114081 small Image 2

QS-V114081 small Image 3

Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle small Image 4

OPP-CHR-15005BPM small Image 5

QS-V114081 small Image 6

QS-V114081 small Image 7

QS-V114081 small Image 8

QS-V114081 small Image 9

QS-V114081 small Image 10

£136.01

RRP: ~~£170.00~~

SKU: QS-V114081

Select Finish

Selected: OP-246868 - Chrome

QTY

Shipping: FREE ^* Check Postcodes

Stock Availability:

5 Working Days Approx.

Jaquar Opal Prime Details

MFC: OPP-CHR-15005BPM

Jaquar Opal Prime Deck Mounted High Neck Basin Mixer Tap - 265mm High - Stick Handle.

Key Features

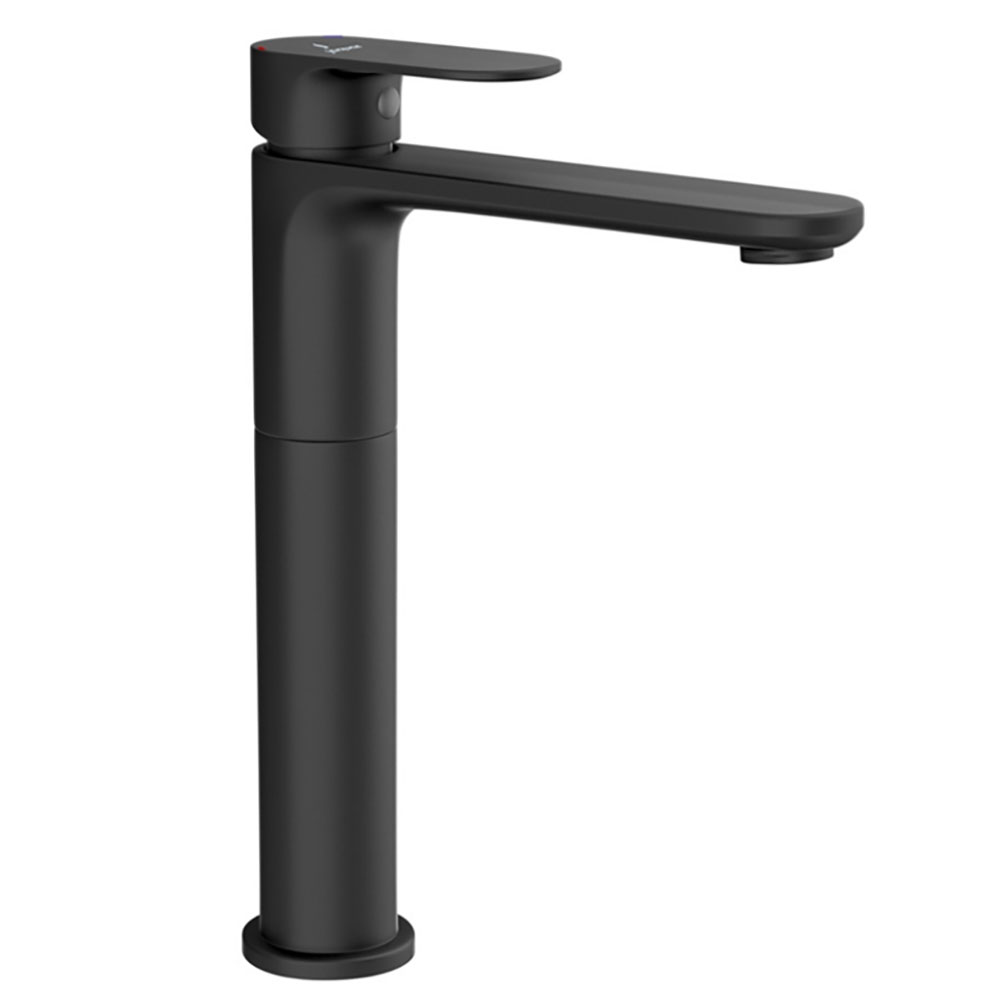

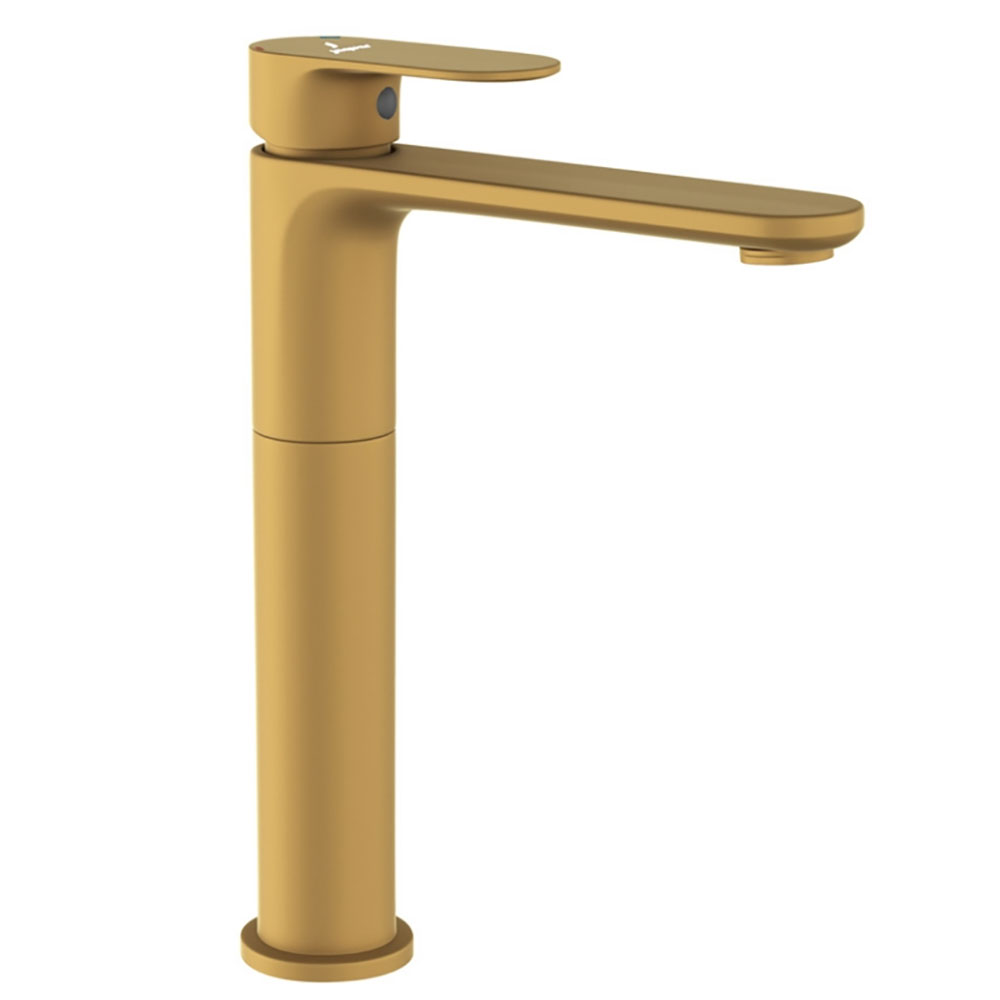

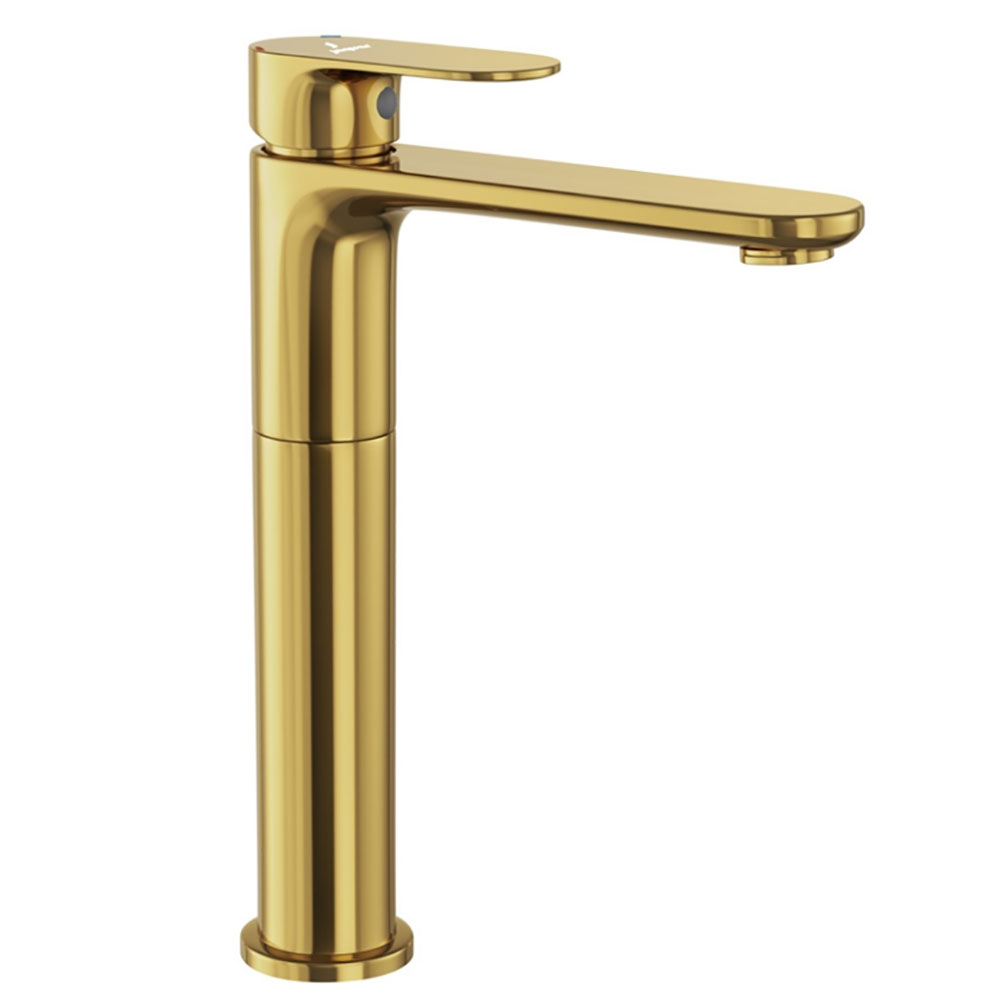

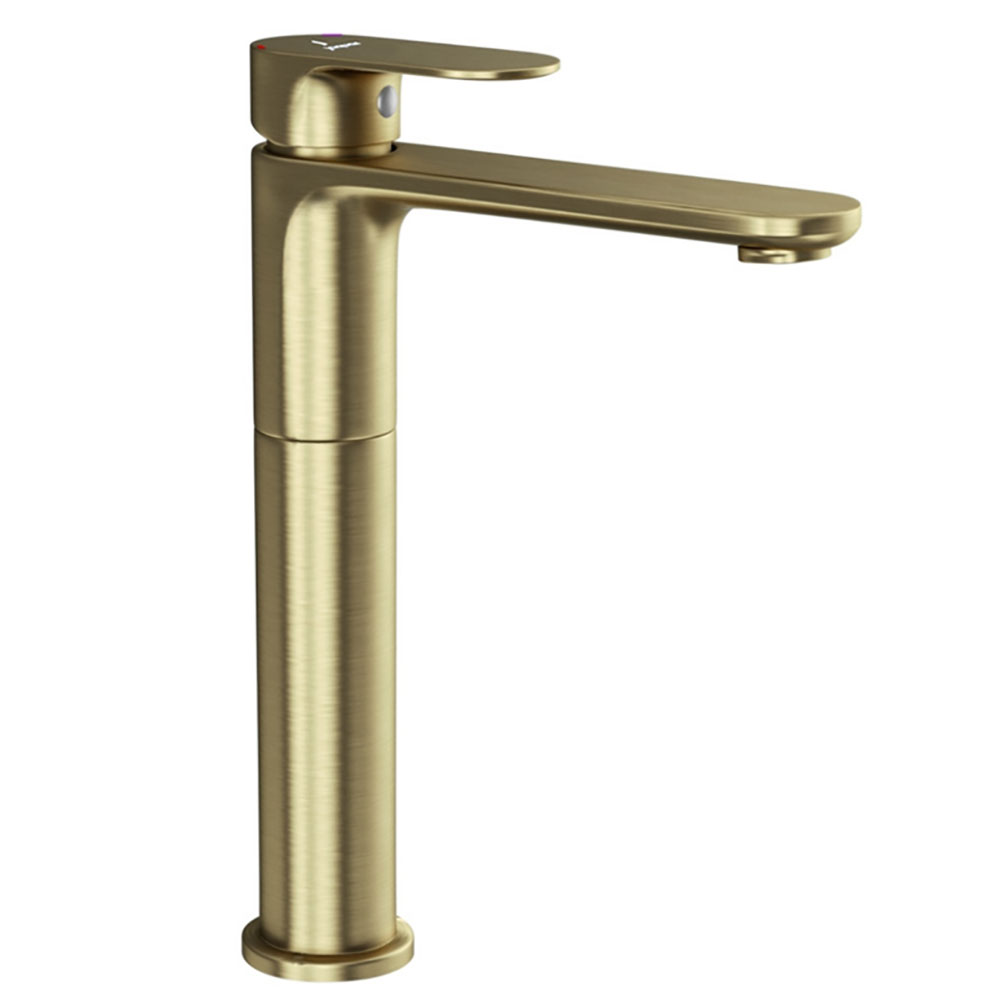

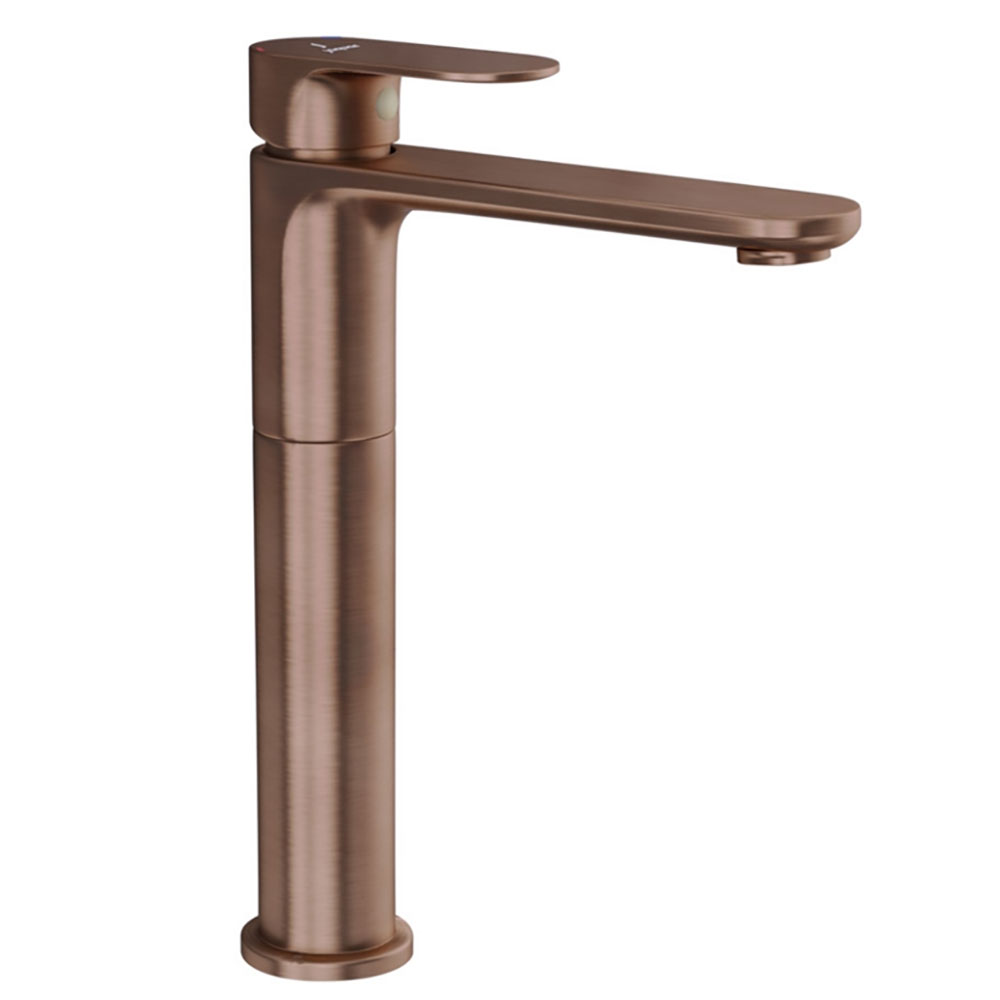

✔Available in 9 exciting finishes [Optional]
✔Suitable for Deck Mount Installation
✔150mm Extension Body
✔1/2 Inch FIP - WRAS Approved

Height: 265mm
Centre of Inlet to Centre of Outlet: 150mm
Base to Spout: 220mm
1/2 Inch BSP Inlet Connection
600mm Long Braided Hoses
Single Lever Operation
Supplied without waste
Maximum Static Pressure: 10 Bar
14.23 Lpm @ 3 bar
Suitable for Low Pressure Water System
Requires minimum 0.5 bar to maximum 5.0 bar operating water pressure
Brass Ingots as per IS:1264-1997
Brass Rod as per IS:319-1989
Brass Sheets as per IS:410-1977
Cartridge with Temperature Limiter
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
2.1 LAC Cycles as per EN 817
10.5 LAC Cycles (ON/OFF)
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
Refer to the Technical Drawing for more technical details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Handle Position
: Centre
⤷ Water Activation
: By Lifting / Tilting
⤷ Range
: Opal Prime
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Cartridge with Temperature Limiter

⤷ Base To Spout
: 220
⤷ Inlet Centres
: 150
⤷ Overall Height
: 265
⤷ Width
: 52
⤷ Inlet Connections
: 1/2 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 14.23 Lpm @ 3 bar
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199986443
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Datasheet Pdf File
