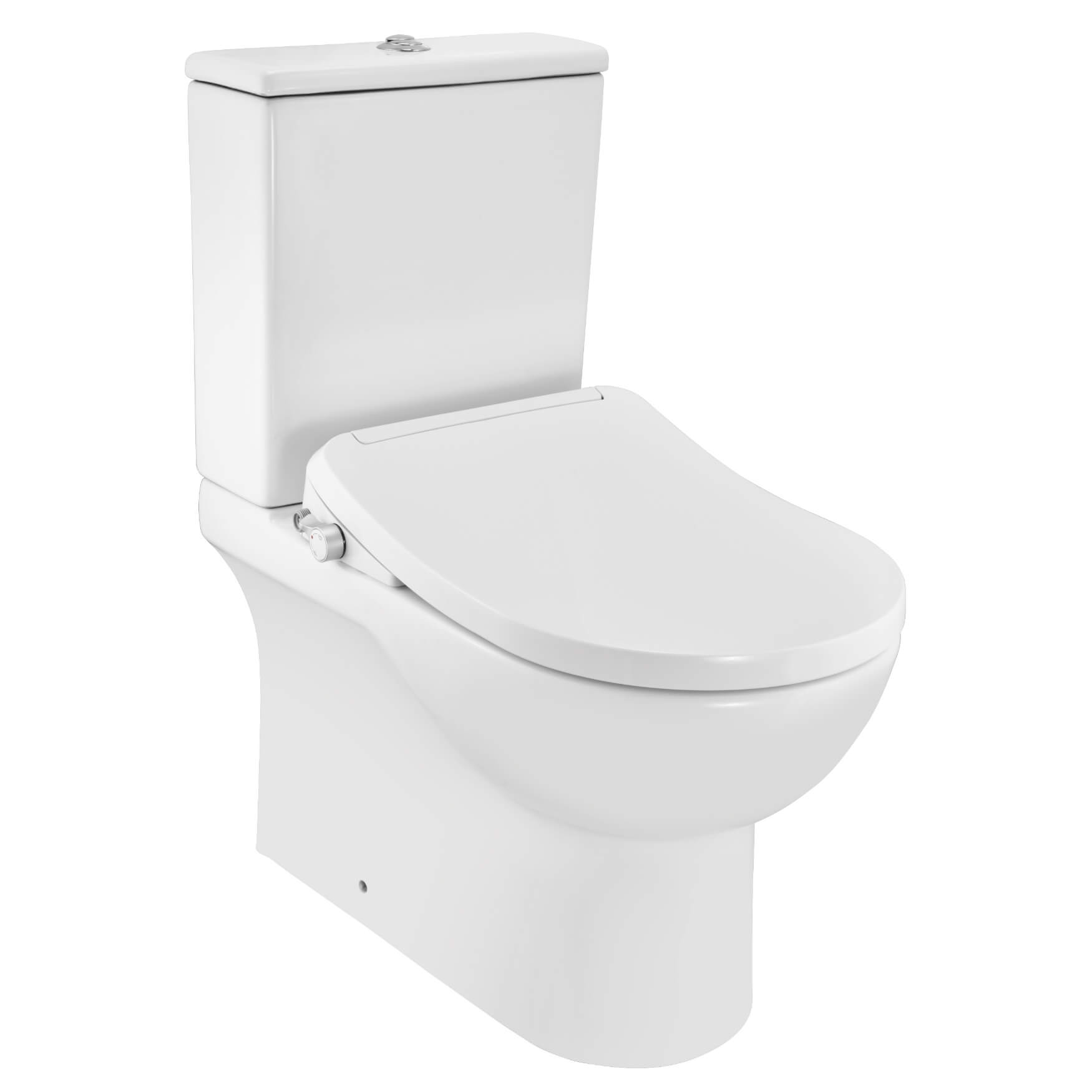

Jaquar Bidspa Closed Coupled White Rimless WC Pan, Cistern, Electronic Seat

Jaquar Bidspa Details

MFC: ITS-WHT-15753NP180PPZ

Jaquar Bidspa Closed Coupled White Rimless WC Pan with Cistern and Electronic PP Seat Cover

Manufacturing Code of this Product: ITS-WHT-15753NP180PPZ
Colour: White
Supplied with Fixing Kit
Size [mm]: 380 x 645 x 805mm [Width x Projection x Height]
Size [cm]: 38 x 64.5 x 80.5cm [Width x Projection x Height]
Weight: 55 kg
Installation Type: Floor Standing
Outlet: Horizontal
Internal Diameter of Inlet Hole: Ø 58 ± 3mm
External Diameter of Outlet Hole: Ø 100 ± 5mm
Trap Distance P-Trap: 180mm
Supplied with Cistern and Cistern Fittings
Refer to the Technical Drawing for Size Details
Features:
Air dryer
Rimless WC
Self-Cleaning
UF Slim Seat Cover
Dual Flushing
Anti-Germ Glaze
Trap Glazed
Half and Full Flush System: 3/6 LPF
Intelligent Seat with the Following Features:
Adjustable Seat Temperature - 33/37°C
Adjustable Water Temperature - 35/38°C
Adjustable Air Temperature - 33/38/43°C
Anti-Bacterial Seat/Nozzle/Ceramic
LED Night Light
Front & Rear Wash Nozzle
Adjustable Water Pressure
Instant Heating Technology
Water Massage Cleaning

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: B
⤷ Range
: Bidspa
⤷ Toilet Design
: Close Coupled
⤷ Colour
: White
⤷ Weight in kg
: 55
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Ceramics, Vitrous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Standing
⤷ Pan Width
: 380
⤷ Pan Height
: 390
⤷ Toilet Overall Height
: 805
⤷ Projection (Depth)
: 645
⤷ Rimless Bowl
: Yes
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 380
⤷ Cistern Height
: 390
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 6

⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan With Cistern and Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Electronic
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Barcode
: 5057199986306
⤷ Bowl Shape
: Oval
⤷ Product Type
: Close Coupled Toilet
⤷ Cistern Depth (projection)
: 130
⤷ Seat Post Hole Centers
: 150
⤷ Front Of Bowl To Centre Of Seat Holes
: 430
⤷ Base width
: 250
⤷ Base Depth (projection)
: 540
⤷ Outlet Diameter
: 100
⤷ Base to centre of outlet
: 180

Additional Info & Downloads

This item can also be found in:

Jaquar Bidspa Closed Coupled White Rimless WC Pan with Cistern and Electronic PP Seat Cover

£694.80

RRP: ~~£868.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Push-Button Flush Valve Cistern

Toilets with push-button flush valves are usually dual-flush toilets. One button triggers a liquid, and the other is for solid flushes. Additionally, since these valves are smaller than levers, they use less water than traditional toilets.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Sanitary Ceramic

Sanitary ceramic material is a type of ceramic used in the manufacture of sanitary ware or bathroom ware. It is mainly composed of ceramic, and is waterproof and durable. Its surface is hard, smooth and non-porous, making it hygienic and easy to clean.

Rimless

A rimless toilet does not have a brim at its edge, from which the water usually flows when you flush. Instead of flowing from the top, such toilets shoot water towards its edge and around it, allowing no missing spots with filth remaining after a flush. These toilets also remove any spaces for germs to hide and breed, providing a hygienic alternative for your bathroom.
