Jaguar Artize VIC Wall Hung Basin with Full Pedestal

Jaguar Artize VIC Wall Hung Basin with Full Pedestal

No Rating

Jaguar Artize VIC Wall Hung Basin with Full Pedestal

Additional image of Jaquar VCS-WHT-503801|VCS-WHT-503301

QS-V110385 small Image 1

QS-V110385 small Image 3

£357.60

RRP: ~~£447.00~~

SKU: QS-V110385

Select Taphole

1 Taphole £357.60
3 Taphole £357.60

Selected: OP-246482 - 1 Taphole

Notify me when available

Shipping: £7.95

Stock Availability:

5 Working Days Approx.

Artize VIC Details

MFC: VCS-WHT-503801|VCS-WHT-503301

Jaguar Artize VIC Wall Hung Basin with Full Pedestal.

Key Features

✔CE-Certified
✔Supplied with Overflow
✔Features an Anti-Germ Glazing
✔Manufactured using Ceramic-FFC Material
✔10-Year Warranty from the Manufacturer

Choice of Variations: 1 Taphole, 3 Taphole
It Comes in a White Finish
Size [mm]: 700 x 510 x 180mm [Width x Depth x Height]
Size [mm]: 70 x 51 x 18cm [Width x Depth x Height]
Overall Height: 840mm [84cm]
Rectangular Shape
Tap Hole Diameter: Ø 35 ± 2 mm
Waste Outlet Hole Diameter: Ø 45 ± 3 mm
Horizontal Distance Between the Centre Line of the Tap Hole and the Centre Line of the Waste Outlet Hole ≤ 150 mm
Outlet: Vertical
Victorian Look and Elegant Design
Includes Overflow Cap, Rag Bolts, Full Pedestal with Floor Fixing Screw
Weight: 15.80kg
Compliance : EN 14688:2015 (E),EN 997 :2012+A1:2015
Refer to the Technical Drawing for Size Details
Waste Shown in the Image is not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: VIC
⤷ Coating
: Anti-Germ
⤷ Colour
: White
⤷ Weight in kg
: 15.80
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Ceramic
⤷ Theme
: Traditional
⤷ Projection (Depth)
: 510
⤷ Width
: 700
⤷ Height
: 180
⤷ Fixings included
: Yes
⤷ Distance between centre holes
: 150
⤷ Inner Bowl Width
: 470
⤷ Inner Bowl Depth
: 330

⤷ Distance rear edge to centre of waste hole
: 180
⤷ Fixing Holes Centre
: 280
⤷ Distance rear edge to centre of tap hole
: 50
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1, 3
⤷ Tap Hole Position
: Center
⤷ Pedestal Included
: Yes
⤷ Pedestal Type
: Full
⤷ Height With Pedestal
: 840
⤷ Overflow Included
: Yes
⤷ Compliance/Approvals/Standard
: CE | EN 14688:2015 (E),EN 997 :2012+A1:2015
⤷ Tap Hole Size
: 35
⤷ Barcode
: 5057199985446
⤷ Product Type
: Large Basin

Additional Info & Downloads

This item can also be found in:

Traditional Basins

Technical Images

Jaguar Artize VIC Wall Hung Basin with Full Pedestal

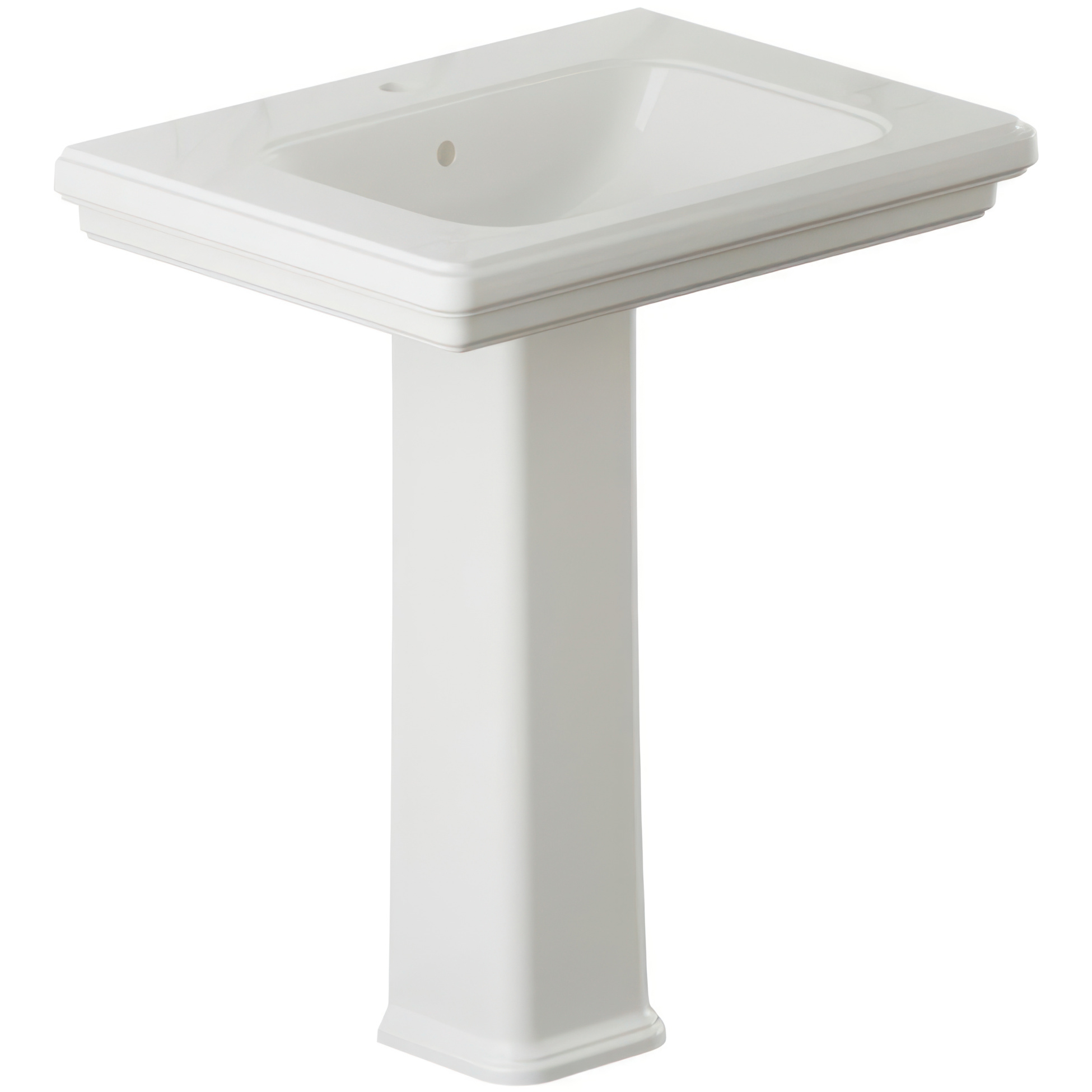

1 TH Basin - Full Pedestal

Jaguar Artize VIC Wall Hung Basin with Full Pedestal

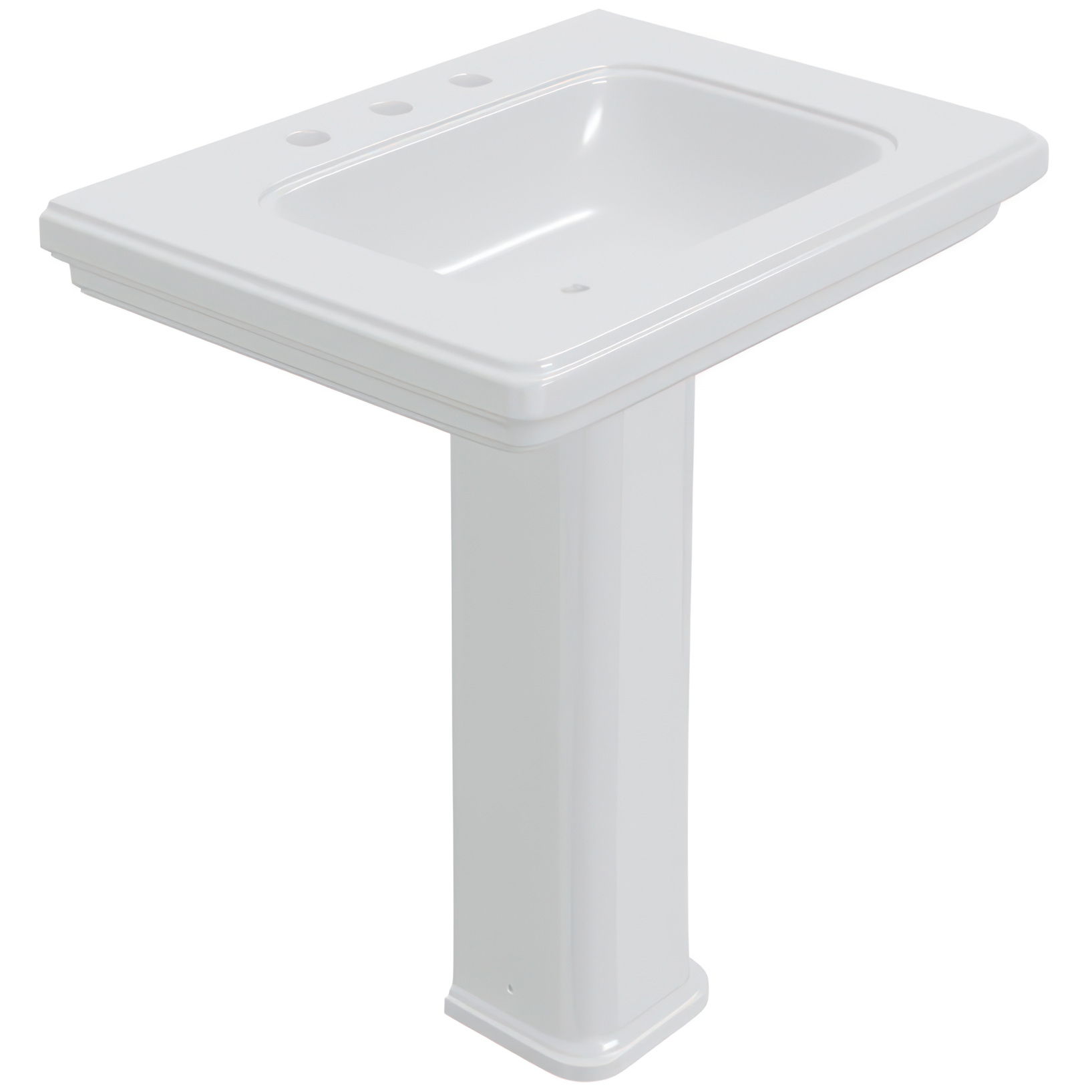

3 TH Basin - Full Pedestal

Jaguar Artize VIC Wall Hung Basin with Full Pedestal
