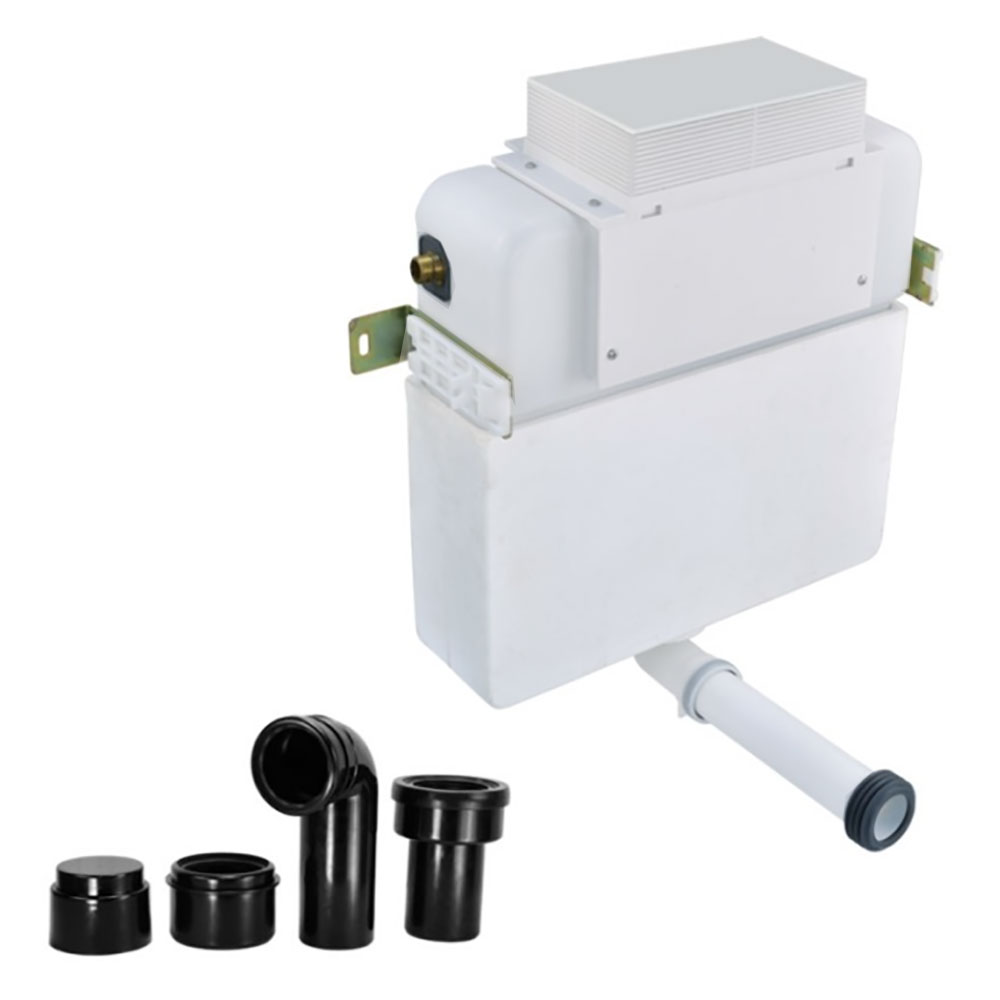

Jaquar In-Wall Single Piece Cistern Body With Installation Kit and Drain Pipe

Jaquar In-Wall Single Piece Cistern Body With Installation Kit and Drain Pipe.

• Size of Cistern: Width 520 x Depth 152 x Height 532mm
• Tank body: Strong 125mm thick High-density polyethylene (HDPE) ‘Single-piece’ body
• Anti-Condensation Lining: Anti condensation lining of 6mm thick wall takes care of temperature change.
• Inlet & Outlet Valves: Inlet valve has a special rotary structure which gives out low noise & anti siphon function
• Both valves (Inlet & outlet) are WARS approved
• Working Pressure: 0.3-10 bar (1.0 to 3.0 bar is recommended with clear, non-aggressive water supply)
• Life Cycles of Mechanism: The lifetime of sea water test and dirty water test have passed 100,000 cycles
• Flush Control Plates: ABS made chrome plated flush control plates
• Water inlet: 1/2" water supply connection from left
• Flush volume: Factory setting 6.0~3.0 litres, Eco adjustable: 4.0~2.0 litres (Only for WC pans designed for low volume flushing)
• Application
• For Front or Top actuation optional
• For masonry walls installation

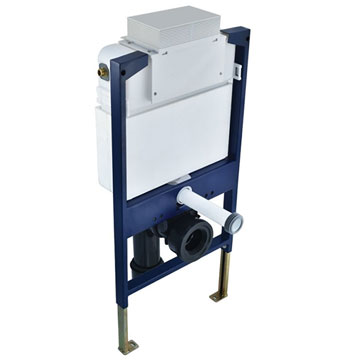

• For installation in part-height prewall installations
• Suitable for use with floor-standing or Wall Hung WCs
• Small or large bathrooms, where space is at a premium, while ease of cleaning and sleek design is a priority
• All common construction systems, in domestic, commercial, industrial and institutional new build or refurbishment projects
• Refer Technical drawing for more technical details.
