Jaquar Alive Deck Mounted Square High Neck Mono Basin Mixer Tap

Jaquar Alive Details

MFC: ALI-CHR-85005B

Jaquar Alive Deck Mounted Square High Neck Mono Basin Mixer Tap - Lever Handle.

Key Features

✔WRAS and ACS Approved (M20X1)
✔600mm Long Braided Hoses
✔Suitable for Medium Pressure Water System
✔Fixed Spout without Pop-Up Waste

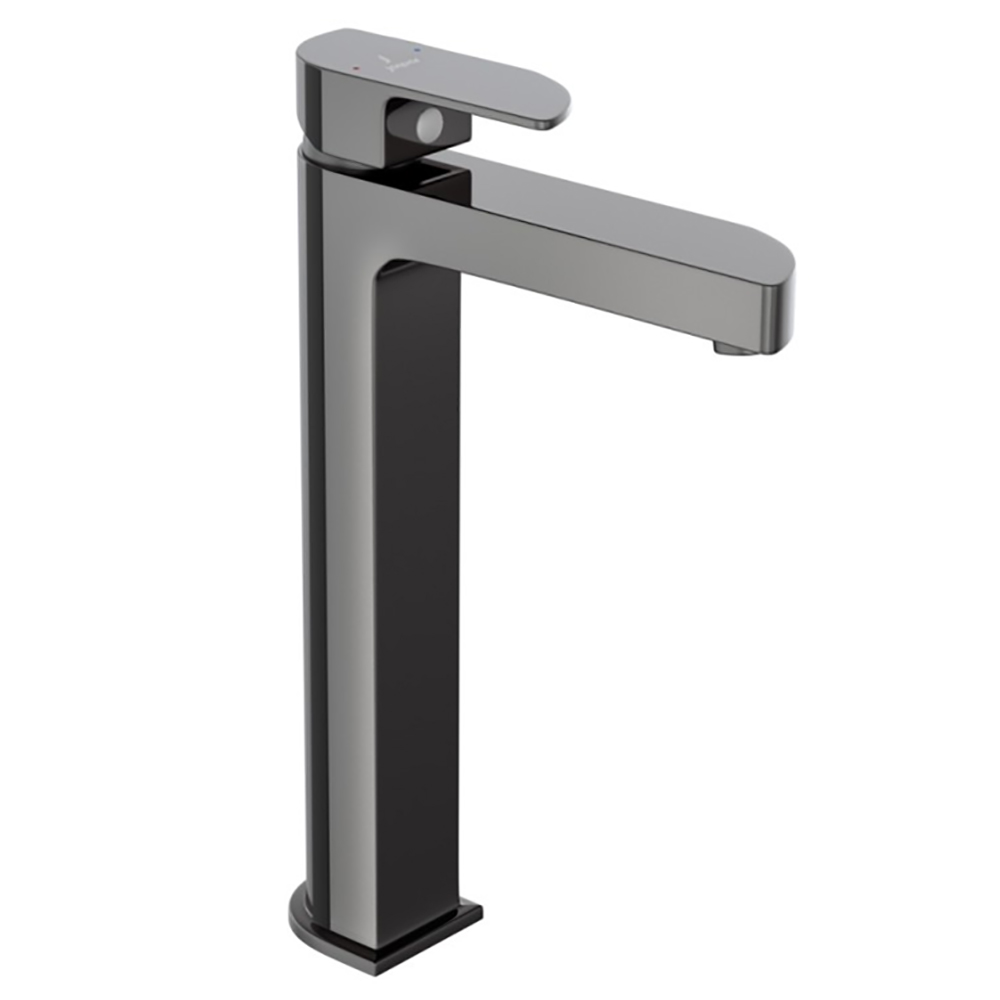

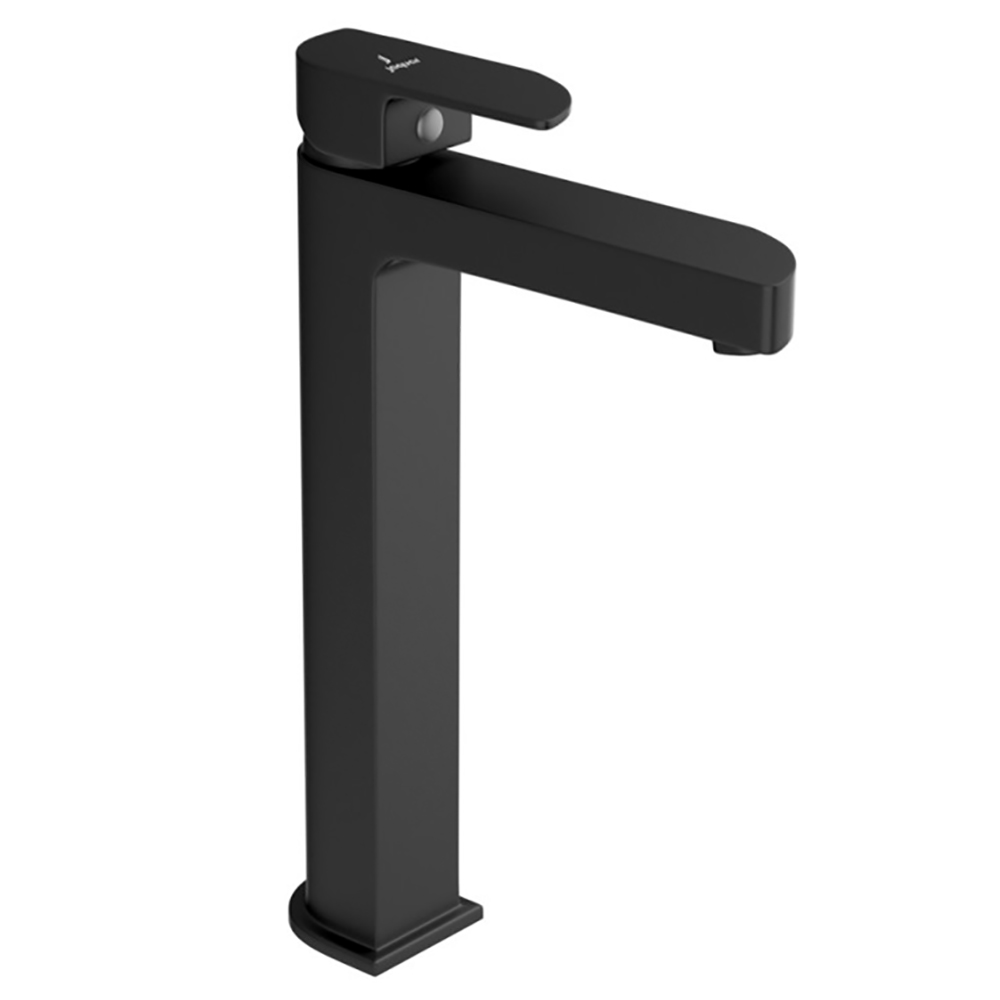

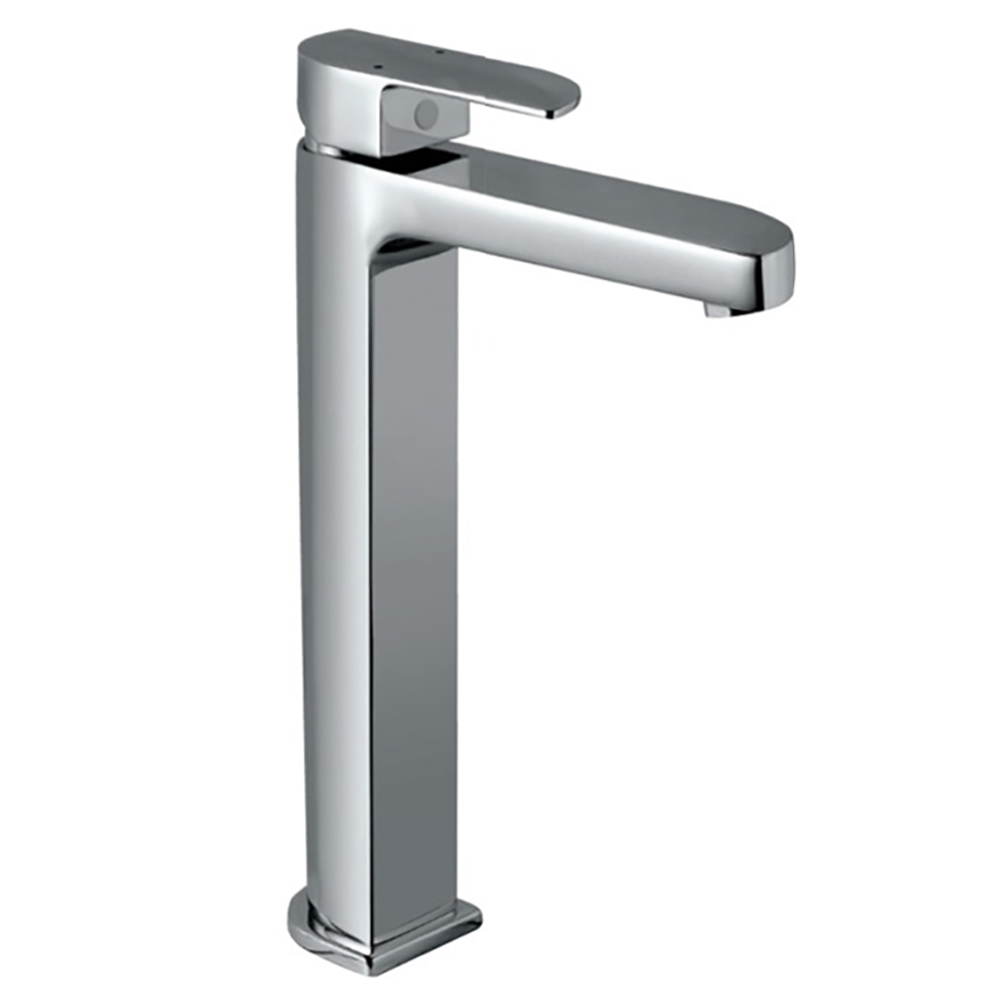

Available Finish: Black Chrome, Black Matt and Chrome[Optional]
Single Lever Control
1/2” FIP (WRAS Approved)
Height: 275mm
Centre of Inlet to centre of outlet is 140mm
Base to Spout: 220mm
Requires a minimum 0.5 bar to a maximum 5.0 bar operating water pressure
125mm Extension Body
Brass Ingots as per IS:1264-1997
Brass Rod as per IS:319-1989
Brass Sheets as per IS:410-1977
NSF-61 Approved Cartridge with Temperature Limiter
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
2.1 LAC Cycles as per EN 817*
10.5 LAC Cycles (ON/OFF)*
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
1/2" BSP Inlet Connection
Refer to the technical drawing for More technical details
Download Customer Datasheet PDF from the Additional Info & Download section

Please Note: * As per in-house testing done on automatic life cycle testing machine made by Giussain, Italy

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Alive
⤷ Water Activation
: By Lifting / Tilting
⤷ Handle Position
: Centre
⤷ Tap Body Shape
: Square
⤷ Colour
: Chrome
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: NSF-61 - Cartridge with Temperature Limiter
⤷ Overall Height
: 275
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 12.34 LPM @ 3 bar
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199984074
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Datasheet Pdf File

Jaquar Alive Deck Mounted Square High Neck Mono Basin Mixer Tap - Lever Handle

£165.60

RRP: ~~£220.00~~

STOCK AVAILABLITY: 3-4 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
