Vado Irlo Mini Monobloc Basin Mixer Tap with Push Basin Waste, AX-IRO-100M/CC-CP

Vado Irlo Details

MFC: AX-IRO-100M/CC-CP

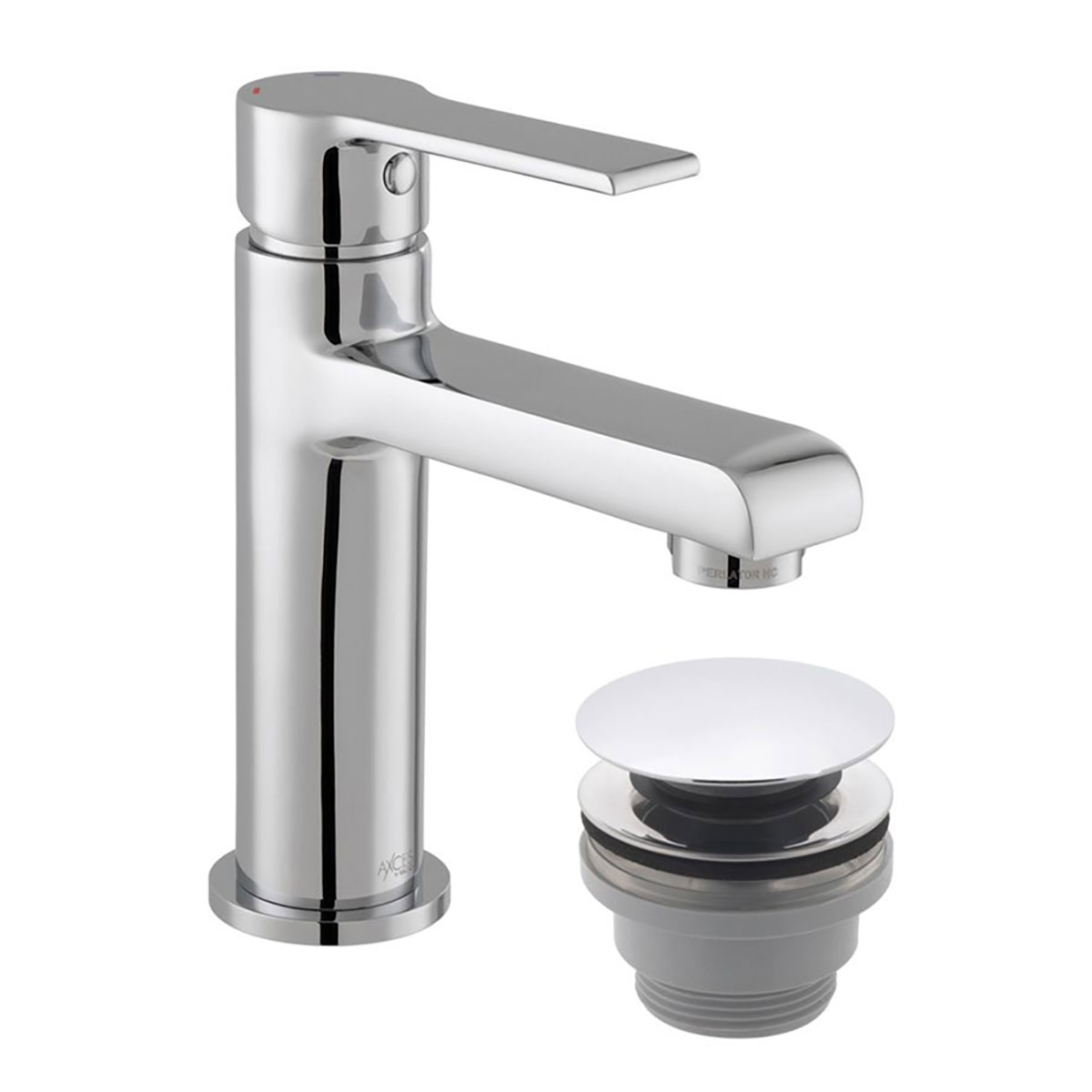

Vado Irlo Deck Mounted Chrome Mini Monobloc Basin Mixer Tap with Push Basin Waste - Lever Handle.

Height: 158mm
Base width: 46mm
Centre of inlet to centre of outlet: 99mm
Spout Reach: 133mm
Gravity System, Pumped System, Combination Boiler, Pressurised System
Single lever control
Ideal for Deck Mounted Installation
Suitable for Medium Pressure water system
Requires minimum 0.5 bar and Maximum 5.0 bar operating water pressure
2 x 1/2” nut x 400mm flexi-pipe connections
Ceramic Cartridge ION-100M-CAR
Deck hole drill diameter: 32mm

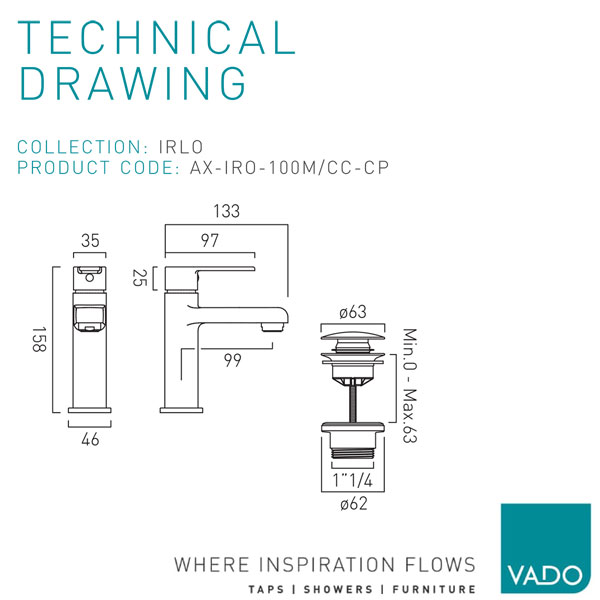

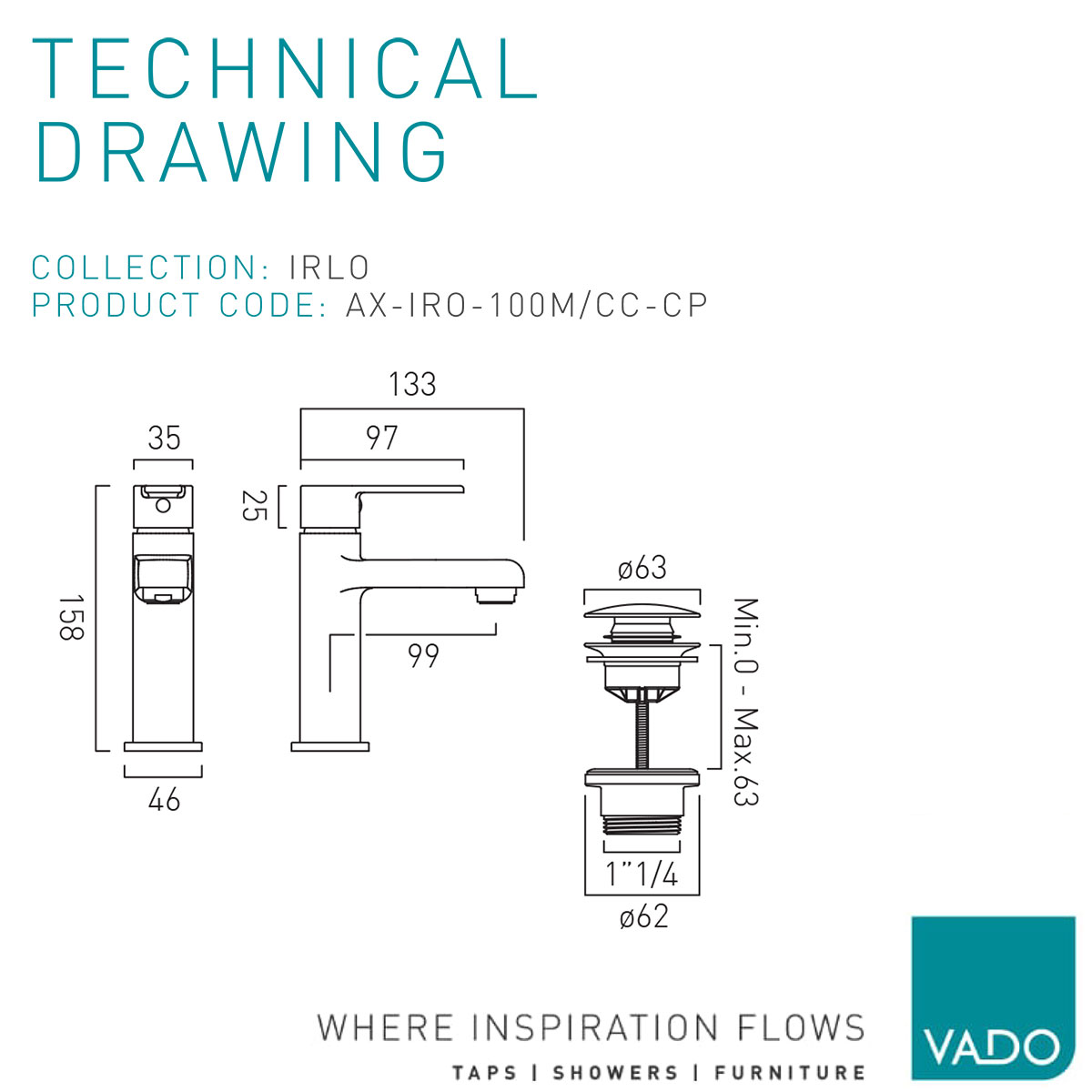

Refer Technical drawing for more technical details
10- Years guarantee against any Mnaufacturing defects

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Handle Position
: Centre
⤷ Range
: Irlo
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: Ceramic Cartridge ION-100M-CAR
⤷ Spout Reach
: 133

⤷ Inlet Centres
: 99
⤷ Overall Height
: 158
⤷ Width
: 46
⤷ Spout Deck Mount Drill Hole Diameter
: 32
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Waste Type
: Push Basin Waste
⤷ Diameter of Waste Connection
: 63
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120236352
⤷ Product Type
: Basin Mixer Tap
⤷ Warranty/Guarantee
: 10-Years

Additional Info & Downloads

Download the Installation Instructions Pdf File Download the Customer Datasheet Pdf File

This item can also be found in:

Vado Irlo Deck Mounted Chrome Mini Monobloc Basin Mixer Tap with Push Basin Waste - Lever Handle

£78.00

RRP: ~~£130.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.
