Vado Axces Ava Contemporary Chrome Mono Basin Mixer Tap, Push Waste

Vado Ava Details

MFC: AX-AVA-100/CC-CP

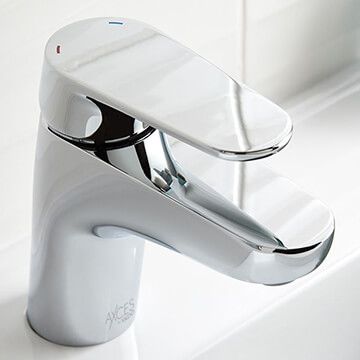

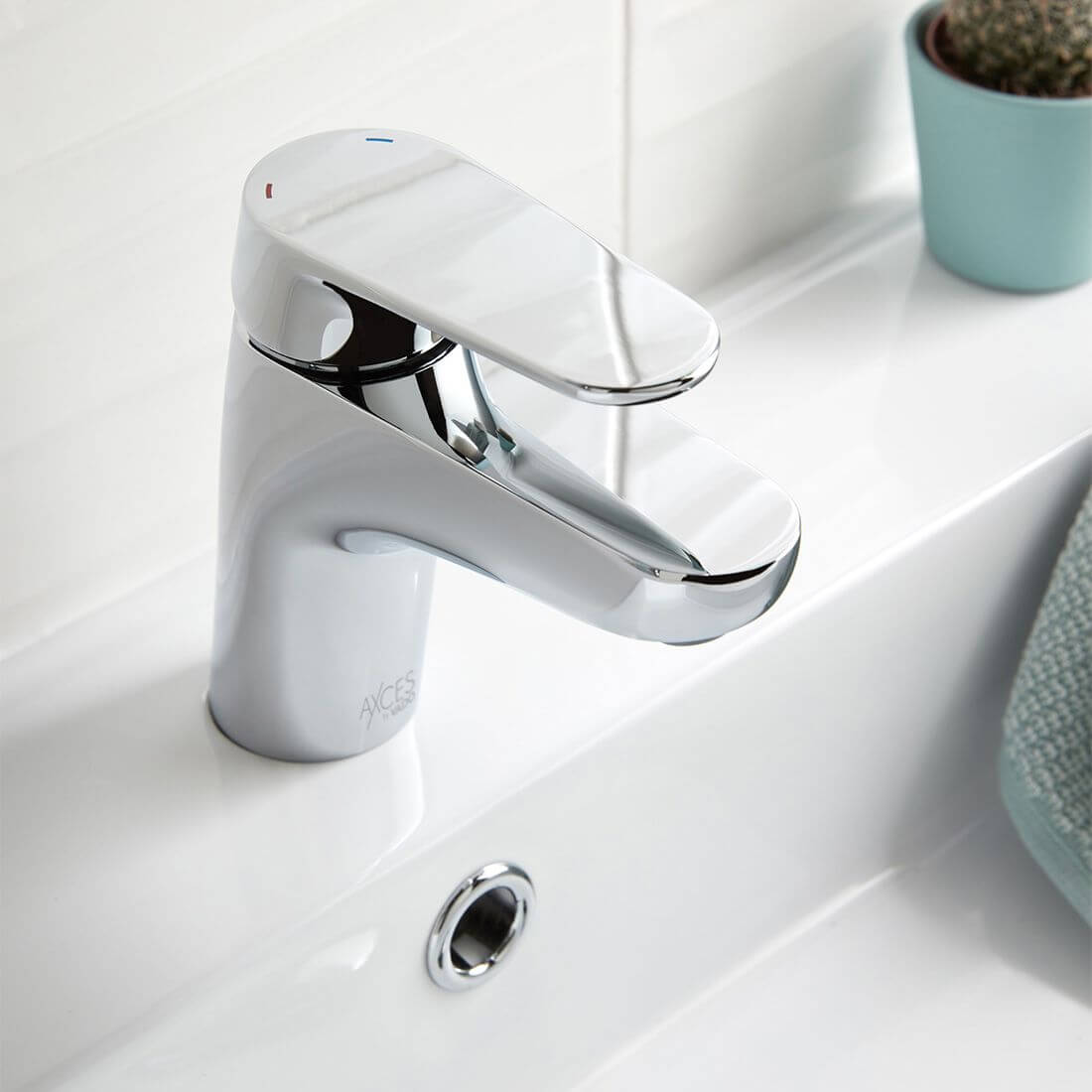

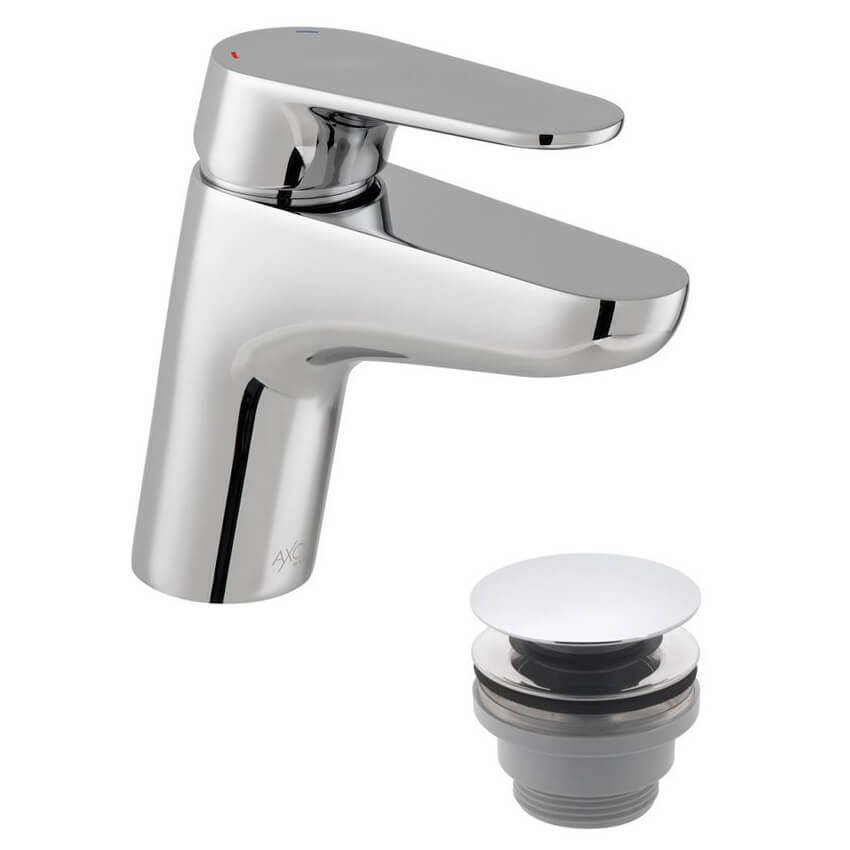

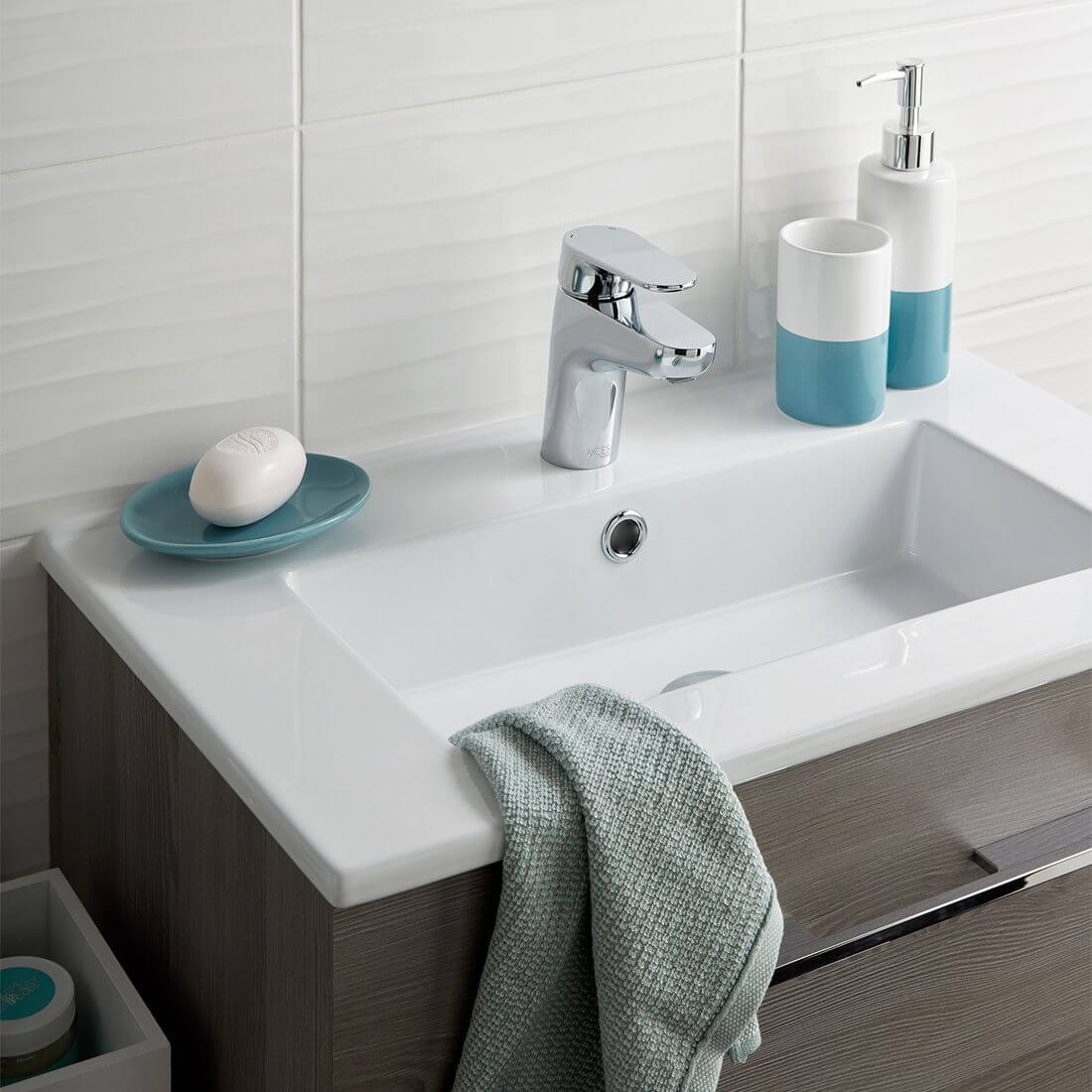

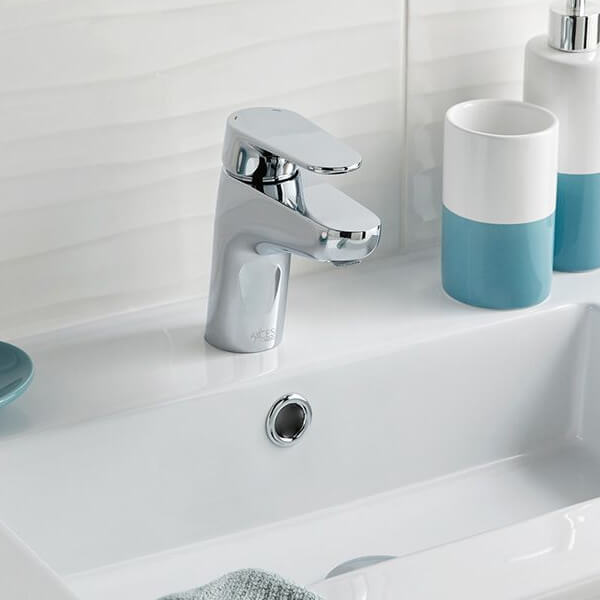

Vado Axces Ava Contemporary Chrome Mono Basin Mixer Tap with Push Waste - Flat Handle

Manufacturing Code of this Product: AX-AVA-100/CC-CP
It Comes in a Chrome Finish
Handles: 1 Handle
Holes: 1 Holes
Size [mm]: 45 x 135mm [Width x Height]
Size [cm]: 4.5 x 13.5cm [Width x Height]
Base to Spout: 82mm [8.2cm]
Centre of the Inlet to Centre of the Outlet: 111mm [11.1cm]
Mounting: Deck Mounted
Suitable for Low and High Water Pressure Systems
Works On a Minimum 0.2 Bar to 5.0 Bar Water Pressure System
Connections/Fittings: 2 x 1/2 Inch Nut x 400mm flexi pipe Connections
Plumbing System Suitability: Gravity System, Pumped System, Combination Boiler, Pressurised System

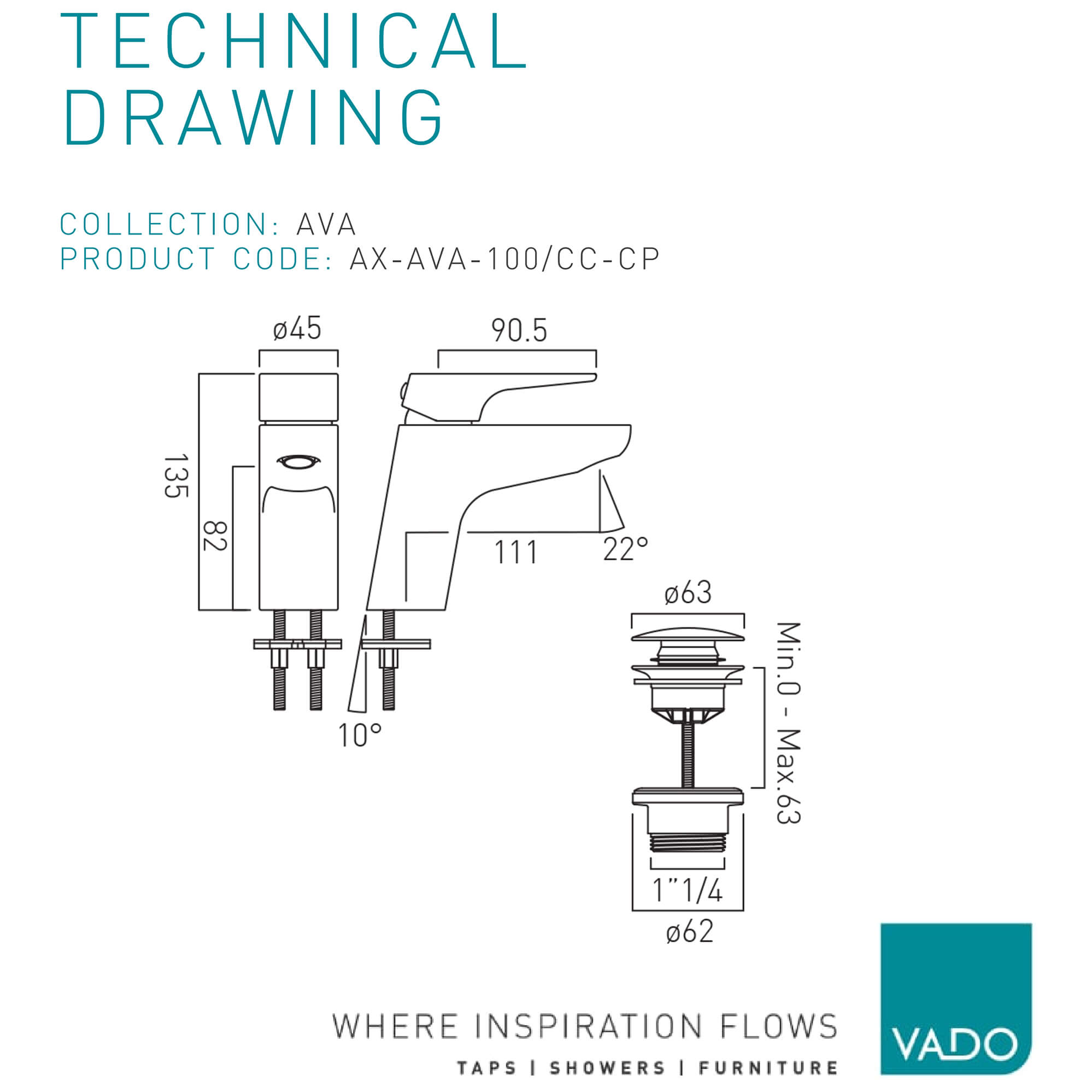

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axces
⤷ Water Activation
: By Lifting/Tilting
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Base To Spout
: 82
⤷ Spout Reach
: 111

⤷ Overall Height
: 135
⤷ Width
: 45
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Universal Push Waste
⤷ Diameter of Waste Connection
: Ø63
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Waste Included
: Yes
⤷ Barcode
: 5052120235454
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

This item can also be found in:

Vado Axces Ava Contemporary Chrome Mono Basin Mixer Tap with Push Waste - Flat Handle

£84.00

RRP: ~~£140.00~~

Stock Availablity: 3-4 Working Days Approx

QS Supplies

6 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Push Button Basin Waste

It is the perfect choice for many sink designs because of its ease of use and efficiency. The sink drain gets blocked by simply pushing the central button, allowing the water to fill in the sink. Once you are done, the water can be drained by releasing the same.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Neoperl Aerator

Neoperl aerators control the flow stream's straightness and diameter while reducing splashes by adding air to the stream. This effectively saves water and, thereby, water bills. It is compliant with local plumbing standards and codes.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
