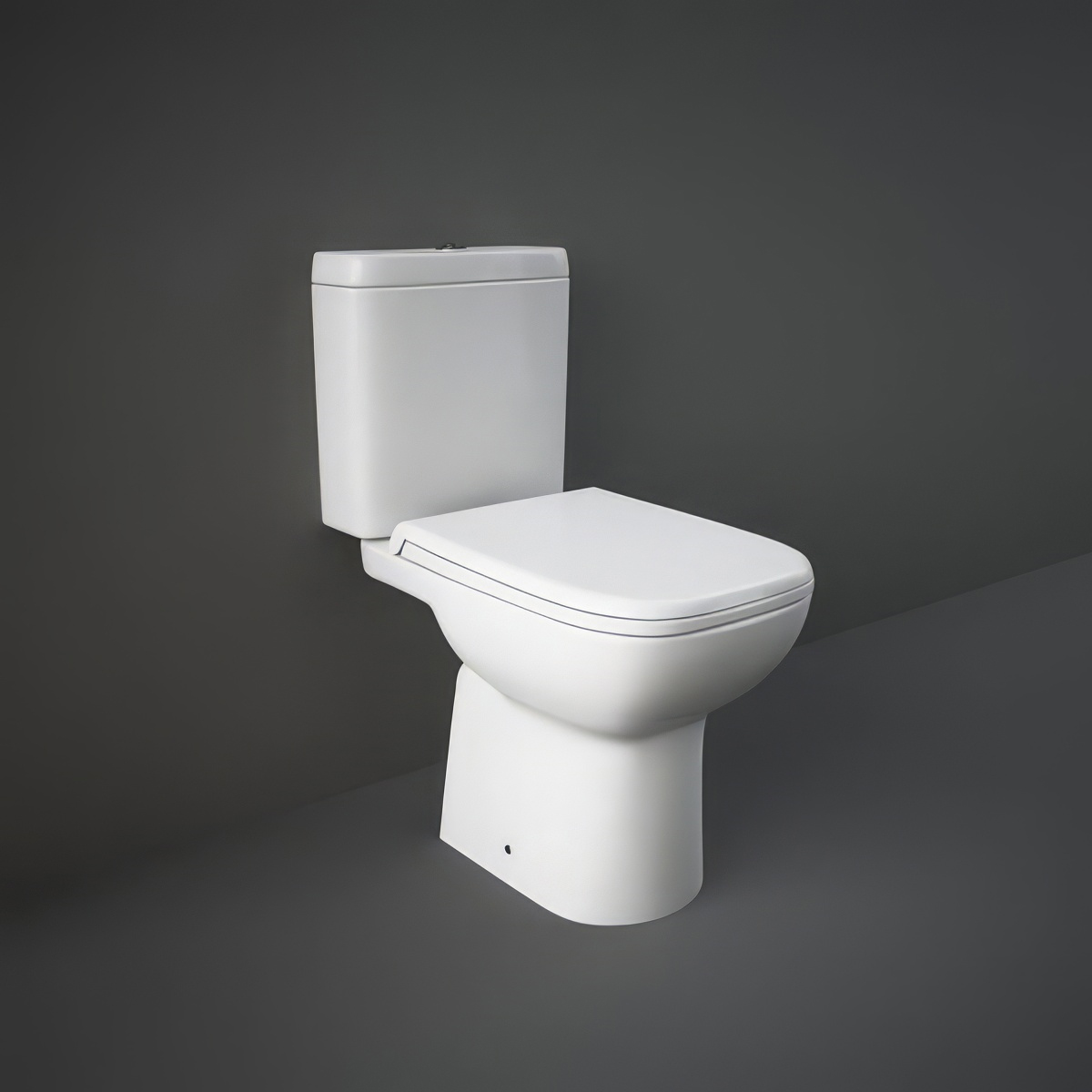

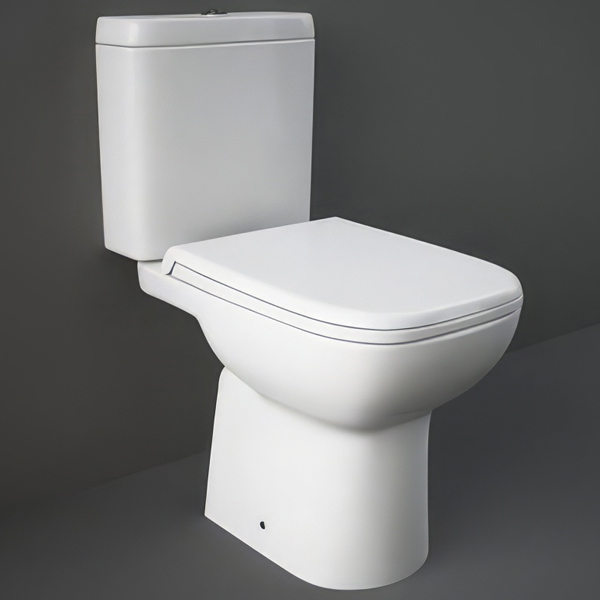

RAK Origin 360 x 620mm Full Access Close Coupled WC Pan With Cistern And Soft-Close Seat

RAK Origin Details

MFC: ORG11AWHA|ORG10AWHA|ORI62DLSC

RAK Origin 360 x 620mm Full Access Close Coupled WC Pan With Cistern And Soft-Close Seat.

The Manufacturing Code of this Product is ORG11AWHA|ORG10AWHA|ORI62DLSC
Includes Pan, Cistern, and Quick-Release Soft-Close Seat
It Comes in an Alpine White Finish
Overall Size [mm]: 360 x 760mm [Width x Height]
Overall Size [cm]: 36 x 76cm [Width x Height]
Projection (Depth): 620mm (62cm)
Seat [Optional]
2-Year Guarantee for Toilet Seat from the Rak
Refer to the Technical drawing for more technical details
Details For Pan:
Size [mm]: 360 x 400mm [Width x Height]
Size [cm]: 36 x 40cm [Width x Height]
Close-Coupled Toilet with Horizontal Pipe Outlet
Trap Style: P-rap
Trapway Type: Concealed
Details For Cistern:
Size [mm]: 130 x 355mm [Depth x Height]
Size [cm]: 13 x 35.5cm [Depth x Height]
3/6 Litre Dual Flush Cistern with Push Button

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Open Back Toilet
⤷ Range
: Origin
⤷ Coating
: Without Coating
⤷ Colour
: Alpine White
⤷ Weight in kg
: 31
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 360
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 760
⤷ Projection (Depth)
: 620
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 360
⤷ Cistern Height
: 355
⤷ Flush Type
: Dual Flush

⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan | Cistern | Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft-Close
⤷ Seat Finish
: White
⤷ Barcode
: 5056176002206
⤷ Bowl Shape
: Rectangular
⤷ Product Type
: Close Coupled Toilet
⤷ Cistern Depth (projection)
: 130
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 435
⤷ Base width
: 235
⤷ Base Depth (projection)
: 335
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Add-Ons

Optional Toilet-Seat

Compatible seat available; choose as per your choice from the option given below. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-226838 - Soft Close Quick Release Polypropylene Seat - ORI62SEATSC + £77.76

RAK Origin 360 x 620mm Full Access Close Coupled WC Pan With Cistern And Soft-Close Seat

£164.69

RRP: ~~£383.99~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.
