Ideal Standard Tesi Built-In Chrome Basin Mixer Tap, Backplate, Flat Handle

Ideal Standard Tesi Details

MFC: A6578AA|A5948NU

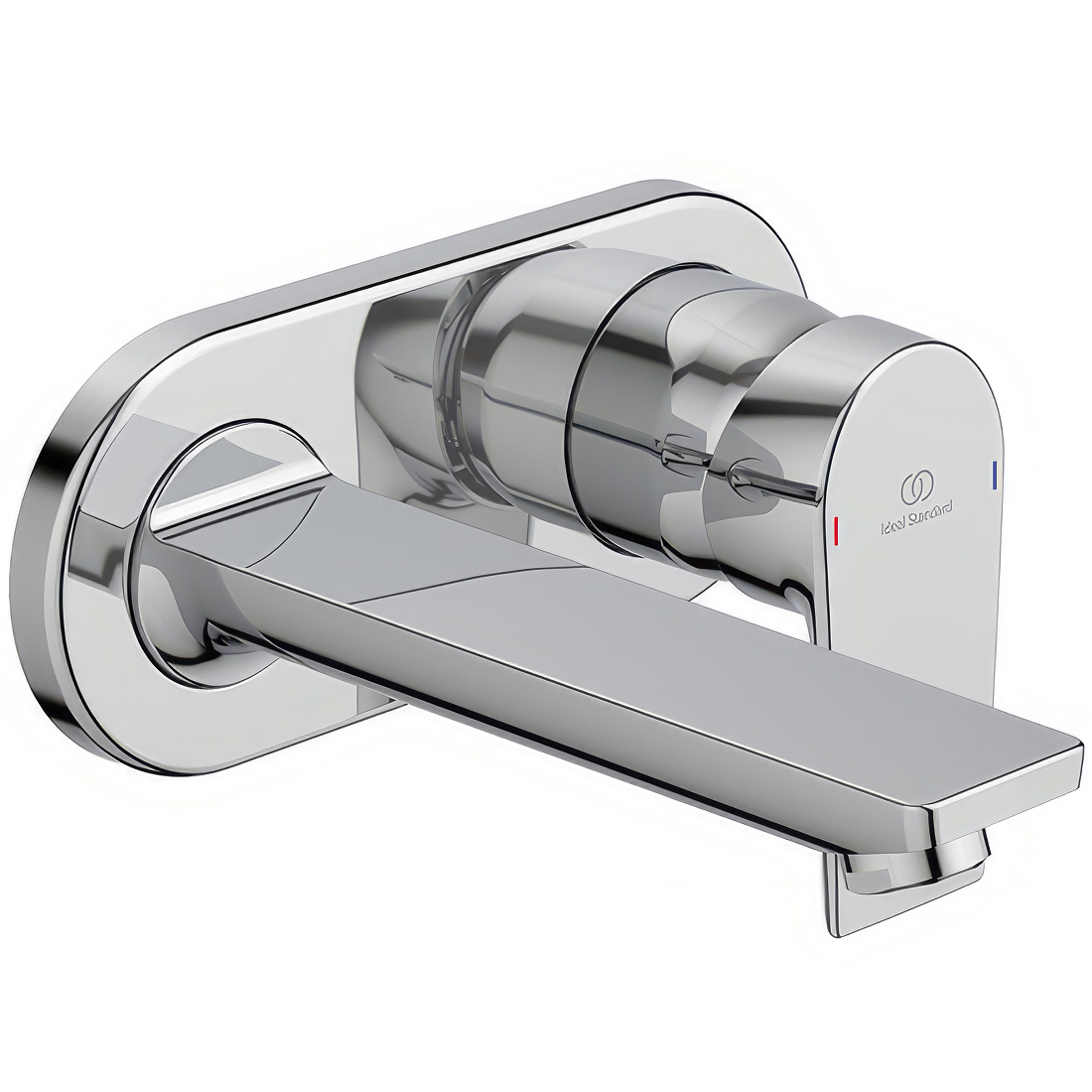

Ideal Standard Tesi Built-In Chrome Basin Mixer Tap with Backplate - Flat Lever Handle - Wall Mounted.

The Manufacturing Code of the Product is A6578AA|A5948NU
Manufactured using High-Quality Brass Material
It comes in a Chrome Finish

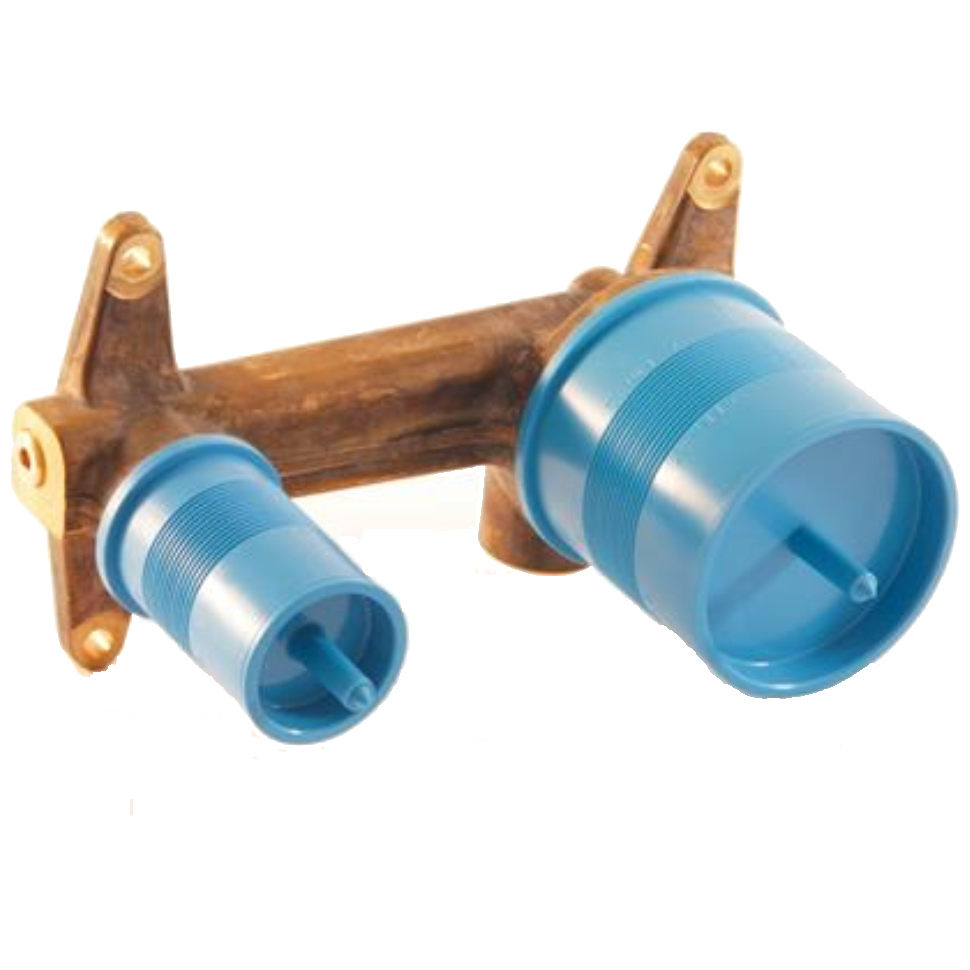

Concealed Wall-Mounted Installation
Size [mm]: 193 x 192 x 83mm [Width x Projection x Height]
Size [cm]: 19.3 x 19.2 x 8.3cm [Width x Projection x Height]
Centre of the Inlet to the Centre of the Outlet: 173mm (17.3cm)
Inlet Centres: 110mm (11cm)
Inlets with Flexible Hoses and 15mm Compression Connection
Max Temperature Limiter Function Can be Set to Avoid Accidental Scalding
For Domestic and Commercial Use
Standards: BS EN817
Factory Fitted with Removable 5 Litres Per Minute Eco Flow Regulator [To Save Water on High-Pressure Hot Water Systems] and 47mm Ceramic Disc Cartridge
Water and Energy Saving
Frequently used in Hotels, Residential, Retail, Social Housing, Student Accommodation, Sports and Leisure Applications
Refer to the Technical Drawing For Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Right
⤷ Range
: Tesi
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: 47mm Ceramic Cartridge
⤷ Spout Reach
: 173
⤷ Width
: 193
⤷ Inlet Connections
: G1/2-Inch
⤷ Water Saving
: Yes
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Compliance/Approvals/Standard
: BS EN817
⤷ Barcode
: 4015413338424
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Ideal Standard Tesi Built-In Chrome Basin Mixer Tap with Backplate - Flat Lever Handle - Wall Mounted

£373.32

RRP: ~~£466.66~~

Stock Availablity: 5 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Balanced Supplies

Balanced supplies in a mixer tap mean the hot and cold water inputs have consistent pressures and temperatures. Maintaining these constants is critical to keep the mixer work at its top form and give a controlled and comfortable flow blended to the required temperature.

Eco Flow Regulator

Water is a precious resource. Save water with Eco Flow. Our Eco Flow regulator reduces the water consumption down to 5L/min, without compromising on comfort.
