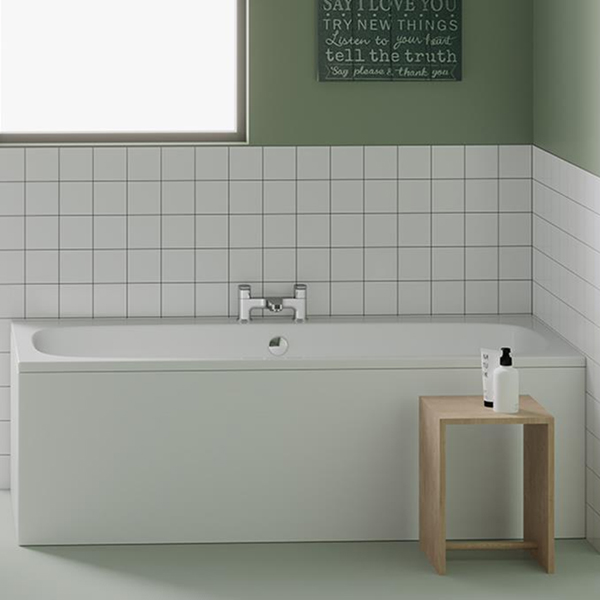

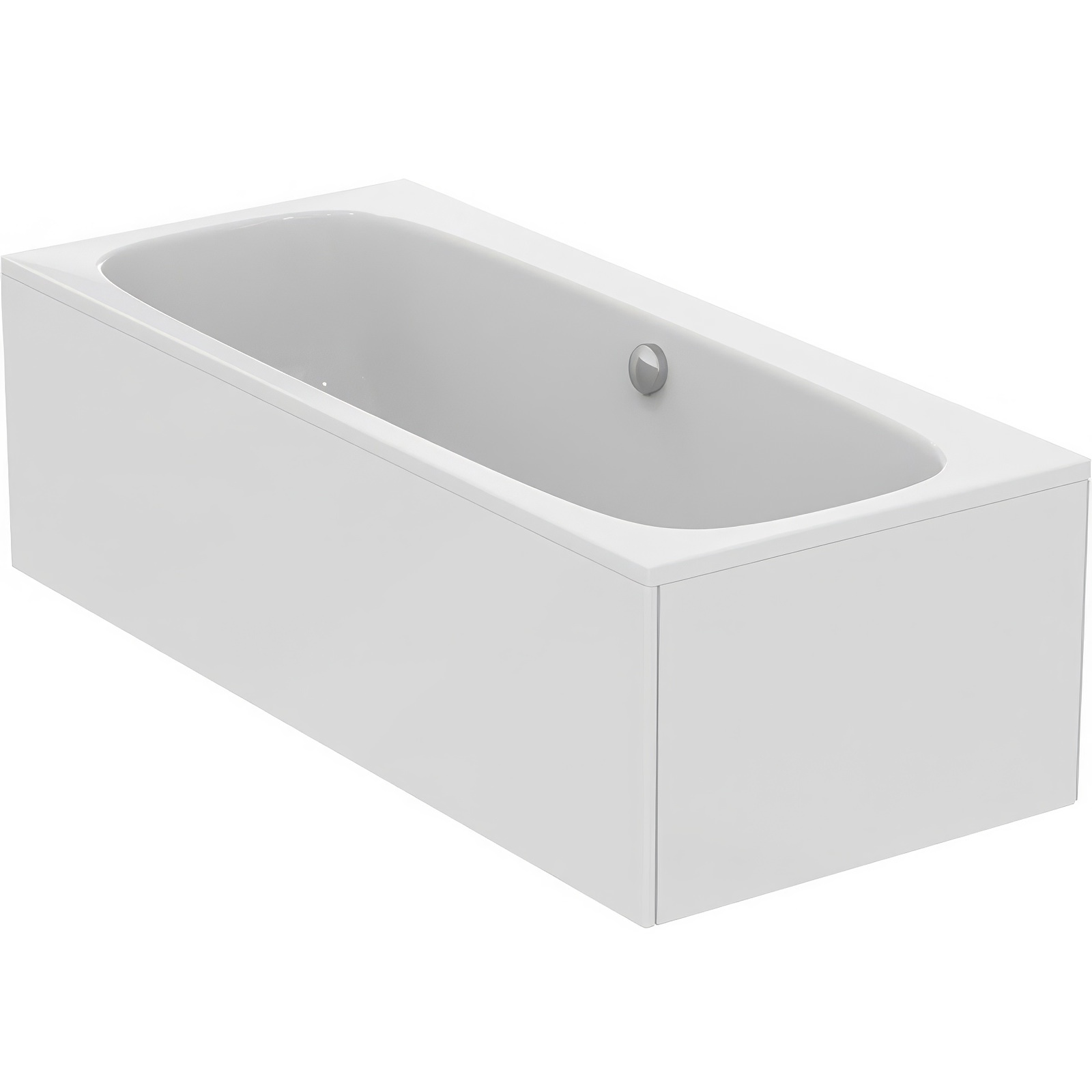

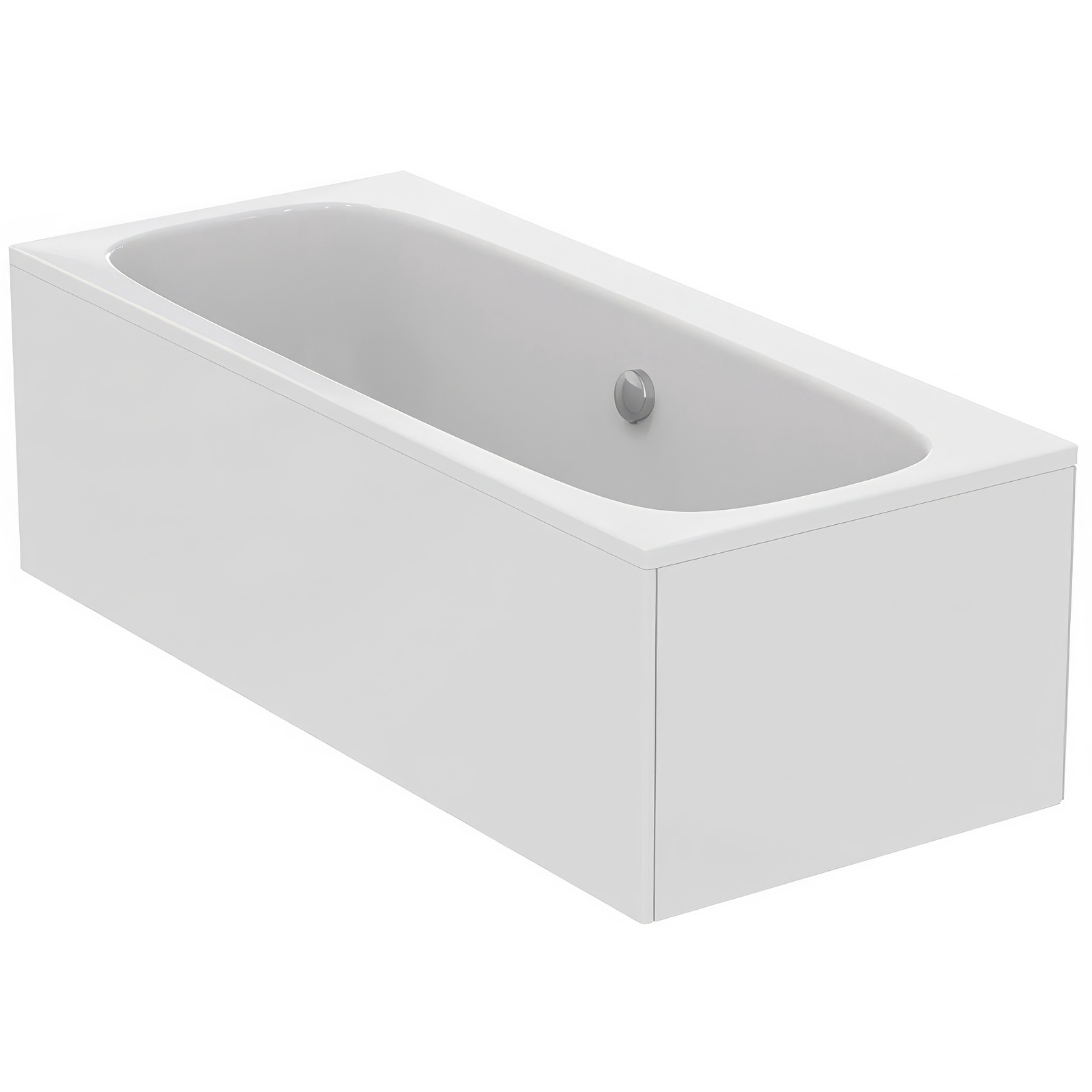

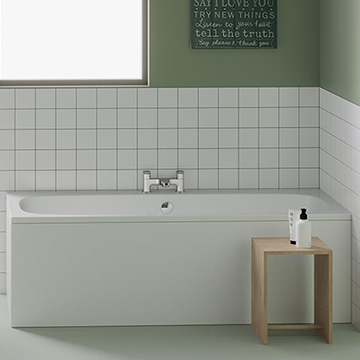

Ideal Standard I-Life White Double-Ended Idealform Bath

Ideal Standard I-Life Details

MFC: T477601

Ideal Standard I-Life White Double-Ended Idealform Bath.

Key Features

✔Detergent and Light-Resistant
✔Standards: EN 198:2008. EN 14516
✔Made Using Idealform Acrylic Material
✔25-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Sizes: 1700 x 750mm and 1800 x 800mm
It Comes in a White Finish
Overflow Included
Part of an extensive Range
Supplied no Taphole for Maximum Flexibility
Overall Height is 540mm [54cm] [Floor to Rim]
Domestic and Hotel Use
Bath Front and End Panel [Optional]
Waste and Trap [Optional]
Panel Fixing Kit [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Detail Of 1700 x 750mm:
Size [mm]: 1695 x 745 x 410mm [Length x Width x Depth]
Size [cm]: 169.5 x 74.5 x 41cm [Length x Width x Depth]
Capacity: 187 Litres
Weight: 20 Kg
Water Saving Bath Capacity: 139 Litres
Detail Of 1800 x 800mm:
Size [mm]: 1795 x 795 x 410mm [Length x Width x Depth]
Size [cm]: 179.5 x 79.5 x 41cm [Length x Width x Depth]
Capacity: 221.0 Litres
Weight: 24 Kg
Waste and Overflow Shown in the Image are not Included - Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Centre
⤷ Range
: I-Life
⤷ Bath Type
: Standard
⤷ External Length
: 1700
⤷ External Width
: 750
⤷ Tub Depth
: 390 | 410
⤷ Height Including Feet or Panel
: 540
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1035
⤷ Internal Bottom Width
: 445
⤷ Height of Rim
: 30

⤷ Distance Tub edge to centre of drain hole
: 355
⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Rim Width
: 70 | 130
⤷ Weight in kg
: 20
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 187
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Idealform Acrylic
⤷ No. of Bathers
: 2
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Barcode
: 8014140488521

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Bath Panel

White Finish Bath Panel. Please Note: The image shown is for illustration purposes only.

OP-57529 - Unilux 750mm End Panel - E319501 + £56.22
OP-57557 - Unilux Plus 800mm End Panel - E483301 + £66.01
OP-57514 - Unilux 1700mm Front Panel - E319401 + £95.23
OP-57556 - Unilux Plus 1800mm Front Panel - E479801 + £128.12

Optional Trap

Space saving trap and waste pipe assembly for use with furniture basin units. Please Note: Image shown is for illustration purpose only.

OP-204193 - Trap 1A½ Plastic P With 75mm Seal + £28.12

Compatible Bath Waste

Bath waste with overflow made using high quality material. Please note image is for illustration purpose only

No Option Selected
OP-171695 - Luxury Bath Pop-up Waste And Overflow - E1486AA + £83.70

Unilux Concealed Panel Fixing Kit

Concealed fixing kit for Ideal Standard Unilux bath panels. Durable, easy to install, and built for long-term use in modern bathrooms. Please note image is for illustration purpose only.

No Option Selected
OP-244935 - Concealed Panel Fixing Kit + £23.10
