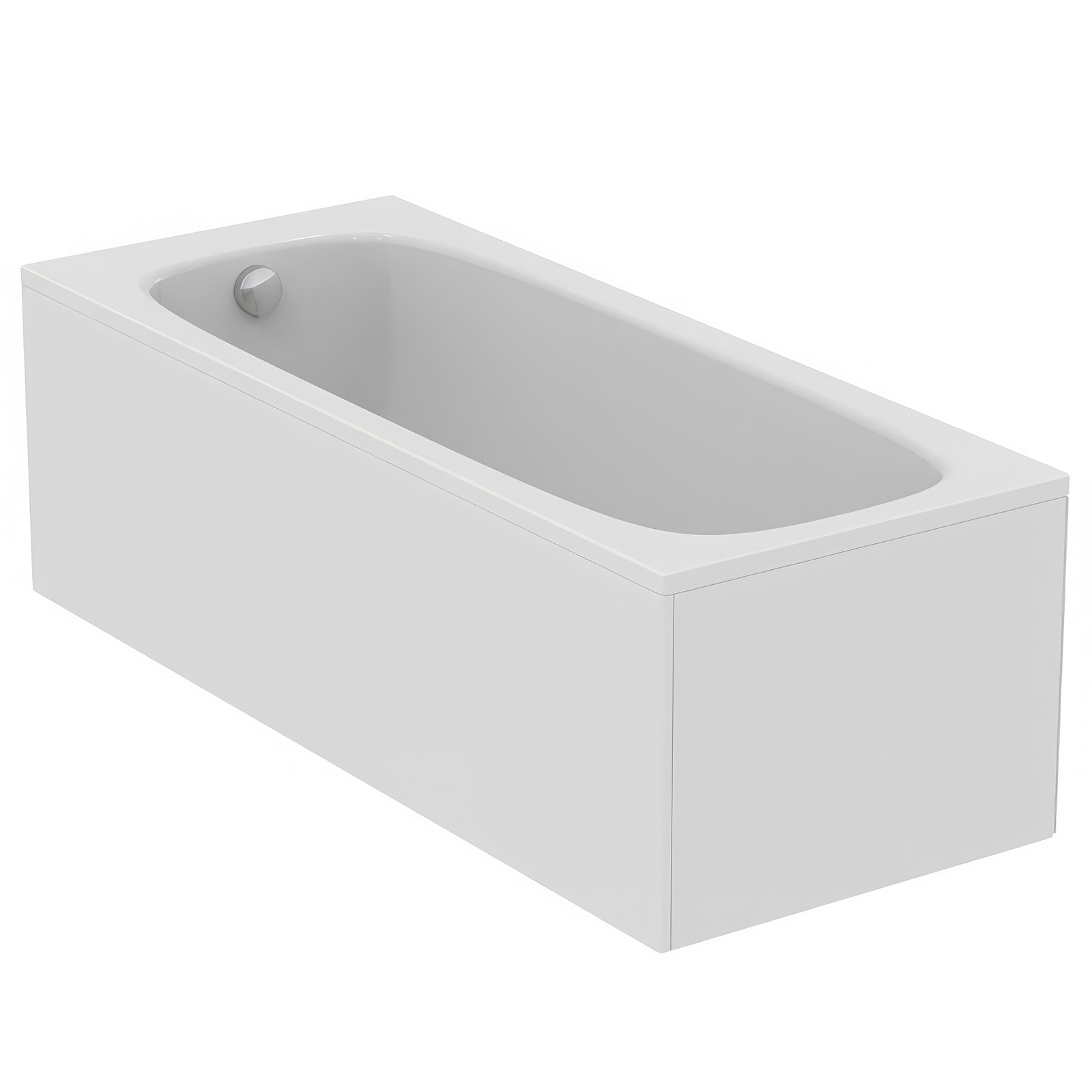

Ideal Standard I-Life Rectangular White Idealform Plus Straight Bath

Ideal Standard I-Life Details

MFC: T479701

Ideal Standard I-Life 1700 x 700mm Rectangular White Idealform Plus Straight Bath.

The Manufacturing Code of this Product is: T479701
It Comes in a White Finish
Domestic and Hotel Use
Part of an Extensive Range
Supplied No Taphole for Maximum Flexibility
Overall Height is 540mm [54cm] [Floor to Rim]
Size [mm]: 1700 x 700 x 420mm [Length x Width x Depth]
Size [cm]: 170 x 70 x 42cm [Length x Depth]
Capacity: 176 Litres
IdealForm Plus+ Provides All the Benefits of IdealForm, but with Double the Reinforcement for Peace of Mind. The Thicker Encapsulated Baseboard Provide a Supremely Sturdy Core, Whilst the Acrylic Outer Shell is Luxuriously Glossy, Smooth to Touch and Resistant to Wear and Tear
Bath Front and End Panel [Optional]
Waste and Trap [Optional]
Panel Fixing Kit and Leg Set [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Waste and Overflow Shown in the Image are Not Included - Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: I-Life
⤷ Bath Type
: Standard
⤷ External Length
: 1695
⤷ External Width
: 695
⤷ Tub Depth
: 390 | 410
⤷ Feets Included
: Sold Separately
⤷ Height Including Feet or Panel
: 540
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1070
⤷ Internal Bottom Width
: 450
⤷ Height of Rim
: 30

⤷ Distance Top edge to centre of overflow hole
: 70
⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52
⤷ Rim Width
: 70 | 130 | 80
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 176
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Idealform Plus+ Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-Drilled
⤷ Barcode
: 8014140488125

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Unilux And Unilux Plus Bath Panel

This acrylic bath front and end panel is suitable for Idealform and idealform plus bath only, Please Note: image shown is for illustration purpose only.

OP-233815 - Unilux Plus 70cm End Panel - E483101 + £49.74
OP-233851 - Unilux Plus+ 170cm Front Bath Panel - E479701 + £103.79

Optional Trap

Space saving trap and waste pipe assembly for use with furniture basin units. Please Note: Image shown is for illustration purpose only.

OP-204193 - Trap 1A½ Plastic P With 75mm Seal + £28.12

Compatible Bath Waste

Bath waste with overflow made using high quality material. Please note image is for illustration purpose only

No Option Selected
OP-171695 - Luxury Bath Pop-up Waste And Overflow - E1486AA + £83.70

Unilux Concealed Panel Fixing Kit

Concealed fixing kit for Ideal Standard Unilux bath panels. Durable, easy to install, and built for long-term use in modern bathrooms. Please note image is for illustration purpose only.

No Option Selected
OP-244935 - Concealed Panel Fixing Kit + £23.10

Bath Leg Set

Enhance your bathroom's look with a bath leg set that features sleek lines and is compatible with the Idealform plus rectangular baths. The image shown is for illustration purpose only.

No Option Selected
OP-244982 - Idealform Plus 700mm Bath Leg Set + £64.45

Ideal Standard I-Life 1700 x 700mm Rectangular White Idealform Plus Straight Bath

£415.01

RRP: ~~£518.76~~

Stock Availablity: 5 Working Days Approx

QS Supplies

1 Features Included In This Product Explained

Idealform Plus+

Idealform Plus+ provides all the benefits of Idealform, plus with extra reinforcement for peace of mind. Four different layers combine to give these baths exceptional strength and rigidity. The outer shell is vacuumed-formed acrylic which is smooth to the touch and luxuriously glossy, easy to clean and resistant to wear and tear. It is then reinforced with Glass Reinforced Polymer and supported by an 18mm encapsulated baseboard to increase its strength. Finally, the whole bath is coated in an outer colour layer of a Glass Reinforced Polymer resin mix, which creates a more robust bonded product with a smoother surface and added insulating properties to keep the water warmer for longer.
