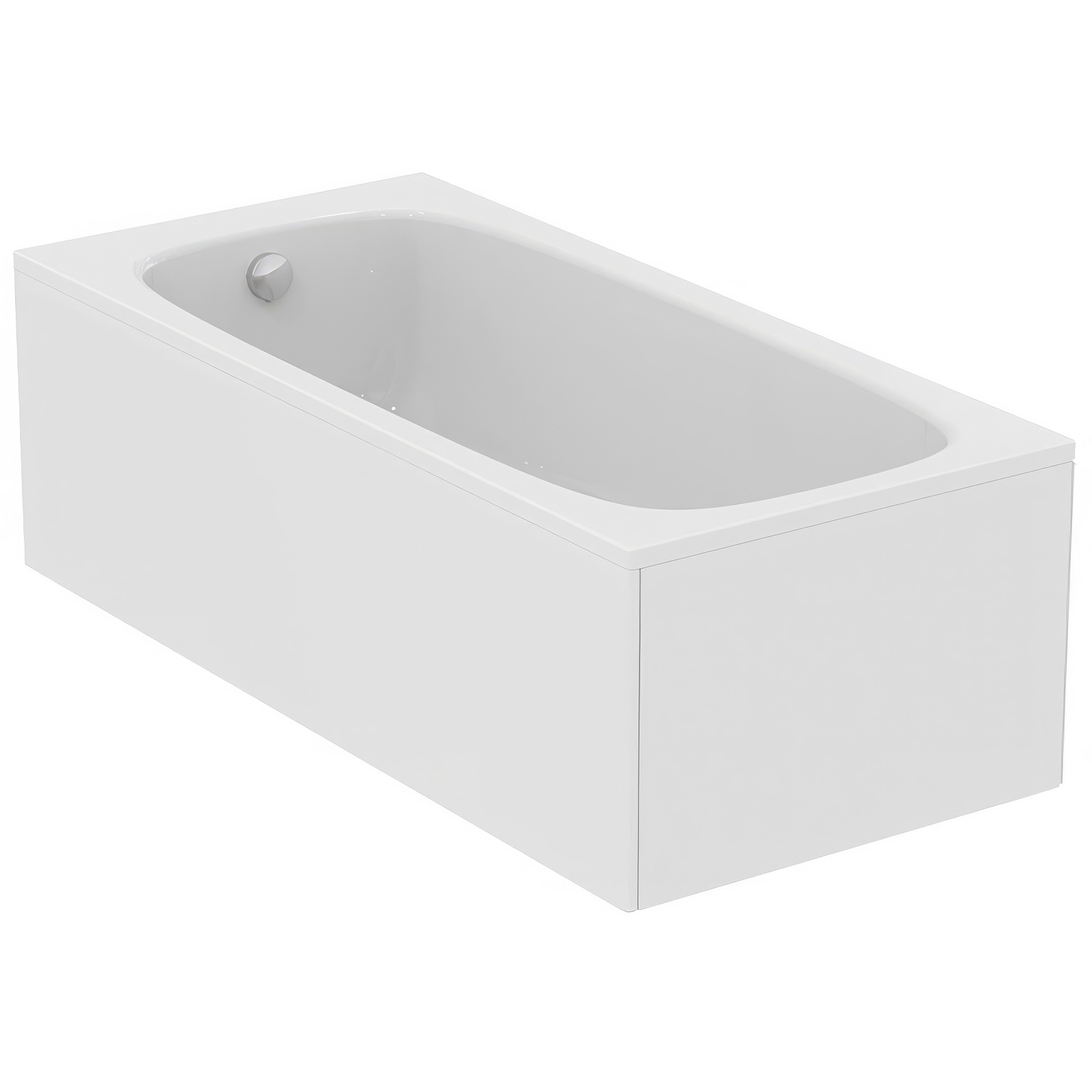

Ideal Standard I-Life 1700mm Single-Ended White Idealform Bath

Ideal Standard I-Life Details

MFC: T477301

Ideal Standard I-Life 1700mm Single-Ended White Idealform Bath.

Key Features

✔Detergent and Light-Resistant
✔Constructed Using Acrylic Material
✔Standards: EN 198:2008. EN 14516
✔25-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Widths: 750mm and 800mm
Single-Ended Straight Bath
Domestic and Hotel Use
Part of an extensive Range
Supplied no Taphole for Maximum Flexibility
Overall Height is 540mm [54cm] [Floor to Rim]
IdealForm: Made from High-Quality, Reinforced Cell, Cast Acrylic Sheet, which is Robust, Scratch-Resistant and Lightweight
Bath Front and End Panel [Optional]
Waste and Trap [Optional]
Panel Fixing Kit [Optional]
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Details Of 750mm:
Size [mm]: 1700 x 750 x 390mm [Length x Width x Depth]
Size [cm]: 170 x 75 x 39cm [Length x Width x Depth]
Capacity: 192 Litres
Weight: 20 Kg
Details of 800mm:
Size [mm]: 1700 x 800 x 390mm [Length x Width x Depth]
Size [cm]: 170 x 80 x 39cm [Length x Width x Depth]
Capacity: 211Litres
Weight: 22 Kg
Waste and Overflow Shown in the Image are not Included - Sold Separately

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: Foot-End
⤷ Range
: I-Life
⤷ Bath Type
: Standard
⤷ External Length
: 1695
⤷ External Width
: 750
⤷ Tub Depth
: 390 | 410
⤷ Height Including Feet or Panel
: 540
⤷ Front Panel Included
: Sold Separately
⤷ End Panel Included
: Sold Separately
⤷ Colour
: White
⤷ Internal Bottom Length
: 1070
⤷ Internal Bottom Width
: 490
⤷ Height of Rim
: 30
⤷ Distance Top edge to centre of overflow hole
: 70

⤷ Diameter of overflow hole
: 52
⤷ Diameter of Drain hole
: 52
⤷ Rim Width
: 70 | 80 | 130
⤷ Weight in kg
: 20
⤷ Shape
: Rectangular
⤷ Capacity in litres
: 192
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Waste Included
: Sold Separately
⤷ Tap Holes
: Un-Drilled
⤷ Barcode
: 8014140488491

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Bath Panel

White Finish Bath Panel. Please Note: The image shown is for illustration purposes only.

OP-57529 - Unilux 750mm End Panel - E319501 + £56.22
OP-57557 - Unilux Plus 800mm End Panel - E483301 + £66.01
OP-57514 - Unilux 1700mm Front Panel - E319401 + £95.23

Optional Trap

Space saving trap and waste pipe assembly for use with furniture basin units. Please Note: Image shown is for illustration purpose only.

OP-204193 - Trap 1A½ Plastic P With 75mm Seal + £28.12

Compatible Bath Waste

Bath waste with overflow made using high quality material. Please note image is for illustration purpose only

No Option Selected
OP-171695 - Luxury Bath Pop-up Waste And Overflow - E1486AA + £83.70

Unilux Concealed Panel Fixing Kit

Concealed fixing kit for Ideal Standard Unilux bath panels. Durable, easy to install, and built for long-term use in modern bathrooms. Please note image is for illustration purpose only.

No Option Selected
OP-244935 - Concealed Panel Fixing Kit + £23.10

Ideal Standard I-Life 1700mm Single-Ended White Idealform Bath

£270.56

RRP: ~~£338.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Idealform

All Idealform baths are moulded from a high-quality reinforced cell-cast acrylic sheet that is warm to the touch and provides exceptional insulation. The sheet is heated and then vacuum formed into the desired bath shape. It is then fully reinforced with Glass Reinforced Polymer (GRP). A medium-density 15mm base board is positioned and encapsulated with extra Glass Reinforced Polymer (GRP). The bath is then cured, trimmed and drilled for tapholes or bath grips if required.

Resistant To Light

Shower trays do not discolour and wear through long-term changes in lighting. They are tested with xenon lamps, which accelerate the environmental effects to which the shower floors are exposed in daily use (EN ISO 4892).

Detergent Resistant

Shower trays are subjected to strict inspections of resistance to chemicals and pass these tests according to standard EN 14527.
